SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-283

STEP 6. Check the harness for short circuit between
SRS-ECU connector C-27 (terminal No.43 and 44) and
passenger’s seat belt pre-tensioner connector D-130
(terminal No.2 and 1).
Q: Is the check result normal?

YES : Go to Step 7.
NO :  Repair the harness wires between SRS-ECU

connector C-27 and passenger’s seat belt
pre-tensioner connector D-130. Then go to Step 7.

STEP 7. Recheck for diagnostic trouble code.
Check again if the DTC is set.
(1) Erase the DTC.
(2) Turn the ignition switch to the "ON" position.
(3) Check if the DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC B1C4A set?

YES : Return to Step 1.
NO :  The procedure is complete.

ZC501967

AC404789

AC701411AB

MB991824

MB991827

MB991910

Data link
connector

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-284

DTC B210D: Battery Abnormal Low Voltage

CAUTION

If the diagnostic trouble code B210D is set in the
SRS-ECU, always diagnose the CAN main bus

line.

.

IG1
RELAY

AC803172

SRS-ECU

AB

FUSIBLE
LINK

34

IGNITION
SWITCH (IG1)

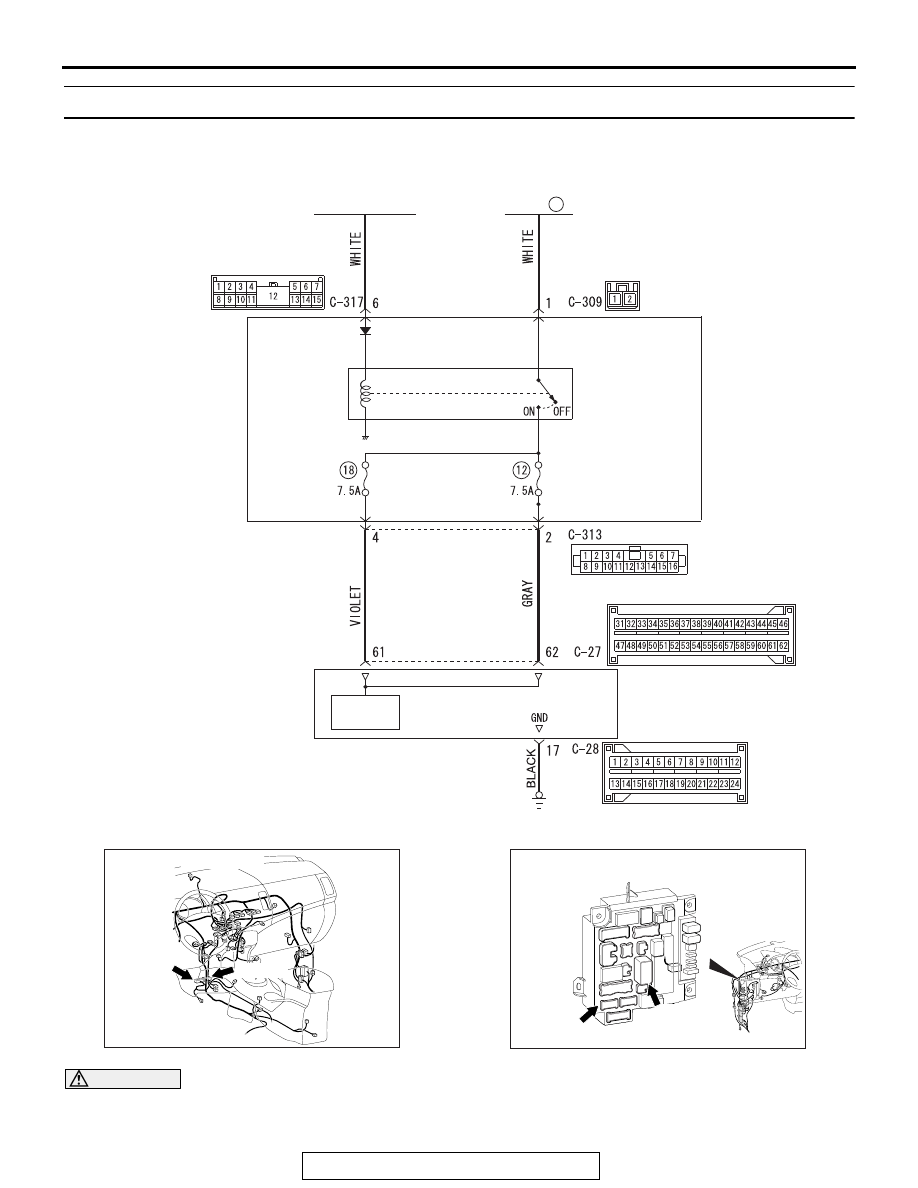

IG1 Power Supply Circuit

ETACS-ECU

POWER
SUPPLY

AC901076

C-28 (Y)

AD

Connectors: C-27, C-28

C-27 (Y)

ACA02655AH

Connectors: C-309, C-313

C-309 (B)

C-313 (BR)

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-285

CIRCUIT OPERATION

• The SRS-ECU is powered from the fusible link

(34).

• The SRS-ECU power is supplied from two cir-

cuits. Even if one circuit is shut off, the air bag
can inflate.

.

DTC SET CONDITIONS

The code is set when the battery voltage becomes
low or when the open circuit occurs to the power sup-
ply circuit.

.

TROUBLESHOOTING HINTS

• Battery voltage low voltage

• Open circuit to power supply circuit

• Damaged wiring harnesses or connectors

• Malfunction of the SRS-ECU

• Malfunction of ETACS-ECU

DIAGNOSIS

Required Special Tools:

•  MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

STEP 1. Power supply fuse number 12, 18 check.
Q: Is the fuse in good condition?

YES : Go to Step 3.
NO :  Go to Step 2.

STEP 2. Wiring harness check between the C-313
ETACS-ECU connector terminal No. 4/2 and the C-27
SRS-ECU connector terminal No. 61/62.

•  Short circuit check for SRS-ECU power supply wire

Q: Is the check result normal?

YES : Replace the power supply fuse.
NO :  Repair the wiring harness. And than replace the

power supply fuse.

STEP 3. Battery check.
Refer to GROUP 54A, Battery Test

P.54A-9

.

Q: Is the check result normal?

YES : Go to Step 4.
NO :  Charge or replace the battery.

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-286

STEP 4. Measure the voltage at the ETACS-ECU connector.
(1) Disconnect the C-309 ETACS-ECU connector.
(2) Measure the voltage between the C-309 harness side

connector terminal No. 1 and the body ground.

• The voltage should measure 12 volts (battery positive

voltage).

Q: Is the measured voltage approximately 12 volts (battery

positive voltage)?
YES :
Go to Step 6.
NO :  Go to Step 5.

STEP 5. Wiring harness check between the fusible link (34)
and the C-309 ETACS-ECU connector terminal No. 1.

•  Open circuit check for ETACS-ECU power supply wire

Q: Is the check result normal?

YES : Go to Step 10.
NO :  Repair the wiring harness.

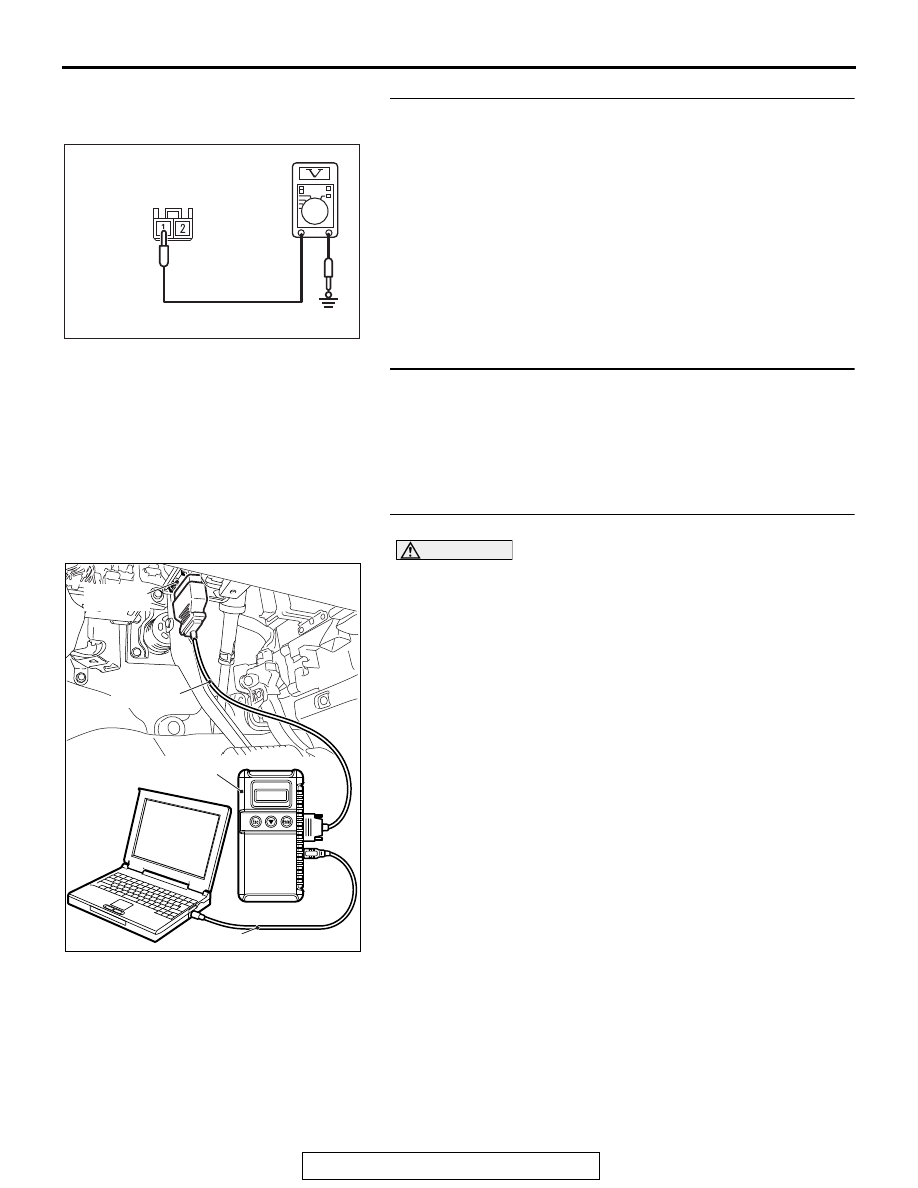

STEP 6. Using scan tool MB991958, diagnose the ETACS.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.

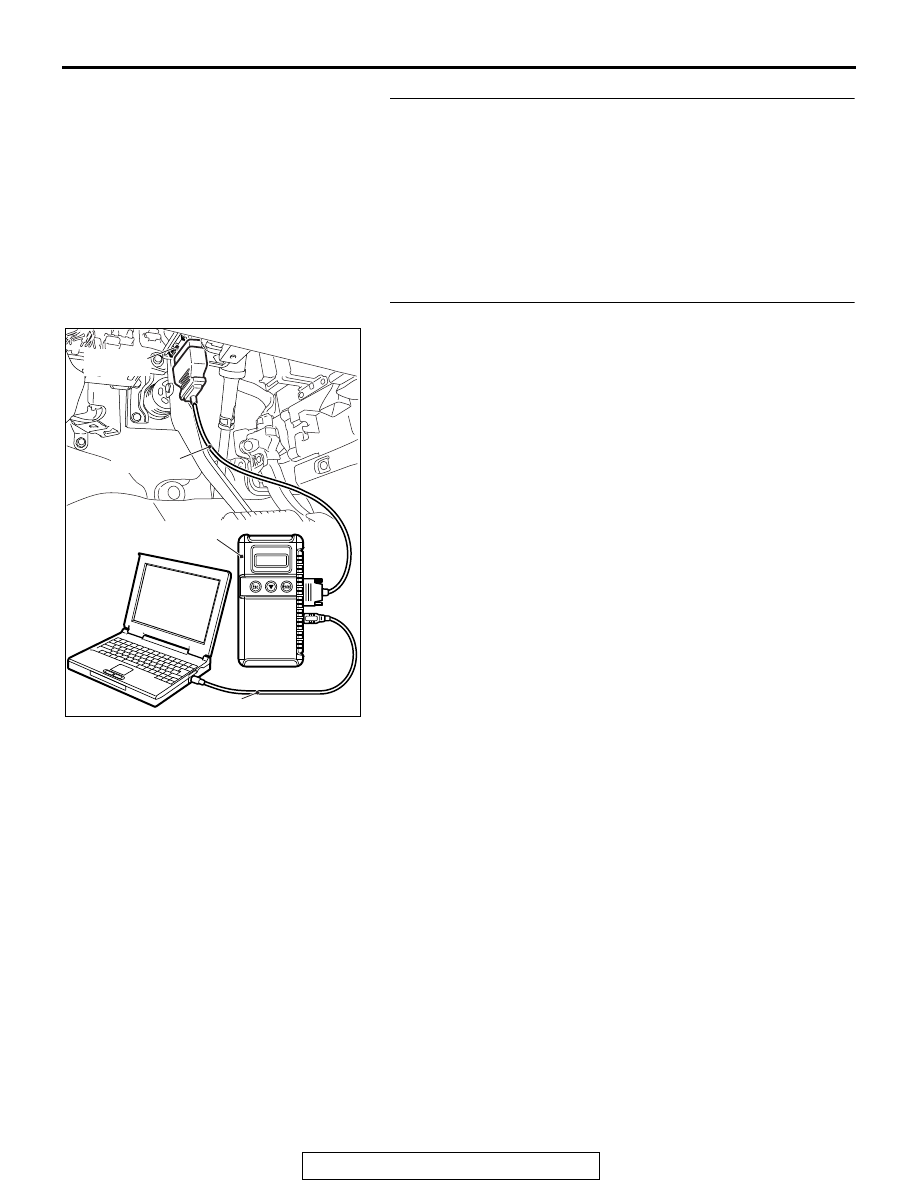

(1) Connect scan tool MB991958. Refer to "How to connect the

scan tool

P.52B-28

."

(2) Erase the DTC.
(3) Turn the ignition switch to the "ON" position.
(4) Check if the DTC is set.
(5) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Diagnose the ETACS (Refer to GROUP 54A, ETACS,

Diagnosis

P.54A-733

).

NO :  Check the input signal of ETACS-ECU ignition switch

(IG1) (Refer to GROUP 54A

− ETACS, Symptom

procedures

P.54A-789

). Than go to step 7.

AC709344

C-309 Harness side
connector (rear view)

AE

ZC501967

AC404789

AC701411AB

MB991824

MB991827

MB991910

Data link
connector
