Mitsubishi Outlander GS45X. Manual - part 145





HANDS FREE MODULE

TSB Revision

CHASSIS ELECTRICAL

54A-577

HANDS FREE MODULE

GENERAL INFORMATION

M1544401200291

The hands free module enables handsfree talking
and playing music by bluetooth

® connection with

bluetooth

® device (mobile phone or music player). In

addition, music can be played by connecting the
USB-compatible device to the USB adapter.

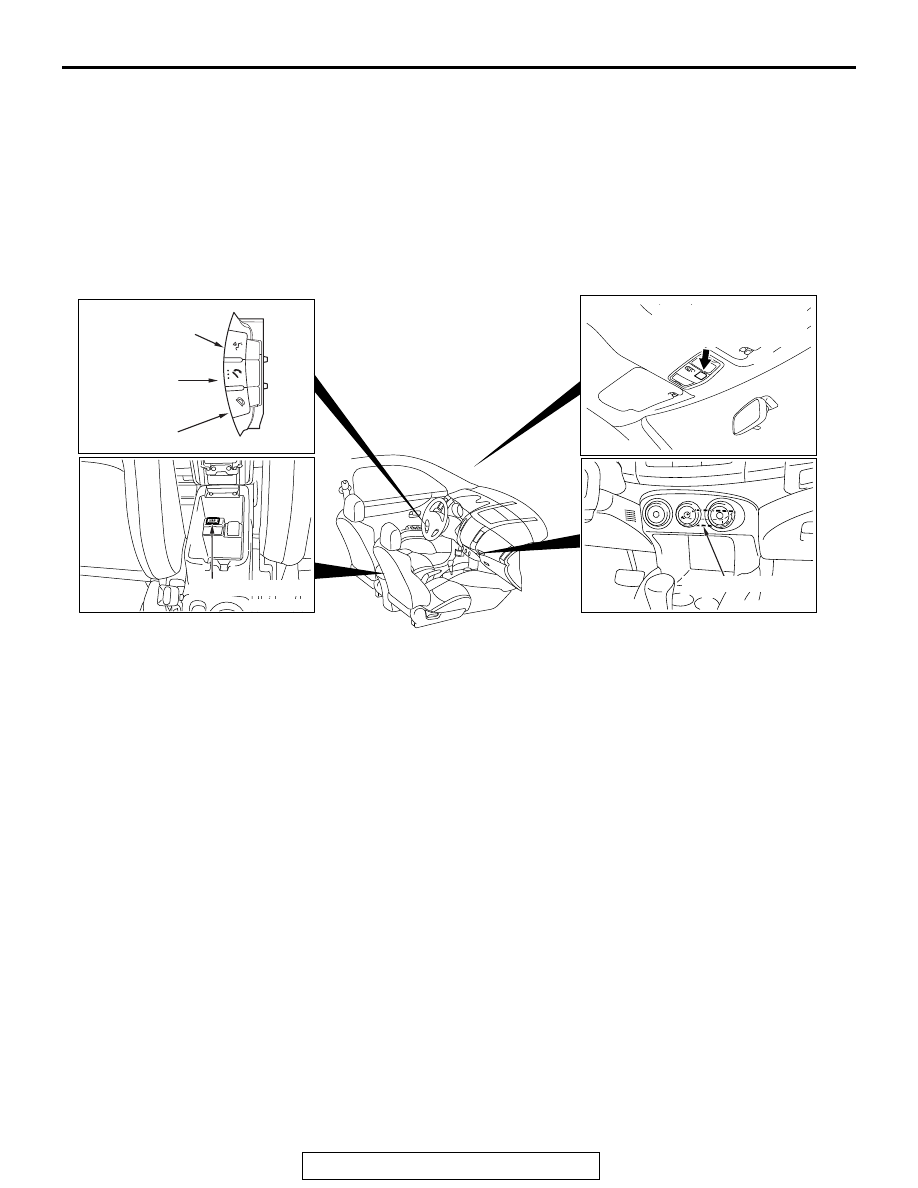

Construction diagram

ACA02823

AC809503

“Speech”
 switch

“Pick-up”
 switch

“Hang-up”
 switch



Microphone unit
(built in front dome light)

AB

Hands free module

USB adapter

HANDS FREE MODULE

TSB Revision

CHASSIS ELECTRICAL

54A-578

System block diagram

ACA01354

Speaker

Audio display

*

1

Steering wheel voice
control switch



*1: Vehicles with radio and CD player

*2: Vehicles with MMCS

Bluetooth

R

Phone voice
         or
      music

Voice

Microphone power

Microphone unit
(built in front dome light)

Hands free module

Radio and CD player*

1

             or
Multivision display*

2

Communication

USB adapter



Music

Audio control

USB device



Bluetooth  device

R

AC

HANDS FREE MODULE

TSB Revision

CHASSIS ELECTRICAL

54A-579

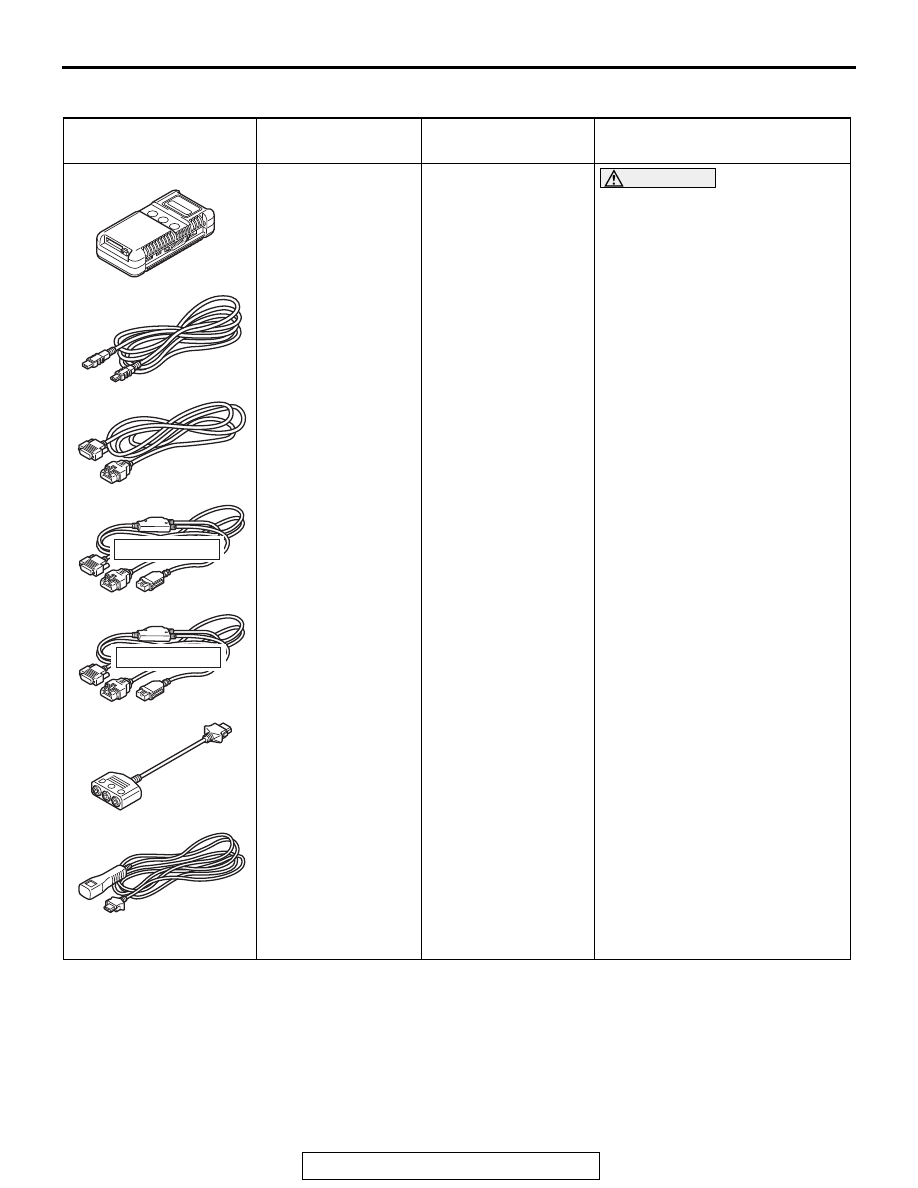

SPECIAL TOOLS

M1544403500102

Tool

Tool number and
name

Supersession

Application

MB991958

a. MB991824
b. MB991827
c. MB991910
d. MB991911
e. MB991914
f. MB991825
g. MB991826

M.U.T.-III
sub-assembly

a. Vehicle

communication
interface (V.C.I.)

b. M.U.T.-III USB

cable

c. M.U.T.-III main

harness A
(Vehicles with
CAN
communication
system)

d. M.U.T.-III main

harness B
(Vehicles without
CAN
communication
system)

e. M.U.T.-III main

harness C (for
Chrysler models
only)

f. M.U.T.-III

measurement
adapter

g. M.U.T.-III trigger

harness

MB991824-KIT
NOTE: G: MB991826
M.U.T.-III Trigger
Harness is not
necessary when
pushing V.C.I. ENTER
key.

CAUTION

M.U.T.-III main harness A
(MB991910) should be used.
M.U.T.-III main harness B and C
should not be used for this
vehicle.
CAN bus diagnostics, diagnostic
trouble code or data list check.

MB991910

MB991826

MB991958

MB991911

MB991914

MB991824

MB991827

MB991825

DO NOT USE

a

b

c

d

e

f

g

DO NOT USE

HANDS FREE MODULE

TSB Revision

CHASSIS ELECTRICAL

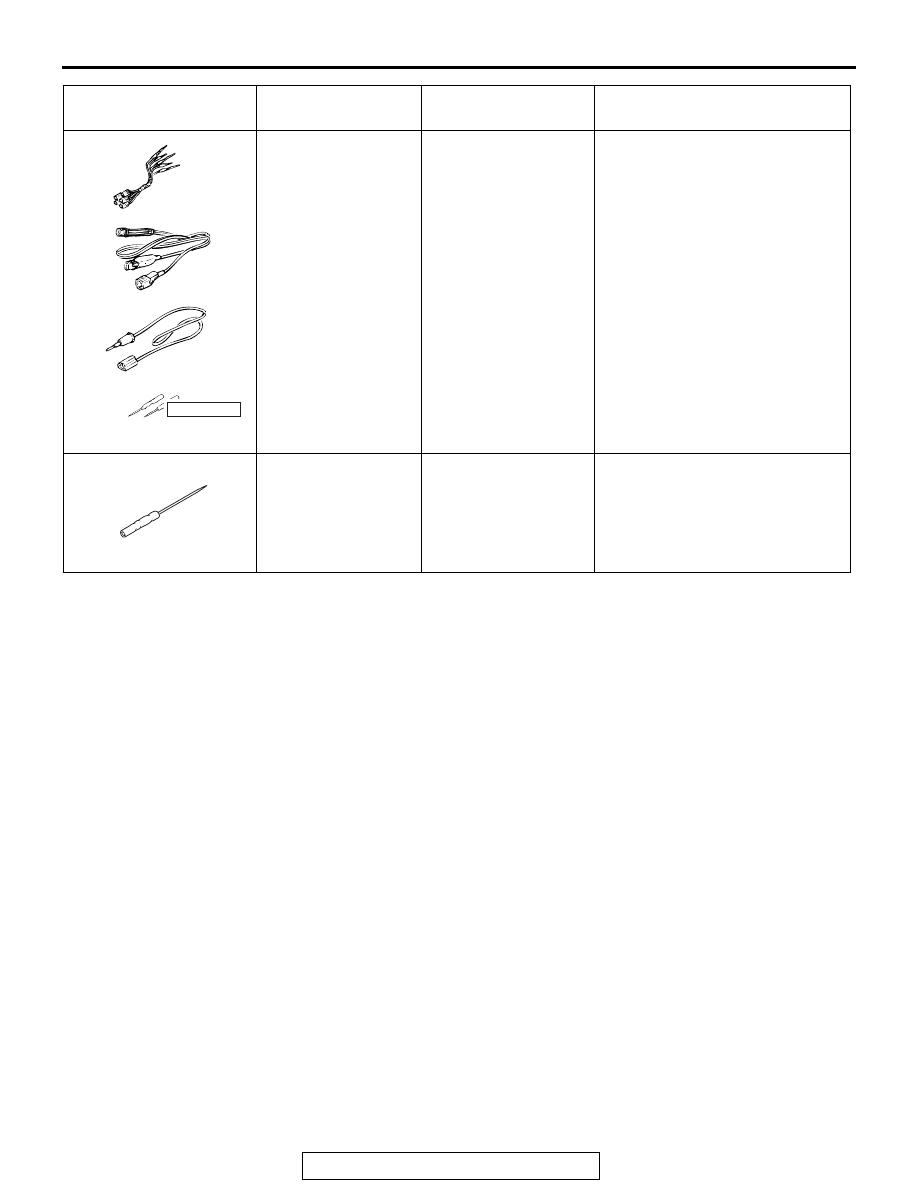

54A-580

MB991223

a. MB991219
b. MB991220
c. MB991221
d. MB991222

Harness set

a. Check harness
b. LED harness
c. LED harness

adapter

d. Probe

General service tool
(jumper)

Continuity check and voltage
measurement at harness wire or
connector

a. For checking connector pin

contact pressure

b. For checking power supply

circuit

c. For checking power supply

circuit

d. For connecting a locally

sourced tester

MB992006
Extra fine probe

Continuity check and voltage
measurement at harness wire or
connector

Tool

Tool number and
name

Supersession

Application

MB991223

a

d

c

b

DO NOT USE

BA

MB992006
