STEERING WHEEL AUDIO REMOTE CONTROL SWITCH

TSB Revision

CHASSIS ELECTRICAL

54A-573

TECHNICAL DESCRIPTION (COMMENT)

The power supply circuit to the steering wheel audio
remote control switch, the steering wheel audio
remote control switch, the combination meter, or the
clock spring may be defective.

.

TROUBLESHOOTING HINTS

• Malfunction of steering wheel audio remote con-

trol switch

• Malfunctions of combination meter

• Malfunction of the clock spring

• Damaged harness wires and connectors

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB992006: Extra Fine Probe

STEP 1. Check the combination meter.
Check whether the combination meter works normally.
Q: Does the combination meter operate normally?

YES : Go to Step 2.
NO :  Diagnose the combination meter. (Refer to

P.54A-34

.)

STEP 2. Check steering wheel audio remote control switch
connector C-213 for loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Q: Is steering wheel audio remote control switch

connector C-213 in good condition?
YES : Go to Step 3.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

.

STEP 3. Check the wiring harness between steering wheel
audio remote control switch connector C-213 (terminal 5)
and ground.

• Check the ground wire for open circuit .

Q: Is the wiring harness between steering wheel audio

remote control switch connector C-213 (terminal 5) and
ground in good condition?
YES : Go to Step 4.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary.

STEP 4. Check clock spring connectors C-202 and C-204
for loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Are clock spring connectors C-202 and C-204 in good

condition?
YES : Go to Step 5.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

.

STEERING WHEEL AUDIO REMOTE CONTROL SWITCH

TSB Revision

CHASSIS ELECTRICAL

54A-574

STEP 5. Check the clock spring.
Check whether the clock spring is in good condition (Refer to
GROUP 52B, Air bag module and clock spring

P.52B-447

).

Q: Is the check result normal?

YES : Go to Step 6.
NO :  Replace the clock spring.

STEP 6. Check the wiring harness between steering wheel
audio remote control switch connector C-213 (terminal 1)
and clock spring connector C-202 (terminal 1).

• Check the power supply lines for open and short circuit.

Q: Is the wiring harness between steering wheel audio

remote control switch connector C-213 (terminal 1) and
clock spring connector C-202 (terminal 1) in good
condition?
YES : Go to Step 7.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary.

STEP 7. Check combination meter connector C-03 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is combination meter connector C-03 in good

condition?
YES : Go to Step 8.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

.

STEP 8. Check the wiring harness between combination
meter connector C-03 (terminal 23) and clock spring
connector C-204 (terminal 6).

• Check the power supply lines for open and short circuit.

Q: Is the wiring harness between combination meter

connector C-03 (terminal 23) and clock spring
connector C-204 (terminal 6) in good condition?
YES : Go to Step 9.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary.

STEERING WHEEL AUDIO REMOTE CONTROL SWITCH

TSB Revision

CHASSIS ELECTRICAL

54A-575

STEP 9. Retest the system
Check whether the illumination of the steering wheel audio
remote control switch comes on normally.
Q: Doe the illumination of the steering wheel audio remote

control switch comes on normally?
YES : The trouble can be an intermittent malfunction (Refer

to GROUP 00, How to use
Troubleshooting/inspection Service Points, How to
Cope with Intermittent Malfunction

P.00-15

).

NO :  Replace the steering wheel audio remote control

switch.

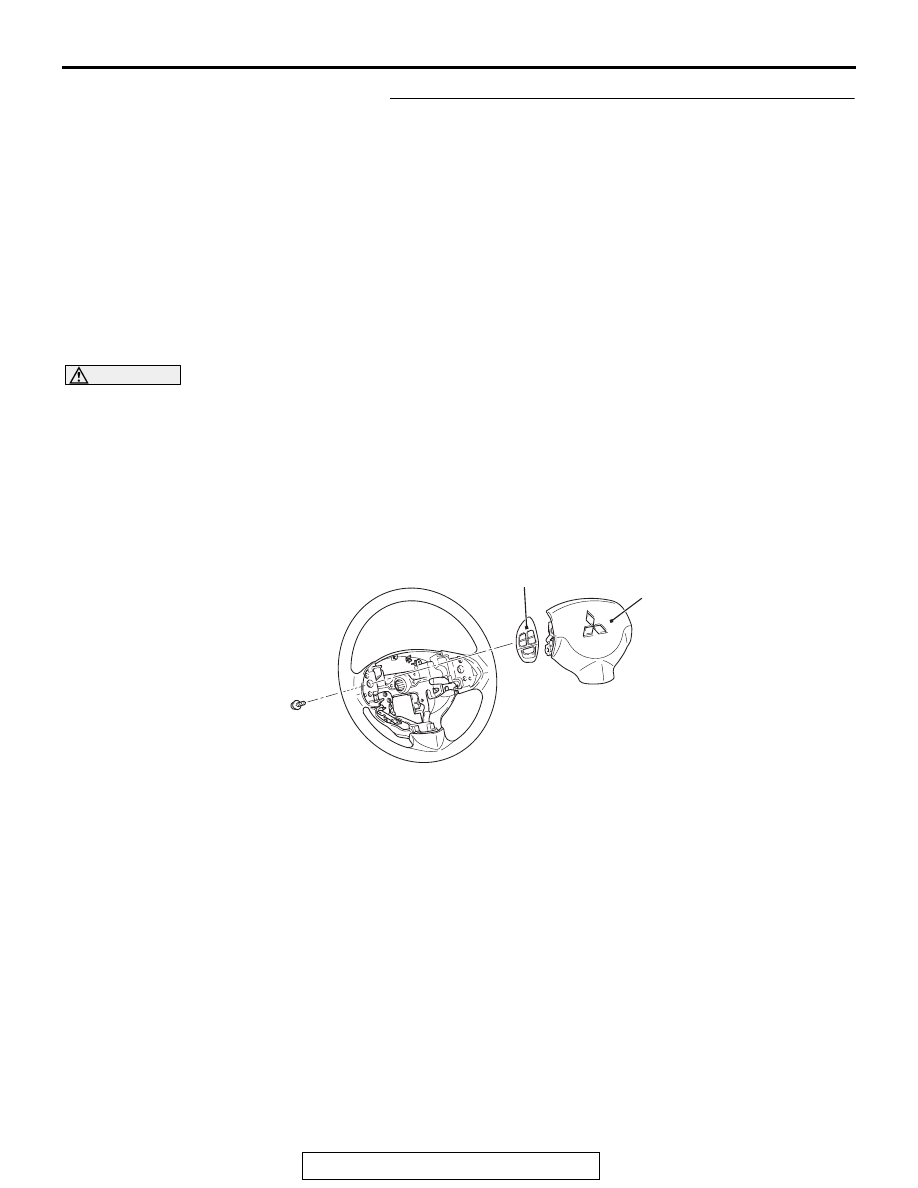

 REMOVAL AND INSTALLATION

M1544015600238

WARNING

•

Before removing the air bag module, refer
to GROUP 52B, Service Precautions
(

P.52B-25

) and Air Bag Module and Clock

Spring (

P.52B-439

).

•

When removing and installing the steer-
ing wheel, do not let it bump against the
air bag module.

AC605239

1

AC

2

Removal Steps

1.

Air bag module (Refer to GROUP
52B, Air Bag Module and Clock
Spring

P.52B-439

.)

2.

Steering wheel audio remote
control switch

STEERING WHEEL AUDIO REMOTE CONTROL SWITCH

TSB Revision

CHASSIS ELECTRICAL

54A-576

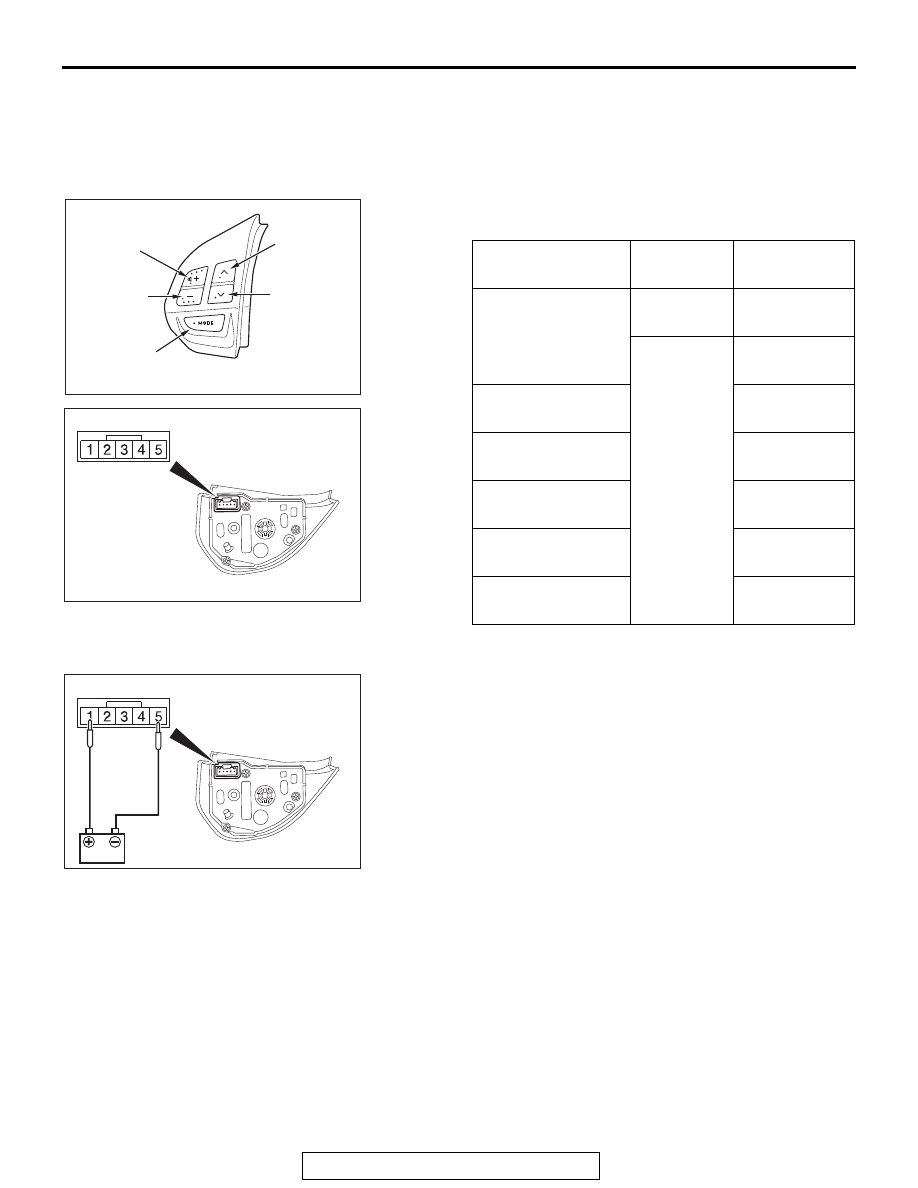

STEERING WHEEL AUDIO REMOTE CONTROL
SWITCH INSPECTION

M1544015700332

.

STEERING WHEEL AUDIO REMOTE CONTROL
SWITCH CHECK

Use an ohmmeter to measure the resistance value between the
terminal.

.

ILLUMINATION CHECK

Apply the battery voltage of steering wheel audio remote con-
trol switch connector terminal No. 1 and 5, and check if the
steering wheel audio remote control switch illuminates.
NOTE: Make sure that the polarity is correct.

Switch Position

Tester
Connection

Measurement
Value

No push

2

− 3

Approximately
3.1 k

Ω

2

− 4

Approximately
71 k

Ω

"Mode" switch

Approximately
270

Ω

"CH up" switch

Approximately
740

Ω

"CH down" switch

Approximately
1.3 k

Ω

"VOL up" switch

Approximately
2.1 k

Ω

"VOL down" switch

Approximately
3.1 k

Ω

AC605242

“VOL up” switch

“CH up”
switch

“CH down”
switch

“Mode” switch

AC

“VOL down”
switch

AC600711AC
