Mitsubishi Outlander GS45X. Manual - part 1428





SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-207

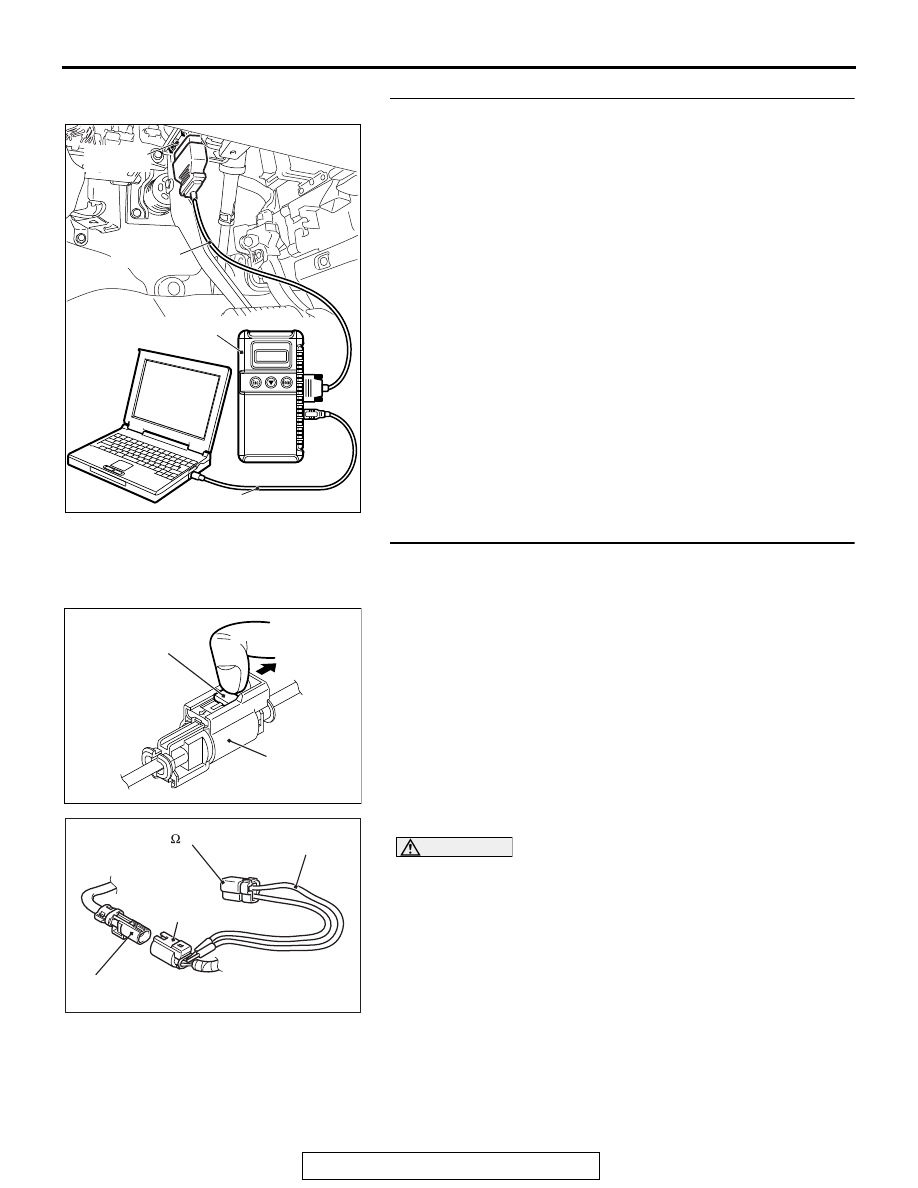

STEP 2. Recheck for diagnostic trouble code.
Check again if the DTC is set.
(1) Erase the DTC.
(2) Turn the ignition switch to "ON" position.
(3) Check if the DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Go to Step 3.
NO :  There is an intermittent malfunction such as poor

engaged connector(s) or open circuit (Refer to
GROUP 00, How to Cope with Intermittent
Malfunction

P.00-15

).

STEP 3. Check the side-air bag module (RH). (Using scan
tool MB991958, read the diagnostic trouble code.)
(1) Disconnect the negative battery terminal.
(2) Disconnect the D-31 side-airbag module connector, unlock

the connector by sliding the locking button to the direction of
the arrow as shown in the figure, and then disconnect the
connector.

(3) Connect special tool MB991865 to special tool MB991866.

CAUTION

Do not insert a test probe into the terminal from its front
side directly, as the connector contact pressure may be
weakened.
(4) Insert special tool MB991866 into the D-31 harness side

connector by backprobing.

(5) Connect the negative battery terminal.
(6) Erase the diagnostic trouble code memory, and check the

diagnostic trouble code.

Q: Is DTC B1C2C set?

YES : Go to Step 4.
NO :  Replace the seatback assembly (Refer to GROUP

52A, Front Seat Assembly

P.52A-19

). Then go to

Step 5.

ZC501967

AC404789

AC701411AB

MB991824

MB991827

MB991910

Data link
connector

AC706606

AI

Locking button

Side-airbag

module

connector

AC507310AQ

D-31

Side-airbag

module (RH) connector

D-31
Harness side
connector

MB991865
(Dummy resistor: 3    )

MB991866

(Resistor harness)

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-208

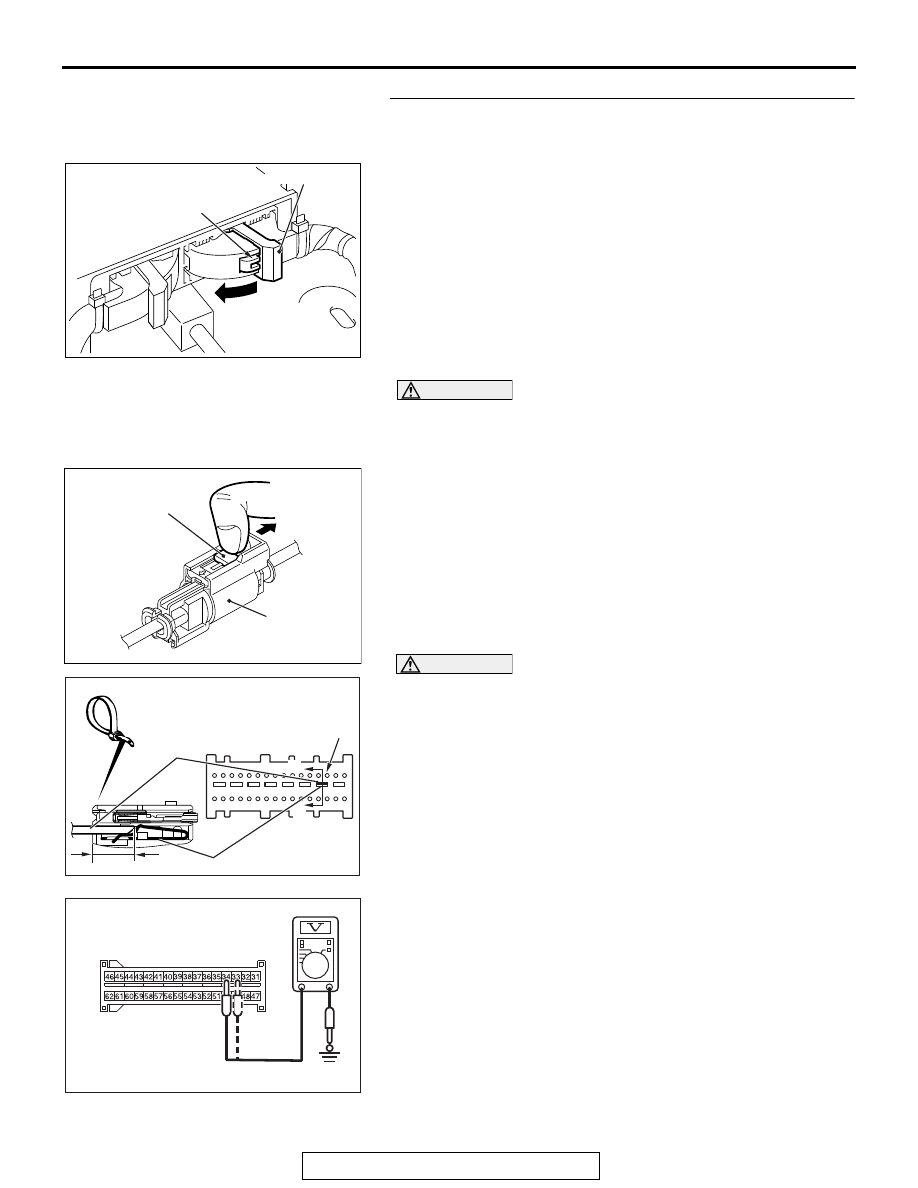

STEP 4. Check the side-air bag module (RH) circuit.
Measure the voltage at the SRS-ECU connector C-27.
(1) Disconnect the negative battery terminal.
(2) While pushing the part "A" indicated in the figure of the

harness side connector, turn the lock lever to the direction
of the arrow to release the lock lever, and disconnect the
C-27 SRS-ECU connector.

DANGER

To prevent the air bag from deploying unintentionally,
disconnect the side-airbag module (RH) connector
D-31 to short the squib circuit.

(3) Disconnect the D-31 side-airbag module connector, unlock

the connector by sliding the locking button to the direction of
the arrow as shown in the figure, and then disconnect the
connector.

CAUTION

Insert an insulator such as a cable tie to a depth of 4mm
(0.16 inch) or more, otherwise the short spring will not be
released.
(4) Insert a cable tie [3 mm (0.12 inch) wide, 0.5 mm (0.02 inch)

thick] between terminals 33, 34 and the short spring to
release the short spring.

(5) Connect the negative battery terminal.
(6) Ignition switch: "ON".

(7) Measure the voltage between C-27 harness side connector

terminals 33 and 34 and body ground.
Voltage should measure 1 volt or less.

Q: Is the measured voltage within the specified range?

YES : Erase the diagnostic trouble code memory, and check

the diagnostic trouble code. If DTC B1C2C sets,
replace the SRS-ECU. (Refer to

P.52B-436

). Then go

to Step 6.

NO :  Go to Step 5.

AC507645

A

AC

Lock lever

AC706606

AI

Locking button

Side-airbag

module

connector

AC507303AL

A

A

C-27 Harness side
connector (front view)

Section
A - A

Cable tie

Short spring

4 mm or more

Terminal

AC608813

C-27 Harness side
connector (front view)

BY

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-209

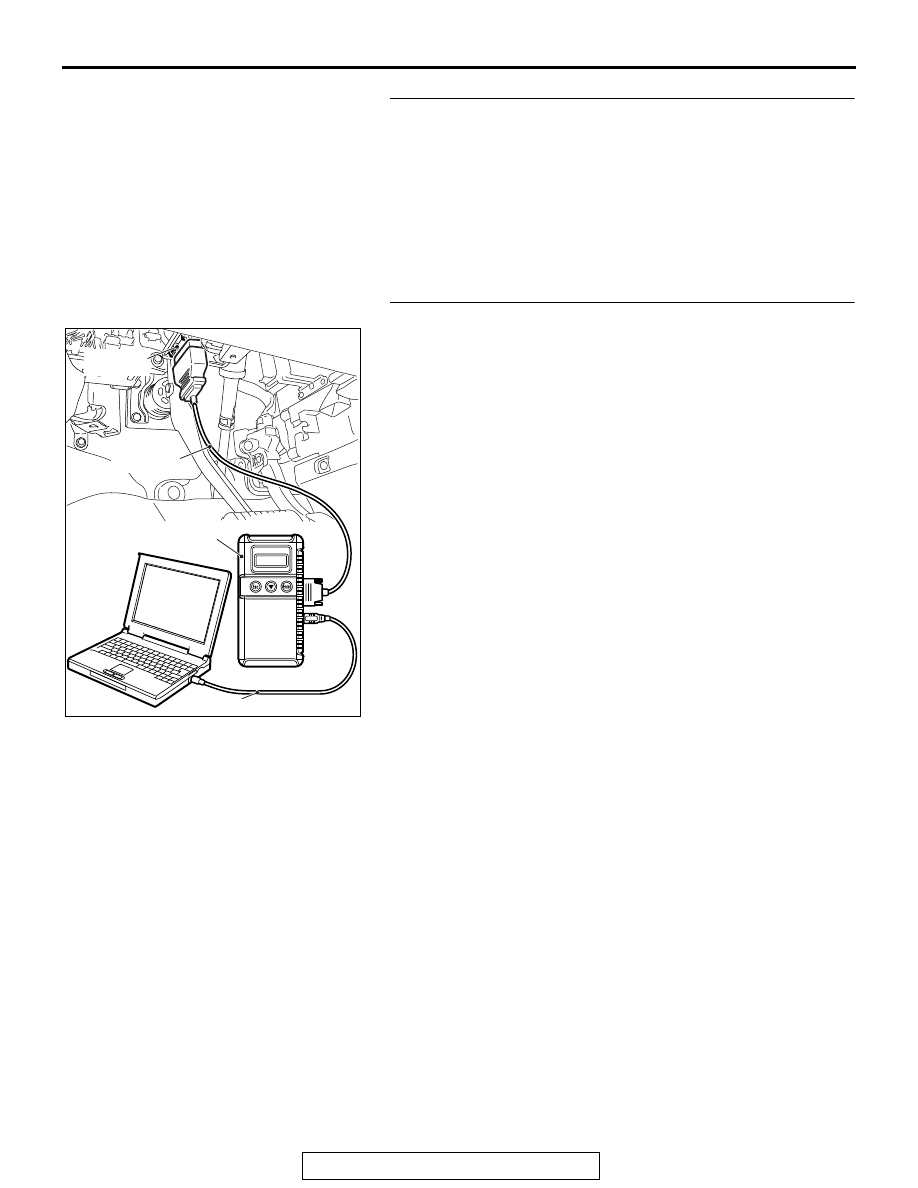

STEP 5. Check the harness wires for short circuit to power
supply between SRS-ECU connector C-27 (terminal No.33
and 34) and side-air bag module (RH) connector D-31
(terminal No.1 and 2).
Q: Is the check result normal?

YES : Go to Step 6.
NO :  Repair the harness wires between SRS-ECU

connector C-27 and side-air bag module (RH)
connector D-31. Then go to Step 6.

STEP 6. Recheck for diagnostic trouble code.
Check again if the DTC is set.
(1) Erase the DTC.
(2) Turn the ignition switch to the "ON" position.
(3) Check if the DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC B1C2C set?

YES : Return to Step 1.
NO :  The procedure is complete.

ZC501967

AC404789

AC701411AB

MB991824

MB991827

MB991910

Data link
connector

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-210

 DTC B1C2D: Side-air bag Module (RH) (Squib) System (Squib Circuit Open)

CAUTION

If DTC B1C2D is set in the SRS-ECU, always diag-
nose the CAN bus lines.

.

CIRCUIT OPERATION

• The SRS-ECU judges how severe a collision is

by detecting signals from the side impact sensor
installed on the lower side of the center pillar. If
the impact is over a predetermined level, the
SRS-ECU sends an ignition signal. At this time, if
the side collision safing G-sensor is on, the SRS
air bag will inflate.

• The ignition signal is input to the side-air bag

module to inflate the side-air bag.

.

DTC SET CONDITIONS

This DTC is set if there is abnormal resistance
between the input terminals of the side-air bag mod-
ule (RH) (squib).

.

TROUBLESHOOTING HINTS

• Open circuit in the side-air bag module (RH)

(squib) circuit

• Improper connector contact

• Malfunction of the SRS-ECU

CONNECTOR
LOCK SWITCH

SRS-ECU

Side-Airbag Module (Squib) (RH) Circuit

CONNECTOR
LOCK SWITCH

: CONNECTOR COUPLED: ON
  CONNECTOR UNCOUPLED: OFF

NOTE

SIDE-AIRBAG
MODULE
(SQUIB) (RH)

AC901076

C-27 (Y)

AC

Connector: C-27

AC901079

Connector: D-31

AF

D-31 (Y)
