SRS AIR BAG DIAGNOSIS
TSB Revision
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
52B-199

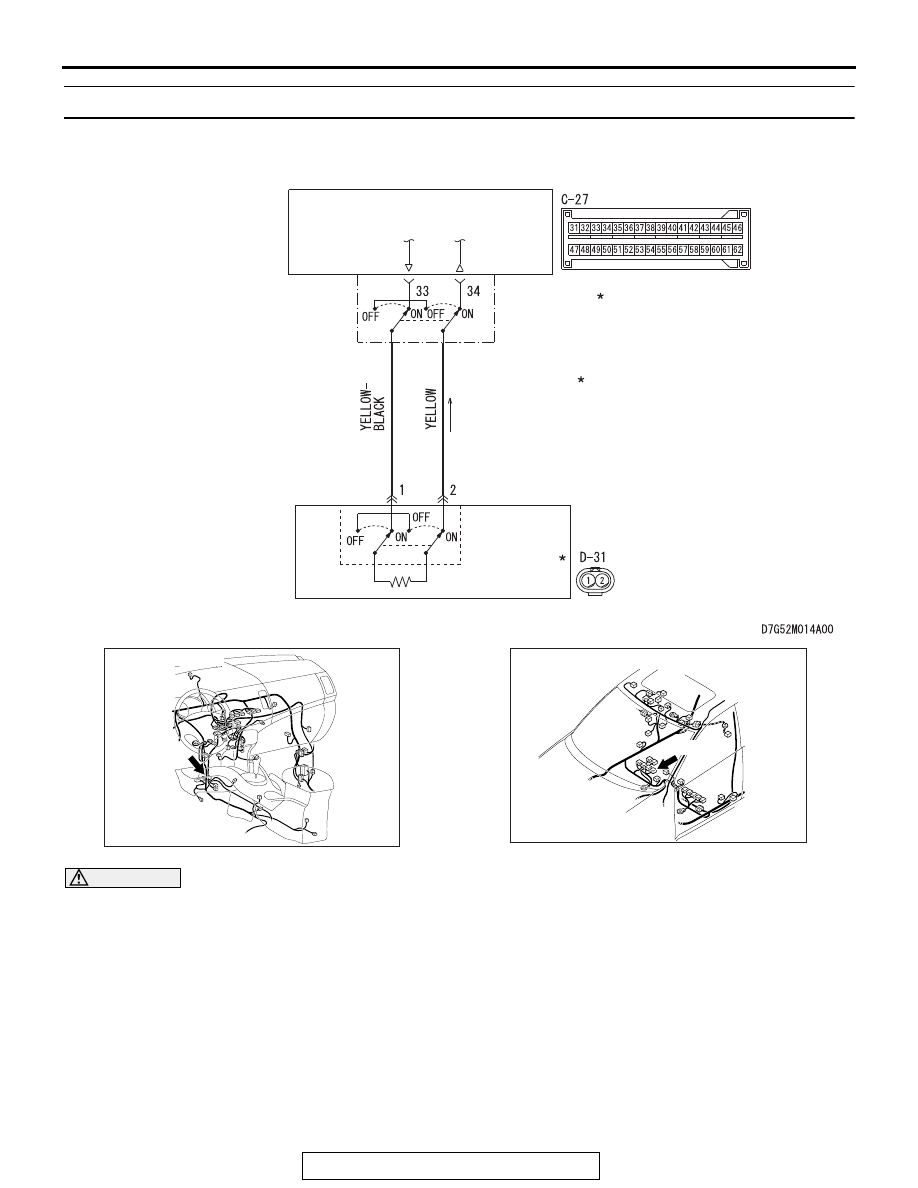

STEP 6. Check the harness wires for short circuit between
SRS-ECU connector C-27 (terminal No.31 and 32) and
side-air bag module (LH) connector D-29 (terminal No.2
and 1).
Q: Is the check result normal?
YES : Go to Step 7.
NO : Repair the harness wires between SRS-ECU
connector C-27 and side-air bag module (LH)
connector D-29. Then go to Step 7.

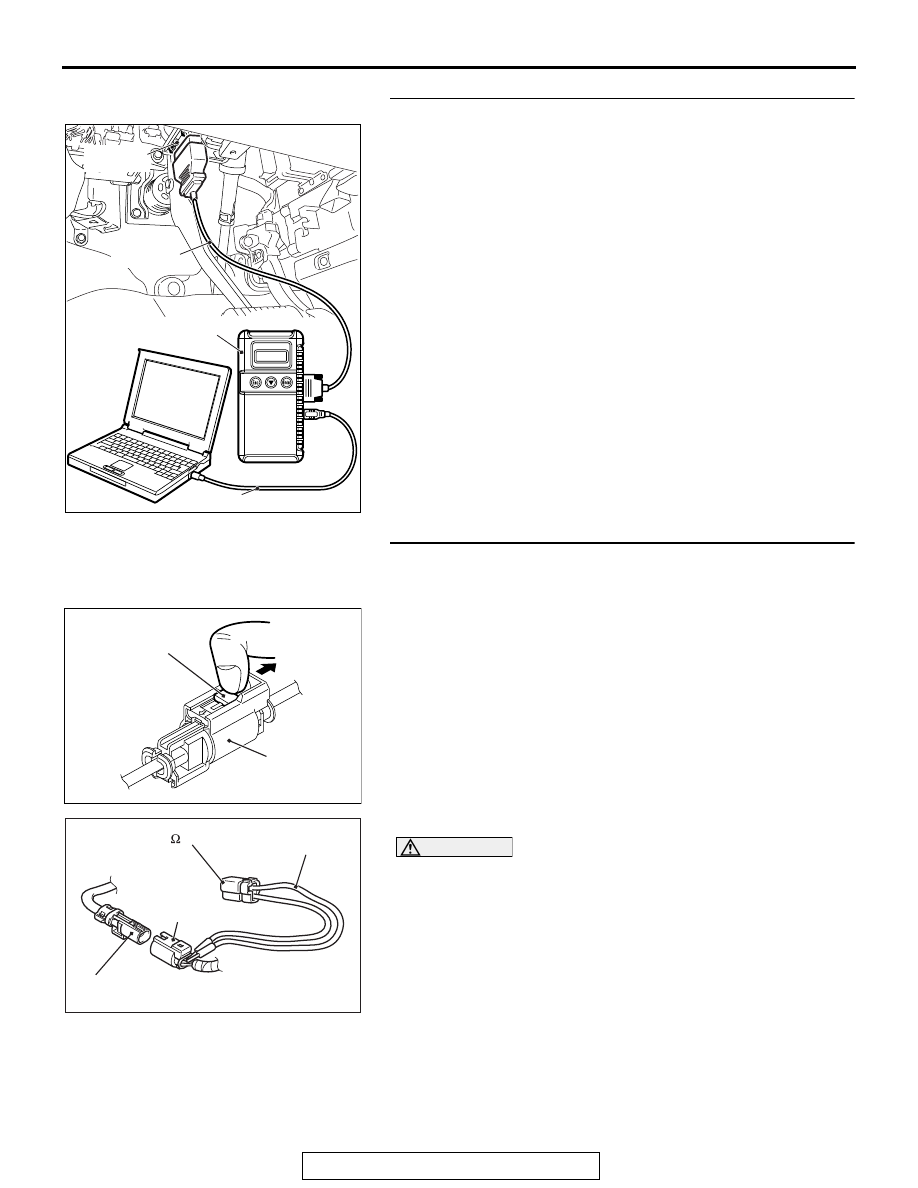

STEP 7. Recheck for diagnostic trouble code.
Check again if the DTC is set.
(1) Erase the DTC.
(2) Turn the ignition switch to the "ON" position.
(3) Check if the DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC B1C2A set?
YES : Return to Step 1.
NO : The procedure is complete.
ZC501967
AC404789
AC701411AB

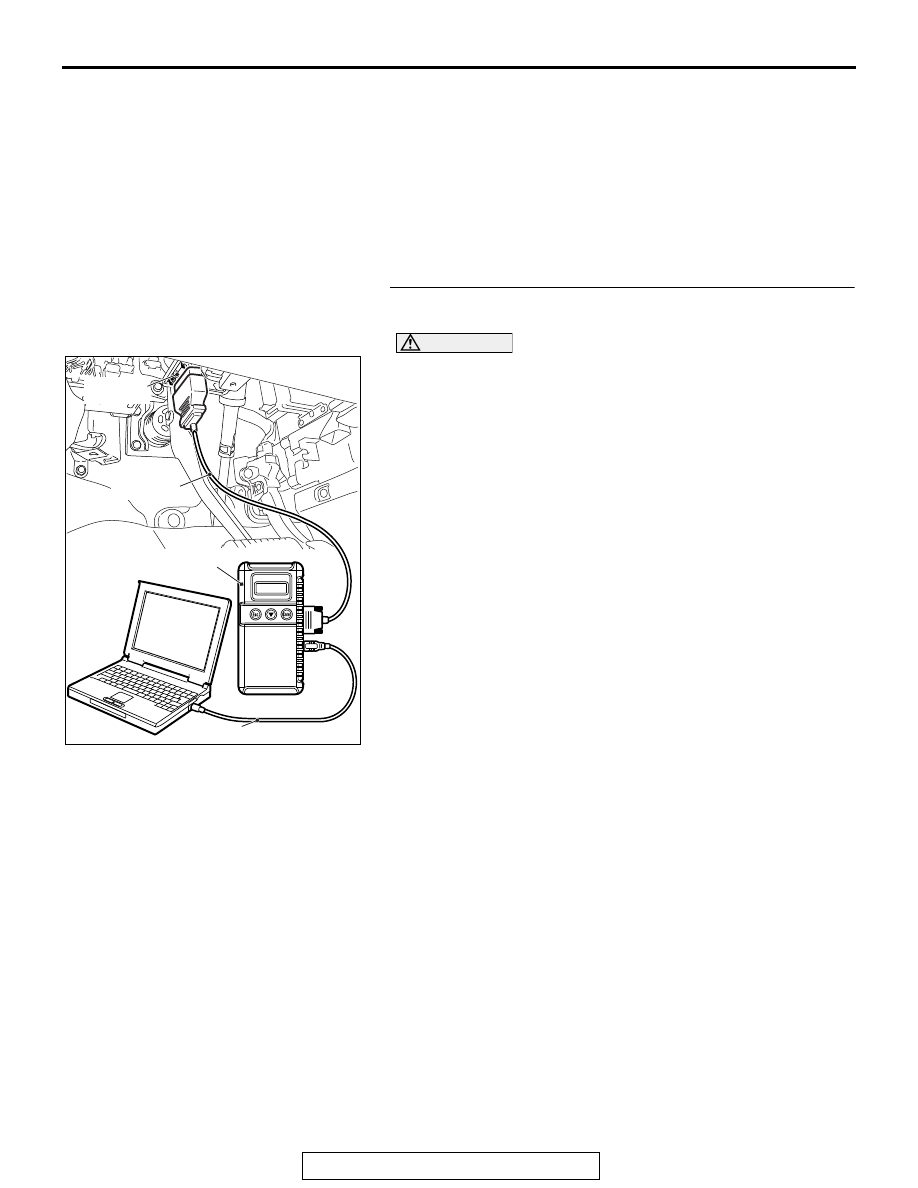

MB991824
MB991827
MB991910

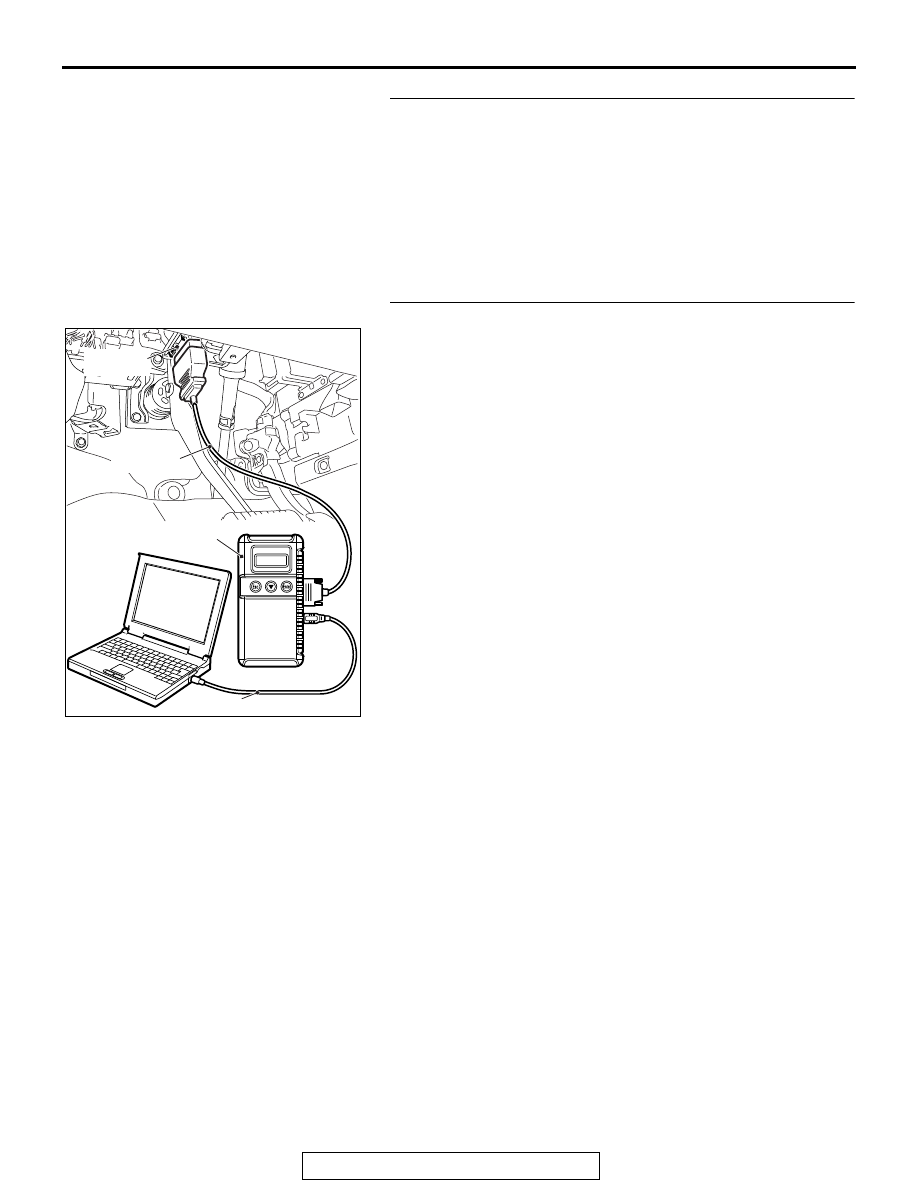

Data link
connector
