SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-195

NOTE:  *: The squib circuit connectors integrate a
"short" spring (which prevents the air bag from
deploying unintentionally due to static electricity by
shorting the positive wire to the ground wire in the
squib circuit when the connectors are disconnected).
Therefore, if connector C-27 or D-29 is damaged or
improperly engaged, the short spring may not be
released when the connector is connected.

DIAGNOSIS

Required Special Tools:

•  MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

• MB991865: Dummy resistor

• MB991866: Resister harness

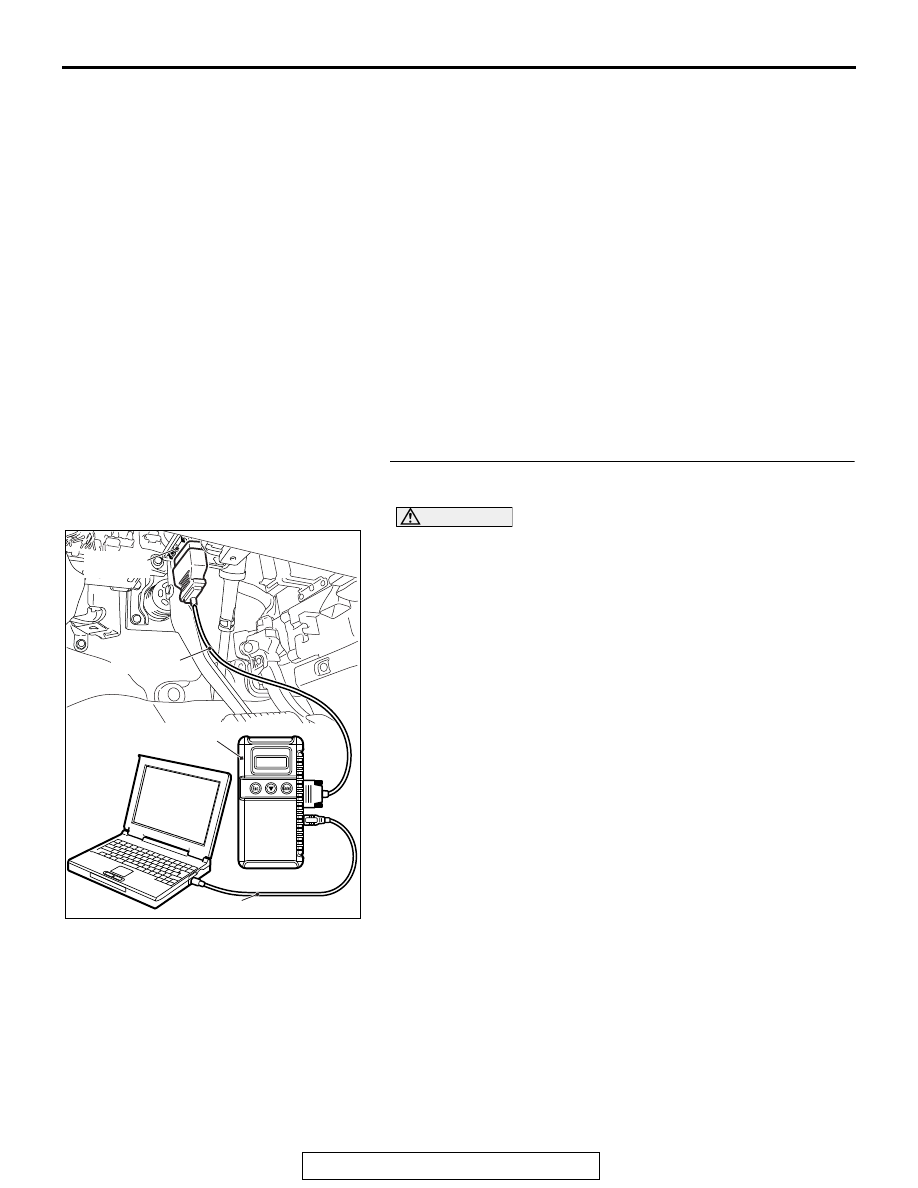

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958. Refer to "How to connect the

scan tool

P.52B-28

."

(2) Connect scan tool MB991958 to the data link connector.
(3) Turn the ignition switch to "ON" position.
(4) Diagnose the CAN bus line.
Q: Is the check result satisfactory?

YES : Go to Step 2.
NO :  Repair the CAN bus line (Refer to GROUP 54C,

Diagnosis

P.54C-17

).

ZC501967

AC404789

AC701411AB

MB991824

MB991827

MB991910

Data link
connector

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-196

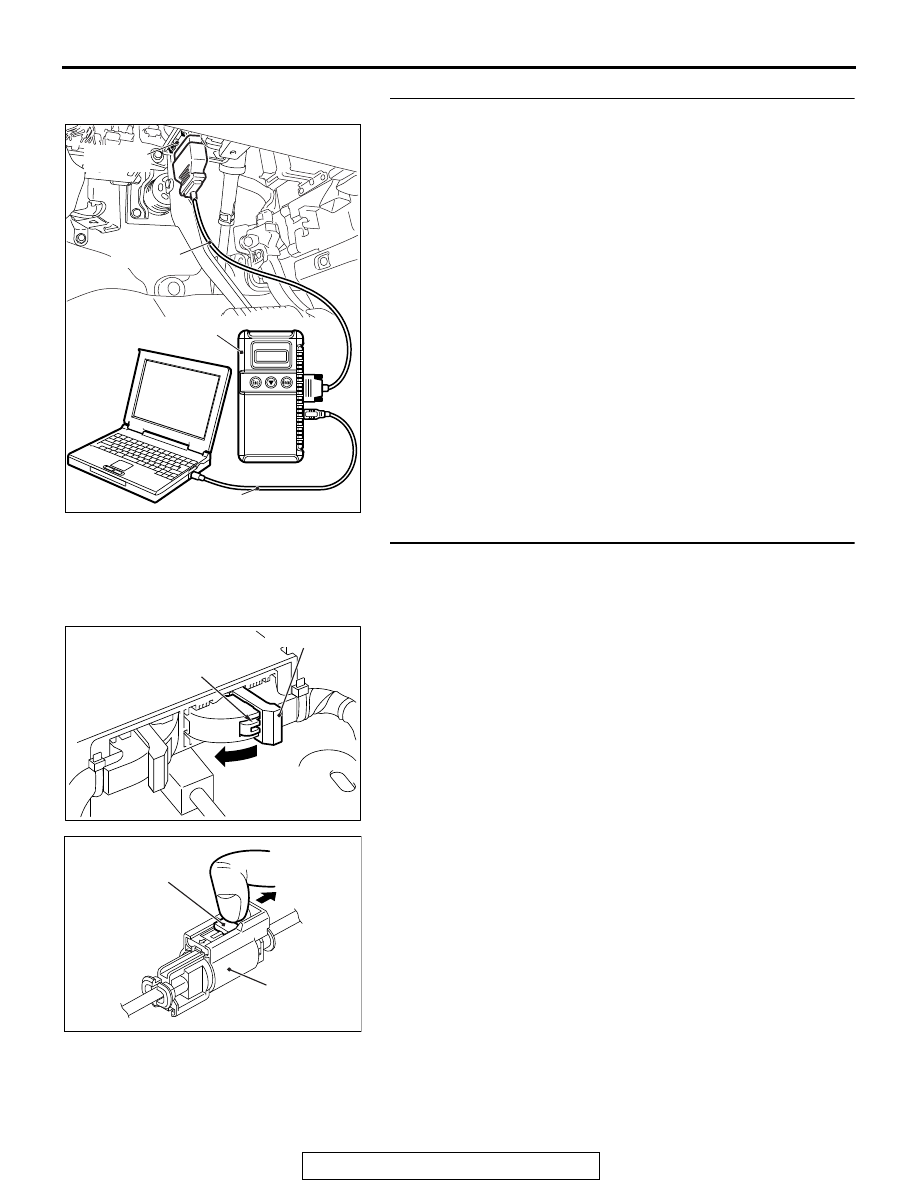

STEP 2. Recheck for diagnostic trouble code.
Check again if the DTC is set.
(1) Erase the DTC.
(2) Turn the ignition switch to "ON" position.
(3) Check if the DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Go to Step 3.
NO :  There is an intermittent malfunction such as poor

engaged connector(s) or open circuit (Refer to
GROUP 00, How to Cope with Intermittent
Malfunction

P.00-15

).

STEP 3. Check SRS-ECU connector C-27 and side-air bag
module (LH) connector D-29. (Using scan tool MB991958,
read the diagnostic trouble code.)
(1) Disconnect the negative battery terminal.
(2) While pressing the part A in the illustration of the C-27

SRS-ECU harness side connector, turn the lock lever
toward the arrow direction to release the lock lever. Then,
disconnect the connector and reconnect it.

(3) Disconnect the D-29 side-airbag module connector, and

then reconnect it. Unlock the connector by sliding the
locking button to the direction of the arrow as shown in the
figure, and then disconnect the connector.

(4) Connect the negative battery terminal.
(5) Erase the diagnostic trouble code memory, and check the

diagnostic trouble code.

Q: Is DTC B1C2A out put?

YES : Go to Step 4.
NO :  The procedure is complete. It is assumed that DTC

B1C2A set because connector C-27 or D-29 was
engaged improperly.

ZC501967

AC404789

AC701411AB

MB991824

MB991827

MB991910

Data link
connector

AC507645

A

AC

Lock lever

AC706606

AI

Locking button

Side-airbag

module

connector

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-197

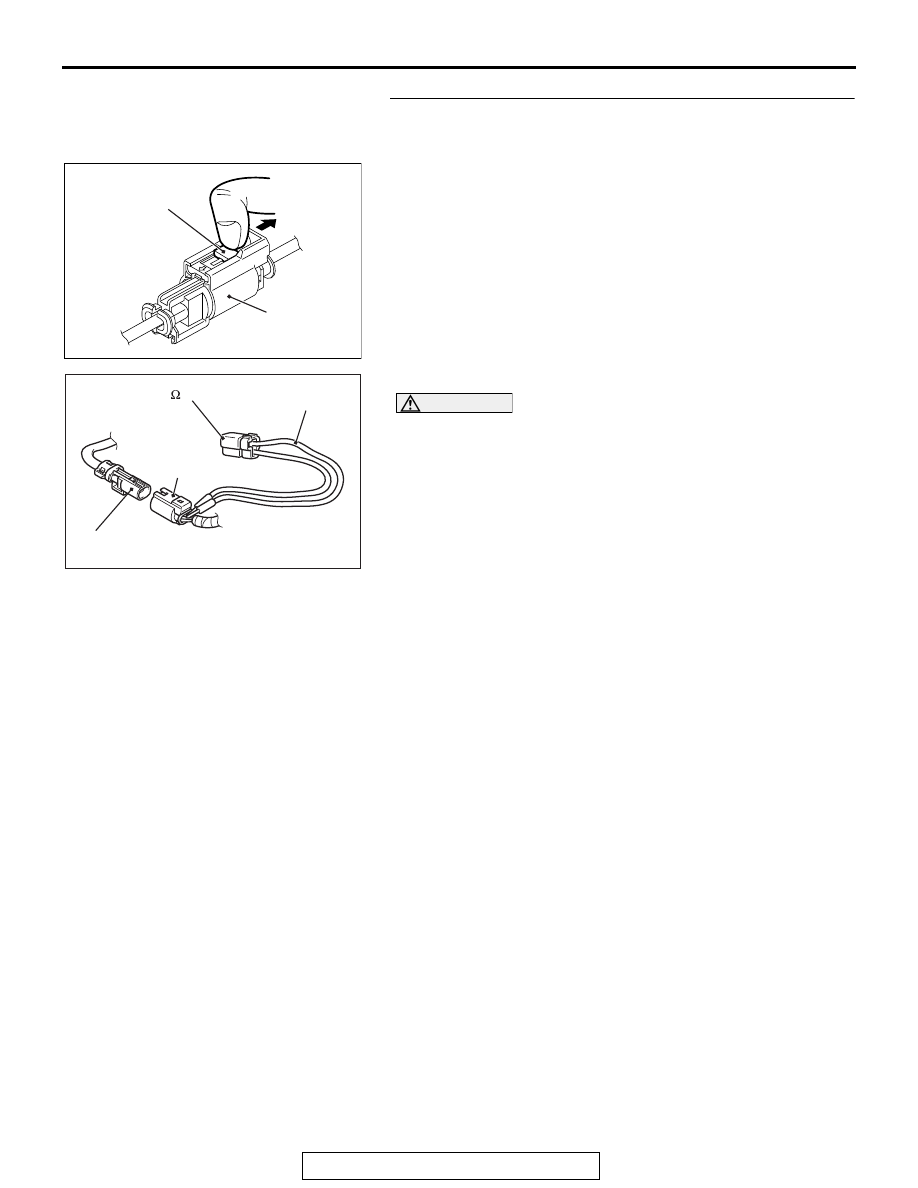

STEP 4. Check the side-air bag module (LH). (Using scan
tool MB991958, read the diagnostic trouble code.)
(1) Disconnect the negative battery terminal.
(2) Disconnect the D-29 side-airbag module connector, unlock

the connector by sliding the locking button to the direction of
the arrow as shown in the figure, and then disconnect the
connector.

(3) Connect special tool MB991865 to special tool MB991866.

CAUTION

Do not insert a test probe into the terminal from its front
side directly, as the connector contact pressure may be
weakened.
(4) Insert special tool MB991866 into the D-29 harness side

connector by backprobing.

(5) Connect the negative battery terminal.
(6) Erase diagnostic trouble code memory, and check the

diagnostic trouble code.

Q: Is DTC B1C2A set?

YES : Go to Step 5.
NO :  Replace the seatback assembly (Refer to GROUP

52A, Front Seat Assembly

P.52A-19

). Then go to

Step 7.

AC706606

AI

Locking button

Side-airbag

module

connector

AC507310AF

D-29

Side-airbag

module (RH) connector

D-29
Harness side
connector

MB991865
(Dummy resistor: 3    )

MB991866

(Resistor harness)

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-198

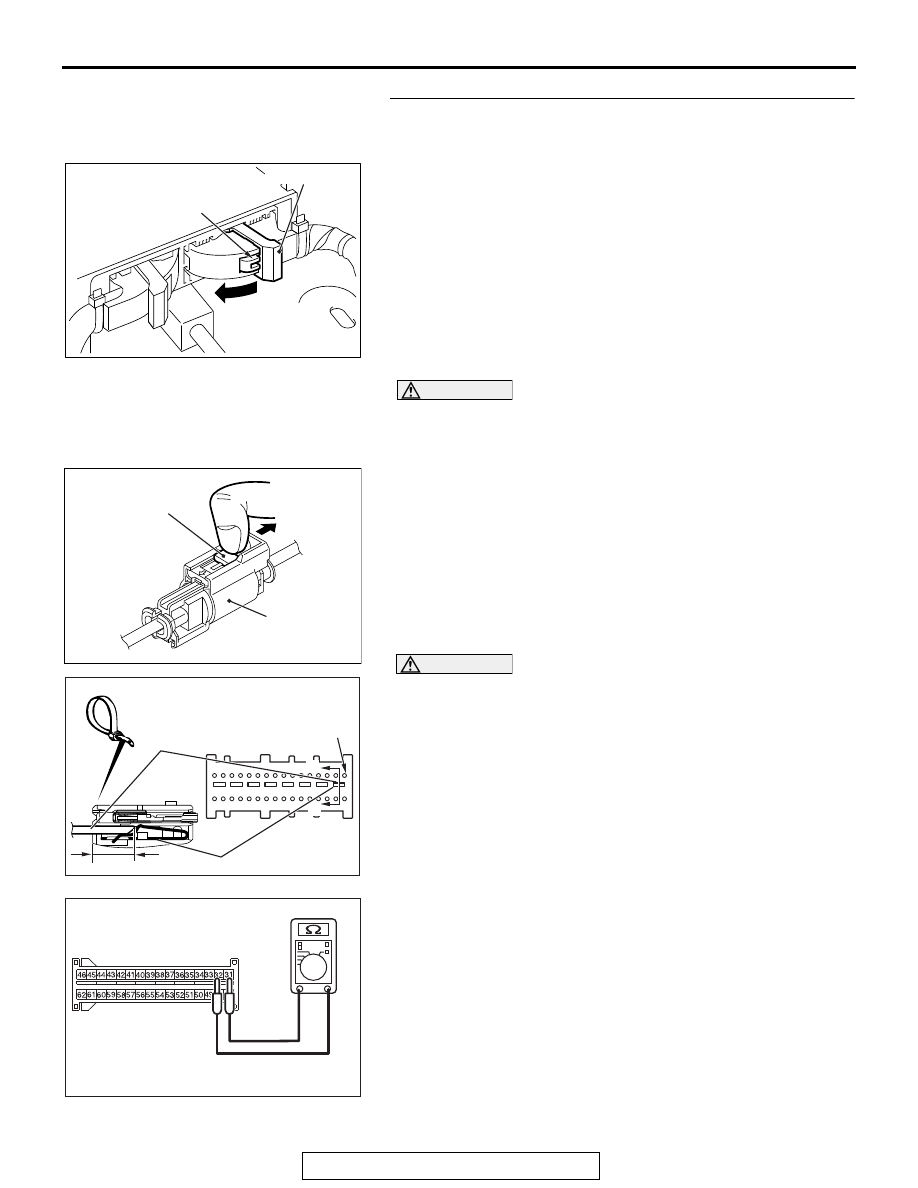

STEP 5. Check the side-air bag module (LH) circuit.
Measure the resistance at the SRS-ECU connector C-27.
(1) Disconnect the negative battery terminal.
(2) While pushing the part "A" indicated in the figure of the

harness side connector, turn the lock lever to the direction
of the arrow to release the lock lever, and disconnect the
C-27 SRS-ECU connector.

DANGER

To prevent the air bag from deploying unintentionally,
disconnect the side-airbag module (LH) connector
D-29 to short the squib circuit.

(3) Disconnect the D-29 side-airbag module connector, unlock

the connector by sliding the locking button to the direction of
the arrow as shown in the figure, and then disconnect the
connector.

CAUTION

Insert an insulator such as a cable tie to a depth of 4mm
(0.16 inch) or more, otherwise the short spring will not be
released.
(4) Insert a cable tie [3 mm (0.12 inch) wide, 0.5 mm (0.02 inch)

thick] between terminals 31, 32 and the short spring to
release the short spring.

(5) Check for continuity between C-27 harness side connector

terminals 31 and 32.
It should be an open circuit.

Q: Is it open circuit?

YES : Erase the diagnostic trouble code memory, and check

the diagnostic trouble code. If DTC B1C2A sets,
replace the SRS-ECU. (Refer to

P.52B-436

). Then go

to Step 7.

NO :  Go to Step 6.

AC507645

A

AC

Lock lever

AC706606

AI

Locking button

Side-airbag

module

connector

AC507303AK

A

A

C-27 Harness side
connector (front view)

Section
A - A

Cable tie

Short spring

4 mm or more

Terminal

AC608812

C-27 Harness side
connector (front view)

CU
