STEERING WHEEL AUDIO REMOTE CONTROL SWITCH

TSB Revision

CHASSIS ELECTRICAL

54A-561

STEERING WHEEL AUDIO REMOTE CONTROL SWITCH

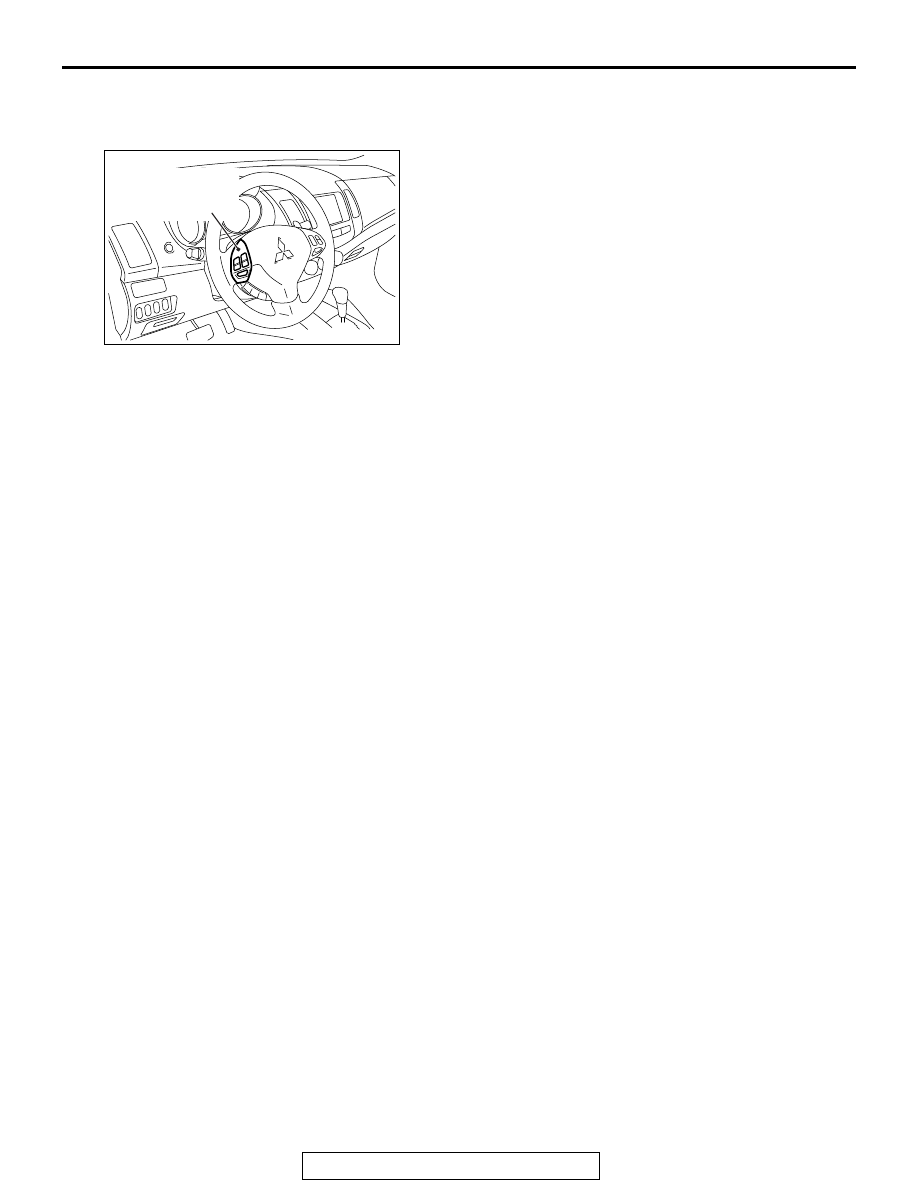

GENERAL INFORMATION

M1544000100657

The concentrated switch has been established onto
the steering wheel spoke for allowing the remote
control of audio.

AC606298AB

Steering wheel
audio remote control
switch

STEERING WHEEL AUDIO REMOTE CONTROL SWITCH

TSB Revision

CHASSIS ELECTRICAL

54A-562

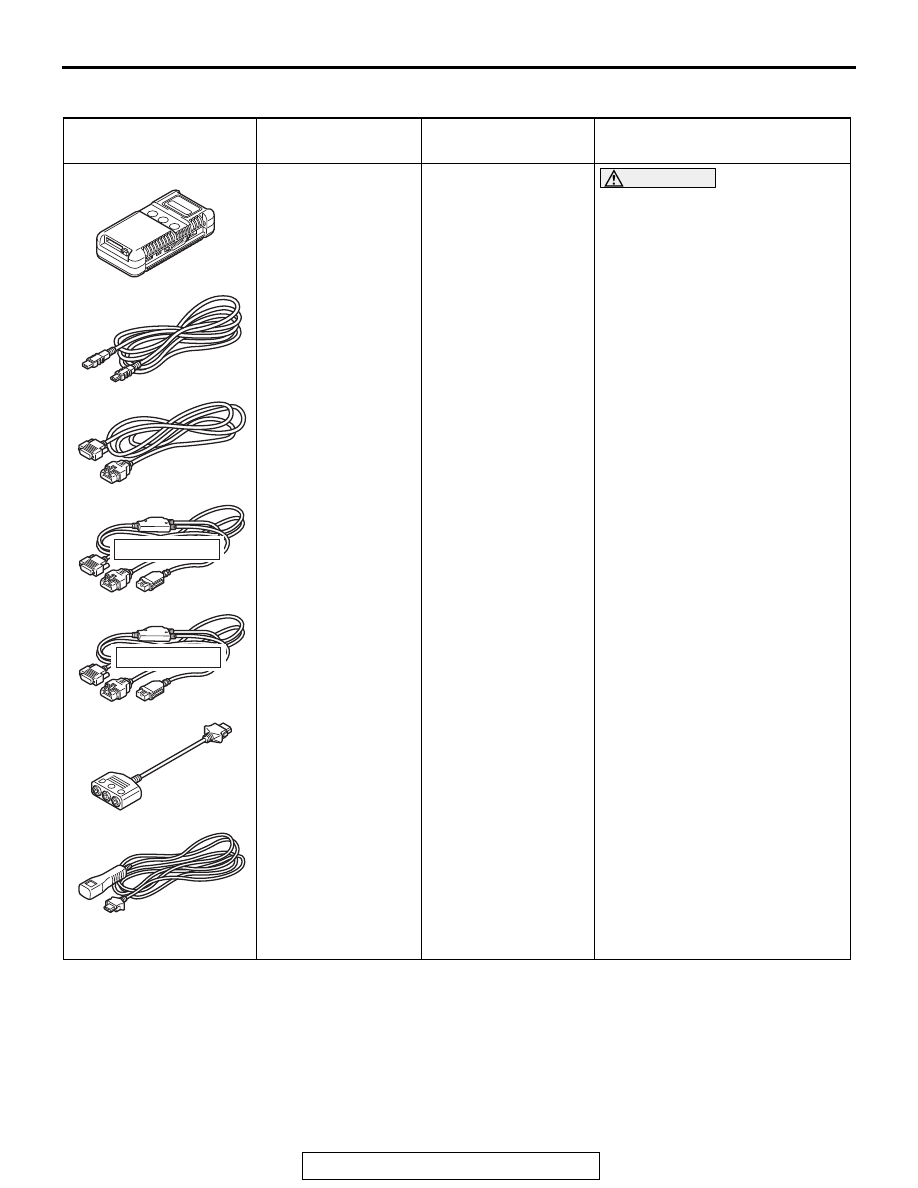

SPECIAL TOOLS

M1544000600715

Tool

Tool number and
name

Supersession

Application

MB991958

a. MB991824
b. MB991827
c. MB991910
d. MB991911
e. MB991914
f. MB991825
g. MB991826

M.U.T.-III sub
assembly

a. Vehicle

communication
interface (V.C.I.)

b. M.U.T.-III USB

cable

c. M.U.T.-III main

harness A
(Vehicles with
CAN
communication
system)

d. M.U.T.-III main

harness B
(Vehicles without
CAN
communication
system)

e. M.U.T.-III main

harness C (for
Chrysler models
only)

f. M.U.T.-III

measurement
adapter

g. M.U.T.-III trigger

harness

MB991824-KIT
NOTE: G: MB991826
M.U.T.-III Trigger
Harness is not
necessary when
pushing V.C.I. ENTER
key.

CAUTION

M.U.T.-III main harness A
(MB991910) should be used.
M.U.T.-III main harness B and C
should not be used for this
vehicle.
CAN bus diagnostics or service
data check.

MB991910

MB991826

MB991958

MB991911

MB991914

MB991824

MB991827

MB991825

DO NOT USE

a

b

c

d

e

f

g

DO NOT USE

STEERING WHEEL AUDIO REMOTE CONTROL SWITCH

TSB Revision

CHASSIS ELECTRICAL

54A-563

DIAGNOSIS

STANDARD FLOW OF DIAGNOSTIC
TROUBLESHOOTING

M1544004800647

Refer to GROUP 00

− Troubleshooting contents

P.00-7

.

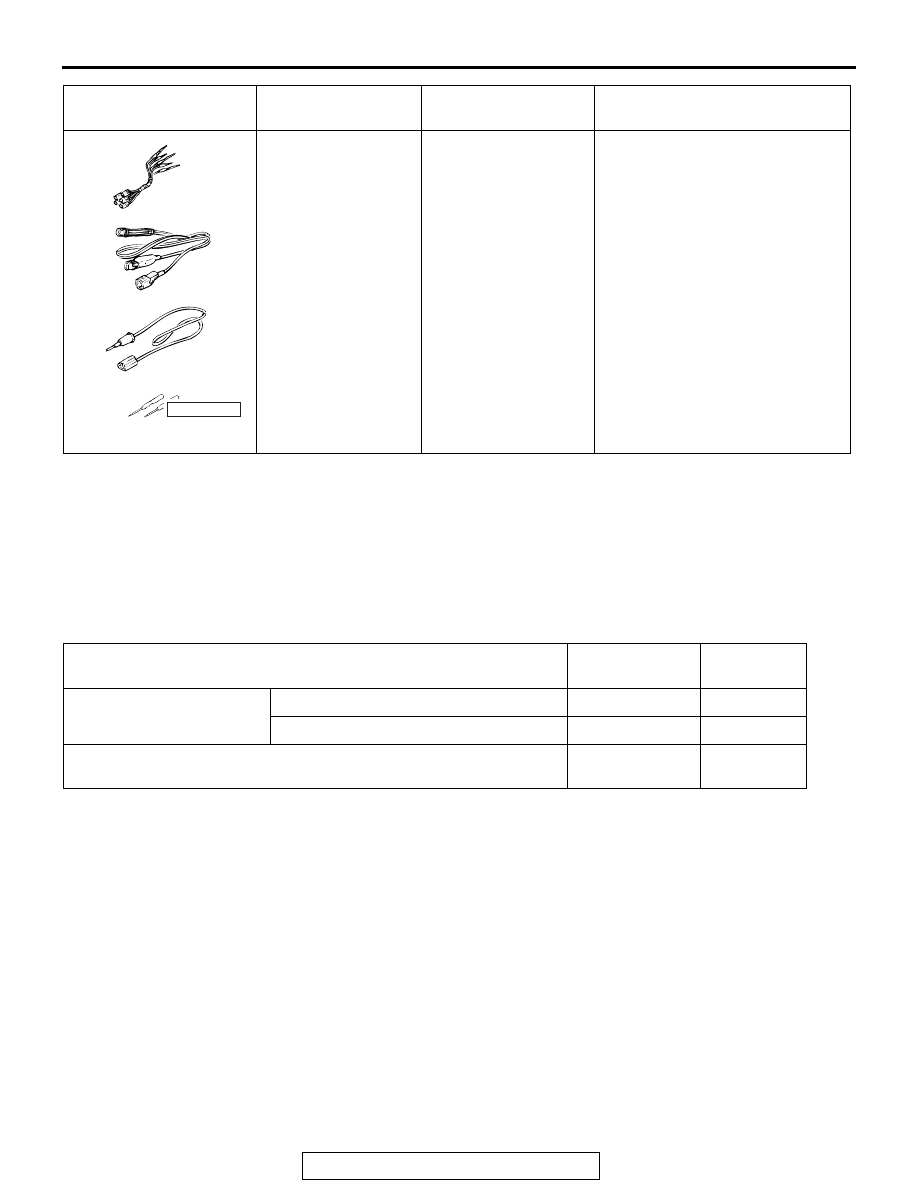

TROUBLE SYMPTOM CHART

M1544004902576

MB991223

a. MB991219
b. MB991220
c. MB991221
d. MB991222

Harness set

a. Test harness
b. LED harness
c. LED harness

adaptor

d. Probe

General service tools Continuity check and voltage

measurement at harness wire or
connector for loose, corroded or
damaged terminals, or terminals
pushed back in the connector.

a. Connector pin contact

pressure inspection

b. Power circuit inspection
c. Power circuit inspection
d. Commercial tester connection

Tool

Tool number and
name

Supersession

Application

MB991223

a

d

c

b

DO NOT USE

BA

Trouble symptom

Inspection
Procedure No.

Reference
page

Steering remote control
switch does not function.

<Vehicles with radio and CD player>

1

P.54A-564

<Vehicles with MMCS>

2

P.54A-568

The illumination of the steering remote control switch does not come
on.

3

P.54A-572

STEERING WHEEL AUDIO REMOTE CONTROL SWITCH

TSB Revision

CHASSIS ELECTRICAL

54A-564

SYMPTOM PROCEDURES

Inspection Procedure 1: steering wheel audio remote control switch does not function. <vehicles with
radio and CD player>

CAUTION

Before replacing the radio and CD player or steering wheel audio remote control switch , ensure that
the power supply circuit, the ground circuit and the communication circuit are normal.

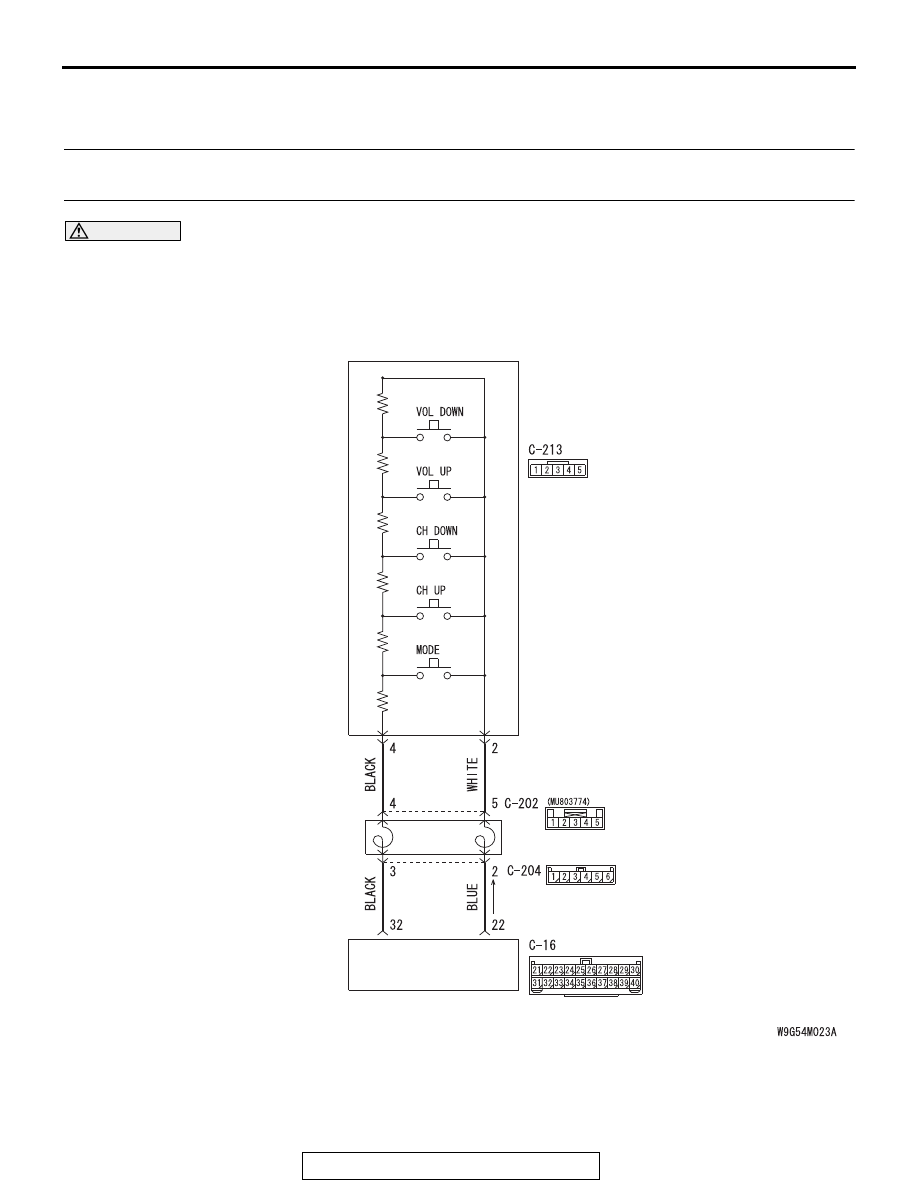

Steering Audio Switch Circuit

RADIO AND CD PLAYER

CLOCK
SPRING

STEERING
WHEEL
AUDIO
REMOTE
CONTROL
SWITCH
