MMCS

TSB Revision

CHASSIS ELECTRICAL

54A-557

C-10

.

C-39

Terminal
No.

Signal symbol

Check condition

Terminal voltage

2

SPEAKER RL (

−)

When the sound is output

0 - Battery positive voltage
(AC)

3

SPEAKER FL (

−)

When the sound is output

0 - Battery positive voltage
(AC)

6

AMP DATA

Ignition switch: ON

Battery positive voltage
(DC)

7

SPEAKER FR (

−)

When the sound is output

0 - Battery positive voltage
(AC)

8

SPEAKER RR (

−)

When the sound is output

0 - Battery positive voltage
(AC)

9

MAIN GND

Always

1 volt or less

10

ILLUMINATION (+)

Taillight switch: ON

Battery positive voltage
(DC)

11

SPEAKER RL (+)

When the sound is output

0 - Battery positive voltage
(AC)

12

SPEAKER FL (+)

When the sound is output

0 - Battery positive voltage
(AC)

13

VSS

Ignition switch: ON

0 - Battery positive voltage
(pulse)

14

ACCESSORY (+)

Ignition switch: ACC position

Battery positive voltage
(DC)

15

SPEAKER FR (+)

When the sound is output

0 - Battery positive voltage
(AC)

16

SPEAKER RR (+)

When the sound is output

0 - Battery positive voltage
(AC)

17

BATTERY (+)

Always

Battery positive voltage
(DC)

Terminal
No.

Signal symbol

Check condition

Terminal voltage

91

VCC (RC 6.5v)

Selector lever : R position
Ignition switch: ON position

5.8

− 7.0V (DC)

92

GND

Always

1 volt or less

93

CAMERA SIGNAL

Selector lever : R position
Ignition switch: ON position

1Vp-p (AC)

95

SEIELD (CAMERA)

Always

1 volt or less

96

CAMERA DETECT

Selector lever: R position
Ignition switch: ON position

0 - 5V (DC)

MMCS

TSB Revision

CHASSIS ELECTRICAL

54A-558

CAN BOX UNIT

.

C-13

AC611333

C-13

AK

Terminal
No.

Signal symbol

Check condition

Terminal voltage

1

GND

Always

1 volt or less

2

BATTERY (+)

Always

Battery positive voltage
(DC)

4

TX (AND)

Ignition switch: ACC position

5V (DC)

5

RX (AND)

Ignition switch: ACC position

2 - Battery positive
voltage (DC)

6

CAN-BOX DATA CLK

Ignition switch: ACC position

1 - 5V (pulse)

8

CAN-H

−

−

9

CAN-L

−

−

10

ACCESSORY (+)

Ignition switch: ACC position

Battery positive voltage
(DC)

MMCS

TSB Revision

CHASSIS ELECTRICAL

54A-559

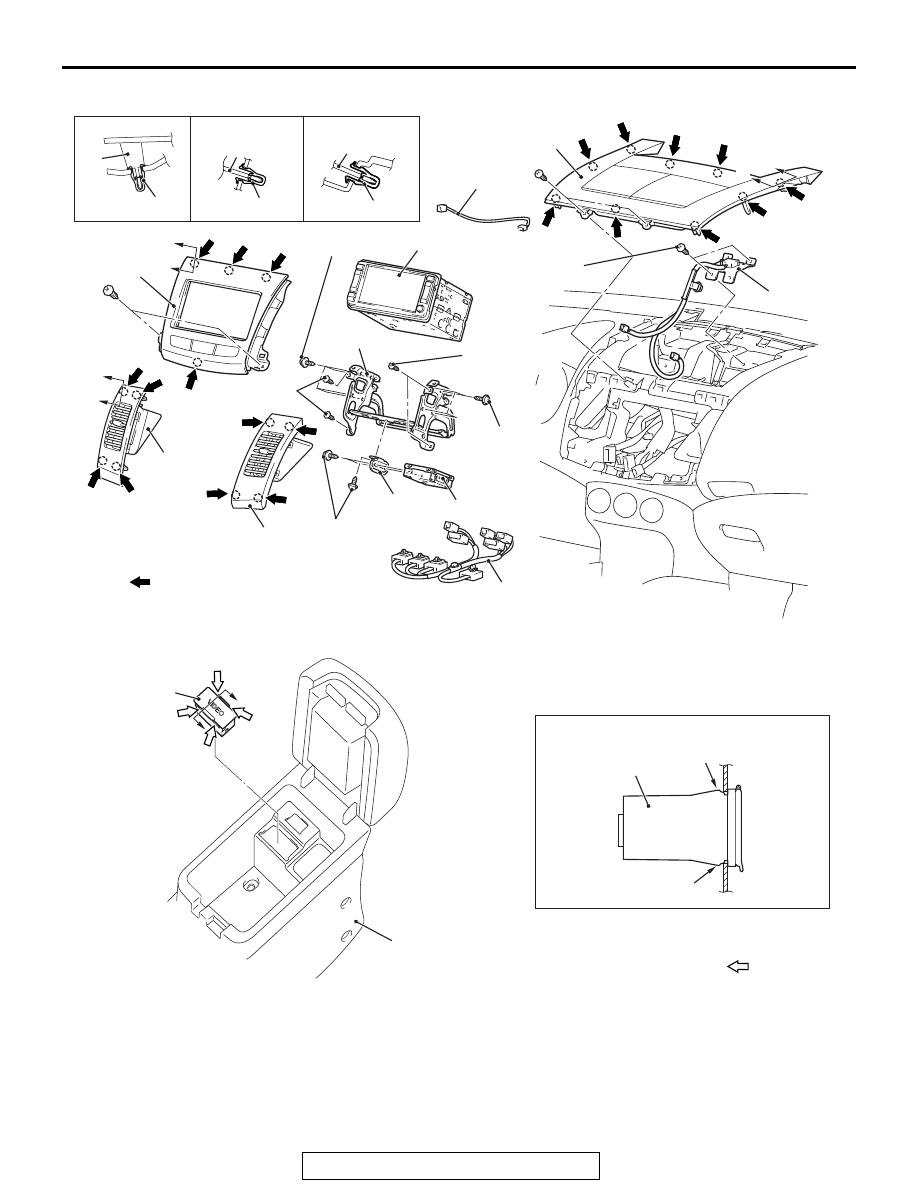

REMOVAL AND INSTALLATION

M1546001000790

AC511339

AC703775AD

1

1

2

4

6

5

3

7

9

10

A

A

B

B

C

C

Section A – A

Section B – B

Section C – C

6

Clip

Clip positions

NOTE:

2

Clip

1

Clip

3.0 ± 1.0 N·m
27 ± 8 in-lb

1.5 ± 0.5 N·m
14 ± 4 in-lb

1.5 ± 0.5 N·m
14 ± 4 in-lb

3.0 ± 1.0 N·m
27 ± 8 in-lb

1.5 ± 0.5 N·m
14 ± 4 in-lb

3.0 ± 1.0 N·m
27 ± 8 in-lb

8

AC900455

11

Section A – A

Claw

Claw

11

A

A

Rear floor console

AM

NOTE

       :Claw positions

Multivision Display Removal
Steps

1.

Center outlet

2.

Center panel assembly

3.

Multivision display

4.

Multivision display bracket

5.

CAN box unit

6.

CAN box unit bracket

7.

Navigation harness

8.

TMC cable
GPS Antenna Removal Steps

1.

Center outlet

2.

Center panel assembly

Multivision Display Removal
Steps (Continued)

MMCS

TSB Revision

CHASSIS ELECTRICAL

54A-560

INSPECTION

AUDIO AND VIDEO ADAPTER CHECK

M1546023200048

1. Remove the audio and video adapter.(Refer to

P.54A-559

.)

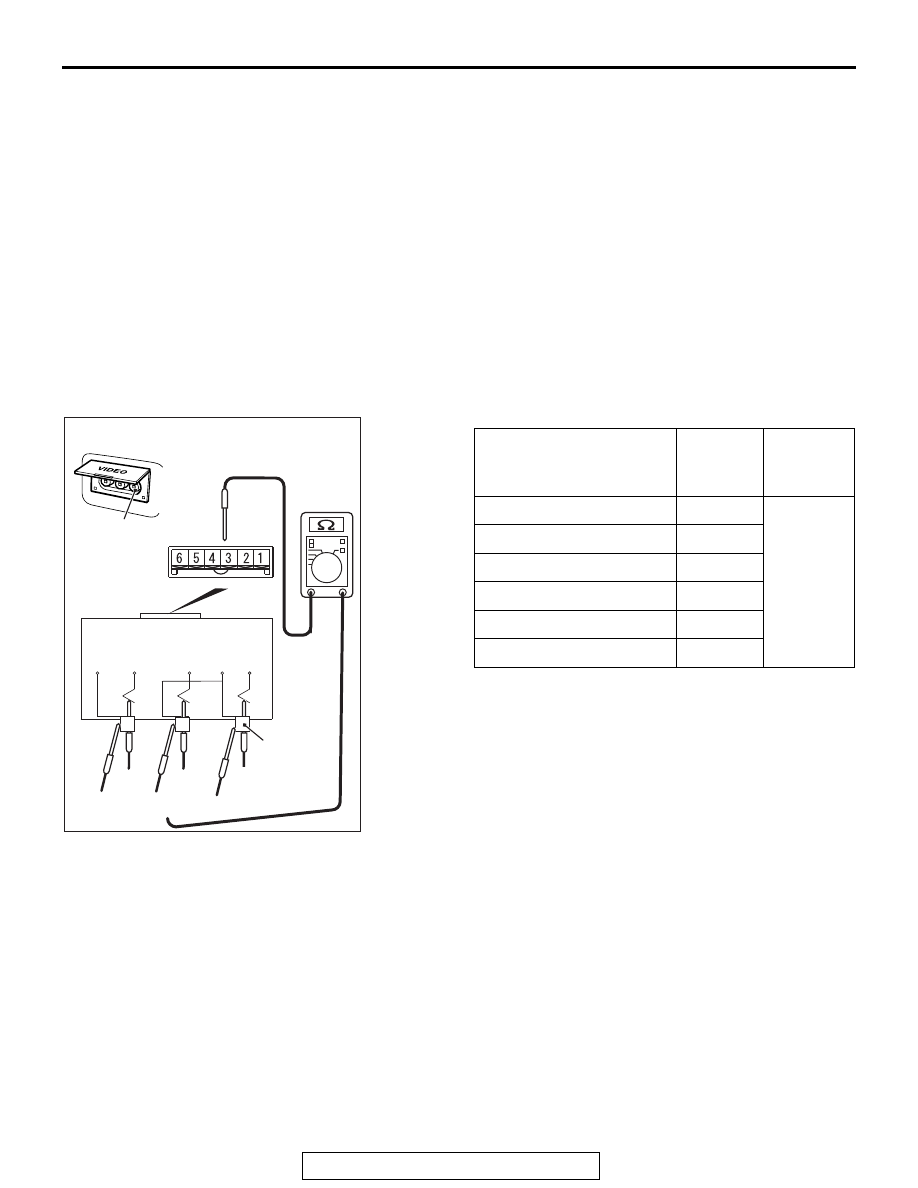

2. Check that continuity exists between the terminal and the

pin jack of audio and video adapter.

9.

Center upper box

10. GPS antenna

Audio And Video Adaptor
Removal Steps

•

Rear floor console assembly (Refer
to GROUP 52A

− Rear Floor

Console Assembly

P.52A-8

.)

11. Audio and video adaptor

GPS Antenna Removal Steps

The connecting position
of pin jack side circuit
tester

Terminal
number

Measurem
ent value

1

2

Continuity
exists. (2

Ω

or less)

2

1

3

5

4

4

5

5

6

6

AC707484

AUDIO

L (MONO)

AUDIO

R

VIDEO

IN

red

white

yellow

1

2

3

4

5

Pin jack

AB

6

Pin jack
