MMCS

TSB Revision

CHASSIS ELECTRICAL

54A-553

Wipers

Windshield Wipers Intermittent
Operation <Vehicles without auto
light >

4 seconds
Variable
Variable & Speed Sensitive (initial condition)

Windshield Wipers Intermittent
Operation <Vehicles with auto
light >

4 seconds
Variable
Variable & Speed Sensitive
Variable & Rain Sensitive (initial condition)

Wipers Linked to Washer

Off
On (initial condition)
On with Delayed Finishing Wipe

Comfort Washer

Off
On (initial condition)

Rear Wiper Intermittent Interval

0 seconds
4 seconds
8 seconds (initial condition)
16 seconds

Rear Wiper Continuous Operation Off

On (initial condition)

Rear Wiper Activated when in
Reverse

When Rear Wiper is ON
When Front or Rear Wiper is ON (initial
condition)

Group name

Setting item

Setting value

MMCS

TSB Revision

CHASSIS ELECTRICAL

54A-554

Exterior Lights/Interior
Lights

Headlight Auto-cutout Function

Off
On (initial condition)

Sensitivity for Auto Light
<vehicles with auto light>

Early
Somewhat Early
Normal (initial condition)
Somewhat Late
Late

Headlights ON when exiting
Vehicle

Off
15 seconds
30 seconds (initial condition)
60 seconds
180 seconds

Exterior Lights ON with Remote
Unlock

Off
Parking lights (initial condition)
Head lights

Interior Light Auto-cutout Time

Off
3 minutes
30 minutes (initial condition)
60 minutes

Duration Dome Light Remains On
after Door is Closed

0 seconds
7.5 seconds
15 seconds
30 seconds (initial condition)
60 seconds
120 seconds
180 seconds

Theft Alarm

Sensitivity for Theft sensor
<Vehicles with theft-alarm
sensor>

Level 1 High (initial condition)
Level 2
Level 3
Level 4 Low

Panic Alarm

Off
On (initial condition)

Turn Signal

Operation in Key Position

Ignition Switch On or Accessory
Ignition Switch On (initial condition)

Lane-change Signals (Flash
Three Times with 1 Touch)

Off
On (initial condition)

Activation Time for Lane-change
Signals

Short (initial condition)
Long

Group name

Setting item

Setting value

MMCS

TSB Revision

CHASSIS ELECTRICAL

54A-555

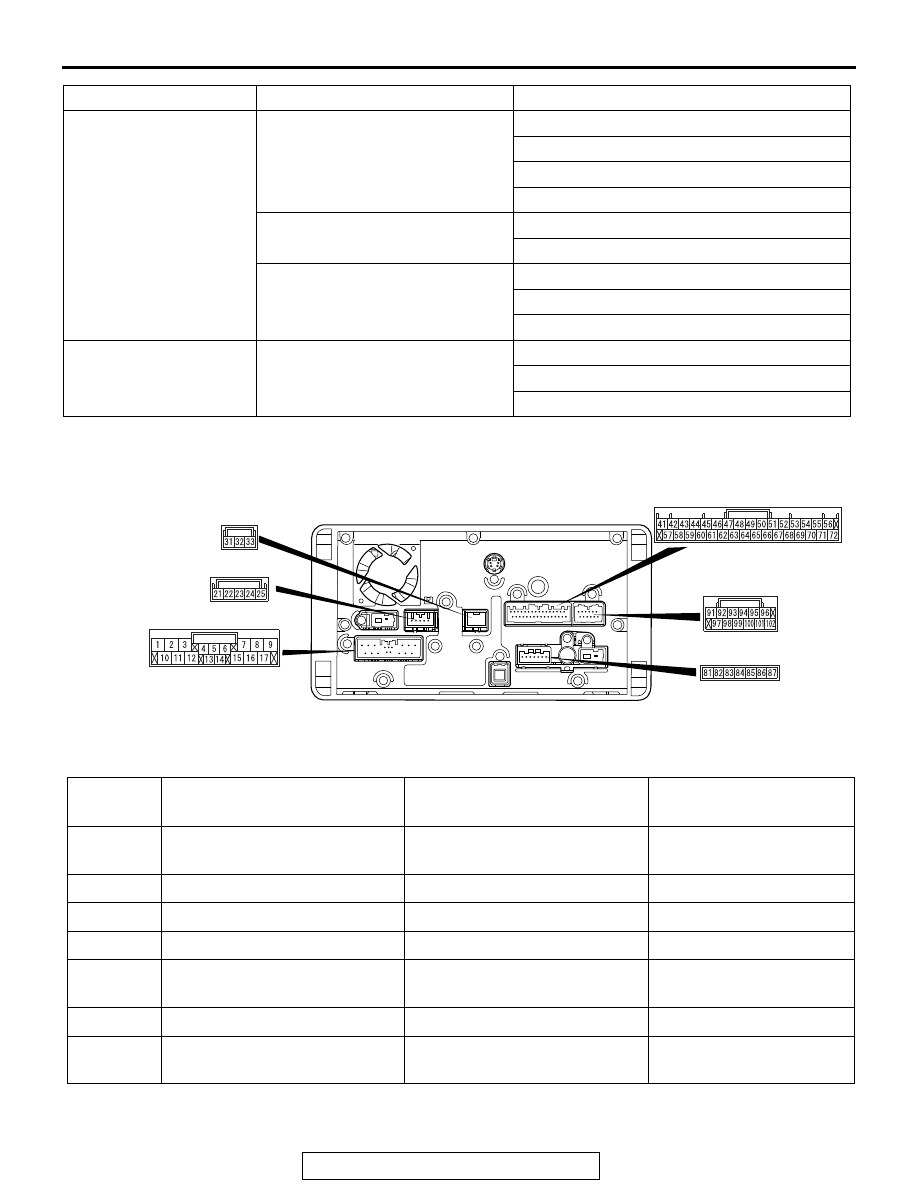

MAIN UNIT TERMINAL VOLTAGE

M1546003300805

MULTIVISION DISPLAY

.

C-06

.

Power Door Locks

Automatic Relocking after
Unlocked by Remote

30 seconds (initial condition)
60 seconds
120 seconds
180 seconds

Unlock Operation

All Doors
Only Driver Door (initial condition)

Automatic Unlock

Off (initial condition)
When Transmission Shifted to Park
When Ignition switch turned to Lock

Others

Auto Cut of ACC Power

No Auto Cut
Auto Cut after 30 minutes (initial condition)
Auto Cut after 60 minutes

Group name

Setting item

Setting value

AC611894AI

C-06

C-07

C-09

C-10

C-08

C-39

Terminal
No.

Signal symbol

Check condition

Terminal voltage

81

ANTENNA POWER ON

Ignition switch: ACC position

Battery positive voltage
(DC)

82

AMP POWER ON

Ignition switch: ACC position

1 volt or less

83

IE-BUS (+)

Ignition switch: ACC position

More than 120mV

84

IE-BUS (-)

Ignition switch: ACC position

More than 120mV

85

SIRIUS-L

When the satellite radio tuner
operation

1.2 Vrms (AC)

86

S-GND(SIRIUS-L/R)

Always

1 volt or less

87

SIRIUS-L

When the satellite radio tuner
operation

1.2 Vrms (AC)

MMCS

TSB Revision

CHASSIS ELECTRICAL

54A-556

C-07

.

C-08

.

C-09

.

Terminal
No.

Signal symbol

Check condition

Terminal voltage

43

CAN-BOX DATA RX

Ignition switch: ACC position

2 - Battery positive
voltage(pulse)

45

HFM SIGNAL (+)

When the hands free module or
USB box operation

1.2 Vrms (AC)

46

HFM SIGNAL (

−)

When the hands free module or
USB box operation

1 volt or less

47

VIDEO2-IN

When the image is input

1Vp-p (AC)

48

VIDEO2-R

When the sound is input

1.2Vrms (AC)

49

SEIELD (VIDEO2-L/R)

Always

1 volt or less

53

AUDIO REMOTE

Ignition switch: ACC position

3.3V (DC)

58

CAN-BOX DATA CLK

Ignition switch: ACC position

1 - 5V (pulse)

59

CAN-BOX DATA TX

Ignition switch: ACC position

5V (DC)

61

HFM SIGNAL (+)-L

When the hands free module or
USB box operation

1.2 Vrms (AC)

63

SEIELD (VIDEO2-IN)

Always

1 volt or less

64

VIDEO2-L

When the sound is input

1.2Vrms (AC)

65

VIDEO2 DETECT

Always

1 volt or less

69

SEIELD (STEERING REMO)

Always

1 volt or less

Terminal
No.

Signal symbol

Check condition

Terminal voltage

32

REAR SIGNAL

When the image is output

1 Vp-p (AC)

33

SHIELD

Always

1 V or less

Terminal
No.

Signal symbol

Check condition

Terminal voltage

21

BATTERY (+)

Always

Battery positive voltage

24

PS-R

• Selector lever : R position

• Ignition switch: ON position

Hi : 5Mid : OpenLo : 0

25

GND

Always

1 volt or less
