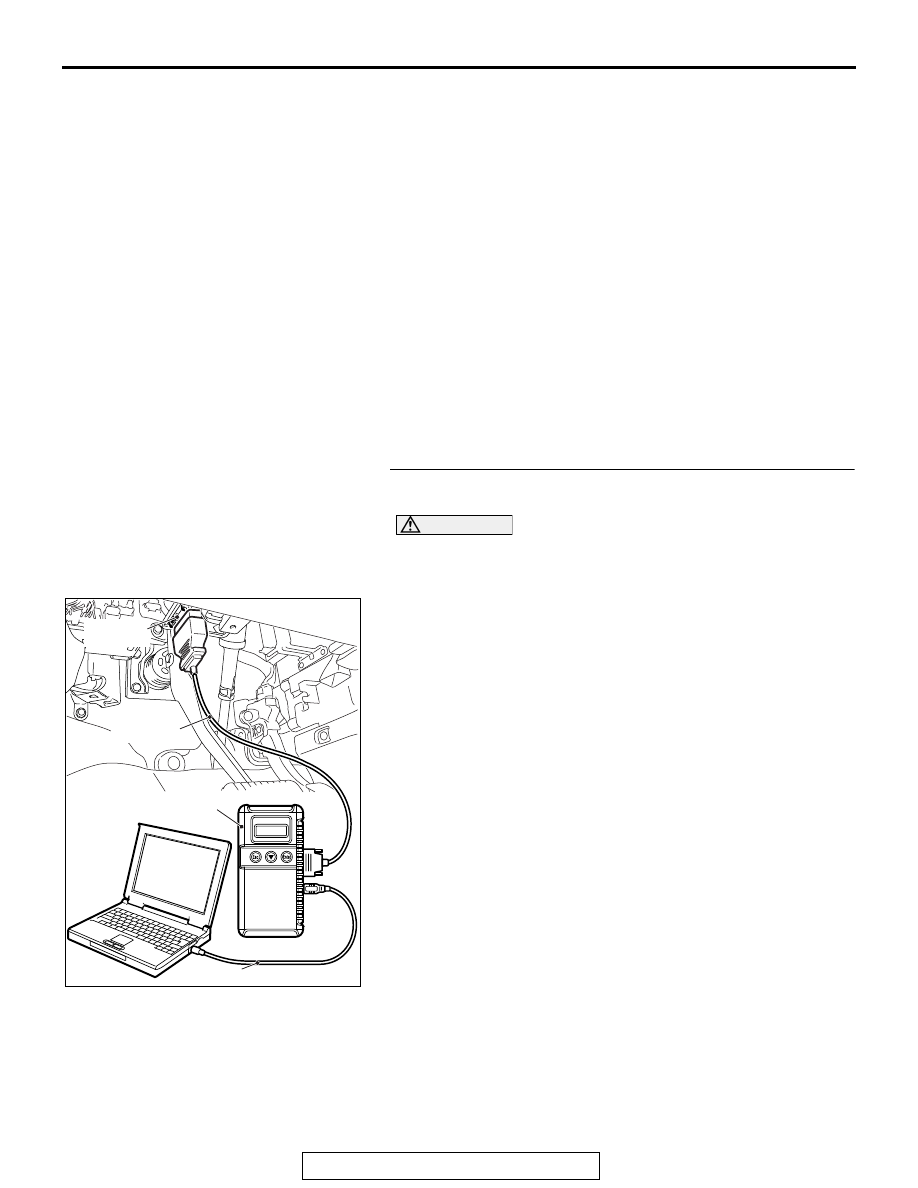

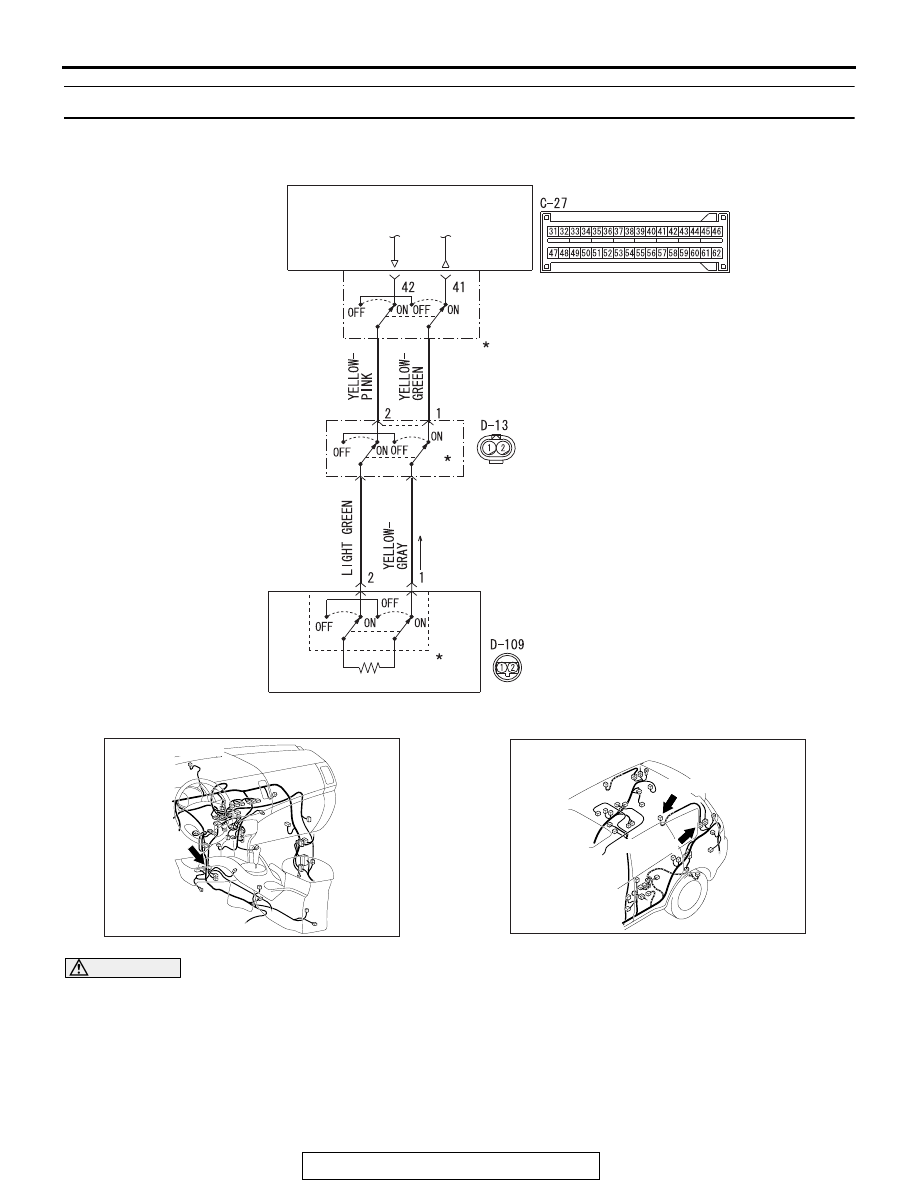

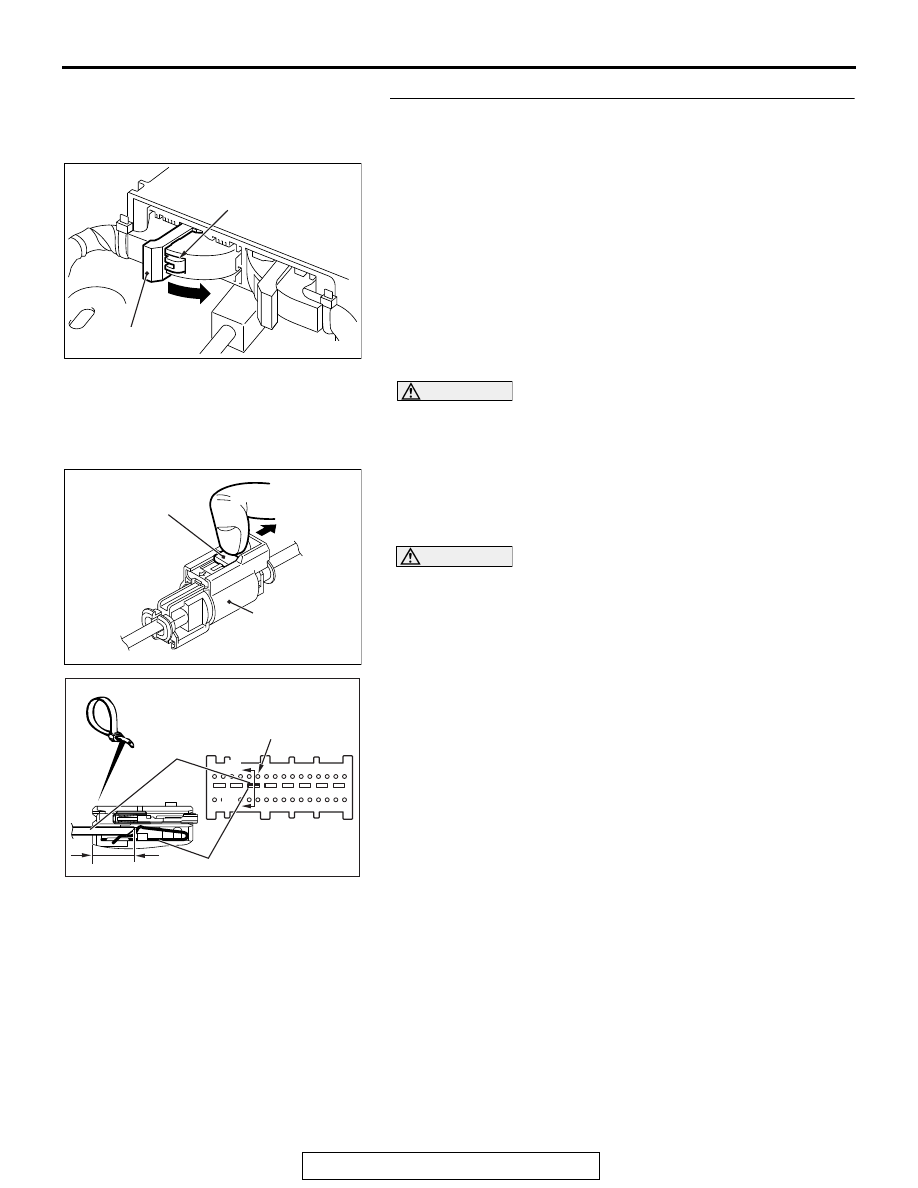

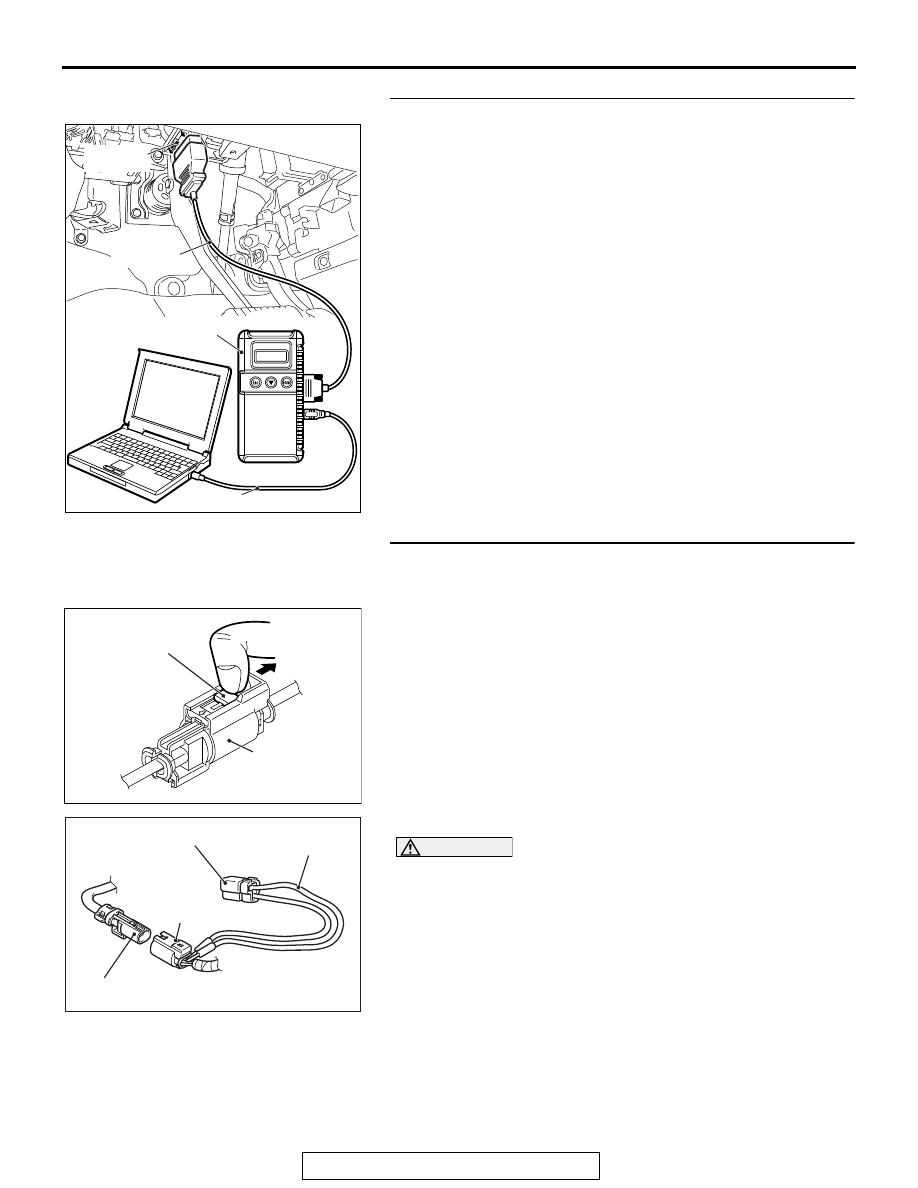

SRS AIR BAG DIAGNOSIS TSB Revision SUPPLEMENTAL RESTRAINT SYSTEM (SRS) 52B-115 DTC B1B1A: Curtain Air Bag Module (LH) (Squib) System (Squib Circuit Open) CAUTION If DTC B1B1A is set in the SRS-ECU, always diag- . CIRCUIT OPERATION • The SRS-ECU judges how severe a collision is by detecting signals from the side impact sensors CURTAIN AIR BAG SRS-ECU AC709440 Curtain Air Bag Module (Squib) (LH) Circuit NOTE *: CONNECTOR LOCK SWITCH CONNECTOR COUPLED: ON AB AC901076 C-27 (Y) AC Connector: C-27 AC901080AB Connectors: D-13, D-109 D-109 (B) D-13 (Y) |
