SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-31

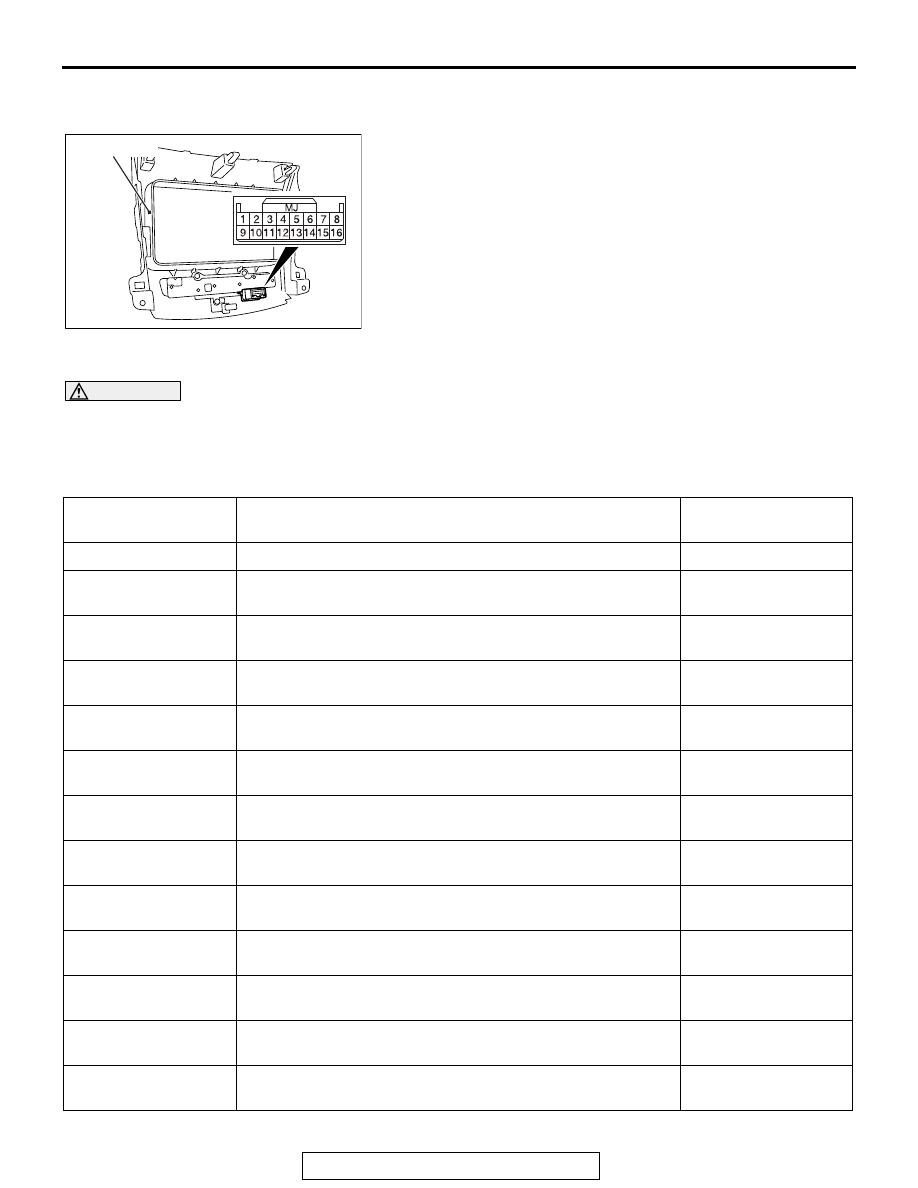

ILLUMINATION CHECK

1. Remove the center panel assembly.
2. Connect the positive battery terminal with the center panel

assembly connector terminal No. 8. Then, check if the
passenger’s air bag OFF indicator light is illuminated when
the negative battery terminal and the center panel assembly
connector terminal No. 11 are connected.

3. If the passenger’s air bag OFF indicator light is illuminated, it

is judged good.

CHECK CHART FOR DIAGNOSIS CODES

M1524003302438

CAUTION

During diagnosis, a DTC code associated with another system may be set when the ignition switch is
turned on with connector(s) disconnected. After completing the repair, confirm all systems for DTC
code(s). If DTC code(s) are set, erase them all.
Inspect according to the inspection chart that is appropriate for the DTC.

AC703574 AB

Center panel

Diagnostic trouble
Code No.

Inspection item

Reference page

B1206

Passenger's air bag OFF indicator light (open circuit)

P.52B-35

B1207

Passenger's air bag OFF indicator light (short circuit
between circuit terminal)

P.52B-40

B1B00

Driver's air bag module (1st squib) system (shorted to squib
circuit ground)

P.52B-44

B1B01

Driver's air bag module (1st squib) system (shorted to squib
circuit power supply)

P.52B-52

B1B02

Driver's air bag module (1st squib) system (squib circuit
open)

P.52B-60

B1B03

Driver's air bag module (1st squib) system (short circuit
between squib circuit terminals)

P.52B-67

B1B04

Driver's air bag module (2nd squib) system (shorted to
squib circuit ground)

P.52B-44

B1B05

Driver's air bag module (2nd squib) system (shorted to
squib circuit power supply)

P.52B-52

B1B06

Driver's air bag module (2nd squib) system (squib circuit
open)

P.52B-60

B1B07

Driver's air bag module (2nd squib) system (short circuit
between squib circuit terminals)

P.52B-67

B1B08

Passenger's (front) air bag module (1st squib) system
(shorted to squib circuit ground)

P.52B-76

B1B09

Passenger's (front) air bag module (1st squib) system
(shorted to squib circuit power supply)

P.52B-83

B1B0A

Passenger's (front) air bag module (1st squib) system
(squib circuit open)

P.52B-90

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-32

B1B0B

Passenger's (front) air bag module (1st squib) system (short
circuit between squib circuit terminals)

P.52B-96

B1B0C

Passenger's (front) air bag module (2nd squib) system
(shorted to squib circuit ground)

P.52B-76

B1B0D

Passenger's (front) air bag module (2nd squib) system
(shorted to squib circuit power supply)

P.52B-83

B1B0E

Passenger's (front) air bag module (2nd squib) system
(squib circuit open)

P.52B-90

B1B0F

Passenger's (front) air bag module (2nd squib) system
(short circuit between squib circuit terminals)

P.52B-96

B1B18

Curtain air bag module (LH) (squib) system (shorted to
squib circuit ground)

P.52B-103

B1B19

Curtain air bag module (LH) (squib) system (shorted to
squib circuit power supply)

P.52B-109

B1B1A

Curtain air bag module (LH) (squib) system (squib circuit
open)

P.52B-115

B1B1B

Curtain air bag module (LH) (squib) system (short circuit
between squib circuit terminals)

P.52B-122

B1B20

Curtain air bag module (RH) (squib) system (shorted to
squib circuit ground)

P.52B-130

B1B21

Curtain air bag module (RH) (squib) system (shorted to
squib circuit power supply)

P.52B-137

B1B22

Curtain air bag module (RH) (squib) system (squib circuit
open)

P.52B-143

B1B23

Curtain air bag module (RH) (squib) system (short circuit
between squib circuit terminals)

P.52B-150

B1B54

Seat belt buckle switch (RH) circuit (ground side) shorted

P.52B-159

B1B55

Seat belt buckle switch (RH) circuit (power supply side)
shorted

P.52B-159

B1B56

Seat belt buckle switch (RH) circuit open

P.52B-159

B1B70

Malfunction of G-sensor inside front impact sensor (LH)

P.52B-164

B1B71

Malfunction of G-sensor inside front impact sensor (RH)

P.52B-164

B1B72

Malfunction of G-sensor inside side impact sensor (front)
(LH)

P.52B-166

B1B73

Malfunction of G-sensor inside side impact sensor (rear)
(LH)

P.52B-166

B1B75

Malfunction of G-sensor inside side impact sensor (front)
(RH)

P.52B-166

B1B76

Malfunction of G-sensor inside side impact sensor (rear)
(RH)

P.52B-166

B1BA3

Driver’s seat slide sensor malfunction (occupant
classification-ECU)

P.52B-170

B1BA4

Passenger’s seat slide sensor malfunction (occupant
classification-ECU)

P.52B-170

Diagnostic trouble
Code No.

Inspection item

Reference page

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-33

B1BA5

SRS-ECU squib count mismatch

P.52B-172

B1BAA

Occupant classification-ECU configuration mismatch

P.52B-173

B1BC7

SRS-ECU (record data full) system

P.52B-175

B1BCF

Roll over sensor malfunction

P.52B-177

B1C27

Side-airbag module (LH) (squib) system (shorted to squib
circuit ground)

P.52B-178

B1C28

Side-airbag module (LH) (squib) system (shorted to squib
circuit power supply)

P.52B-184

B1C29

Side-airbag module (LH) (squib) system (squib circuit open)

P.52B-189

B1C2A

Side-airbag module (LH) (squib) system (short circuit
between squib circuit terminals)

P.52B-194

B1C2B

Side-airbag module (RH) (squib) system (shorted to squib
circuit ground)

P.52B-200

B1C2C

Side-airbag module (RH) (squib) system (shorted to squib
circuit power supply)

P.52B-205

B1C2D

Side-airbag module (RH) (squib) system (squib circuit open)

P.52B-210

B1C2E

Side-airbag module (RH) (squib) system (short circuit
between squib circuit terminals)

P.52B-215

B1C33

Driver's lap pre-tensioner (squib) system  (shorted to squib
circuit ground)

P.52B-221

B1C34

Driver's lap pre-tensioner (squib) system  (shorted to squib
circuit power supply)

P.52B-226

B1C35

Driver's lap pre-tensioner (squib) system  (squib circuit
open)

P.52B-231

B1C36

Driver's lap pre-tensioner (squib) system  (short circuit
between squib circuit terminals)

P.52B-236

B1C38

Driver's seat belt pre-tensioner (squib) system (shorted to
squib circuit ground)

P.52B-242

B1C39

Driver's seat belt pre-tensioner (squib) system (shorted to
squib circuit power supply)

P.52B-247

B1C3A

Driver's seat belt pre-tensioner (squib) system (squib circuit
open)

P.52B-252

B1C3B

Driver's seat belt pre-tensioner (squib) system (short circuit
between squib circuit terminals)

P.52B-257

B1C47

Front passenger's seat belt pre-tensioner (squib) system
(shorted to squib circuit ground)

P.52B-263

B1C48

Front passenger's seat belt pre-tensioner (squib) system
(shorted to squib circuit power supply)

P.52B-268

B1C49

Front passenger's seat belt pre-tensioner (squib) system
(squib circuit open)

P.52B-273

B1C4A

Front passenger's seat belt pre-tensioner (squib) system
(short circuit between squib circuit terminals)

P.52B-278

B210D

Battery abnormal low voltage

P.52B-284

Diagnostic trouble
Code No.

Inspection item

Reference page

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-34

B212C

Open circuit to IG1 power supply (fuse No. 12 circuit)

P.52B-290

B212D

Open circuit to IG1 power supply (fuse No. 18 circuit)

P.52B-290

B2207

Occupant restraint controller internal 1

P.52B-177

B2208

Occupant restraint controller internal 2

P.52B-177

B2209

Occupant restraint controller internal 3

P.52B-177

B220A

Occupant restraint controller internal 4

P.52B-177

B220B

Occupant restraint controller firing stored energy

P.52B-177

B220C

Occupant restraint controller accelerometer 1

P.52B-177

B220D

Occupant restraint controller accelerometer 2

P.52B-177

B223D

OCM (Occupant Classification-ECU) DTC present

P.52B-297

B2255

Occupant restraint controller roll-over feature disabled

P.52B-299

U0019

Bus off (CAN-B)

P.52B-301

U0141

ETACS CAN timeout

P.52B-392

U0154

Occupant classification-ECU CAN timeout

P.52B-304

U0155

Combination meter CAN timeout

P.52B-396

U0164

A/C -ECU CAN timeout

P.52B-398

U0168

KOS -ECU or WCM CAN timeout

P.52B-310

U0170

Front impact sensor (LH) communication error

P.52B-312

U0171

Front impact sensor (RH) communication error

P.52B-316

U0172

Side impact sensor (front) (LH) communication error

P.52B-320

U0173

Side impact sensor (front) (LH) communication error

P.52B-320

U0175

Side impact sensor (front) (RH) communication error

P.52B-327

U0176

Side impact sensor (rear) (RH) communication error

P.52B-331

U0184

Audio CAN timeout

P.52B-335

U0195

Satellite radio tuner CAN timeout

P.52B-337

U0212

Steering wheel sensor CAN timeout

P.52B-339

U1414

Defective Coding Data

P.52B-341

U1415

Coding not completed/Data fail

P.52B-342

Diagnostic trouble
Code No.

Inspection item

Reference page
