SERVICE PRECAUTIONS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-27

.

WARNING

•

The SRS components and seat belt with pre-ten-
sioner should not be subjected to heat, so remove
the SRS-ECU, driver’s and front passenger’s air
bag modules, clock spring, side-airbag modules,
Curtain air bag modules, front and side impact
sensor and seat belt pre-tensioner before drying or
baking the vehicle after painting.

•

SRS-ECU, air bag module, clock spring, impact
sensor: 93

°

 C (200

°

 F) or more

•

Seat belt with pre-tensioner 90

°

C (194

°

 F) or

more

•

After servicing the SRS system, check the warning
light operation to make sure that the system func-
tions properly. (Refer to

P.52B-3

).

•

Make certain that the ignition switch is in the
"LOCK"(OFF) position when the scan tool is con-
nected or disconnected.

45, 46

Floor wiring harness

→ Seat belt

pre-tensioner (LH)

Correct or replace the floor wiring
harness.

49, 50

Floor wiring harness

→ Side impact

sensor (LH)

Correct or replace the floor wiring
harness.

51, 52

Floor wiring harness

→ Side impact

sensor (RH)

Correct or replace the floor wiring
harness.

55, 58

Floor wiring harness

→ Passenger’s

seat belt buckle switch

Correct or replace the floor wiring
harness.

61

Floor wiring harness

→ ETACS-ECU

(fuse No.18)

Correct or replace the floor wiring
harness.

62

Floor wiring harness

→ ETACS-ECU

(fuse No.12)

Correct or replace the floor wiring
harness.

SRS-ECU terminal No.

Destination of wiring harness

Corrective action

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-28

SRS AIR BAG DIAGNOSIS

INTRODUCTION TO DIAGNOSIS

M1524005000523

The SRS system is controlled by the SRS-ECU. The
SRS-ECU judges how severe a collision is by detect-
ing signals from the left and right front impact sen-
sors and side impact sensors, front air bag analog
G-sensor and front air bag safing G-sensor and
side-airbag safing G-sensor. If the impact is over a
predetermined level, the SRS-ECU sends an ignition
signal. At this time, if the safing G-sensor is on, the
SRS air bag will inflate. (The passenger's air bag
may not inflate according to the occupant detection
data from the occupant classification-ECU.) The

SRS warning light in the combination meter alerts a
malfunction of the SRS system. If the following
symptoms occur even when the vehicle has not been
in a collision, there may be a malfunction in the SRS
system.

• The SRS warning light does not go off within

approximately seven seconds after the ignition
switch has been turned to the "ON" position.

• The SRS warning light does not illuminate when

the ignition switch is turned to the "ON" position.

Refer to Post-collision Diagnosis when inspecting
and servicing a vehicle that has been in a collision
(Refer to

P.52B-424

).

TROUBLESHOOTING STRATEGY

M1524003100892

Use these steps to plan your diagnostic strategy. If
you follow them carefully, you will be sure that you
have exhausted all of the possible ways to find a
SRS fault.
1. Gather information about the problem from the

customer.

2. Verify that the condition described by the

customer exists.

3. Check the vehicle for any SRS diagnostic trouble

codes (SRS DTC).

4. If you cannot verify the condition but there are no

SRS DTCs, the malfunction is intermittent. Refer
to GROUP 00, How to Use Troubleshooting

−

Inspection Service Points

− How to Cope with

Intermittent Malfunctions

P.00-15

.

5. If there is a SRS DTC, record the code number,

then erase the code from vehicle memory using
scan tool (M.U.T.-III Sub Assembly) MB991958.

6. Recreate the SRS DTC set conditions to see if the

same SRS DTC will be set again.

• If the same SRS DTC is set again, follow the

Inspection Chart for the DTC and find the fault.

• If you cannot get the same SRS DTC to be set

again, the malfunction is intermittent. Refer to
GROUP 00, How to Use Troubleshooting

−

Inspection Service Points

− How to Cope with

Intermittent Malfunctions

P.00-15

.

DIAGNOSTIC FUNCTION

M1524013800201

HOW TO CONNECT THE SCAN TOOL (M.U.T.-III)

Required Special Tools:

•  MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824:Vehicle Communication Interface(V.C.I.)

• MB991827:M.U.T.-III USB Cable

• MB991910:M.U.T.-III Main Harness A

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-29

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
1. Ensure that the ignition switch is at the "LOCK" (OFF)

position.

2. Start up the personal computer.
3. Connect special tool MB991827 to special tool MB991824

and the personal computer.

4. Connect special tool MB991910 to special tool MB991824.
5. Connect special tool MB991910 to the data link connector.
6. Turn the power switch of special tool MB991824 to the "ON"

position.
NOTE: When special tool MB991824 is energized, special
tool MB991824 indicator light will be illuminated in a green
color.

7. Start the M.U.T.-III system on the personal computer.
NOTE: Disconnecting scan tool MB991958 is the reverse of the
connecting sequence, making sure that the ignition switch is at
the "LOCK" (OFF) position.

HOW TO READ AND ERASE DIAGNOSTIC
TROUBLE CODES

Required Special Tools:

•  MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824:Vehicle Communication Interface(V.C.I.)

• MB991827:M.U.T.-III USB Cable

• MB991910:M.U.T.-III Main Harness A

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
NOTE: If the battery voltage is low, diagnostic trouble codes will
not be set. Check the battery if scan tool MB991958 does not
display.
1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Select "System select" from the start-up screen.
4. Select "From 2006 MY" of "Model Year." When the "Vehicle

Information" is displayed, check the contents.

5. Select "SRS-AIR BAG" from "System List," and press the

"OK" button.
NOTE: When the "Loading Option Setup" list is displayed,
check the applicable item.

6. Select "Diagnostic Trouble Code" to read the DTC.
7. If a DTC is set, it is shown.
8. Choose "Erase DTCs" to erase the DTC.

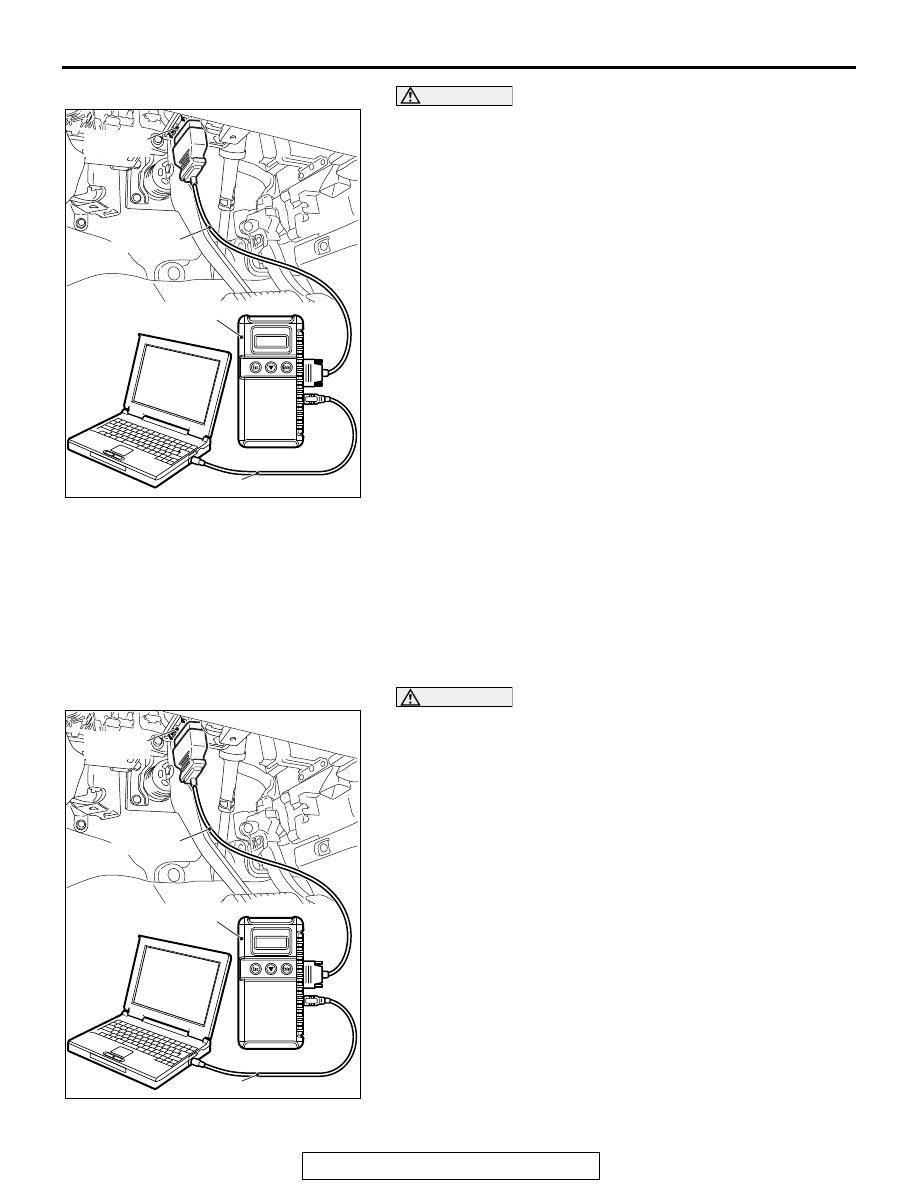

ZC501967

AC404789

AC701411AB

MB991824

MB991827

MB991910

Data link
connector

ZC501967

AC404789

AC701411AB

MB991824

MB991827

MB991910

Data link
connector

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-30

SRS WARNING LIGHT CHECK

M1524004301171

1. Check that the SRS warning light illuminates when the

ignition switch is in the "ON" position.

2. Check that it illuminates for approximately seven seconds

and then goes out.

3. If not, check for DTC.

PASSENGER'S SEAT BELT WARNING LIGHT
CHECK

M1524026200113

When an adult on the front passenger's seat wears the seat
belt with the ignition switch "ON," confirm that the passenger's
seat belt warning light goes out.
The light comes on when a person sits on the front passenger
seat but does not fasten the seat belt.

PASSENGER'S AIR BAG OFF INDICATOR LIGHT
CHECK

M1524026300154

.

SYSTEM CHECK

Check that the passenger’s air bag OFF indicator light illumi-
nates when the ignition switch is in the "ON" position.
Check that it illuminates for approximately seven seconds and
then goes out.
In the following situations, the indicator will stay on to show that
the passenger’s (front) air bag is not operational.

• The occupant classification-ECU and weight sensor sense

66 pounds (30 kg) on the front passenger seat.

• The front passenger’s seat is not occupied.

.

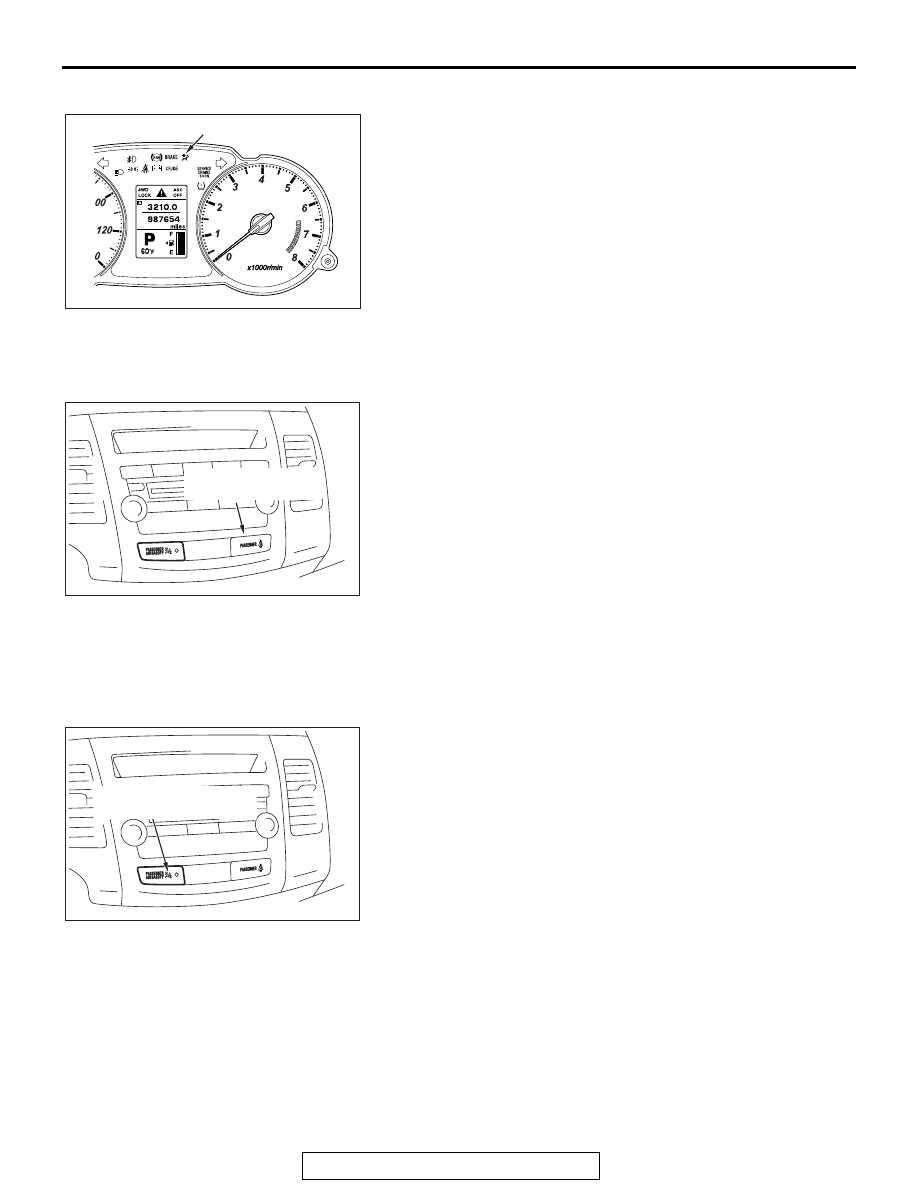

AC901647

SRS Warning light

AB

AC607689AF

Passenger's seat belt
warning light

AC607689

Passenger's air bag OFF
indicator light

AG
