EXTERIOR

51-107

INSTALLATION SERVICE POINT

.

>>A<< MARK APPLICATION

1. Installation position

Attach each mark to the position shown in the illustration.

AC809542

A

A

AC

13 mm
(0.5 in)

13 mm (0.5 in)

Section A – A

Center line of vehicle

Liftgate garnish
lower end

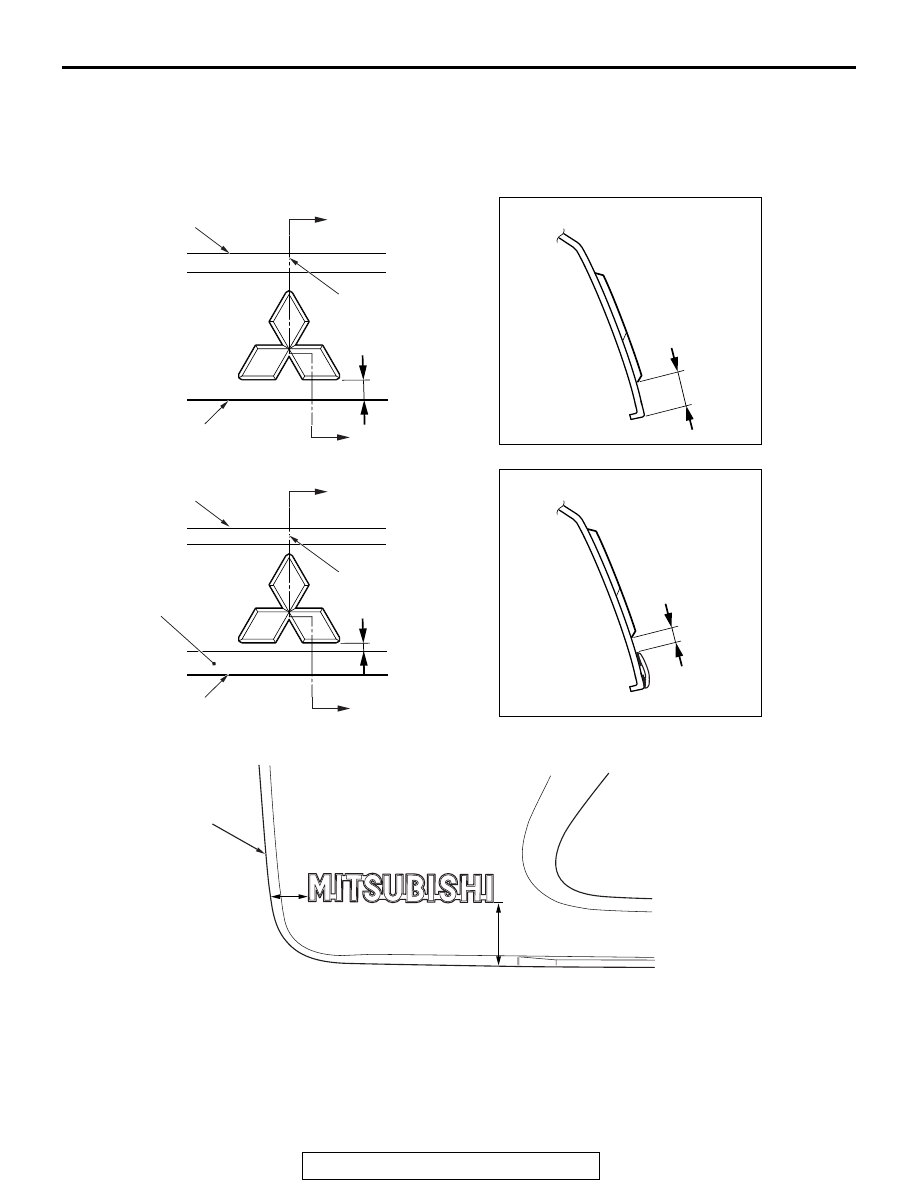

2. Rear three-diamond mark <Vehicles without liftgate molding>

Liftgate garnish upper end

AC809543

A

A

AC

5 mm
(0.2 in)

5 mm (0.2 in)

Section A – A

Center line of vehicle

Liftgate garnish
lower end

2. Rear three-diamond mark <Vehicles with liftgate molding>

Liftgate garnish upper end

Liftgate molding

ACA02806AB

31.8 mm
(1.25 in)

66.5 mm
(2.62 in)

Liftgate panel
end



3. MITSUBISHI mark (Vehicles for USA and Canada)

MARK

TSB Revision

EXTERIOR

51-108

AC709768 AE

58.4 mm
(2.30 in)

24.4 mm
(0.96 in)

59.9 mm
(2.36 in)

Liftgate panel end

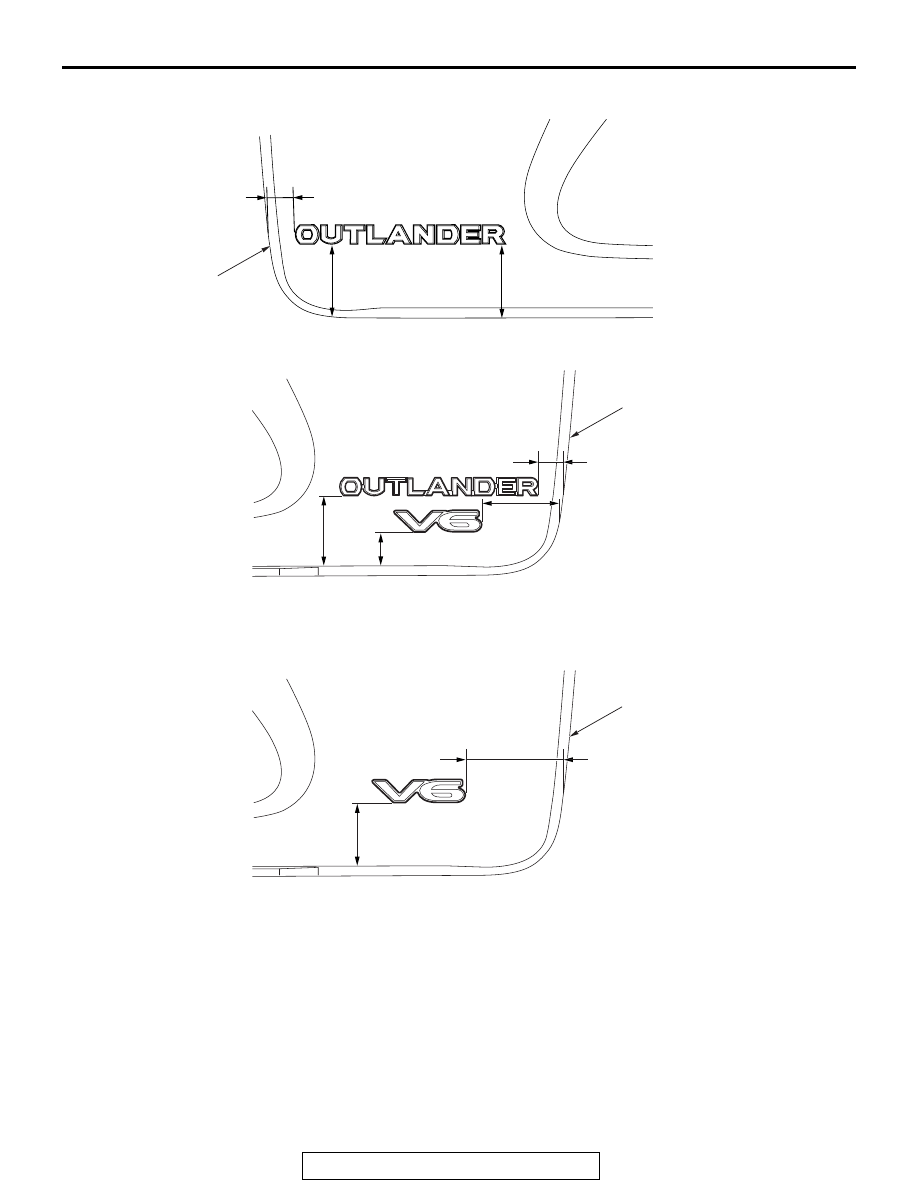

4. OUTLANDER mark <Vehicles for Puerto Rico and Mexico>

ACA02818AB

67.1 mm
(2.64 in)

37.6 mm
(1.48 in)

20.4 mm
(0.8 in)

Liftgate panel
end

5. OUTLANDER mark (Vehicles for USA and Canada)
6. V6 mark

(Vehicles for USA and Canada)

54.3 mm
(2.14 in)

ACA02819AB

58.7 mm
(2.31 in)

75.6 mm
(2.98 in)

Liftgate panel
end

 7.V6 mark <Vehicles for Puerto Rico and Mexico>

MARK

TSB Revision

EXTERIOR

51-109

2. Installation procedure

(1) Use 3M

™ AAD Part number 8906 or equivalent to clean

the mark installation surfaces on the body.

AC704106 AG

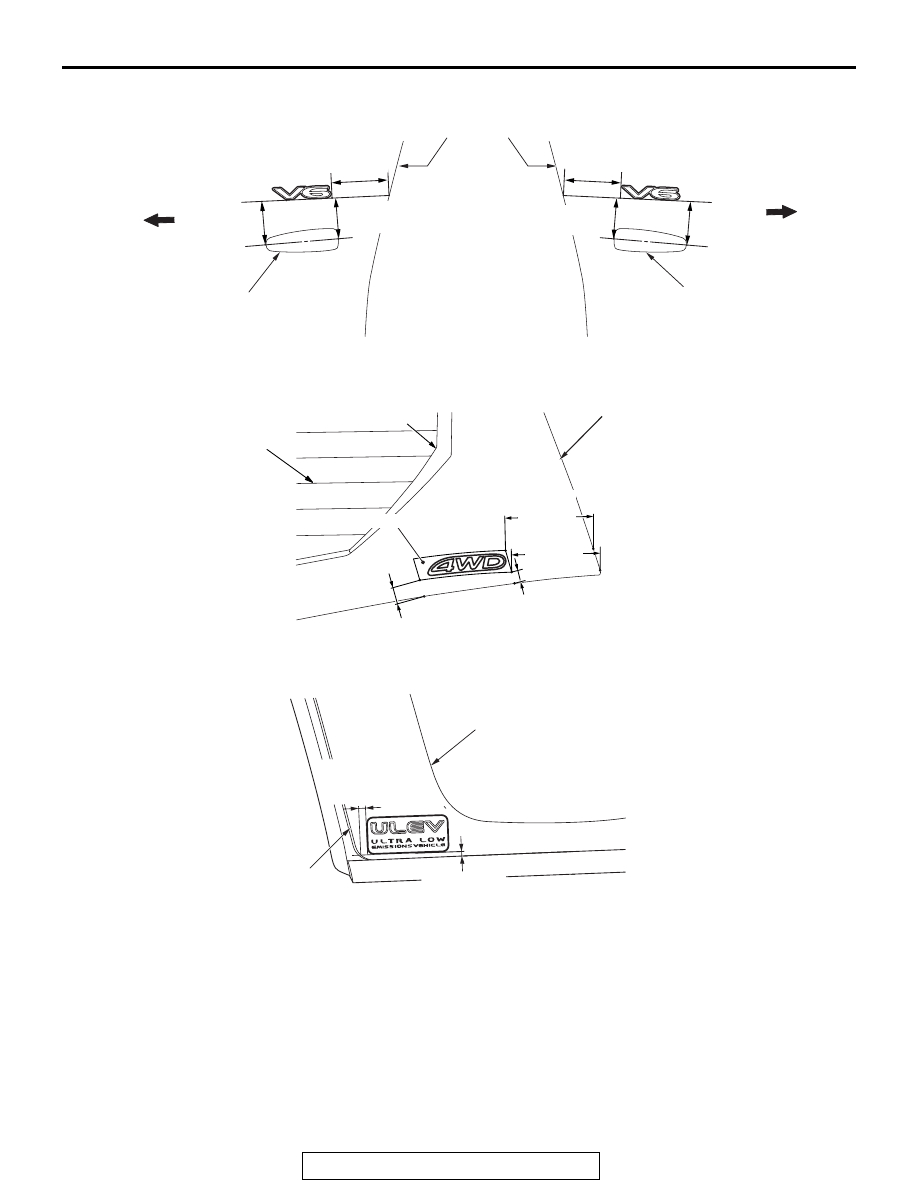

8. V6 mark

Front

Front

<RH>

<LH>

Fender panel end

Side turn-signal light

Side turn-signal light

49.1 mm
(1.93 in)

67.3 mm
(2.65 in)

50.9 mm
(2.00 in)

67.3 mm
(2.65 in)

49.9 mm
(1.93 in)

50.5 mm
(1.99 in)

ACA01442AC

9. 4WD mark <4WD>

82.8 mm

Defogger

Ceramic line end

Tailgate window glass hem line

Application tape

10.7 mm
(0.42 in)

82.2 mm
(3.24 in)

82.8 mm
(3.26 in)

15.8 mm
(0.62 in)

AC802546 AD

10. ULEV (ULTRA LOW EMISSIONS VEHICLE) mark (LH) <Vehicles for California (3000)>

Ceramic line

7.0 ± 5.0 mm

(0.28 ± 0.20 in)

Quarter window
glass end line

(0.20 ± 0.04 in)

5.0 ± 1.0 mm

OUTSIDE MIRROR

TSB Revision

EXTERIOR

51-110

CAUTION

When attaching the marks, the ambient temperature
should be 20

 38°C (60  100°F) and air should be com-

pletely free of dust. If the ambient temperature is lower
than 20

°C (60°F), the marks and places on the body where

the marks are to be attached should be heated to 20

 30°

(60

 86°F).

(2) Peel off the protection sheet on the back of the marks to

paste it on the installation position.

OUTSIDE MIRROR

GENERAL INFORMATION

M1511000101368

DOOR MIRROR OPERATION

Remote Controlled Mirror Operation

• The mirror on the door mirror moves up/down

and left/right by operating the remote controlled
door mirror switch when the ignition switch is at
the "ON" or "ACC" position.

Heated Door Mirror Operation

• The rear window defogger relay switch is acti-

vated (ON) by turning on the A/C-ECU built-in
rear window defogger switch when the ignition
switch is in the "ON" position. When the rear win-
dow defogger relay is turned ON, power is sup-

plied to the rear window defogger and door
mirror, and the heater of the door mirror (heated
door mirror) starts operations. The rear window
defogger comes with a timer function and will
automatically turn OFF the switch approximately
20 minutes after the rear window defogger switch
is turned ON. The heated door mirror operations
are also terminated along with the rear window
defogger, at this time.

HEATED DOOR MIRROR DIAGNOSIS

TROUBLESHOOTING STRATEGY

M1511014600523

Diagnosis should be carried out by the following pro-
cedures.
1. Gather the information from the customer.
2. Verify that the condition described by the

customer exists.

3. Find the malfunction by the following Symptom

Chart.

4. Verify the malfunction is eliminated.

TROUBLE SYMPTOM CHART

M1511015001271

Trouble symptom

Inspection
procedure
No.

Reference
page

None of the heated door mirrors operate

1

P.51-111

Left or right side heated door mirror does not operate

2

P.51-114
