REAR WIPER AND WASHER

TSB Revision

EXTERIOR

51-99

STEP 4. Retest the system.
Check that the rear wiper operates continuously when the
selector lever is moved to the R position during the rear wiper
operation.
Q: Is the check result normal?

YES : Intermittent malfunction. Refer to GROUP 00, How to

cope with intermittent malfunction

P.00-15

.

NO :  Replace the ETACS-ECU.

INSPECTION PROCEDURE 4: Rear washer does not work normally.

.

CIRCUIT OPERATION

The rear washer switch sends a signal through the
column-ECU (incorporated in the column switch) to
the ETACS-ECU. If the column-ECU sends a rear
washer switch "ON" signal to the ETACS-ECU, the
ETACS-ECU turns on the relay (incorporated in the
ETACS-ECU), thus causing the windshield and rear
washer motor to be turned on.

.

TECHNICAL DESCRIPTION (COMMENT)

If the rear washer does not work normally, the wind-
shield and rear washer motor, the column switch
(windshield wiper and washer switch) or the
ETACS-ECU may be defective.

.

TROUBLESHOOTING HINTS

• The windshield and rear washer motor may be

defective

• The column switch (windshield wiper, washer

switch) may be defective

• The ETACS-ECU may be defective

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB992006: Extra Fine Probe

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicles communication interface (V.C.I.)

• MB991827: M.U.T.-III USB cable

• MB991911: M.U.T.-III Main harness B

STEP 1. Verify the windshield washers.
Q: Does the windshield washers operate?

YES : Go to Step 2.
NO :  Refer to Inspection Procedure 7 "Windshield washer

does not work.

P.51-66

."

STEP 2. Verify the rear wiper.
Q: Does the rear wiper operate?

YES : Go to Step 3.
NO :  Refer to Inspection Procedure 1 "Rear wiper does not

work.

P.51-89

."

REAR WIPER AND WASHER

TSB Revision

EXTERIOR

51-100

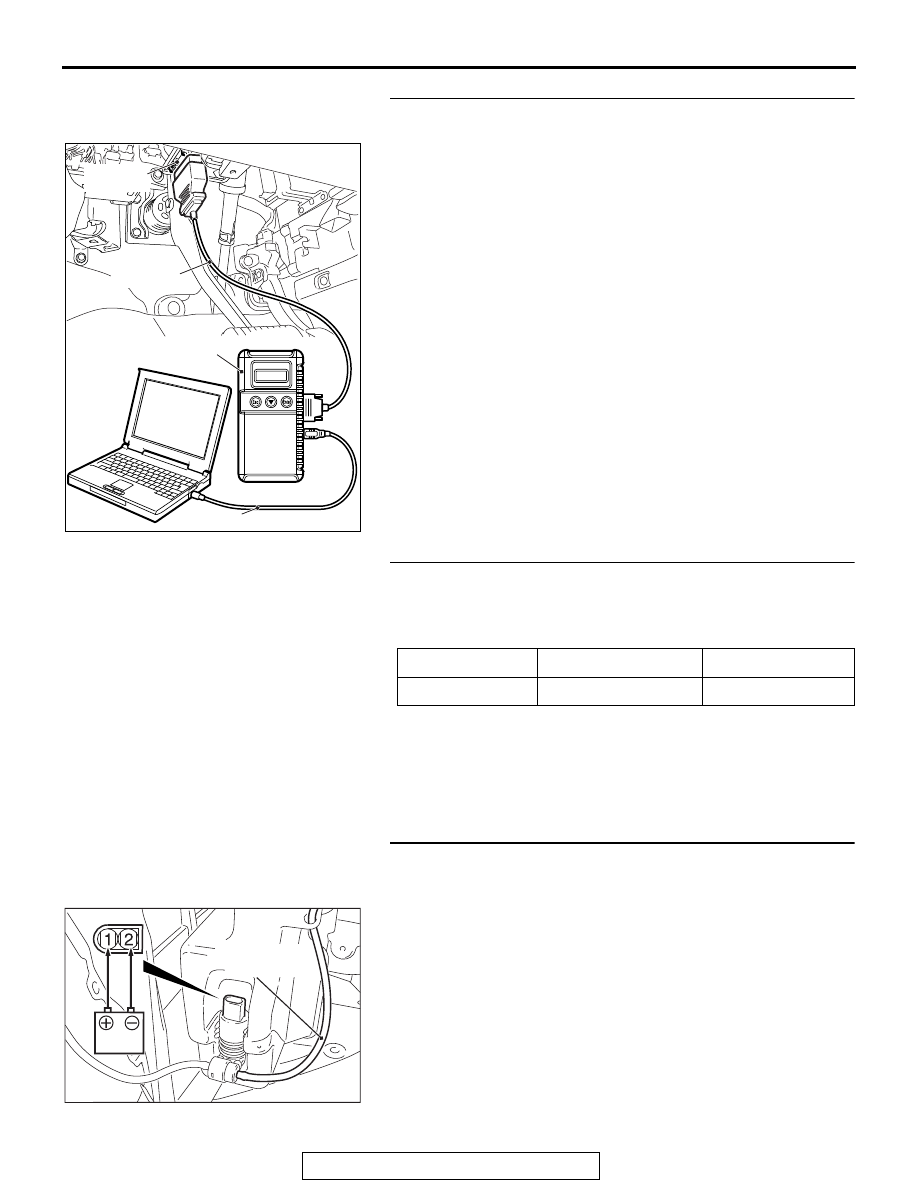

STEP 3. Use the scan tool MB991958 to check if an
ETACS-related diagnostic trouble code is set.
Connect the scan tool. Refer to GROUP 54A ETACS, "Diag-
nostic function

P.54A-729

."

Q: Is the diagnostic trouble code set?

YES : Diagnose the ETACS-ECU. Refer to GROUP 54A

ETACS, "Diagnostic trouble code chart

P.54A-732

."

NO :  Go to Step 4.

STEP 4. Check the input signal related to the rear washer
operation.

• Ignition switch: ACC

• Rear washer switch: ON

OK: Normal condition is displayed.

Q: Is the check result normal?

NO :  Go to Step 5.
YES : Refer to GROUP 54A

− ETACS, Input signal

procedures

P.54A-785

.

STEP 5. Check the washer motor.
(1) Disconnect the washer motor connector A-54.
(2) Fill the windshield washer tank with washer fluid.
(3) When battery voltage is applied between terminals 1 and 2,

washer fluid should spray out.

Q: Does the washer motor operate normally?

YES : Go to Step 6.
NO :  Replace the washer motor. Verify that the rear washer

works normally.

ZC501967

AC404789

AC701411AB

MB991824

MB991827

MB991910

Data link
connector

Item No.

Item name

Normal condition

Item 238

Rear washer

ON

AC702502 AB

Rear washer
hose

REAR WIPER AND WASHER

TSB Revision

EXTERIOR

51-101

STEP 6. Replace the ETACS-ECU, and then check its
operation.
Replace the ETACS-ECU, and then check that the rear washer
works normally.
(1) Replace the ETACS-ECU.
(2) Ignition switch: ON
(3) The rear washer should now work normally.
Q: Is the check result satisfactory?

YES : Intermittent malfunction. Refer to GROUP 00, How to

cope with intermittent malfunction

P.00-15

.

NO :  Replace the Front-ECU.

ON-VEHICLE SERVICE

OPERATION CHECK OF REVERSE GEAR-LINKED OPERATION OF REAR WIPER

M1511022600108

1. When the selector lever is moved to the "R" posi-

tion with the rear wiper switch at the "INT" posi-
tion, the wiper should operate twice or three
times at low speed after approximately one sec-
ond.

2. If not, carry out the troubleshooting. (Refer to

P.51-50

)

CUSTOMIZATION FUNCTION

M1511027402042

Using the ETACS system of scan tool MB991958,
the following functions can be programmed. The pro-
grammed information is held even when the battery
is disconnected.

Adjustment
item (scan tool
MB991958
display)

Adjustment item

Adjusting contents
(scan tool MB991958
display)

Adjusting contents

Intermittent time
of rear wiper

Adjustment of rear
wiper interval

0 sec

No wiper interval

4 sec

4 seconds

8 sec

8 seconds (initial condition)

16 sec

16 seconds

Rear wiper low
speed mode

Disabling or
enabling rear wiper
continuous
operation

Disabled

Without function

Enabled

With function (initial condition)

Rear wiper
(linked
activated when
in reverse

Adjustment of
automatic rear
window wiper
operation with
reverse gear
engaged

Enable(R wip.ON)

Operates only when the rear wiper switch
is ON.

Enable(R/F wip.)

Operates only when the front or rear wiper
switch is ON (initial condition).

REAR WIPER AND WASHER

TSB Revision

EXTERIOR

51-102

REAR WIPER AND WASHER

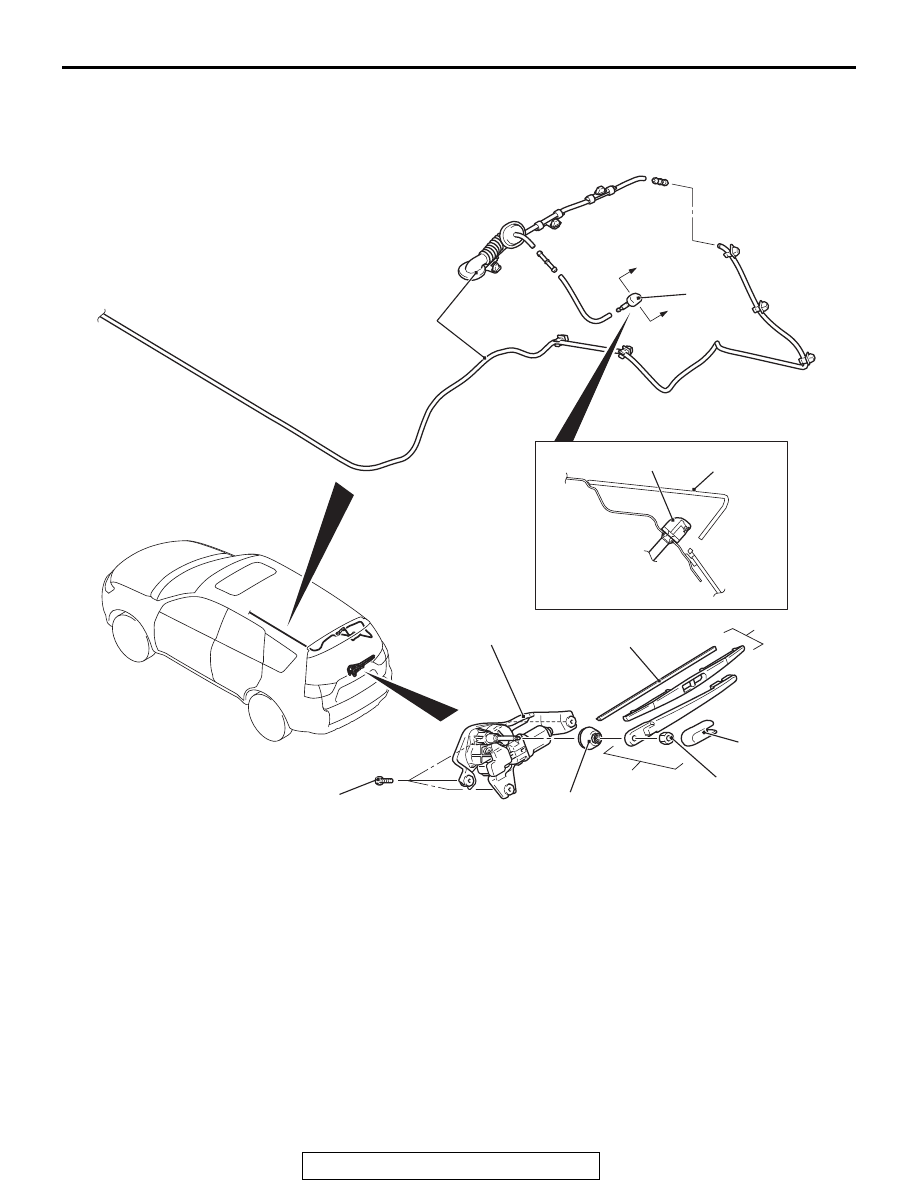

REMOVAL AND INSTALLATION

M1511008500873

NOTE: For removal and installation of the wiper and
washer switch, refer to GROUP 54A, Column Switch

P.54A-323

.

AC702735

2

1

7

1

8

4

6

3

AC

5

A

A

Section A–A

4.5 ± 1.5 N·m
40 ± 13 in-lb

7.5 ± 1.5 N·m
67 ± 13 in-lb

Liftgate spoiler

•

Washer tank (Refer to

P.51-81

)

•

Washer motor (Refer to

P.51-81

)

Rear washer nozzle removal
steps

•

Liftgate spoiler (Refer to

P.51-24

)

•

High-mounted stop light assembly
(Refer to

P.51-24

)

1.

Rear washer nozzle assembly
Rear wiper blade removal steps

2.

Rear wiper blade assembly

>>A<<

3.

Rear wiper blade
Rear wiper motor removal steps

4.

Cover

>>B<<

5.

Rear wiper arm assembly

•

Liftgate trim (Refer to GROUP 52A,
Liftgate Trim

P.52A-14

)

6.

Grommet

7.

Rear wiper motor assembly
Rear washer hose removal steps

•

Front/rear scuff plate, cowl side
trim, quarter trim (Refer to GROUP
52A, Interior Trim

P.52A-10

)

•

Liftgate trim (Refer to GROUP 52A,
Liftgate Trim

P.52A-14

)

8.

Rear washer hose

Rear wiper motor removal steps
