Mitsubishi Outlander GS45X. Manual - part 1370





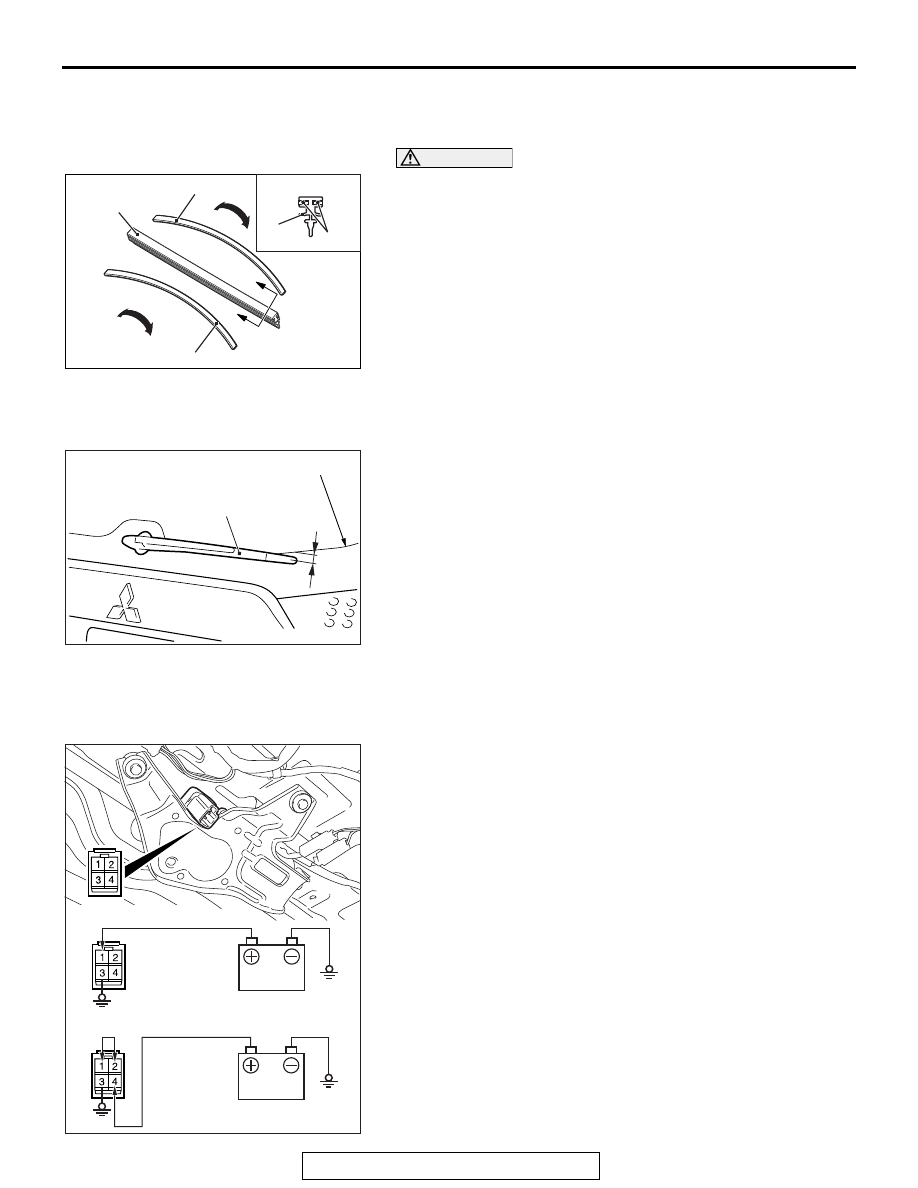

REAR WIPER AND WASHER

TSB Revision

EXTERIOR

51-103

INSTALLATION SERVICE POINTS

.

>>A<< REAR WIPER BLADE INSTALLATION

CAUTION

Use a curved backing like that shown for the backing of a
wiper blade to ensure sustained wiper wiping perfor-
mance.

.

>>B<< REAR WIPER ARM AND BLADE
ASSEMBLY INSTALLATION

Install the rear wiper arm and blade assembly so that it stops at
the specified position.

(A): 0 to 20 mm (0 to 0.79 in) from the ceramic line

INSPECTION

M1511019102905

REAR WIPER MOTOR CHECK

Inspect the rear wiper motor by disconnecting the harness con-
nector with the motor attached to the vehicle.

.

REAR WIPER MOTOR OPERATION CHECK

Connect the battery to the rear wiper motor to inspect the motor
operation as shown in the illustration.

.

REAR WIPER MOTOR STOP POSITION CHECK

1. Connect the battery to the rear wiper motor as shown in the

illustration.

2. Disconnect the battery in the middle of the motor rotation

and check to see that the motor stops.

3. Reconnect the battery.
4. Check to see that the rear wiper motor runs and then stops

at the automatic stop position.

AC101090

AE

A

A

Wiper blade

Backing

Backing

Section A – A

Wiper
blade

Backing

AC702736AC

A

Ceramic line

Rear wiper arm and
blade assembly

AC103246

AC506678

AB

Operation check

Stop position check

REAR WIPER AND WASHER

TSB Revision

EXTERIOR

51-104

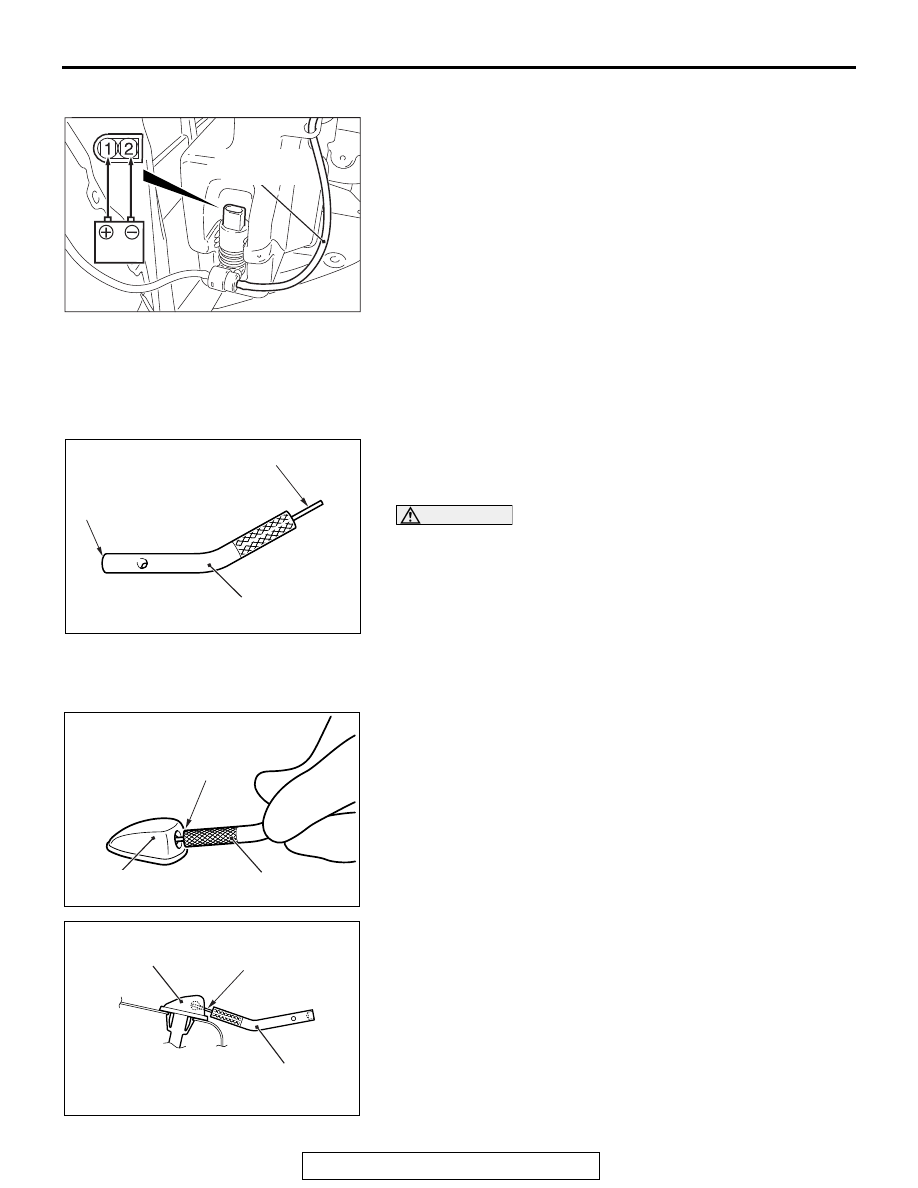

REAR WASHER MOTOR INSPECTION

.

1. The rear washer motor must be checked with the washer

tank installed and the washer fluid filled.

2. Connect the battery to the washer motor connector as

shown. Check that the washer motor delivers washer
strongly to the rear washer hose side.

CHECKING THE REAR WASHER NOZZLE
INJECTION DIRECTION

NOTE: Use special tool Adjustment tool, washer nozzle
(MB992326) to adjust the splashing points of the nozzle.

.

ADJUSTMENT OF THE JET TYPE WASHER
NOZZLE INJECTION POSITION

CAUTION

Adjust the splashing position within the specified adjust-
ment range, otherwise the windshield cannot be washed
properly.
1. Use special tool Adjustment tool, washer nozzle

(MB992326) to adjust the splashing points of the nozzle.

2. Insert the jet type washer nozzle adjusting side of the

special tool Adjustment tool, washer nozzle (MB992326)
into the injection part of the washer nozzle as shown in
figure (A).

3. Move the special tool Adjustment tool, washer nozzle

(MB992326) up and down to adjust the angle of the washer
nozzle as shown in figure (B).

AC506693AB

Rear washer
hose

AC900637

AD

MB992326

Mist type
washer nozzle adjusting side

Jet type washer nozzle
adjusting side

AC900956

AD

MB992326



(A)



Jet type
washer nozzle
adjusting side

Jet type
washer nozzle

AC900958

AC

MB992326

Jet type
washer nozzle
adjusting side

Jet type
washer nozzle

REAR WIPER AND WASHER

TSB Revision

EXTERIOR

51-105

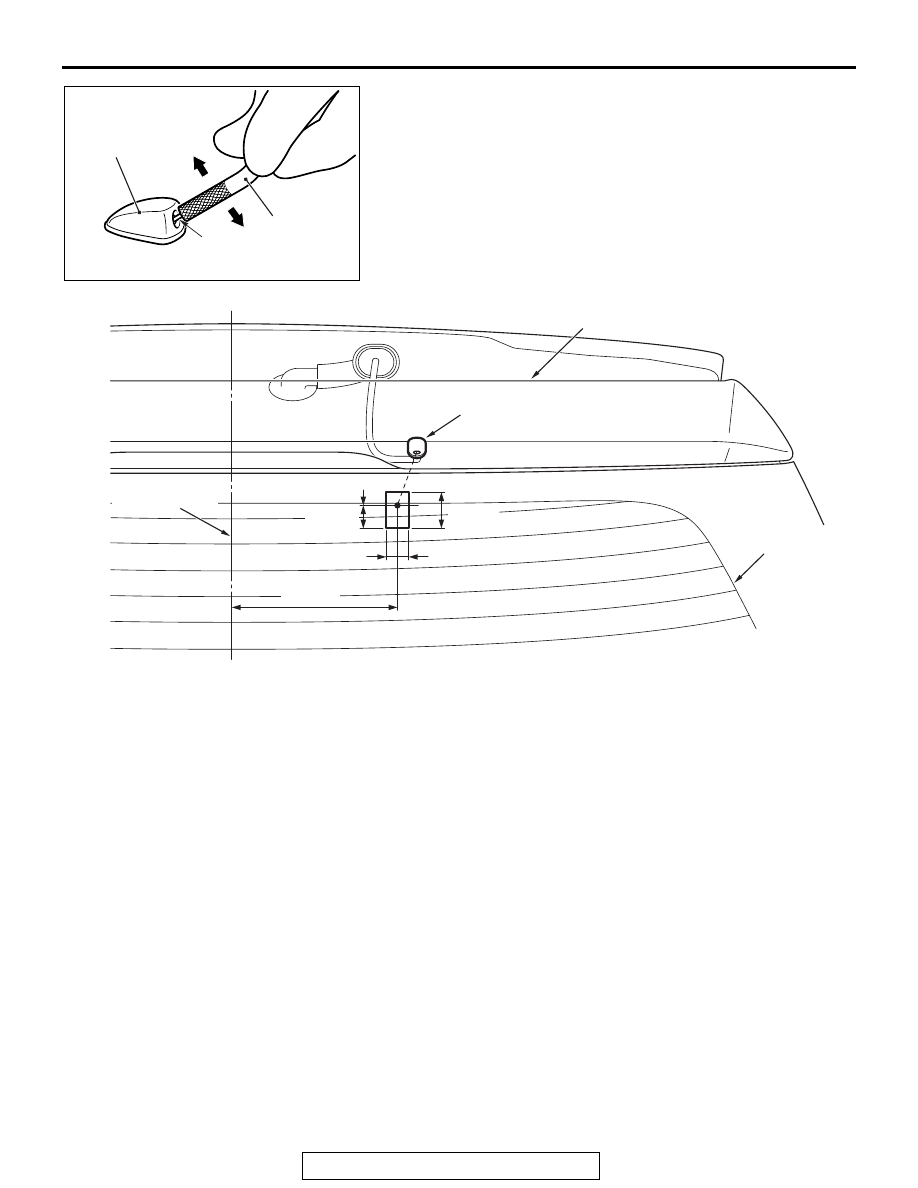

CHECKING THE REAR WIPER AND WASHER
SWITCH

The rear wiper and washer switch can be checked for proper
operation by confirming ETACS diagnosis trouble code. (Refer
to GROUP 54A - ETACS

P.54A-732

)

AC900957

AC

MB992326

(B)

Jet type
washer nozzle
adjusting side

Jet type
washer nozzle

AC702737

3(0.12)

AB

Unit: mm (in)

40(1.57)

25(0.98)

180(7.09)

25(0.98)

Liftgate spoiler

Vehicle center line

Rear washer nozzle

Ceramic
line terminal

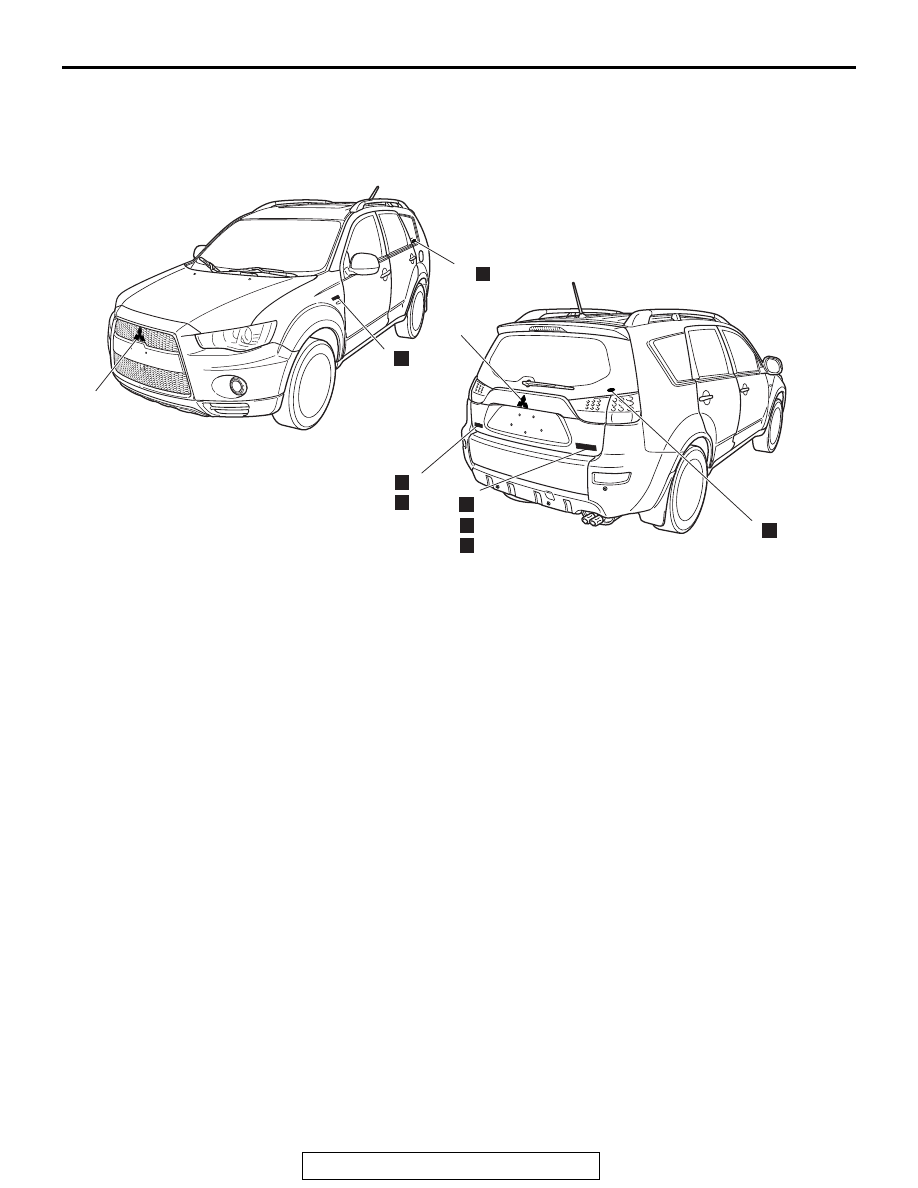

MARK

TSB Revision

EXTERIOR

51-106

MARK

REMOVAL AND INSTALLATION

M1511011803798

AC704254

AC901270

1

10

N

8

N

3

N

4

N

5

N

2

AC

6

N

7

N

9

N

1.

Front three-diamond mark (Refer to

P.51-9

)

>>A<<

2.

Rear three-diamond mark (Refer to

P.51-9

)

>>A<<

3.

MITSUBISHI mark <Vehicles for
USA and Canada>

>>A<<

4.

OUTLANDER mark <Vehicles for
Puerto Rico and Mexico>

>>A<<

5.

OUTLANDER mark <Vehicles for
USA and Canada>

>>A<<

6.

V6 mark <Vehicles for USA and
Canada>

>>A<<

7.

V6 mark <Vehicles for Puerto Rico
and Mexico>

>>A<<

8.

V6 mark <3000>

>>A<<

9.

4WD mark<4WD>

>>A<<

10. ULEV (ULTRA LOW EMISSIONS

VEHICLE) mark (LH) <Vehicles for
California (3000)>
