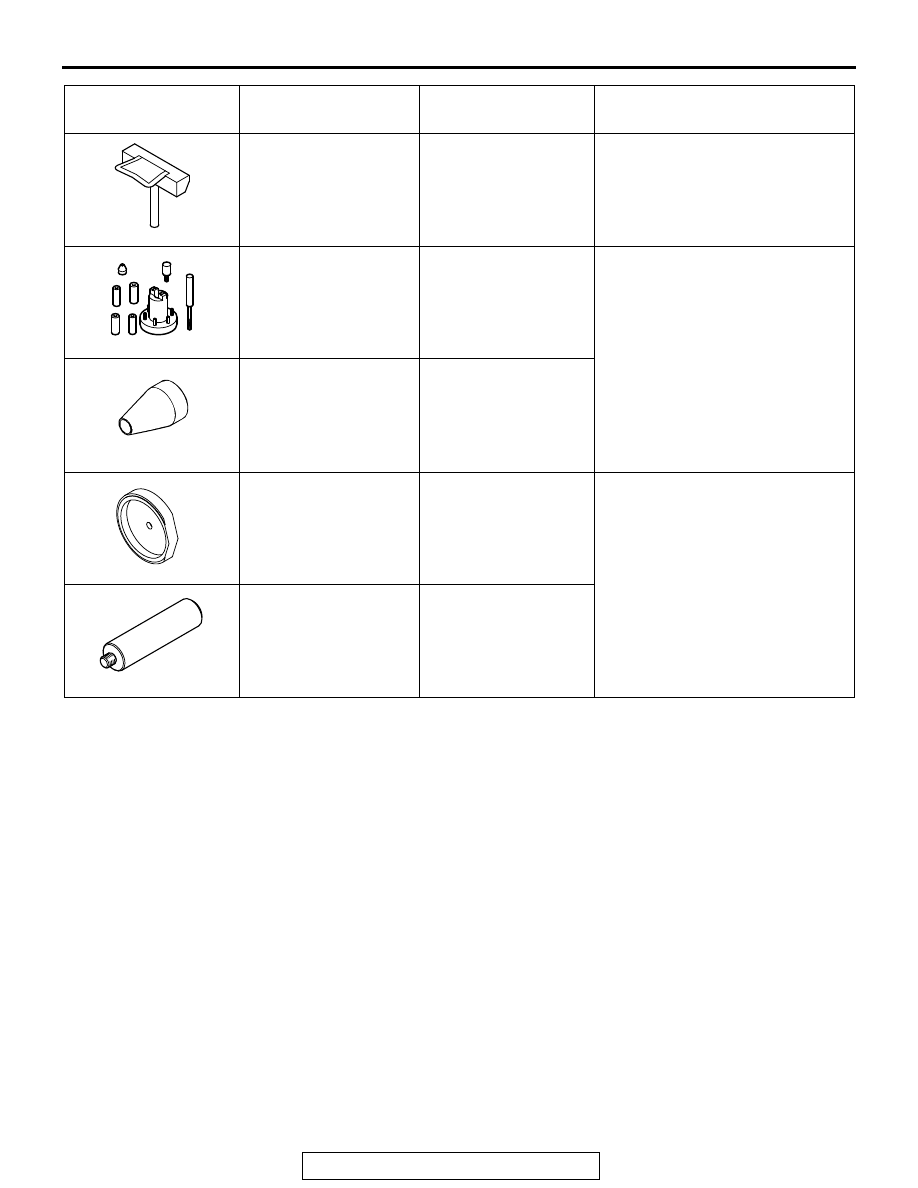

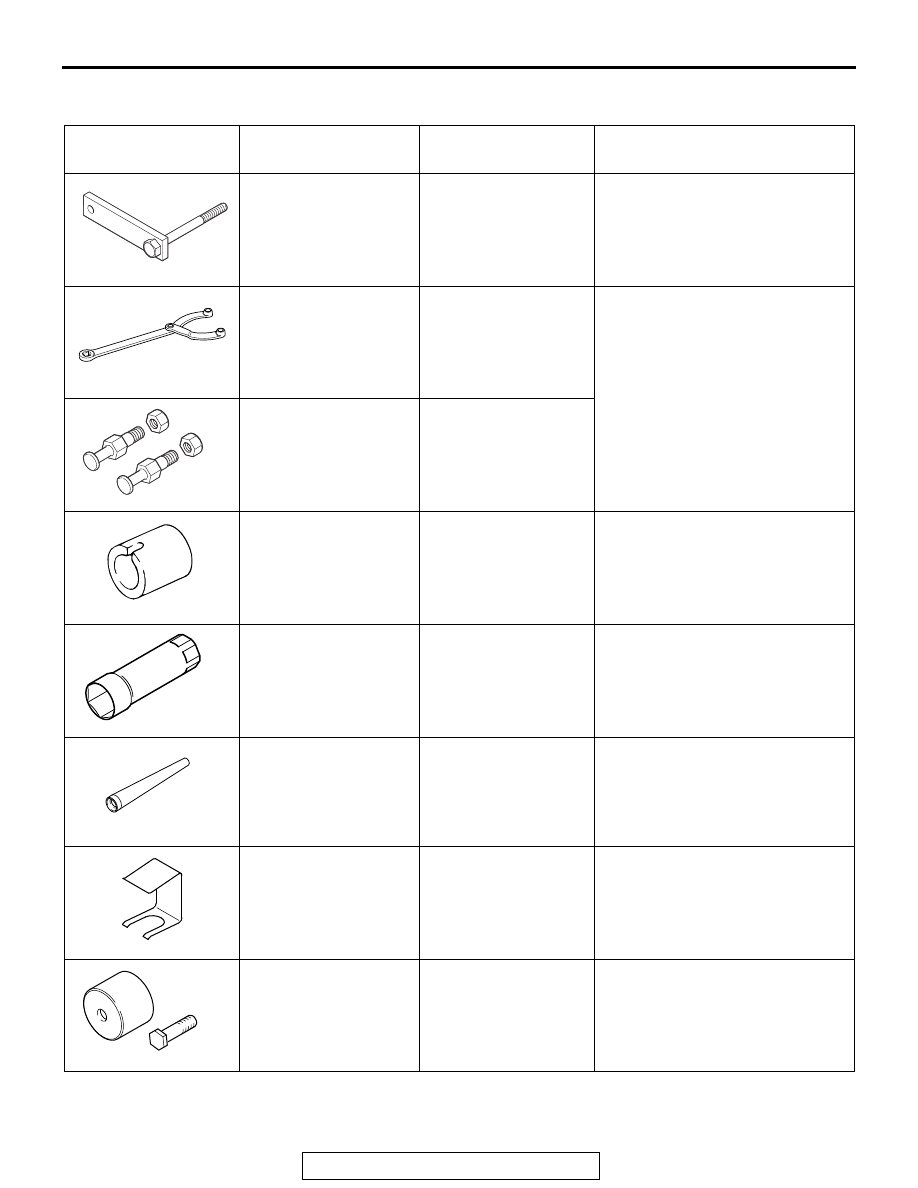

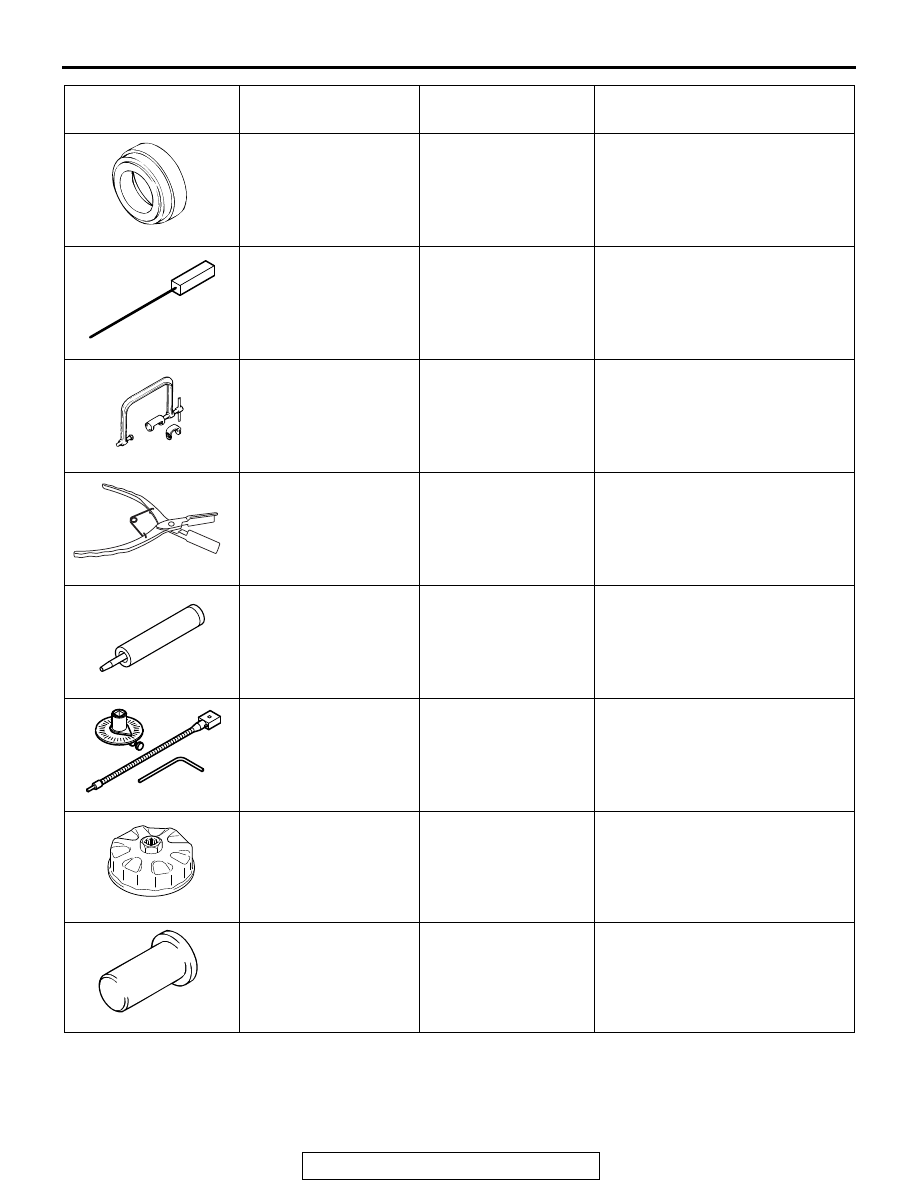

SPECIAL TOOLS

TSB Revision

ENGINE OVERHAUL <3.0L ENGINE>

11D-9

SPECIAL TOOLS

M1113000602364

Tool

Tool number and
name

Supersession

Application

MD998781
Flywheel stopper

General service tool

Holding drive plate

MB990767
End yoke holder

MB990767-01

Holding camshaft sprocket when
loosening or torquing bolt

MD998719
Pin

MIT308239

MD998716
Crankshaft wrench

MD998716-01

Turning crankshaft

MB991398
Spark plug wrench

General service tool

Removal and installation of spark
plug

MB992106
O-ring installer

−

Installation of O-ring on injector
injection nozzle side

MD998443
Lash adjuster holder
(8)

MD998443-01

Supporting of the lash adjuster to
prevent it from falling when rocker
shaft assembly is removed or
installed

MD998713
Camshaft oil seal
installer

MD998713-01

Installation of camshaft oil seal

D998781

B990767

D998719

B992106

D998443

D998713

SPECIAL TOOLS

TSB Revision

ENGINE OVERHAUL <3.0L ENGINE>

11D-10

MD998777
Camshaft oil seal
installer adaptor

−

Installation of camshaft oil seal
(left bank)
(use with MD998713)

MD998442
Air bleed wire

General service tool

Air bleeding of auto lash adjuster

MD998735
Valve spring
compressor

MD998735-01

Compression of valve spring

MB992085
Valve stem seal plier

−

Removal of valve stem seal

MB992182
Valve stem seal
installer

−

Installation of valve stem seal

MB991614
Angle gauge

General service tool

Installation of cylinder head bolt
and bearing cap bolt (beam side)

MB991396
Oil filter wrench

−

Installation of oil filter wrench

MD998382
Crankshaft front oil
seal installer

MD998382-01

Installation of crankshaft front oil
seal

Tool

Tool number and
name

Supersession

Application

MD998777

MB992182

MB991614

B991396

D998382

SPECIAL TOOLS

TSB Revision

ENGINE OVERHAUL <3.0L ENGINE>

11D-11

MD998727
Oil pan FIPG cutter

MD998727-01

Removal of oil pan lower

MD998780
Piston pin setting tool

MIT216941

Removal and installation of piston
pin

MB991659
Guide D

−

MB992183
Crankshaft rear oil seal
installer

−

Installation of crankshaft rear oil
seal

MB992075
Handle

−

Tool

Tool number and
name

Supersession

Application

D998727

MB992183

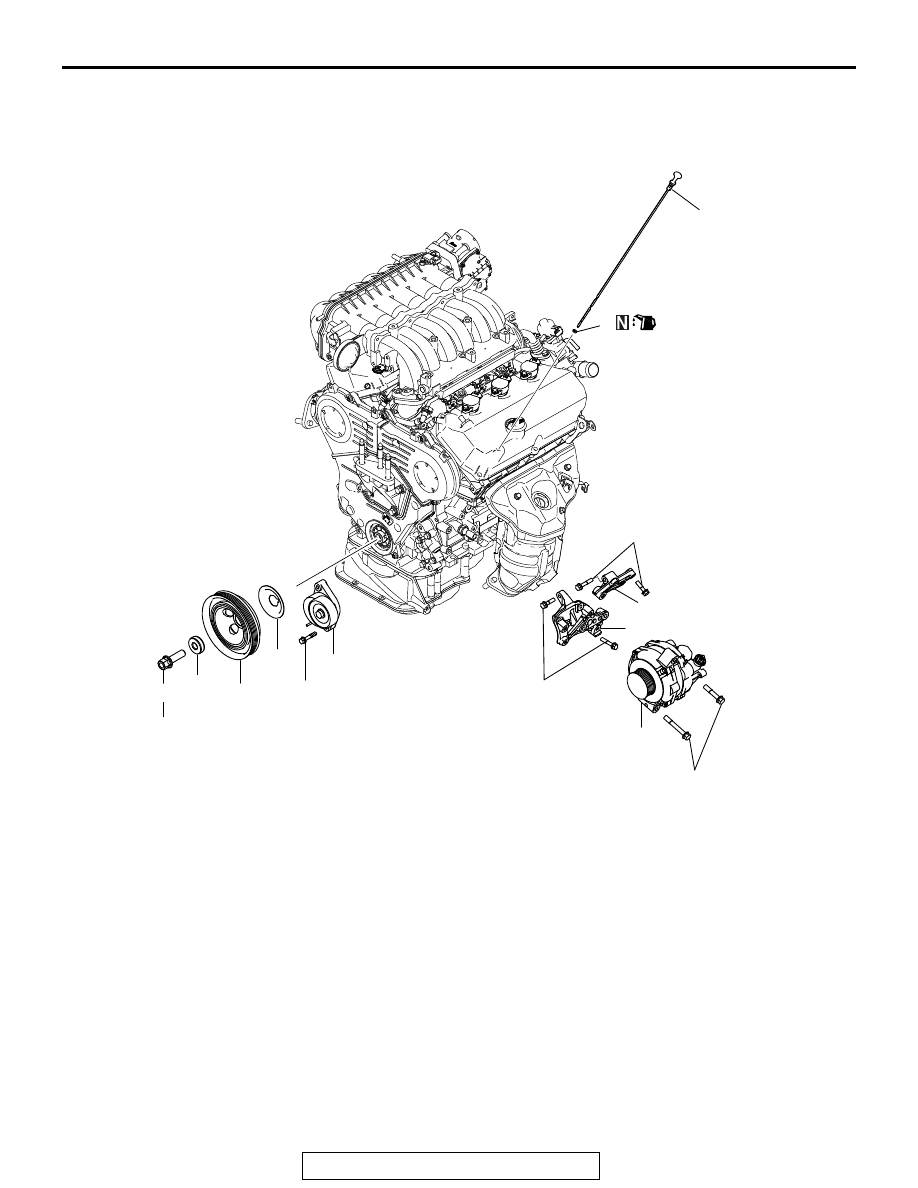

GENERATOR AND DRIVE BELT

TSB Revision

ENGINE OVERHAUL <3.0L ENGINE>

11D-12

GENERATOR AND DRIVE BELT

REMOVAL AND INSTALLATAION

M1113001300746

Required Special Tool:

• MD998781: Flywheel Stopper

AK800459

1

3

4

5

6

7

10

9

200 N·m
148 ft-lb

110 N·m
81 ft-lb

0 N·m
0 ft-lb

47 ± 11 N·m
35 ± 7 ft-lb

2

23 ± 6 N·m
17 ± 4 ft-lb

23 ± 6 N·m
17 ± 4 ft-lb

23 ± 6 N·m
17 ± 4 ft-lb

8

AB

→

→

→ +60˚

Removal steps

1.

Oil dipstick

2.

O-ring

<<A>> >>B<<

3.

Crankshaft bolt

4.

Crankshaft pulley washer

5.

Crankshaft pulley

6.

Front flange

7.

Drive belt auto tensioner

>>A<<

8.

Generator

9.

Generator bracket upper

10. Generator bracket lower

Removal steps (Continued)
