DIAGNOSIS

TSB Revision

WIRELESS CONTROL MODULE (WCM)

42C-7

DIAGNOSIS

STANDARD FLOW OF DIAGNOSTIC
TROUBLESHOOTING

M1427504600035

Refer to GROUP 00

− How to Use Troubleshooting/Inspection

Service Points, Contents of Troubleshooting

P.00-7

.

DIAGNOSTIC FUNCTION

M1427501400087

HOW TO CONNECT THE SCAN TOOL (M.U.T.-III)

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

MB991223

a. MB991219
b. MB991220
c. MB991221
d. MB991222

Harness set

a. Test harness
b. LED harness
c. LED harness

adaptor

d. Probe

General service tools Continuity check and voltage

measurement at harness wire or
connector for loose, corroded or
damaged terminals, or terminals
pushed back in the connector.

a. Connector pin contact

pressure inspection

b. Power circuit inspection
c. Power circuit inspection
d. Commercial tester connection

MB992006
Extra fine probe

Making voltage and resistance
measurement during
troubleshooting

MB990784
Ornament remover

General service tool

Removal of steering column
cover.

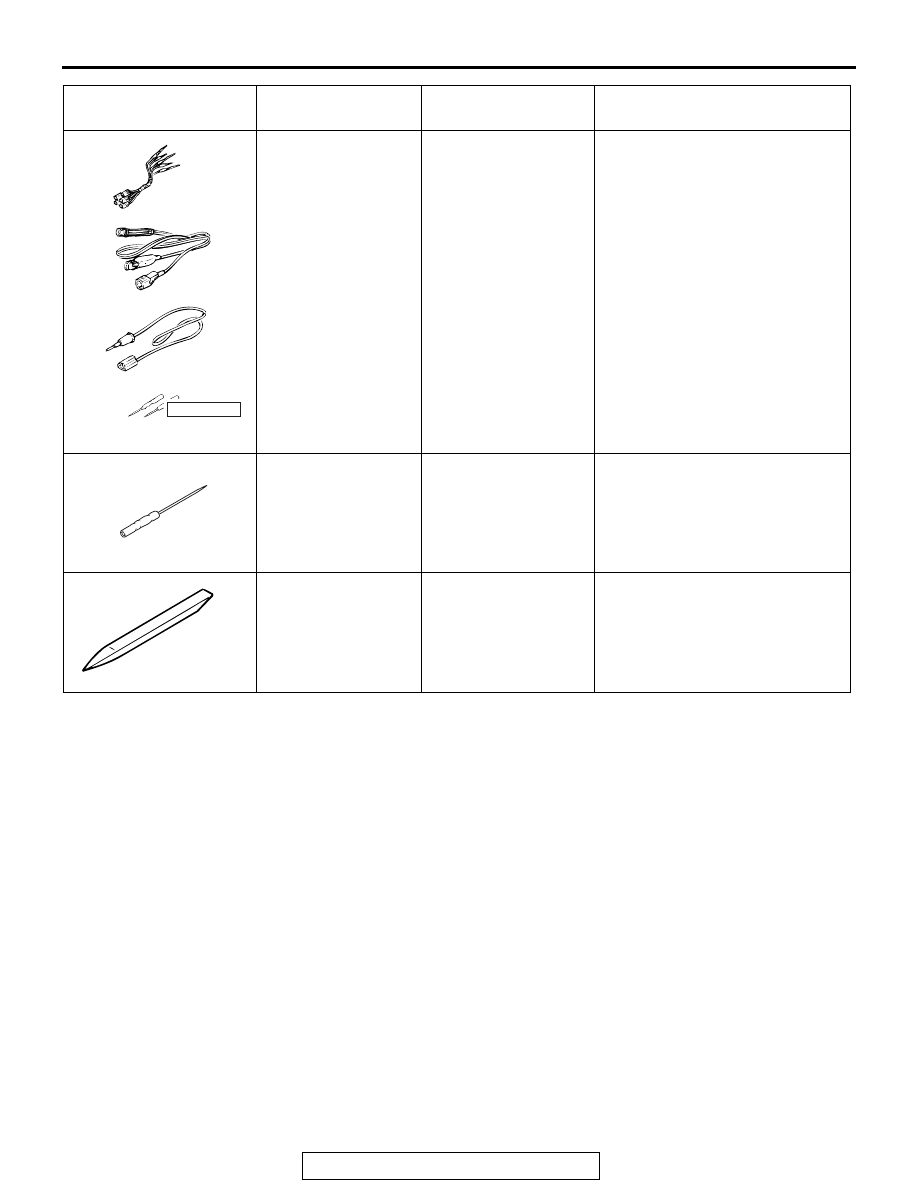

Tool

Tool number and
name

Supersession

Application

MB991223

a

d

c

b

DO NOT USE

BA

MB992006

MB990784

DIAGNOSIS

TSB Revision

WIRELESS CONTROL MODULE (WCM)

42C-8

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
1. Ensure that the ignition switch is at the "LOCK" (OFF)

position.

2. Start up the personal computer.

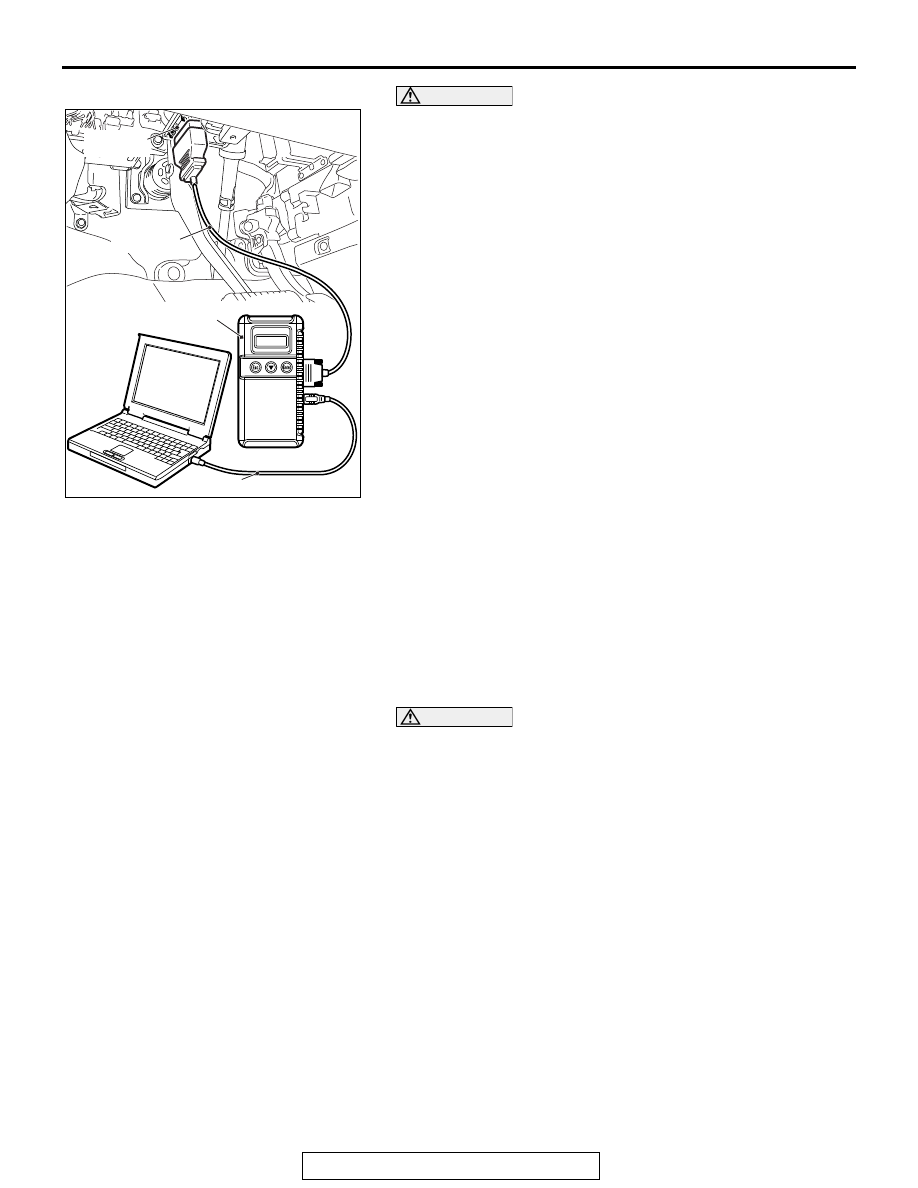

3. Connect special tool MB991827 to special tool MB991824

and the personal computer.

4. Connect special tool MB991910 to special tool MB991824.
5. Connect special tool MB991910 to the data link connector.
6. Turn the power switch of special tool MB991824 to the "ON"

position.
NOTE: When special tool MB991824 is energized, special
tool MB991824 indicator light will be illuminated in a green
color.

7. Start the M.U.T.-III system on the personal computer.
NOTE: Disconnecting scan tool MB991958 is the reverse of the
connecting sequence, making sure that the ignition switch is at
the "LOCK" (OFF) position.

HOW TO READ AND ERASE DIAGNOSTIC
TROUBLE CODES

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
NOTE: If the battery voltage is low, diagnostic trouble codes will
not be set. Check the battery if scan tool MB991958 does not
display.
1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Select "System select" from the start-up screen.
4. Select "From 2006 MY" of "Model Year." When the "Vehicle

Information" is displayed, check the contents.

5. Select "WCM" from "System List", and press the "OK"

button.
NOTE: When the "Loading Option Setup" list is displayed,
check the applicable item.

6. Select "Diagnostic Trouble Code." to read the DTC.
7. If a DTC is set, it is shown.
8. Choose "Erase DTCs" to erase the DTC.

ZC501967

AC404789

AC701411AB

MB991824

MB991827

MB991910

Data link
connector

DIAGNOSIS

TSB Revision

WIRELESS CONTROL MODULE (WCM)

42C-9

CHECK OF FREEZE FRAME DATA

The freeze frame data can be checked by using the
scan tool (GROUP 00, How to Cope with Intermittent
Malfunction

P.00-15

).

.

When detecting fault and storing the DTC, the ECU
connected to CAN bus line obtains the data before
the determination of the DTC and the data when the
DTC is determined, and then stores the ECU status
of that time. By analyzing each data from scan tool,
the troubleshooting can be performed more effi-
ciently. The displayed items are as the table below.
DISPLAY ITEM LIST

NOTE:

*

: If a failure occurs to both the ABS-ECU and

ETACS-ECU, 0000 mile or FFFF mile is displayed to
the scan tool MB991958.

Item No.

Item name

Data item

Unit

01

Odometer

Total driving distance after the diagnostic trouble
code is generated

mile

*

02

Ignition cycle

Number of times the ignition switch is turned "ON" or
"LOCK (OFF)" after the past failure transition

Number of
counts is
displayed.

04

Current trouble
accumulative time

Cumulative time for current malfunction of
diagnostic trouble code

min

DIAGNOSIS

TSB Revision

WIRELESS CONTROL MODULE (WCM)

42C-10

ID CODES REGISTRATION JUDGMENT TABLE

M1427504400644

CAUTION

Do not replace the engine control module (ECM)
and WCM at the same time. When replacing sev-
eral ECUs, always replace one ECU at a time, reg-
ister the necessary IDs in it, and then replace the
next ECU.
The transponder (a small transmitter) in the ignition
key, WCM, and the ECM have their own ID codes
stored in them. When the cases listed in the table
below occur, the ID codes must be registered in the
WCM or ECM again.

NOTE: Up to eight ignition keys (key ID and keyless
entry secret code) can be stored in the memory of
WCM.

NOTE:

*

: Key (the key that can be used to lock/unlock the door or glove box only)

NOTE:

*1

: When available, key registration should be done beginning with a key that has been registered.

Item

Operation contents and
procedure

Reference page for registration
contents

When the ECM is replaced

1. Register the ENG the key code.
2. Write VIN.

ENG key code & VIN reg (Refer to
GROUP 00

− Precautions before

Service

− How to Perform VIN

Writing

P.00-40

).

When WCM is replaced

1. Write VIN.
2. Register all the key IDs of the

ignition keys again.

3. Register all the keyless IDs of

the ignition keys again.

4. Register the TPMS transmitters

• Write the VIN (Refer to GROUP

00

− Precautions before Service

− How to Perform VIN Writing

P.00-40

).

• Key Registration, Keyless ID

Registration and TPMS
transmitter ID registration (Refer
to

P.42C-99

).

When the ignition key added
individually

*1

1. Register all the key IDs of the

ignition keys again.

2. Register all the keyless IDs of

the ignition keys again.

Key Registration and Keyless ID
Registration (Refer to

P.42C-99

)

When the ignition key is lost
individually

1. Register all the key IDs of

ignition keys other than the lost
one again.

2. Register all the keyless IDs of

ignition keys other than the lost
one again.

When the ignition key is replaced
by the full service key set or the
steering lock service key set is
replaced by the piece.

1. Register the key ID of the

replaced ignition key again.
<Barcode No. input>

2. Register the keyless ID for all the

ignition keys again.

Key Registration (Barcode No.)
and Keyless ID Registration (Refer
to

P.42C-99

)

When the key

*

 is replaced by the

door service key set or glove box
service key set is added by the
piece.

Operation is not needed

When TPMS transmitter is
replaced

Register the TPMS transmitter

Registering tire pressure sensor ID
(Refer to

P.42C-99

).
