WIRELESS CONTROL MODULE (WCM)

42C-11

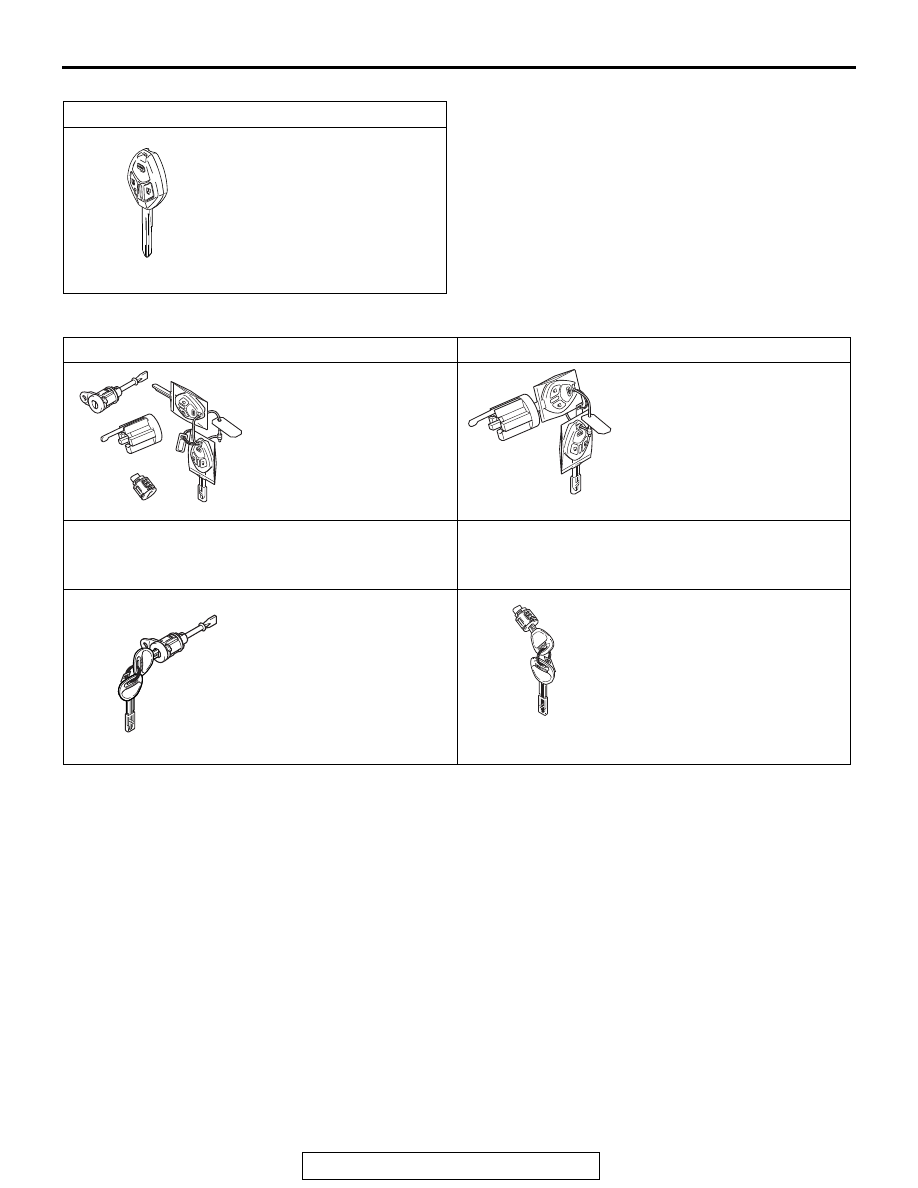

SUPPLY UNIT LIST FOR INDIVIDUAL KEY

KEY SUPPLY UNIT LIST FOR OTHER THAN INDIVIDUAL KEY

Ignition key (with transmitter)

AC709991

Full service key set

Steering lock service key set

Door service key set
NOTE: It can only be used for locking and
unlocking, and it cannot start the engine.)

Glove box service key set
NOTE: It can only be used for locking and
unlocking, and it cannot start the engine.)

AC901476

AC807905

AC702143

AC607882

DIAGNOSIS

TSB Revision

WIRELESS CONTROL MODULE (WCM)

42C-12

Registration flow chart

AC709689AD

YES

NO

5. Registration of keyless ID

YES

YES

YES

NO

NO

NO

NOTE
*: When WCM or TPMS transmitter is replaced.

Start of registration

ECM is replaced.

WCM is replaced.

3. Registration of VIN.

Ignition key is

replaced or added

(or lost).

4. Registration of key ID
(every one code)

4. Registration of
key ID (Barcode No.)

Ignition key is

replaced by the full

service key set or by the steering

lock service key set

separately.

End of registration

6. Registration of tire
pressure sensor ID*

YES

NO

TPMS transmitter

is replaced.

Caution:
Do not replace the ECM and the WCM simultaneously.
Always replace the ECU by ones when the multiple ECU is
replaced, and then replace the next ECU after registering
the necessary IDs.

2. Registration of VIN.

1. Registration of
ENG key code.

DIAGNOSIS

TSB Revision

WIRELESS CONTROL MODULE (WCM)

42C-13

WARNINGS/ALARMS <VEHICLES WITHOUT COLOR LIQUID CRYSTAL DISPLAY>

M1427508800031

If the TPMS fails or the tire pressure is low, the WCM
warns the driver of that state by the TPMS warning
light and the multi information display in the combina-
tion meter.

Display
contents

Message

Item

State

Warning operations

Warning
cancellation
conditions
(Cancels
warning
operations
when one of
the conditions
met)

TPMS
warning
light

Multi
information
display

Not displayed −

TPMS warning light
bulb open circuit
check

The ignition
switch is
turned from
"LOCK"
(OFF) to
"ON."

Illuminates
for 3
seconds.

−

3 seconds
have passed
after the
TPMS
warning light
is lit.

LOW TIRE
PRESSURE

Tire pressure alarm The

received
tire
pressure
value is
under the
alarm ON
threshold
value.

Illuminates. Symbol

and "LOW
TIRE
PRESSUR
E" is
displayed.

The received
tire pressure
value is over
the alarm
OFF
threshold
value.

AC809643

DIAGNOSIS

TSB Revision

WIRELESS CONTROL MODULE (WCM)

42C-14

SERVICE
REQUIRED

TPMS
failure
warning

ID not
stored

The TPMS
transmitter
ID is not
registered
in the
WCM.

Flashes

*

Symbol
and
"SERVICE
REQUIRE
D" is
displayed.

ID is
registered
normally.

Defective
EEPROM

Abnormalit
y of data in
the
EEPROM
of the
WCM is
detected.

Data in the
EEPROM of
the WCM is
checked to be
normal.

Problem in
signal
reception

The signals
from TPMS
transmitter
s cannot be
received
while
driving for
about 20
minutes.

The signal
from the
TPMS
transmitter
that was
warned is
received.

Defective
sensor

The sensor
failure
signal is
received
from the
TPMS
transmitter.

A normal
signal is
received from
the TPMS
transmitter
that was
warned.

Display
contents

Message

Item

State

Warning operations

Warning
cancellation
conditions
(Cancels
warning
operations
when one of
the conditions
met)

TPMS
warning
light

Multi
information
display

AC809643
