TPMS TRANSMITTER

TSB Revision

KEYLESS OPERATION SYSTEM (KOS)

42B-211

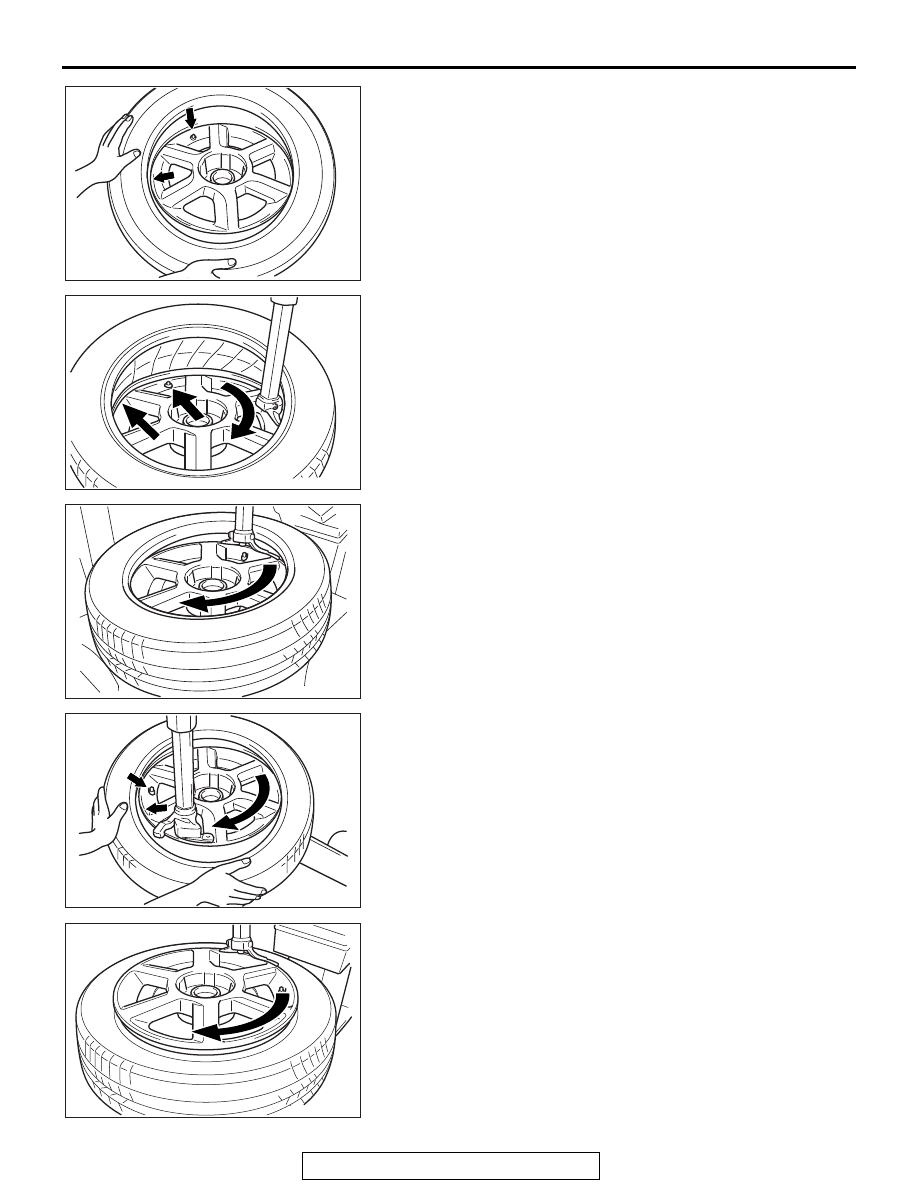

2. Put the tire on the rim, so that the cross point of the belt with

the rim is approximately 20 cm (7.9 inch) away from the
valve.

3. Engage the shoe and make sure that 20 cm (7.9 inch) is

maintained between the cross point and the valve.
The arrow shows the direction of rotation of the wheel.

4. Turn the wheel in order to engage all the first side of the tire.

NOTE: The standard shoes can pass over the sensor with-
out damaging it.

5. Put the second side of the tire in position, so that the cross

point of the belt with the rim is approximately 20 cm (7.9
inch) away from the valve. The curved arrow shows the
direction of rotation of the wheel.

6. Turn the wheel in order to engage all of the second side of

the tire.
NOTE: The standard shoes can pass over the sensor with-
out damaging it.

.

AC609533AB

AC609534

AC609535

AC609536 AB

AC609537

TPMS TRANSMITTER

TSB Revision

KEYLESS OPERATION SYSTEM (KOS)

42B-212

>>C<< TIRE PRESSURE INFLATION/NUT
RETIGHTENING

CAUTION

After tire inflation, retighten the valve nut to 8.0

± 0.5 N⋅m

(71

± 4 in-lb). This is necessary, because the TPMS trans-

mitter is secured to the wheel with the valve nut and rub-
ber grommet. The rubber grommet will be depressed by
tire pressure or deteriorate over a period of time, which
requires the valve nut to be retightened.
Inflate tire to required pressure, then retorque the valve nut to
8.0

± 0.5 N⋅m (71 ± 4 in-lb).

42C-1

GROUP 42C

WIRELESS

CONTROL MODULE

(WCM)

CONTENTS

GENERAL INFORMATION . . . . . . . .

42C-2

SPECIAL TOOLS. . . . . . . . . . . . . . . .

42C-6

DIAGNOSIS . . . . . . . . . . . . . . . . . . . .

42C-7

STANDARD FLOW OF DIAGNOSTIC
TROUBLESHOOTING  . . . . . . . . . . . . . . . .

42C-7

DIAGNOSTIC FUNCTION  . . . . . . . . . . . . .

42C-7

ID CODES REGISTRATION JUDGMENT



TABLE. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

42C-10

WARNINGS/ALARMS <VEHICLES WITHOUT
COLOR LIQUID CRYSTAL DISPLAY>  . . .

42C-13

WARNINGS/ALARMS <VEHICLES WITH



COLOR LIQUID CRYSTAL DISPLAY>  . . .

42C-16

DIAGNOSTIC TROUBLE CODE CHART . .

42C-18

DIAGNOSTIC TROUBLE CODE



PROCEDURES. . . . . . . . . . . . . . . . . . . . . .

42C-20

TROUBLE SYMPTOM CHART. . . . . . . . . .

42C-80

SYMPTOM PROCEDURES . . . . . . . . . . . .

42C-81

DATA LIST REFERENCE TABLE  . . . . . . .

42C-97

CHECK AT ECU TERMINALS . . . . . . . . . .

42C-98

ON-VEHICLE SERVICE . . . . . . . . . . .

42C-99

ID CODES REGISTRATION PROCEDURE

42C-99

KEYLESS ENTRY SYSTEM CHECK . . . . .

42C-111

INSPECTION OF KEYLESS ENTRY



TIMER LOCK FUNCTION . . . . . . . . . . . . . .

42C-111

POWER DOOR LOCKS WITH SELECTIVE
UNLOCKING INSPECTION  . . . . . . . . . . . .

42C-111

TIRE PRESSURE SENSOR CHECK  . . . . .

42C-112

TIRE PRESSURE SENSOR ID CHECK . . .

42C-112

CUSTOMIZATION FUNCTION . . . . . . . . . .

42C-112

WCM . . . . . . . . . . . . . . . . . . . . . . . . . .

42C-114

REMOVAL AND INSTALLATION  . . . . . . . .

42C-114

TRANSMITTER. . . . . . . . . . . . . . . . . .

42C-115

DISASSEMBLY AND ASSEMBLY  . . . . . . .

42C-115

TPMS TRANSMITTER . . . . . . . . . . . .

42C-117

REMOVAL AND INSTALLATION  . . . . . . . .

42C-117

GENERAL INFORMATION

TSB Revision

WIRELESS CONTROL MODULE (WCM)

42C-2

GENERAL INFORMATION

M1427500100146

The wireless control module (WCM) is a system that
integrates the keyless entry function, with which
remote operation (opening/closing of all doors and
the liftgate and operation of warning function that
warns a person who intends to damage the vehicle

*

), can be performed by operating the lock/unlock

button or panic button on the ignition key (transmit-
ter). Also, WCM incorporates the immobilizer func-
tion, which prohibits the starting of engine using an
unauthorized key, and the tire pressure monitoring
system (TPMS), which issues a warning to a driver
by illuminating or flashing the warning light if an
abnormality to the tire pressure is detected. WCM
has the following features:

• The ignition key has an indicator light that

enables the driver to check if the signal is trans-
mitted correctly or if the battery in the key is dis-
charged.

• Each vehicle is provided with two ignition keys,

and up to eight ignition keys can be registered.

• Settings of the keyless entry function can be

adjusted using a customization function.

NOTE:

*

: Horn sounds, and headlights and taillights

flash.

.
