MMCS

TSB Revision

CHASSIS ELECTRICAL

54A-437

54A

MMCS

GENERAL INFORMATION

M1546000100501

.

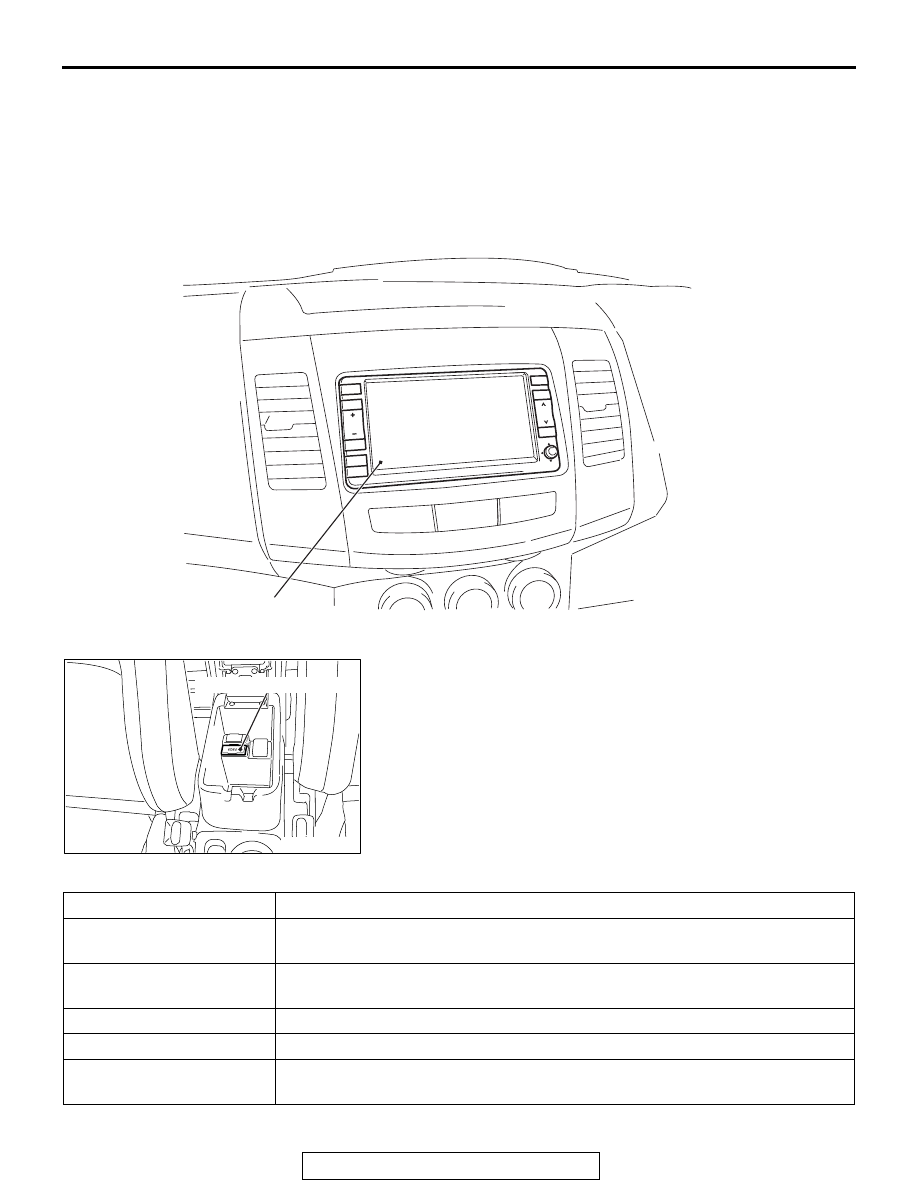

For Mitsubishi multi-communication system (MMCS),
the multivision display (7-inch liquid crystal display of
wide 2 DIN size) with hard disk drive (40 GB) and the
CD/DVD drive is established.

.

The audio and video adapter has been established to the cen-
ter tray in order to connect visual equipment such as game
machine and video player.

INFO

NAVI

SCALE

MENU

MODE

AUDIO

VOL

PWR

SET

OPEN

AC606294

ZC3051980000

AC

Multivision display

AC900207

Audio and video adopter

AB

Display (function)

Content

Navigation

Displays the navigation functions including the map display, search, guidance,
information search, Carpool/HOV lane.

Vehicle position information  Displays the position information of current location. (Longitude and latitude,

altitude, GPS reception status)

CD/DVD

Plays the CD or DVD inserted to the drive (for MP3/WMA)

Music server

Plays back the music data on hard disk drive, and records the music CD.

Rear display screen

Displays image via a rear display unit (DVD drive-incorporated rear seat 9-inch
wide LCD display).

<< Previous

MMCS

TSB Revision

CHASSIS ELECTRICAL

54A-438

NOTE:

*

: May not be displayed depending on the

engine model.

• The storage of very large map data is now possi-

ble, and the following contents have been
adopted.

• Map type navigation

• NAVTEQ map database

• Map data stored in hard disk drive

• Most sophisticated LSI has been used as one for

car navigation system.

NOTE: *LSI stands for Large Scale Integration,
and is a large-scale integrated circuit (IC) con-
taining between 1,000 and 100,000 circuit ele-
ments.

• U.S. English, French, and Spanish are available

to select.

• By attaching the hands free module, the hands

free cellular phone system becomes available.

• By attaching the satellite radio tuner, the SIR-

IUS

™ satellite radio broadcasting becomes avail-

able.

Radio

Displays the receiving station information. Also, the operation of receiving
channel can be performed.

Sound control

Adjusts the high/middle/low tone and balance. Function to set music type,
sound field, and others when adopting the Rockford Fosgate

® premium

sound system

AUX

Plays the image and sound input through the audio and video adapter. (Image
cannot be seen during driving because of the driving restriction.)

USB/iPod

Plays the sound input through the USB adapter.

Drive information

Displays the average fuel consumption, instantaneous fuel consumption,
possible cruising distance, driving time, and lap time.

Environmental data

Displays the atmospheric pressure* and ambient temperature.

Maintenance information

Displays the maintenance information for engine oil, oil filter, tire rotation, clean
air filer, and brake system.

A/C information

Displays the A/C information.

ETACS function
customization

Function for ETACS-ECU customization

Mobile Phone/Bluetooth
Audio

Function to operate the hands free interface system using the multivision
display <Vehicles with hands free module>

Calendar

Displays the calendar.

Display (function)

Content

MMCS

TSB Revision

CHASSIS ELECTRICAL

54A-439

SPECIAL TOOLS

M1540200300211

Tool

Tool number and
name

Supersession

Application

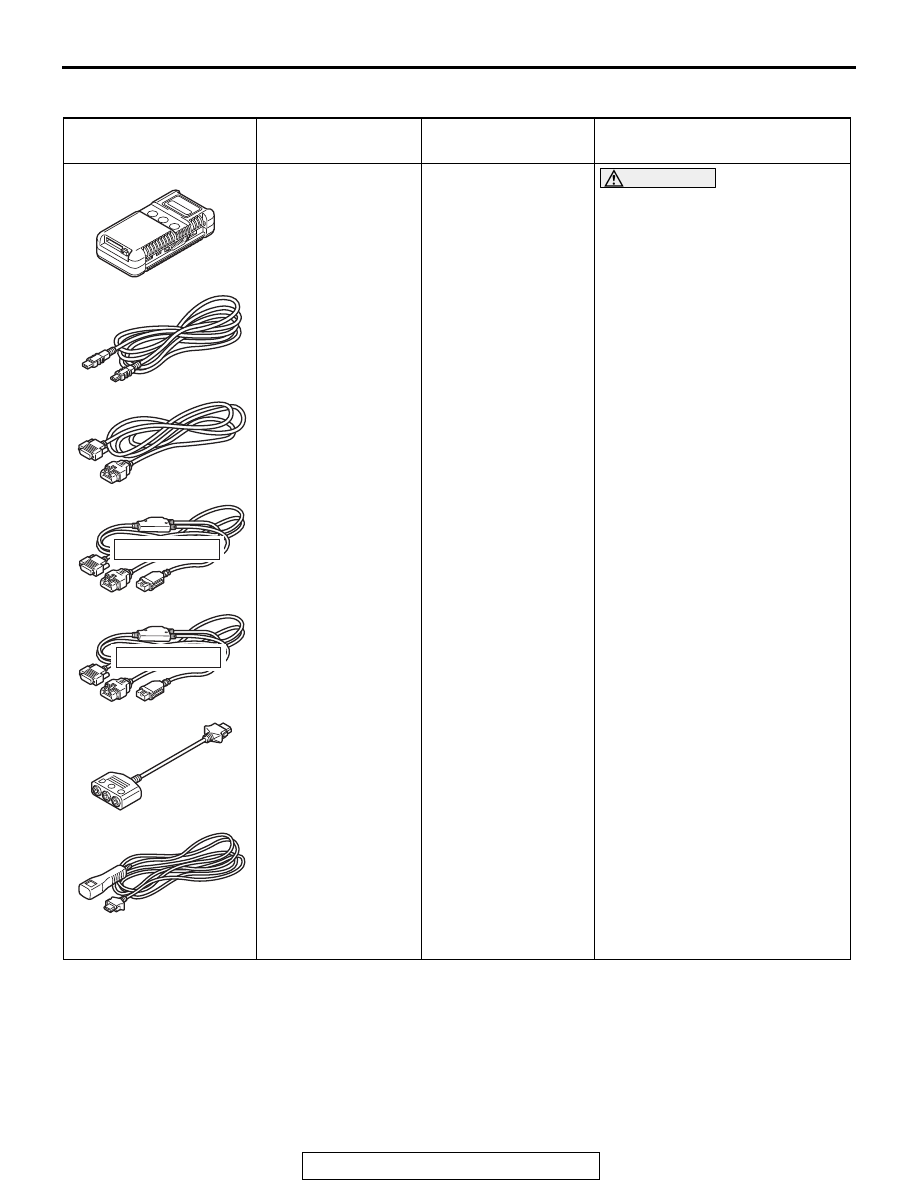

MB991958

a. MB991824
b. MB991827
c. MB991910
d. MB991911
e. MB991914
f. MB991825
g. MB991826

M.U.T.-III sub
assembly

a. Vehicle

communication
interface (V.C.I.)

b. M.U.T.-III USB

cable

c. M.U.T.-III main

harness A
(Vehicles with
CAN
communication
system)

d. M.U.T.-III main

harness B
(Vehicles without
CAN
communication
system)

e. M.U.T.-III main

harness C (for
Chrysler models
only)

f. M.U.T.-III

measurement
adapter

g. M.U.T.-III trigger

harness

MB991824-KIT
NOTE: G: MB991826
M.U.T.-III Trigger
Harness is not
necessary when
pushing V.C.I. ENTER
key.

CAUTION

M.U.T.-III main harness A
(MB991910) should be used.
M.U.T.-III main harness B and C
should not be used for this
vehicle.
CAN bus diagnostics, diagnostic
trouble code or data list check.

MB991910

MB991826

MB991958

MB991911

MB991914

MB991824

MB991827

MB991825

DO NOT USE

a

b

c

d

e

f

g

DO NOT USE

MMCS

TSB Revision

CHASSIS ELECTRICAL

54A-440

DIAGNOSIS

STANDARD FLOW OF DIAGNOSTIC TROUBLESHOOTING

M1546001500115

Refer to GROUP 00

− Troubleshooting contents

P.00-7

.

PRECAUTIONS ON SERVICING MMCS

M1546003000224

PRIOR TO DISCONNECTING THE
VEHICLE BATTERY

The MMCS stores a lot of information which your
customer registers in its memory. All of this informa-
tion will be cleared when the battery terminals are
disconnected. Therefore, the preset channels must
be stored before the vehicle battery is disconnected.
Vehicle's current position and destinations must be
stored if the vehicle battery remains disconnected for
long periods.

DIAGNOSIS TIPS CONCERNING THE
ENTIRE SYSTEM

1. If at least two system functions are defective at

the same time, it is possible that communication
between the system components is abnormal.
Check the system using the communication and
wire connection check in the service mode.

2. If an error is displayed, check that relevant wiring

harness connectors are engaged correctly. If a
failure is found, repair the connectors and check
the trouble symptom again.

3. If the wiring harness connectors are engaged

correctly, check the wiring harness. If the wiring
harness is in good condition, replace relevant
component(s). Now the error code and the ser-
vice mode data must be stored.

NOTE: If a system communication related failure is
suspected, diagnose the system.

DIAGNOSIS TIPS CONCERNING THE
NAVIGATION FUNCTION

1. The precision of the GPS positioning is limited

due to its operation principles. So, some of cus-
tomer reports do not mean that the system is
defective.

MB991223

a. MB991219
b. MB991220
c. MB991221
d. MB991222

Harness set

a. Test harness
b. LED harness
c. LED harness

adaptor

d. Probe

General service tools Continuity check and voltage

measurement at harness wire or
connector for loose, corroded or
damaged terminals, or terminals
pushed back in the connector.

a. Connector pin contact

pressure inspection

b. Power circuit inspection
c. Power circuit inspection
d. Commercial tester connection

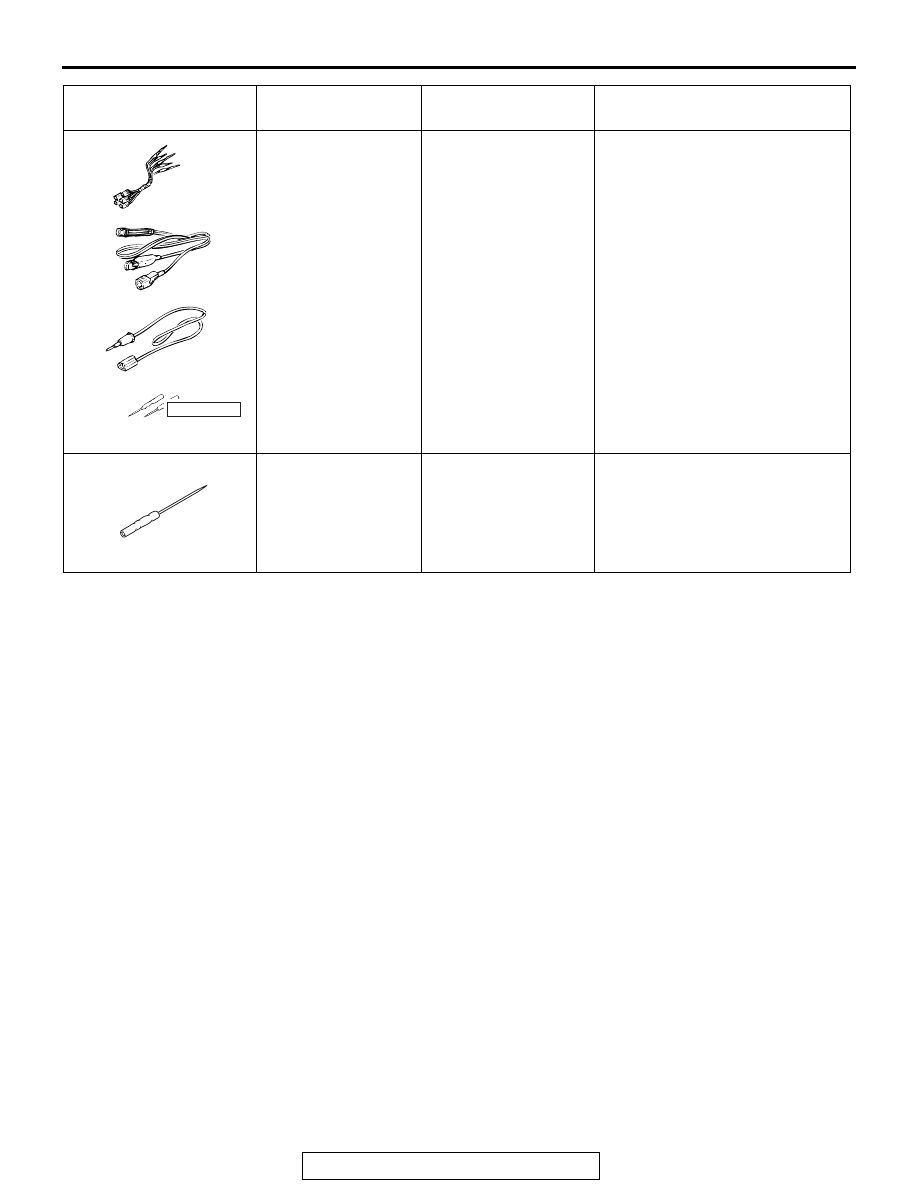

MB992006
Extra fine probe

−

Continuity check and voltage
measurement at harness wire or
connector for loose, corroded or
damaged terminals, or terminals
pushed back in the connector.

Tool

Tool number and
name

Supersession

Application

MB991223

a

d

c

b

DO NOT USE

BA

MB992006
