DOOR

TSB Revision

BODY

42A-87

CODE NO. L0736: P/W (DR) Sensor fail (ground)

CAUTION

Before replacing the ECU, ensure that the input and output signal circuits are normal.

.

COMMENTS ON TROUBLE SYMPTOM

If the ground fault of the front power window motor
(LH) sensor power supply is detected, power window
main switch sets the diagnosis trouble code No.
L0736

.

PROBABLE CAUSES

• Malfunction of the front power window motor (LH)

• Malfunction of the power window main switch

• Damaged wiring harness and connectors

AC702943

POWER WINDOW MAIN SWITCH

FRONT
POWER
WINDOW
MOTOR (LH)

FRONT
(LH)

CPU

LIN DRIVE
CIRCUIT

IC

IC

AC

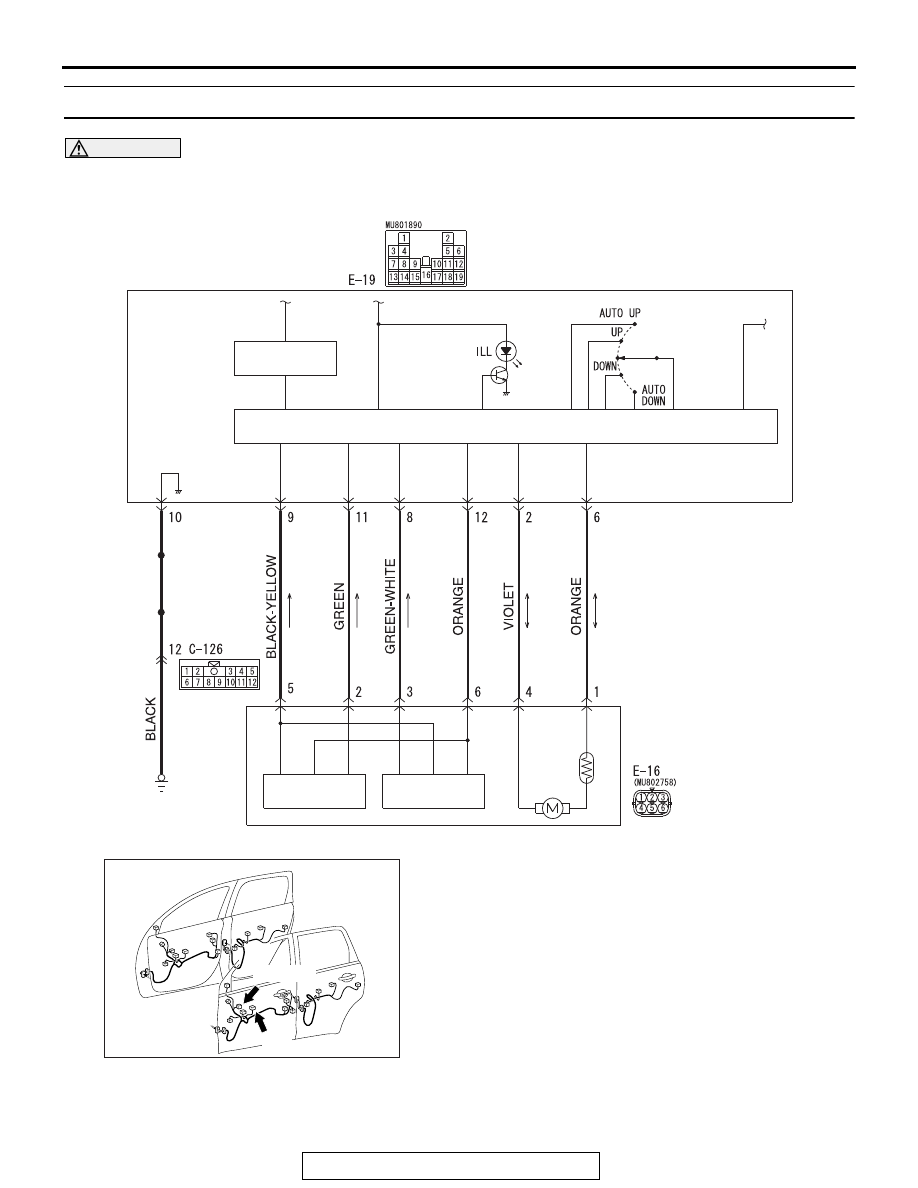

 Driver’s Power Window Circuit

BLA

CK

BLA

CK

BLA

CK

AC702763

Connectors: E-16, E-19

AD

E-16 (GR)

E-19

DOOR

TSB Revision

BODY

42A-88

DIAGNOSTIC PROCEDURE

STEP 1. Check power window main switch connector E-19,
front power window motor (LH) connector E-16 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Are power window main switch connector E-19, front

power window motor (LH) connector E-16 in good
condition?
YES : Go to Step 2.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Verify that the power window works

normally.

STEP 2. Check the wiring harness between power window
main switch connector E-19 (terminal 12) and front power
window motor (LH) connector E-16 (terminal 6).

• Check the power supply line for open circuit and short cir-

cuit.

Q: Is the wiring harness between power window main

switch connector E-19 (terminal 12) and front power
window motor (LH) connector E-16 (terminal 6) in good
condition?
YES : Go to Step 3.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the power window works normally.

STEP 3. Diagnostic trouble code recheck
Replace the front power window motor (LH). Recheck if the
diagnostic trouble code is set.
(1) Erase the diagnostic trouble code.
(2) Operate the driver’s door window switch on the power

window main switch.

(3) Check if the diagnostic trouble code is set.
Q: Is the diagnostic trouble code set?

YES : Replace the power window main switch.
NO :  The procedure is complete. Verify that the power

window works normally.

CODE NO. L0740: P/W (DR) 3 times jam - protection

.

COMMENTS ON TROUBLE SYMPTOM

If the anti-trap function is activated consecutively three times or
more, power window main switch sets the diagnostic trouble
code No. L0740.

.

DOOR

TSB Revision

BODY

42A-89

PROBABLE CAUSES

• Malfunction of the front power window motor (LH)

• Malfunction of the power window main switch

DIAGNOSTIC PROCEDURE

STEP 1. Check the power window fully closed position
(1) Carry out the learning procedures of the power window fully

closed position. Refer to

P.42A-140

.

(2) Recheck if the diagnostic trouble code is set.

a. Erase the diagnostic trouble code.
b. Turn the ignition switch from the LOCK (OFF) position to

the ON position.

c. Check if the diagnostic trouble code is set.

Q: Is the check result normal?

YES : The procedure is complete.
NO :  Go to Step 2.

STEP 2. Diagnostic trouble code recheck
Replace the front power window motor (LH). Recheck if the
diagnostic trouble code is set.
(1) Erase the diagnostic trouble code.
(2) Operate the driver’s door window switch on the power

window main switch.

(3) Check if the diagnostic trouble code is set.
Q: Is the diagnostic trouble code set?

YES : Replace the power window main switch.
NO :  The procedure is complete. Verify that the power

window works normally.

CODE NO. L0746: P/W (DR) Parameter read fail



CODE NO. L0750: P/W (DR) Position read fail

.

COMMENTS ON TROUBLE SYMPTOM

• If the power window main switch information signals cannot

be read, power window main switch sets the diagnostic
trouble code No. L0746.

• If the driver's door window glass position cannot be read,

power window main switch sets the diagnostic trouble code
No. L0750.

.

PROBABLE CAUSES

• Malfunction of the power window main switch

DOOR

TSB Revision

BODY

42A-90

DIAGNOSTIC PROCEDURE

Diagnostic trouble code recheck
Recheck if the diagnostic trouble code is set.
(1) Erase the diagnostic trouble code.
(2) Operate the driver’s door window switch on the power

window main switch.

(3) Check if the diagnostic trouble code is set.
Q: Is the diagnostic trouble code set?

YES : Replace the power window main switch.
NO :  The procedure is complete. Verify that the power

window works normally.
