STEP 3. Check the ground circuit to the liftgate lock
release handle. Measure the resistance at liftgate lock
release handle connector F-09.
(1) Disconnect liftgate lock release handle connector F-09 and

measure the resistance on the wiring harness side of the
connector.

(2) Measure the resistance value between terminal 2 and

ground.

• The resistance should be 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 5.
NO :  Go to Step 4.

STEP 4. Check the wiring harness between liftgate lock
release handle connector F-09 (terminal 2) and ground.

• Check the power supply line for open circuit and short cir-

cuit.

Q: Is the wiring harness between liftgate lock release

handle connector F-09 (terminal 2) and ground in good
condition?
YES :
No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. If the liftgate
lock release handle operates normally, a correct
signal is sent from the liftgate lock release handle.

STEP 5. Check ETACS-ECU connector C-313 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is ETACS-ECU connector C-313 in good condition?

YES : Go to Step 6.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. If the liftgate lock release handle operates

normally, a correct signal is sent from the liftgate lock
release handle.

AC702473

Connector F-09
(harness side)

BB

DOOR

TSB Revision

BODY

42A-80

STEP 6. Check the wiring harness between liftgate lock
release handle connector F-09 (terminal 1) and
ETACS-ECU connector C-313 (terminal 14).

• Check the power supply line for open circuit and short cir-

cuit.

NOTE: Also check intermediate connector D-12 for loose, cor-
roded, or damaged terminals, or terminals pushed back in the
connector. If intermediate connector D-12 is damaged, repair or
replace the damaged component(s) as described in GROUP
00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between liftgate lock release

handle connector F-09 (terminal 1) and ETACS-ECU
connector C-313 (terminal 14) in good condition?
YES :
Go to Step 7.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. If the liftgate
lock release handle operates normally, a correct
signal is sent from the liftgate lock release handle.

STEP 7. Using scan tool MB991958, check data list.
Check the signals related to the liftgate lock release handle
operation.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.

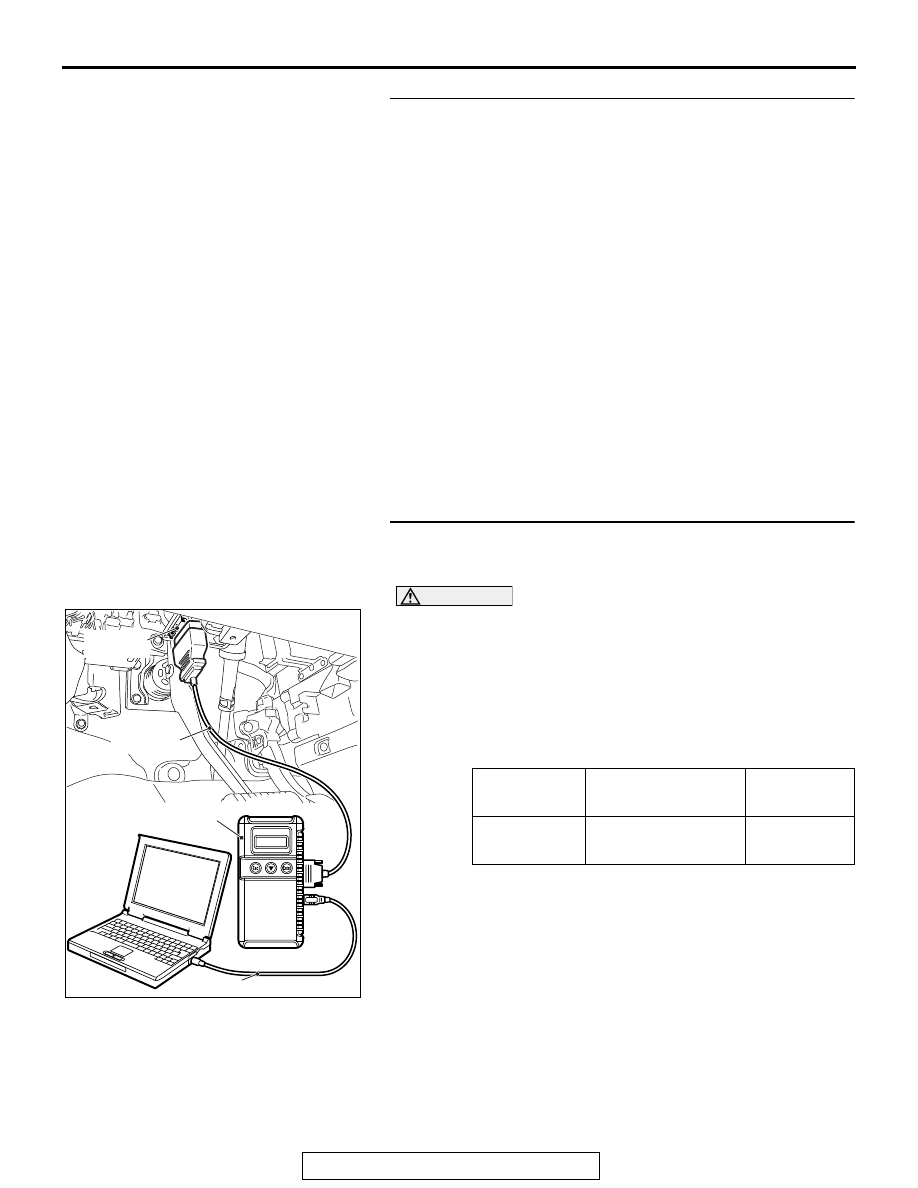

(1) Connect scan tool MB991958. Refer to GROUP 42B, "How

to connect scan tool (M.U.T.-III)

P.42B-13

."

(2) Turn the ignition switch to the "ON" position.
(3) Check the data list of the ETACS.

• Liftgate lock release handle: from OFF to ON

(4) Turn the ignition switch to the "LOCK" (OFF) position.

OK: Normal condition is displayed.

Q: Is the check result normal?

YES : No action is necessary and testing is complete.
NO :  Replace the ETACS-ECU. If the liftgate lock release

handle operates normally, a correct signal is sent from
the liftgate lock release handle.

Item No.

Item name

Normal
condition

 230

Trunk / gate opener From OFF to

ON

ZC501967

AC404789

AC701411AB

MB991824

MB991827

MB991910

Data link
connector

DOOR

TSB Revision

BODY

42A-81

POWER WINDOW DIAGNOSIS

TROUBLESHOOTING STRATEGY

M1429002700231

Refer to GROUP 00, How to Use Troubleshooting/Inspection
Service Points, Troubleshooting Contents

P.00-7

.

DIAGNOSTIC TROUBLE CODE CHART POWER WINDOW

M1429006000148

CAUTION

On troubleshooting, if the ignition switch is turned ON while disconnecting connector(s), diagnostic
trouble code(s) associated with other system may be set. On completion, check all systems for diag-
nostic trouble code(s). If diagnostic trouble code(s) are set, erase them all.

NOTE: P/W: Abbreviation of power Window

TROUBLE SYMPTOM CHART <POWER WINDOW>

M1429002800539

CAUTION

During diagnosis, a diagnostic trouble code associated with other system may be set when the igni-
tion switch is turned on with connector(s) disconnected. On completion, check all systems for diag-
nostic trouble code(s). If diagnostic trouble code(s) are set, erase them all.

Diagnostic trouble
code No.

Diagnostic item

Reference page

L0730

P/W (DR) SW pulse1 disconnection

P.42A-82

L0732

P/W (DR) SW pulse2 disconnection

P.42A-84

L0734

P/W (DR) Above window position

P.42A-86

L0736

P/W (DR) Sensor fail (ground)

P.42A-87

L0740

P/W (DR) 3 times jam - protection

P.42A-88

L0746

P/W (DR) Parameter read fail

P.42A-89

L0750

P/W (DR) Position read fail

Trouble symptom

Inspection
procedure
number

Reference
page

Power windows do not work at all.

C-1

P.42A-91

Driver's power window does not work by means of the power window main
switch.

C-2

P.42A-99

Relevant power window(s) does not work by means of the front and rear
passenger's power window sub switches.

C-3

P.42A-102

Front and/or rear passenger's power window(s) do not work by means of the
power window main switch.

C-4

P.42A-117

The power window timer function does not work normally.

C-5

P.42A-121

Power window anti-trap function does not work normally.

C-6

P.42A-124

The window glass lowers automatically while it is rising.

C-7

P.42A-127

DOOR

TSB Revision

BODY

42A-82

DIAGNOSTIC TROUBLE CODE PROCEDURES <POWER WINDOW>

CODE NO. L0730: P/W (DR) SW pulse 1 disconnection

CAUTION

Before replacing the ECU, ensure that the input and output signal circuits are normal.

.

COMMENTS ON TROUBLE SYMPTOM

If the pulse 1 signal from the front power window
motor (LH) cannot be received, the power window
main switch sets the diagnosis trouble code No.
L0730.

.

PROBABLE CAUSES

• Malfunction of the front power window motor (LH)

• Malfunction of the power window main switch

• Damaged wiring harness and connectors

AC702943

POWER WINDOW MAIN SWITCH

FRONT
POWER
WINDOW
MOTOR (LH)

FRONT
(LH)

CPU

LIN DRIVE
CIRCUIT

IC

IC

AC

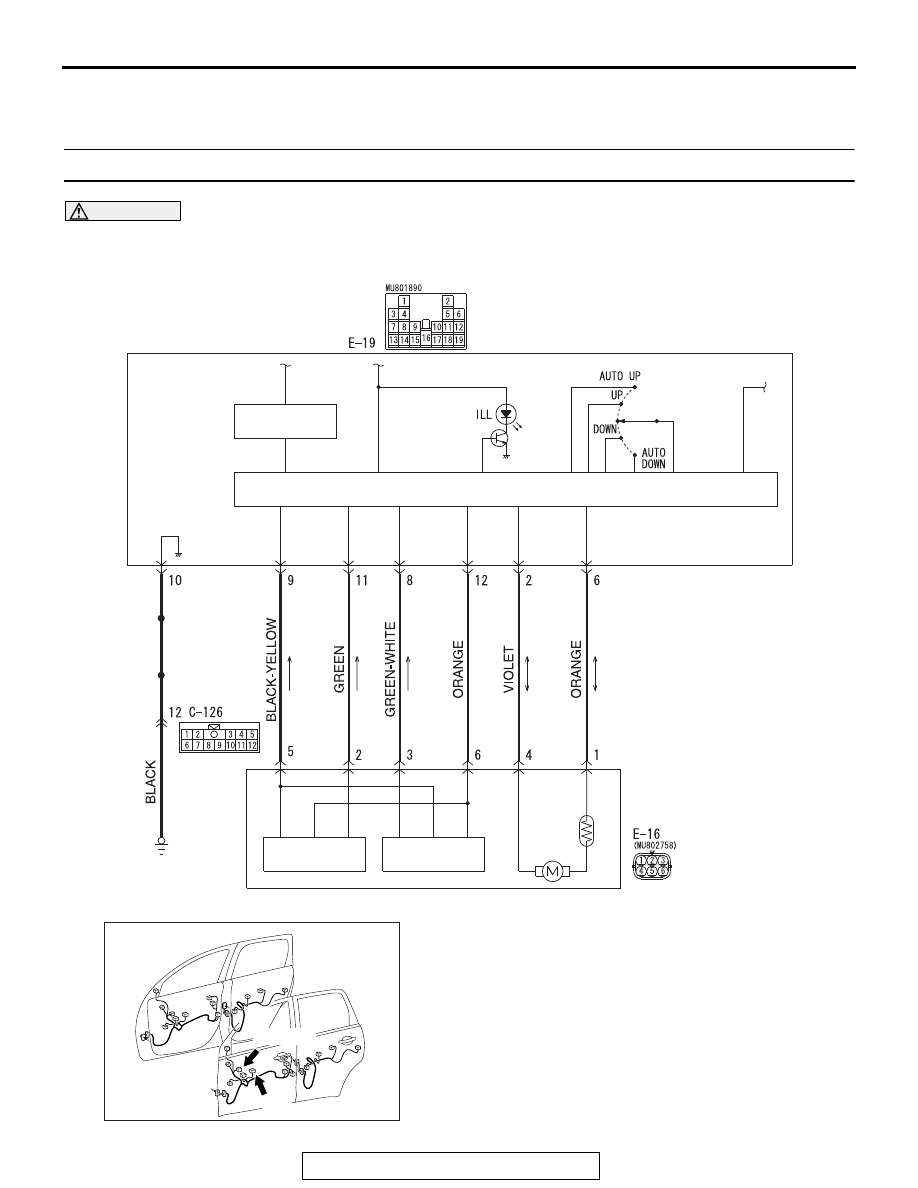

 Driver’s Power Window Circuit

BLA

CK

BLA

CK

BLA

CK

AC702763

Connectors: E-16, E-19

AD

E-16 (GR)

E-19
