DOOR

TSB Revision

BODY

42A-63

STEP 21. Check the wiring harness between liftgate lock
actuator connector F-11 (terminal No. 2) and ground.

• Check the ground line for open circuit.

Q: Is the wiring harness between liftgate lock actuator

connector F-11 (terminal No. 2) and ground in good
condition?
YES : No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that all
the doors and the liftgate can be locked and unlocked
normally.

STEP 22. Check ETACS-ECU connector C-311 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is ETACS-ECU connector C-311 in good condition?

YES : Go to Step 23.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Verify that all the doors and the liftgate can

be locked and unlocked normally.

STEP 23. Check the wiring harness between ETACS-ECU
connector C-311 (terminal No. 1) and liftgate lock actuator
connector F-11 (terminal No. 1).

• Check the power supply line for open circuit and short cir-

cuit.

NOTE: Also check intermediate connector D-12 for loose, cor-
roded, or damaged terminals, or terminals pushed back in the
connector. If intermediate connector D-12 is damaged, repair or
replace the damaged component(s) as described in GROUP
00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between ETACS-ECU connector

C-311 (terminal No. 1) and liftgate lock actuator
connector F-11 (terminal No. 1) in good condition?
YES : Go to Step 24.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that all
the doors and the liftgate can be locked and unlocked
normally.

STEP 24. Retest the system.
Check that the central door locking system works normally.
Q: Is the check result normal?

YES : No action is necessary and testing is complete.
NO :  Replace the ETACS-ECU. Check that the central door

locking system normally.

DOOR

TSB Revision

BODY

42A-64

INSPECTION PROCEDURE A-5: The Liftgate does not Open.

CAUTION

Before replacing the ECU, ensure that the input and output signal circuits are normal.

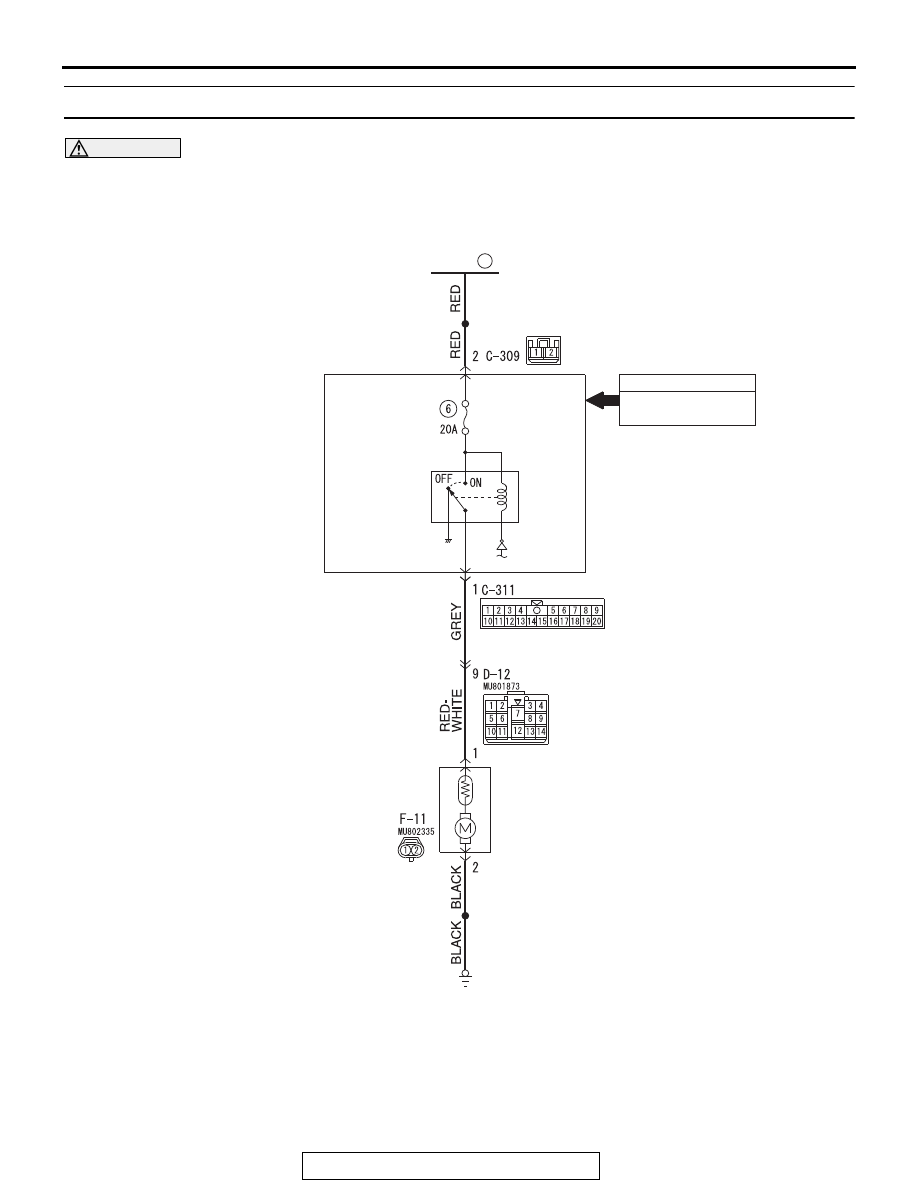

AC702938

LIFTGATE
LOCK
ACTUATOR

ETACS-ECU

FUSIBLE
LINK

37

LIFTGATE
LOCK
RELAY

AB

INPUT SIGNAL

LIFTGATE LOCK
RELEASE HANDLE

Liftgate Open Circuit

DOOR

TSB Revision

BODY

42A-65

.

CIRCUIT OPERATION

The ETACS-ECU operates this function in accor-
dance with the input signals below.

• Vehicle speed signal (ASC-ECU)

• Liftgate lock release handle

• Liftgate lock actuator

.

TECHNICAL DESCRIPTION (COMMENT)

If this function does not work normally, a malfunction
of the input signal circuit(s) or ETACS-ECU is sus-
pected.

.

TROUBLESHOOTING HINTS

• Vehicle speed signal ((ASC-ECU) error

• Malfunction of the liftgate lock release handle

• Malfunction of the liftgate lock actuator

• Malfunction of ETACS-ECU

• Damaged wiring harness and connectors

DIAGNOSTIC PROCEDURE

Required Special Tools:

• MB991223: Harness Set

• MB992006: Extra Fine Probe

•  MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicles Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A

STEP 1. Checking central door unlocking operation
Check that the central door locking system works normally.
Q: Is the check result normal?

YES : Go to Step 2.
NO :  Refer to

P.42A-37

.

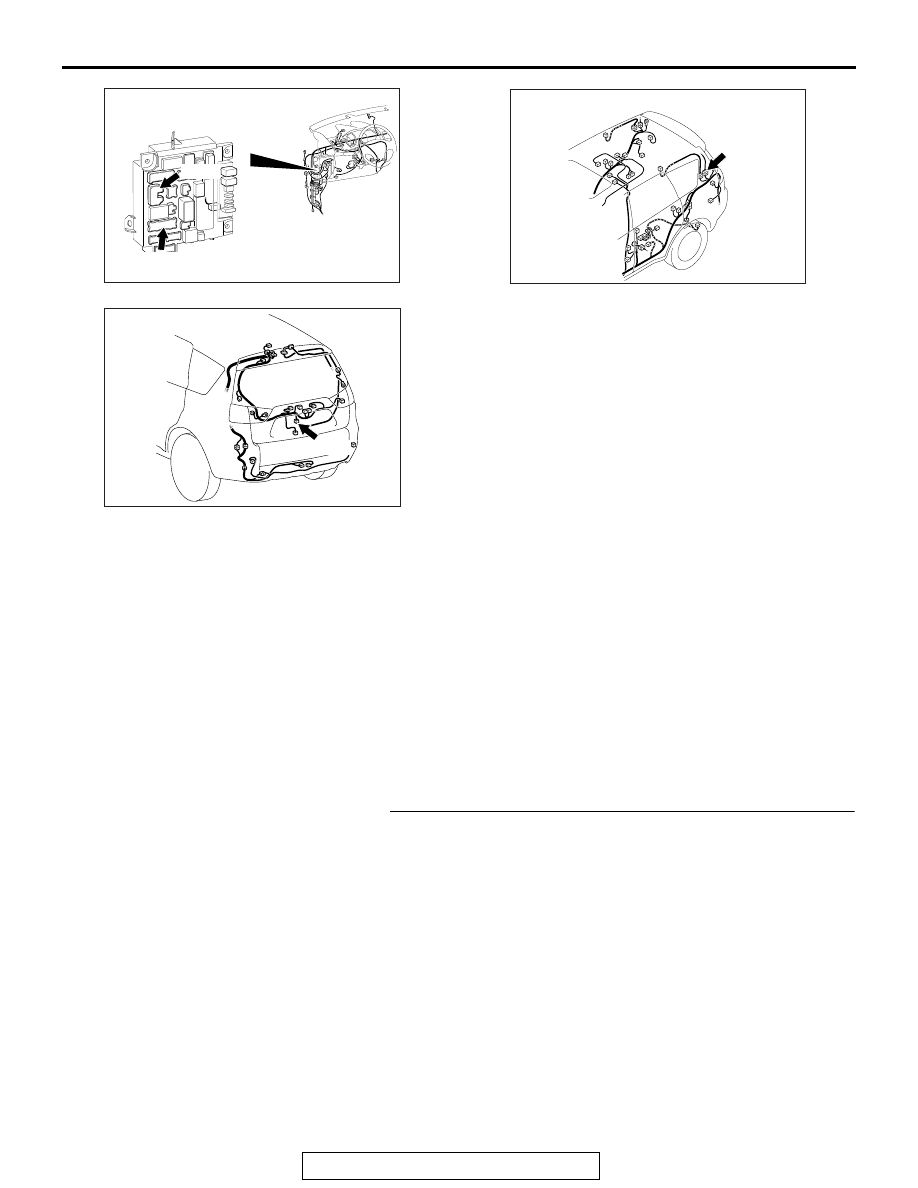

ACA01378

AS

C-315

Connectors: C-311, C-315

ETACS-ECU

C-311

AC901080AI

Connector: D-12

AC901375AB

Connector: F-11

F-11 (B)

DOOR

TSB Revision

BODY

42A-66

STEP 2. Using scan tool MB991958, read the CAN bus
diagnostic trouble code.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958. Refer to GROUP 42B, "How

to connect scan tool (M.U.T.-III)

P.42B-13

."

(2) Turn the ignition switch to the "ON" position.
(3) Check whether the CAN bus lines related DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Repair the CAN bus line (Refer to GROUP 54C, CAN

bus diagnostics table

P.54C-10

).

NO :  Go to Step 3.

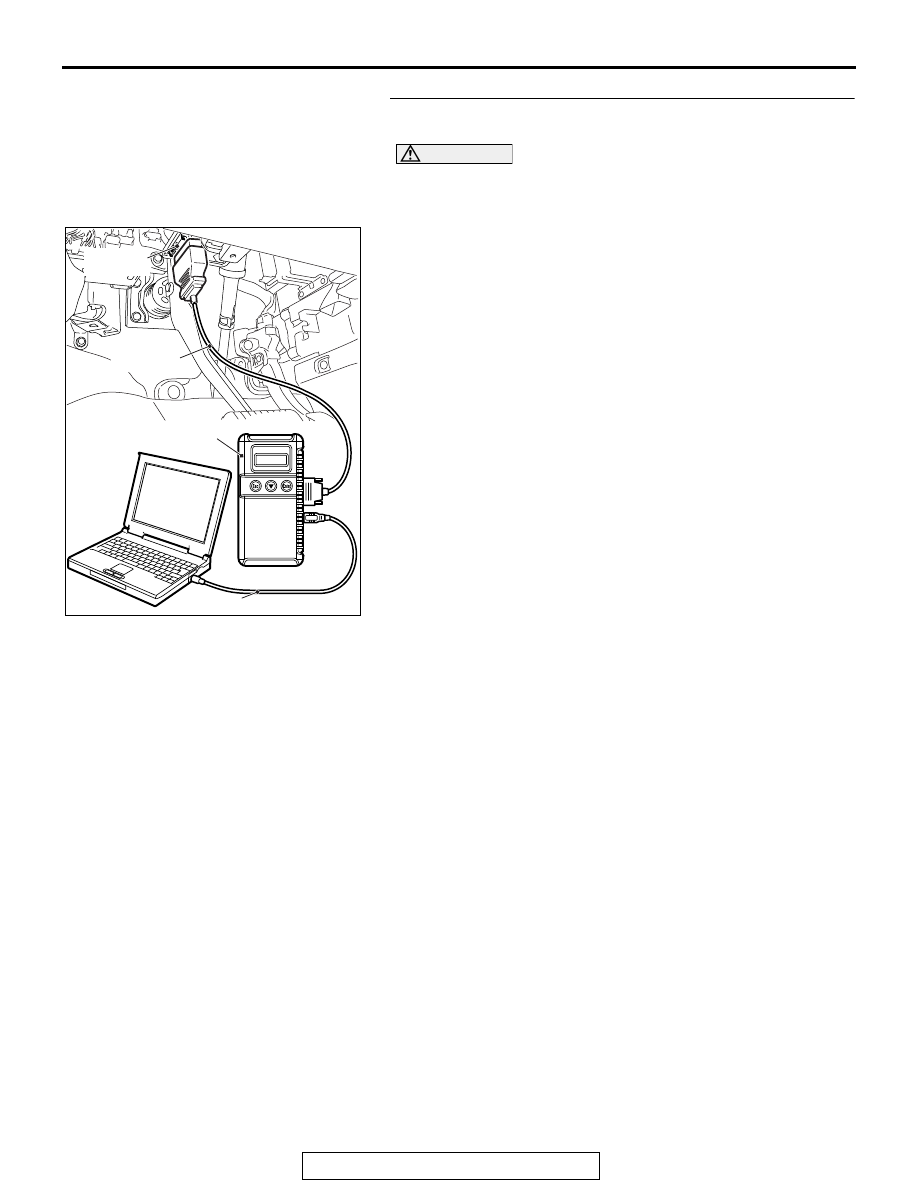

ZC501967

AC404789

AC701411AB

MB991824

MB991827

MB991910

Data link
connector
