DOOR

TSB Revision

BODY

42A-55

STEP 5. Check the wiring harness between ETACS-ECU
connector C-315 (terminals No. 2 and 6) and front door
lock actuator (LH) connector E-21 (terminals No. 6 and 4).

• Check the power supply line for open circuit and short cir-

cuit.

NOTE: Also check intermediate connector C-127 for loose, cor-
roded, or damaged terminals, or terminals pushed back in the
connector. If intermediate connector C-127 is damaged, repair
or replace the damaged component(s) as described in GROUP
00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between ETACS-ECU connector

C-315 (terminals No. 2 and 6) and front door lock
actuator (LH) connector E-21 (terminals No. 6 and 4) in
good condition?
YES : Go to Step 24.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair or replace the damaged component(s). Verify
that all the doors and the liftgate can be locked and
unlocked normally.

STEP 6. Check front door lock actuator (RH) connector
E-09 for loose, corroded or damaged terminals, or
terminals pushed back in the connector.
Q: Is front door lock actuator (RH) connector E-09 in good

condition?
YES : Go to Step 7.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Verify that all the doors and the liftgate can

be locked and unlocked normally.

DOOR

TSB Revision

BODY

42A-56

STEP 7. Check the front door lock actuator (RH).

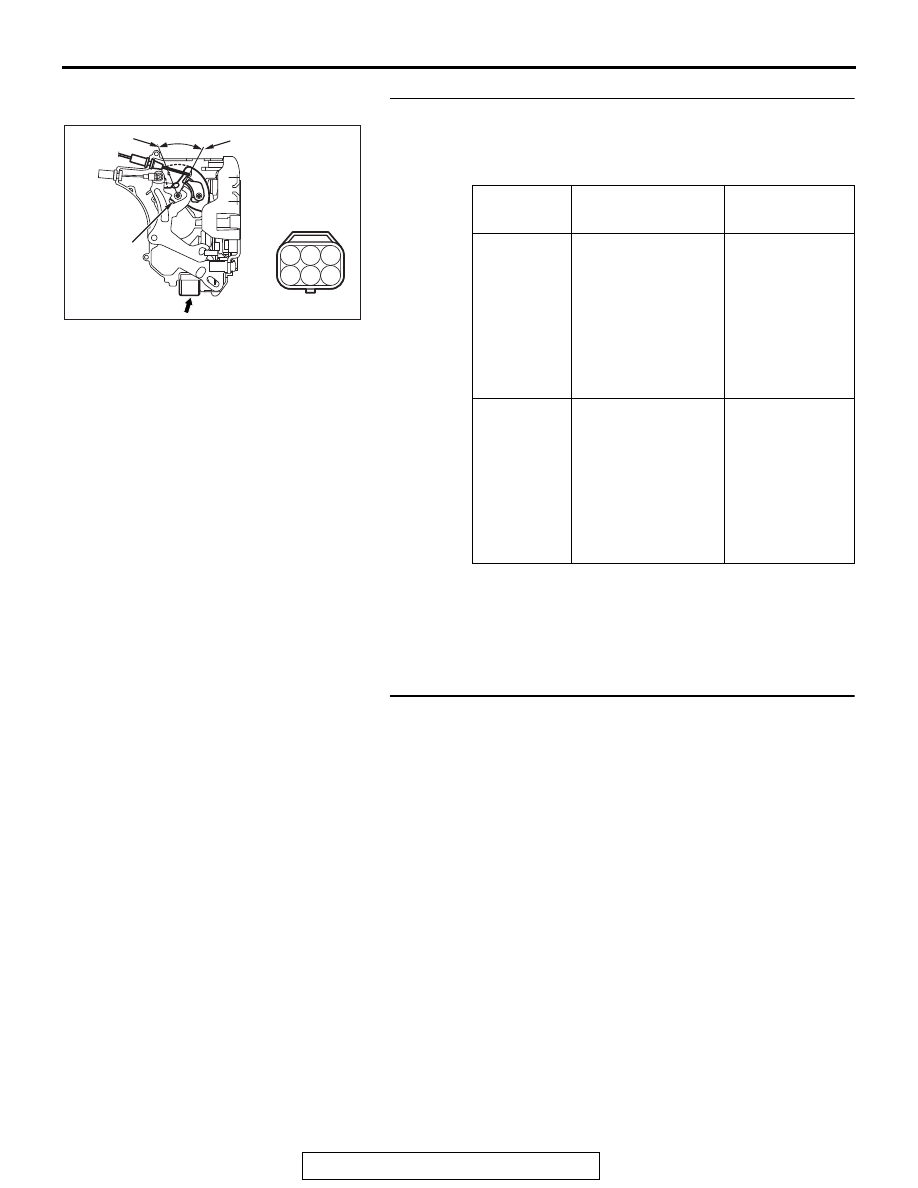

Remove the front door lock actuator (RH). The illustration
shows when the door lock actuator is viewed from inside the
door. Refer to

P.42A-153

.

Q: Is the front door lock actuator (RH) normal?

YES : Go to Step 8.
NO :  Replace the front door lock actuator (RH). Verify that

all the doors and the liftgate can be locked and
unlocked normally.

STEP 8. Check ETACS-ECU connector C-315 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is ETACS-ECU connector C-315 in good condition?

YES : Go to Step 9.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Verify that all the doors and the liftgate can

be locked and unlocked normally.

Lever
position

Battery
connection

Lever
operation

At the
"LOCK"
position

• Connect

terminal No.4 to
the negative
battery terminal.

• Connect

terminal No.6 to
the positive
battery terminal.

The lever moves
from the "LOCK"
position to the
"UNLOCK"
position.

At the
"UNLOCK"
position

• Connect

terminal No.6 to
the negative
battery terminal.

• Connect

terminal No.4 to
the positive
battery terminal.

The lever moves
from the
"UNLOCK"
position to the
"LOCK"
position.

4

2
5

3
6

1

AC702937

A

AB

Lever

UNLOCK

LOCK

View A

DOOR

TSB Revision

BODY

42A-57

STEP 9. Check the wiring harness between ETACS-ECU
connector C-315 (terminals No. 5 and 6) and front door
lock actuator (RH) connector E-09 (terminals No. 6 and 4).

• Check the power supply line for open circuit and short cir-

cuit.

NOTE: Also check intermediate connector C-113 for loose, cor-
roded, or damaged terminals, or terminals pushed back in the
connector. If intermediate connector C-113 is damaged, repair
or replace the damaged component(s) as described in GROUP
00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between ETACS-ECU connector

C-315 (terminals No. 5 and 6) and front door lock
actuator (RH) connector E-09 (terminals No. 6 and 4) in
good condition?
YES : Go to Step 24.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that all
the doors and the liftgate can be locked and unlocked
normally.

STEP 10. Check rear door lock actuator (RH) connector
E-13 for loose, corroded or damaged terminals, or
terminals pushed back in the connector.
Q: Is rear door lock actuator (RH) connector E-13 in good

condition?
YES : Go to Step 11.
NO :  Repair or check the connector. Refer to GROUP 00E,

Harness Connector Inspection

P.00E-2

. Verify that all

the doors can be locked and unlocked normally.

DOOR

TSB Revision

BODY

42A-58

STEP 11. Check the rear door lock actuator (RH).

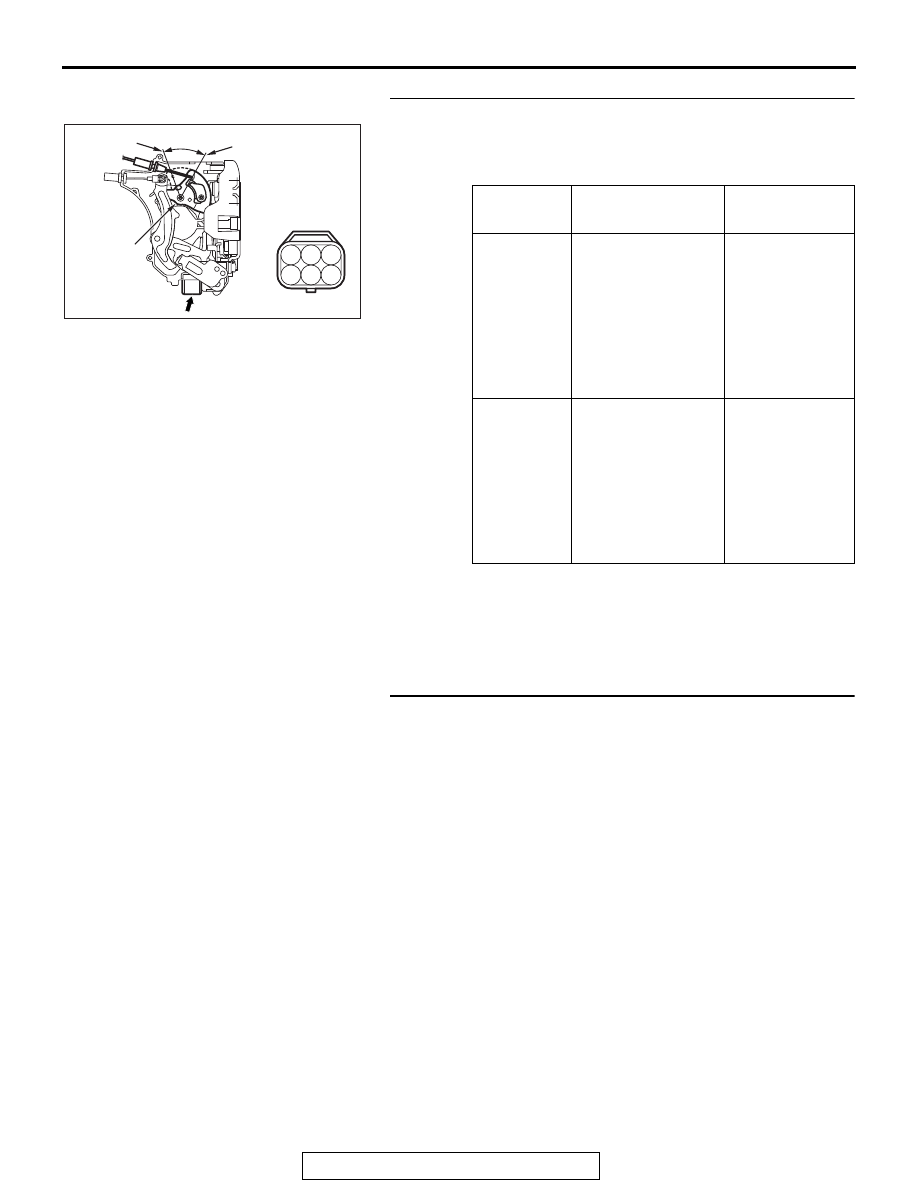

Remove the rear door lock actuator (RH). The illustration
shows when the door lock actuator is viewed from inside the
door. Refer to

P.42A-153

.

Q: Is the rear door lock actuator (RH) normal?

YES : Go to Step 12.
NO :  Replace the rear door lock actuator (RH). Verify that

all the doors and the liftgate can be locked and
unlocked normally.

STEP 12. Check ETACS-ECU connector C-311 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is ETACS-ECU connector C-311 in good condition?

YES : Go to Step 13.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Verify that all the doors and the liftgate can

be locked and unlocked normally.

Lever
position

Battery
connection

Lever
operation

At the
"LOCK"
position

• Connect

terminal No.4 to
the negative
battery terminal.

• Connect

terminal No.6 to
the positive
battery terminal.

The lever moves
from the "LOCK"
position to the
"UNLOCK"
position.

At the
"UNLOCK"
position

• Connect

terminal No.6 to
the negative
battery terminal.

• Connect

terminal No.4 to
the positive
battery terminal.

The lever moves
from the
"UNLOCK"
position to the
"LOCK"
position.

AC702906

4

2
5

3
6

1

A

AB

UNLOCK

LOCK

View A

Lever
