DOOR

TSB Revision

BODY

42A-43

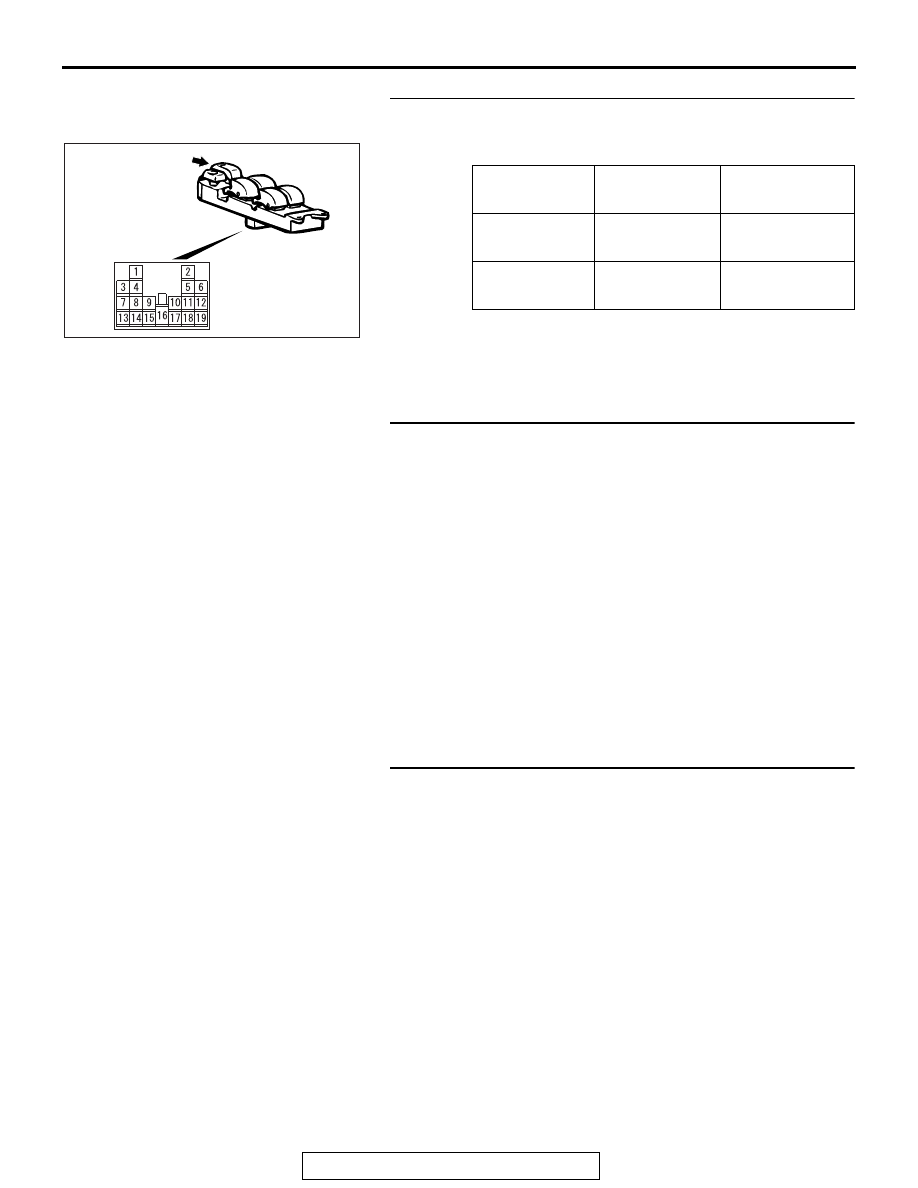

STEP 3. Check the power window main switch (door lock
switch).
Remove the power window main switch. Refer to

P.42A-148

.

Q: Does the power window main switch work normally?

YES : Go to Step 4.
NO :  Replace the power window main switch. Verify that all

the doors can be locked and unlocked normally.

STEP 4. Check the wiring harness between power window
main switch connector E-19 (terminal No. 10) and ground.

• Check the ground line for open circuit.

NOTE: Also check intermediate connector C-126 for loose, cor-
roded, or damaged terminals, or terminals pushed back in the
connector. If intermediate connector C-126 is damaged, repair
or replace the damaged component(s) as described in GROUP
00E, Harness Connector Inspection.
Q: Is the wiring harness between power window main

switch connector E-19 (terminal No. 10) and ground in
good condition?
YES :
Go to Step 5.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary.

STEP 5. Check ETACS-ECU connector C-301, C-315 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Are ETACS-ECU connector C-301, C-315 in good

condition?
YES :
Go to Step 6.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Check that the sunroof works normally.

Switch
position

Tester
connection

Specified
condition

LOCK

14

− 10

Continuity exists
(2

Ω or less)

UNLOCK

13

− 10

Continuity exists
(2

Ω or less)

AC609544

ZC600611

Door lock switch

AB

DOOR

TSB Revision

BODY

42A-44

STEP 6. Check the wiring harness between power window
main switch connector E-19 (terminal No. 13) and
ETACS-ECU connector C-315 (terminal No. 15), between
power window main switch connector E-19 (terminal No.
14) and ETACS-ECU connector C-301 (terminal No. 2).

• Check the power supply line for open.

NOTE: Also check intermediate connector C-127 for loose, cor-
roded, or damaged terminals, or terminals pushed back in the
connector. If intermediate connector C-127 is damaged, repair
or replace the damaged component(s) as described in GROUP
00E, Harness Connector Inspection

P.00E-2

.

Q: Are the wiring harness between power window main

switch connector E-19 (terminal No. 13) and
ETACS-ECU connector C-315 (terminal No. 15), between
power window main switch connector E-19 (terminal
No. 14) and ETACS-ECU connector C-301 (terminal No.
2) in good condition?
YES :
Go to Step 7.
NO :  The wiring harness may be damaged or the connector

may have loose, corroded or damaged terminals, or
terminals pushed back in the connector. Repair the
wiring harness as necessary. Verify that the central
door locking system works normally.

STEP 7. Retest the system.
Check that the central door locking system works normally.
Q: Is the check result normal?

YES : No action is necessary and testing is complete.
NO :  Replace the power window main switch. Check that

the central door locking system normally.

DOOR

TSB Revision

BODY

42A-45

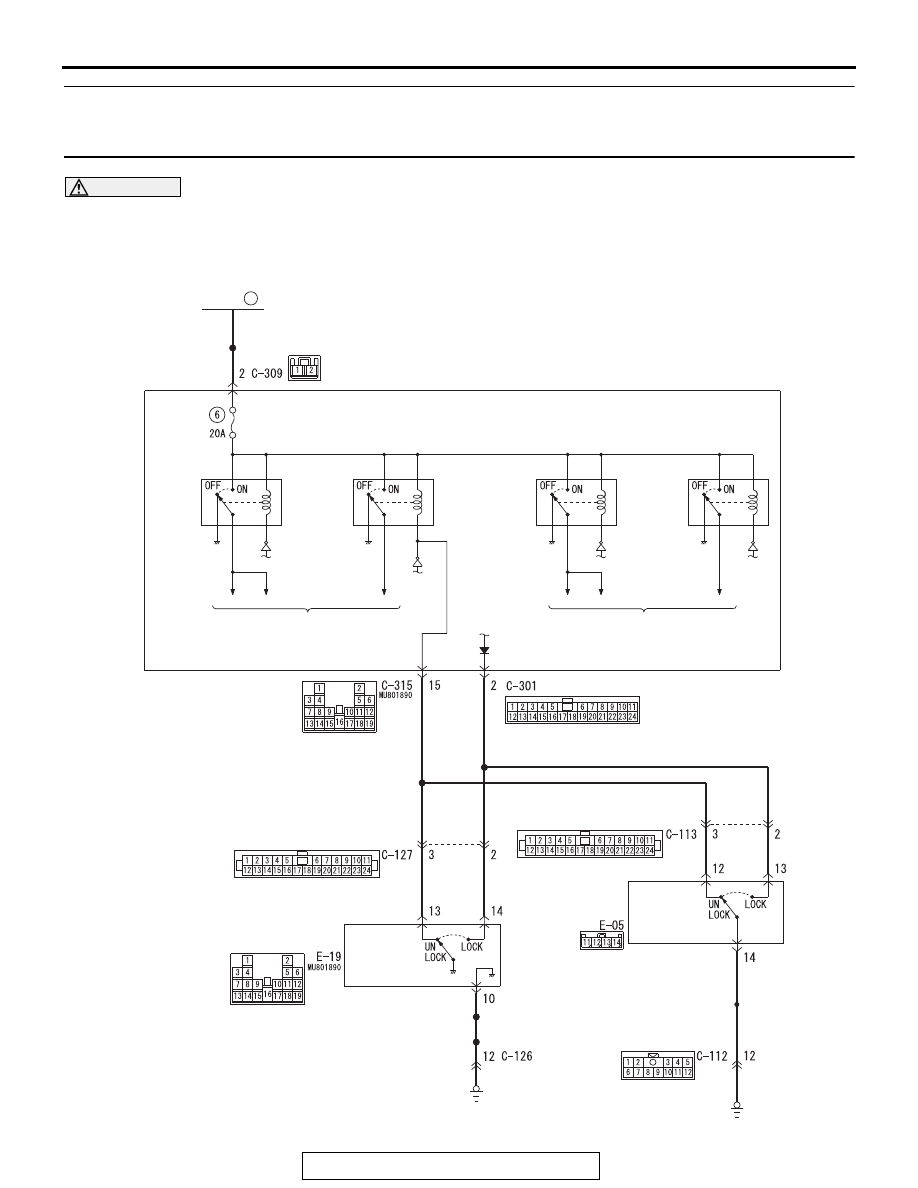

INSPECTION PROCEDURE A-3: Central Door Locking System does not Operate even when Door
Lock Switch of Front Power Window Sub Switch Operated (Door Lock Switch of Power Window Main
Switch Operates Normally).

CAUTION

Before replacing the ECU, ensure that the power
supply circuit, the ground circuit and the com-
munication circuit are normal.

AC901315

FUSIBLE
LINK

37

DOOR
LOCK
RELAY

DRIVER'S
DOOR
UNLOCK
RELAY

PASSENGER'S
DOOR
UNLOCK
RELAY

LIFTGATE
LOCK
RELAY

Central Door Lock Power Supply Circuit

FRONT DOOR LOCK ACTUATOR OR

REAR DOOR LOCK ACTUATOR

FRONT DOOR LOCK ACTUATOR,

REAR DOOR LOCK ACTUATOR OR

LIFTGATE LOCK ACTUATOR

ETACS-ECU

RED

RED

FRONT POWER
WINDOW
SUB SWITCH

POWER WINDOW
MAIN SWITCH

DOOR
LOCK
SWITCH

DOOR
LOCK
SWITCH

BLACK

WHITE-

BLACK

WHITE-

BLACK

WHITE-

BLACK

RED- YELLOW

RED- YELLOW

RED- WHITE

GREEN-

WHITE

GREEN-

WHITE

RED- YELLOW

VIOLET

AC

BLACK

BLACK

BLACK

BLACK

BLACK

BLACK

DOOR

TSB Revision

BODY

42A-46

.

CIRCUIT OPERATION

• The ETACS-ECU controls the central door lock-

ing system, locking or unlocking all doors by acti-
vating the central door lock relay (built into the
ETACS-ECU). The ETACS-ECU uses inputs from
the following components:

• Door lock actuators

• Door lock switch, which is incorporated in the

power window main switch or front power win-
dow sub switch

.

TROUBLESHOOTING HINTS

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

• The front power window sub switch may be

defective

DIAGNOSTIC PROCEDURE

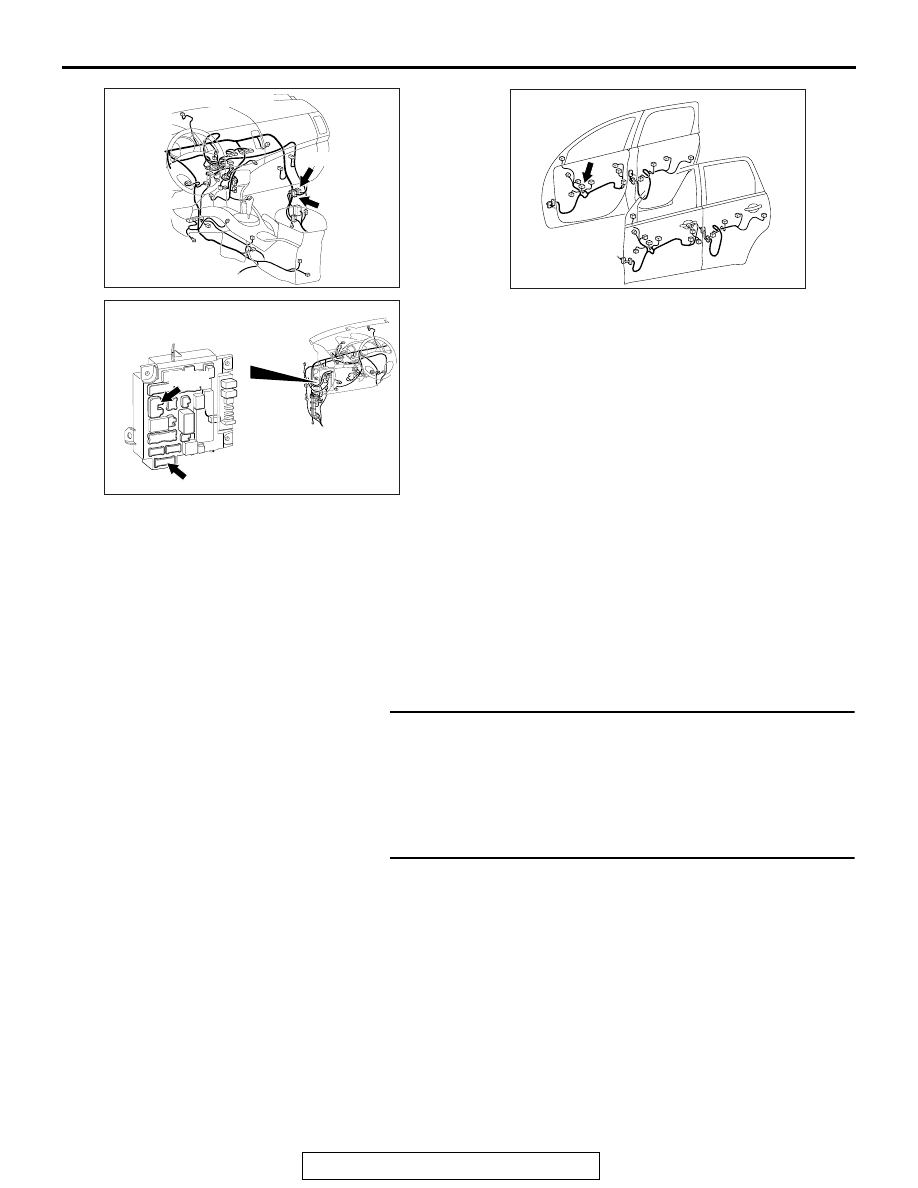

STEP 1. Checking central door unlocking operation
Check that the central door locking system works normally.
Q: Is the check result normal?

YES : Go to Step 2.
NO :  Refer to Inspection procedure A-1 "Central door

locking system does not work at all

P.42A-38

."

STEP 2. Check front power window sub switch connector
E-05 for loose, corroded or damaged terminals, or
terminals pushed back in the connector.
Q: Is front power window sub switch connector E-05 in

good condition?
YES :
Go to Step 3.
NO :  Repair or check the connector. Refer to GROUP 00E,

Harness Connector Inspection

P.00E-2

. Verify that all

the doors can be locked and unlocked normally.

AC701496AG

C-113 (BR)

Connectors: C-112, C-113

C-112

ACA01378

AR

C-301

C-315

Connectors: C-301,  C-315

ETACS-ECU

AC702763

Connector: E-05

AG
