WINDOW GLASS

TSB Revision

BODY

42A-19

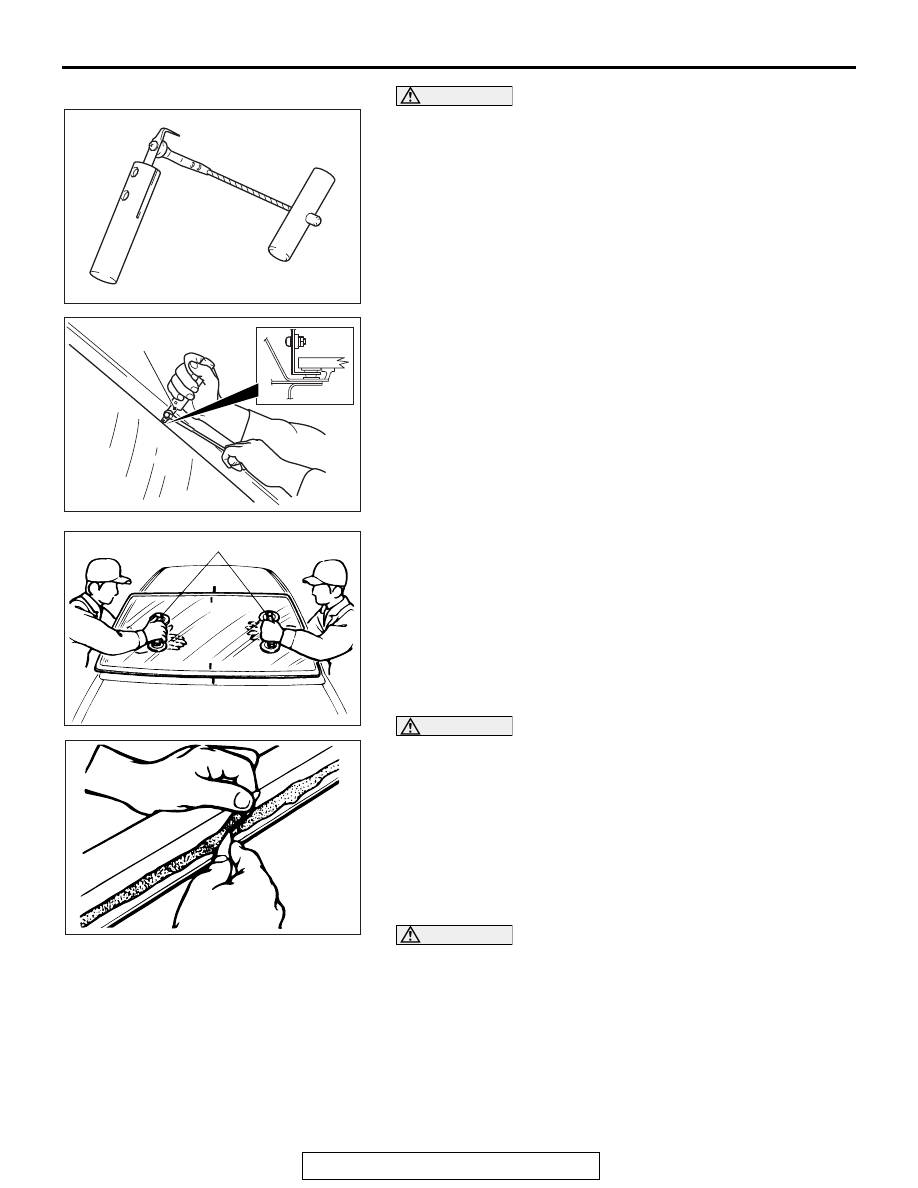

CAUTION

Inserting the glass adhesive knife too deeply into wind-
shield adhesive may damage windshield glass.
4. Using glass adhesive knife

Keep glass adhesive knife at right angles with the
windshield glass edge, and put the blade at windshield glass
edge and surface. Then cut away adhesive along the
windshield glass edge.

5. Use special tool MB990480 to remove the windshield glass.

CAUTION

• Be careful not to remove more adhesive than is neces-

sary.

• Be careful also not to damage the paint on the body

surface with the knife. If the paint is damaged, repair
the damaged area with touch-up paint.

6. Use a knife to cut away the remaining adhesive so that the

thickness is within 2 mm (0.08 inch) around the entire
circumference of the body flange.

7. Finish the flange surfaces so that they are smooth.

CAUTION

Allow the cleaned area to dry for at least three minutes. Do
not touch any surface that has been cleaned.
8. When reusing the windshield glass, remove the adhesive

still adhering to the windshield glass, and clean with 3M

™

AAD Part No. 8906 or equivalent

9. Clean the body side in the same way.

AC702838AC

Glass adhesive knife

AC702839 AB

Glass adhesive knife

AC702840

MB990480

AB

ACX00476 AB

WINDOW GLASS

TSB Revision

BODY

42A-20

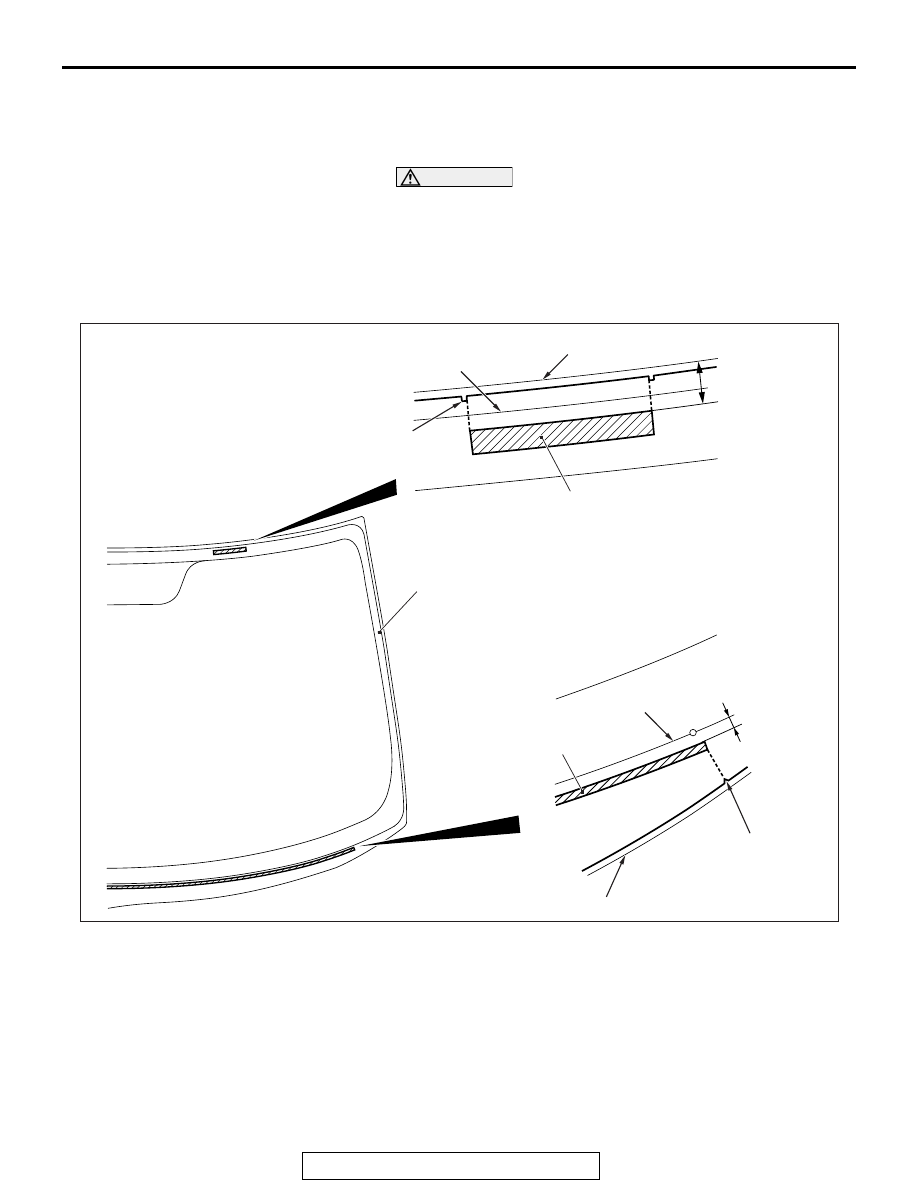

INSTALLATION SERVICE POINTS

.

>>A<< WINDSHIELD SPACER/GLASS STOP-
PER/WINDSHIELD MOLDING INSTALLATION

CAUTION

Leave the degreased parts for 3 or more minutes to dry
well, before starting on the next step. Do not touch the
degreased parts.
1. Use 3M

™ AAD Part number 8906 or equivalent to degrease

the inside and outside of the windshield glass and the body
flanges.

2. Install the windshield spacer and glass stoppers to the

specified positions so that there are no adrift or warped
surfaces inside the windshield glass.

AC702842

AC506206

AC

8 (0.31)

17 (0.67)

Windshield glass end line

Seal line

Windshield spacer

Windshield glass

Align the windshield spacer
end line with the notch of the
ceramic line

Seal line

Windshield end line

Align the end of the glass stopper
with the notch on the ceramic.

Windshield spacer and glass stopper installation positions

Glass stopper

Unit: mm (in)

WINDOW GLASS

TSB Revision

BODY

42A-21

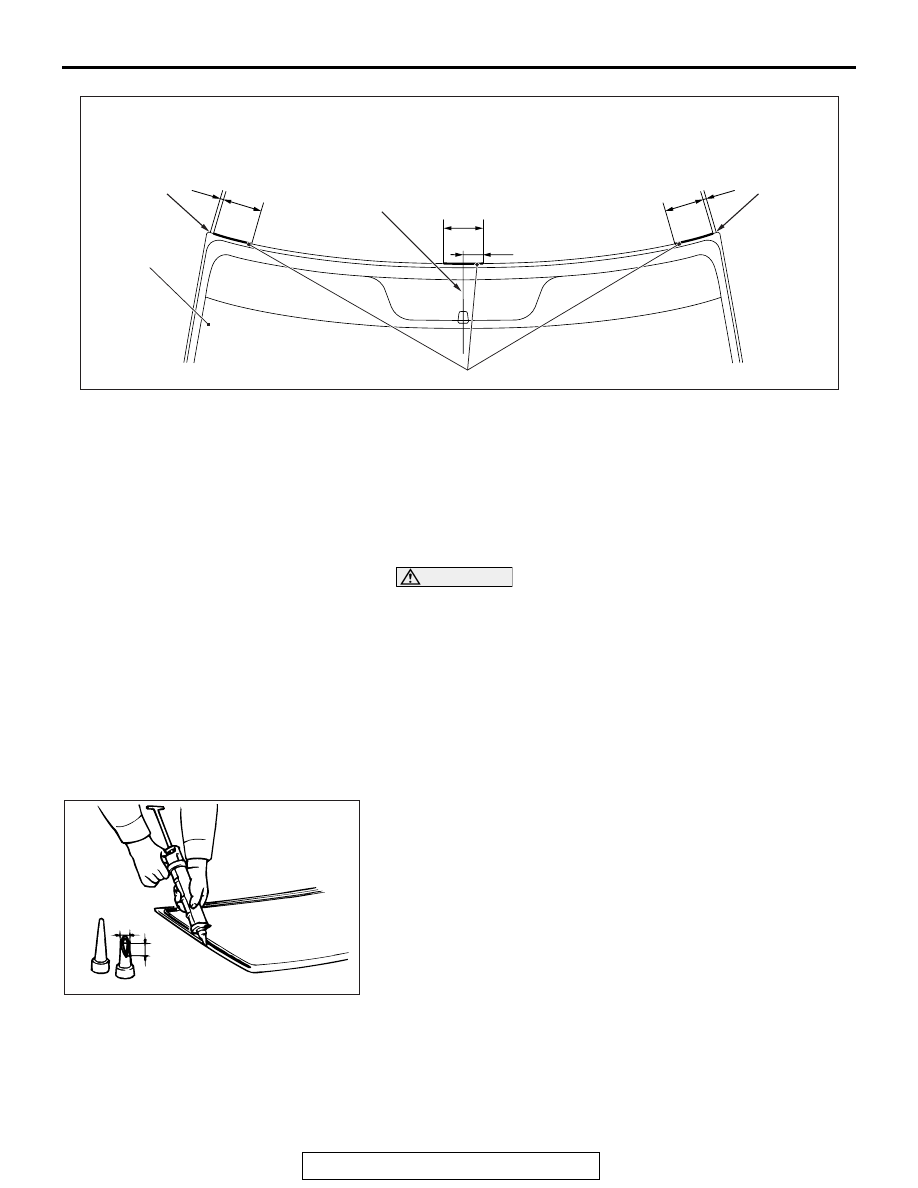

3. Install the double-sided tapes to the windshield glass.
4. Install the windshield molding to the windshield glass.

.

>>B<< WINDSHIELD GLASS INSTALLATION

1. When replacing the windshield glass, temporarily set the

windshield glass against the body, and place a mating mark
on the windshield glass and body.

CAUTION

• The primer strengthens the adhesive, so be sure to

apply it evenly around the entire circumference. How-
ever, a too thick application will weaken the adhesive.

• Do not touch the coated surface.
• Do not apply the primer on the remaining adhesive

because of weakening the adhesive.

2. Soak a sponge in the primer, and apply evenly to the

windshield glass and the body in the specified places.

3. Allow the windshield glass to dry for at least three minutes

after applying primer.

4. Fill a sealant gun with adhesive. Then apply the adhesive

evenly around the windshield glass within 30 minutes after
applying the primer.
NOTE: Cut the tip of the sealant gun nozzle into a V shape
to simplify adhesive application.

5. Align the mating marks on the windshield glass and the

body, and lightly press the windshield glass evenly so that it
adheres completely.

6. Use a spatula or similar tool to remove any excessive

adhesive. Clean the surface with 3M

™AAD Part number

8906 or equivalent. Avoid moving the vehicle until the
adhesive sets.

AC702861

Double-sided tape installation positions

AD

100
(3.9)

10
(0.39)

10
(0.39)

50
(1.96)

100
(3.9)

100
(3.9)

Windshield glass

Vehicle center line

Double-sided tape

Corner end

Unit: mm (in)

Corner end

ACX00480

10 mm

(0.4 in)

15 mm

(0.6 in)

AB

WINDOW GLASS

TSB Revision

BODY

42A-22

CAUTION

• Do not move the vehicle unless absolutely necessary.
• When testing for water leakage, do not apply strong

water pressure.

7. Wait 30 minutes or more, and then test for water leakage.
