WINDOW GLASS

TSB Revision

BODY

42A-23

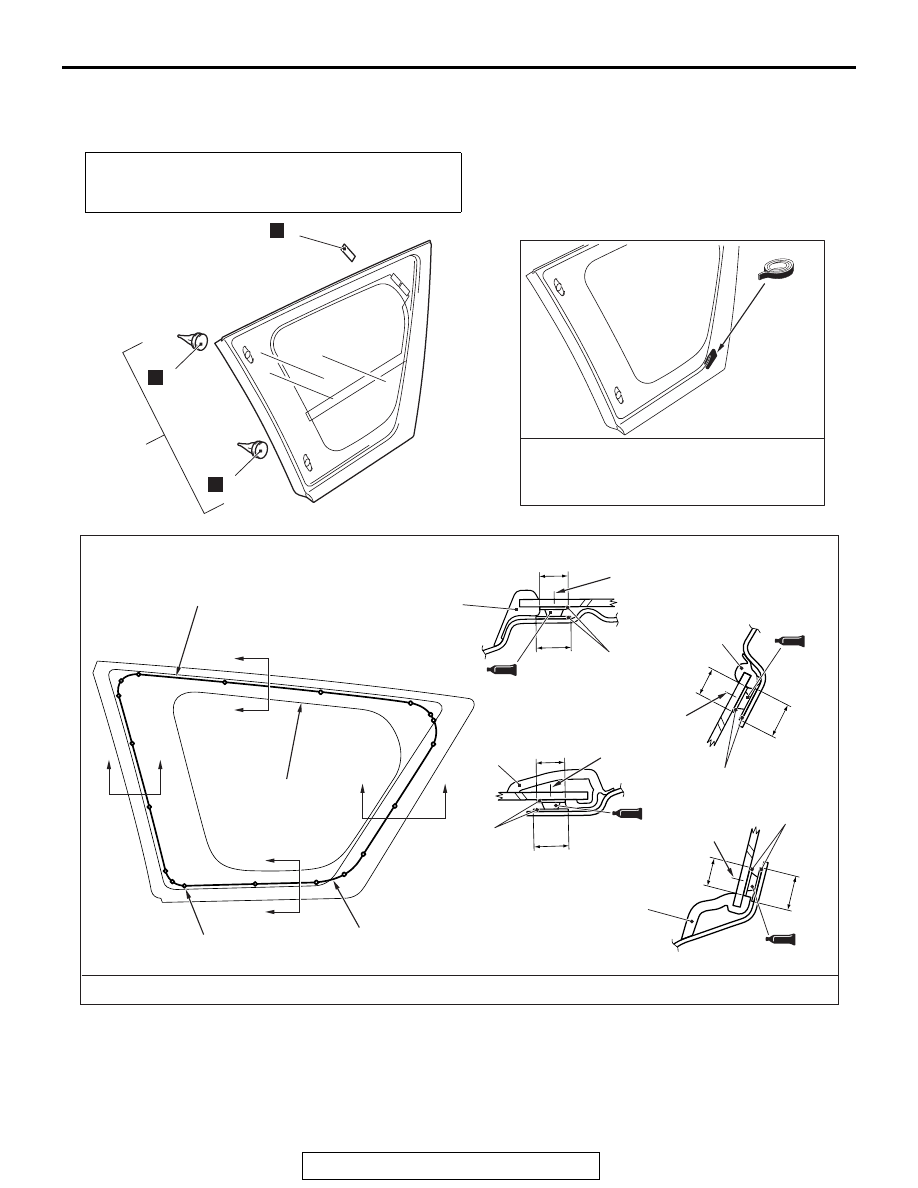

QUARTER WINDOW GLASS

REMOVAL AND INSTALLATION

M1422002500872

Required Special Tool:

• MB990480: Glass Holder

Pre-removal and post-installation operation
• Quarter trim upper removal and installation (Refer to

GROUP 52A, Interior Trim

P.52A-10

).

AC702862

N

1

2

3

N

AB

2

N

Adhesive tape: Double-sided tape [8 mm
(0.31 in) width, 25 mm (0.98 in) length and
1.2 mm (0.047 in) thickness.

AC702863

1

1

15

(0.59)

15

(0.59)

15

(0.59)

15

(0.59)

12
(0.47)

12
(0.47)

12
(0.47)

12
(0.47)

1

AB

B

B

A

A

C

C

D

D

1

Section A – A

Section B – B

Section C – C

Section D – D

Seal line center

Seal line center

Seal line center

Seal line

Seal line center

Apply the primer and adhesive along the fictitious lines
(seal line) between each of the marks

Primer

Primer

Primer

Unit: mm (in)

Primer

Ceramic line

Adhesive: 3M™ AAD Part No. 8609 Super Fast Urethane and 3M™ AAD Part No. 8608 Super Fast Urethane Primer
or equivalent

Mark

Removal steps

<<A>>

>>B<<

1.

Quarter window glass assembly

>>A<<

2.

Clip

>>A<<

3.

Fastener

WINDOW GLASS

TSB Revision

BODY

42A-24

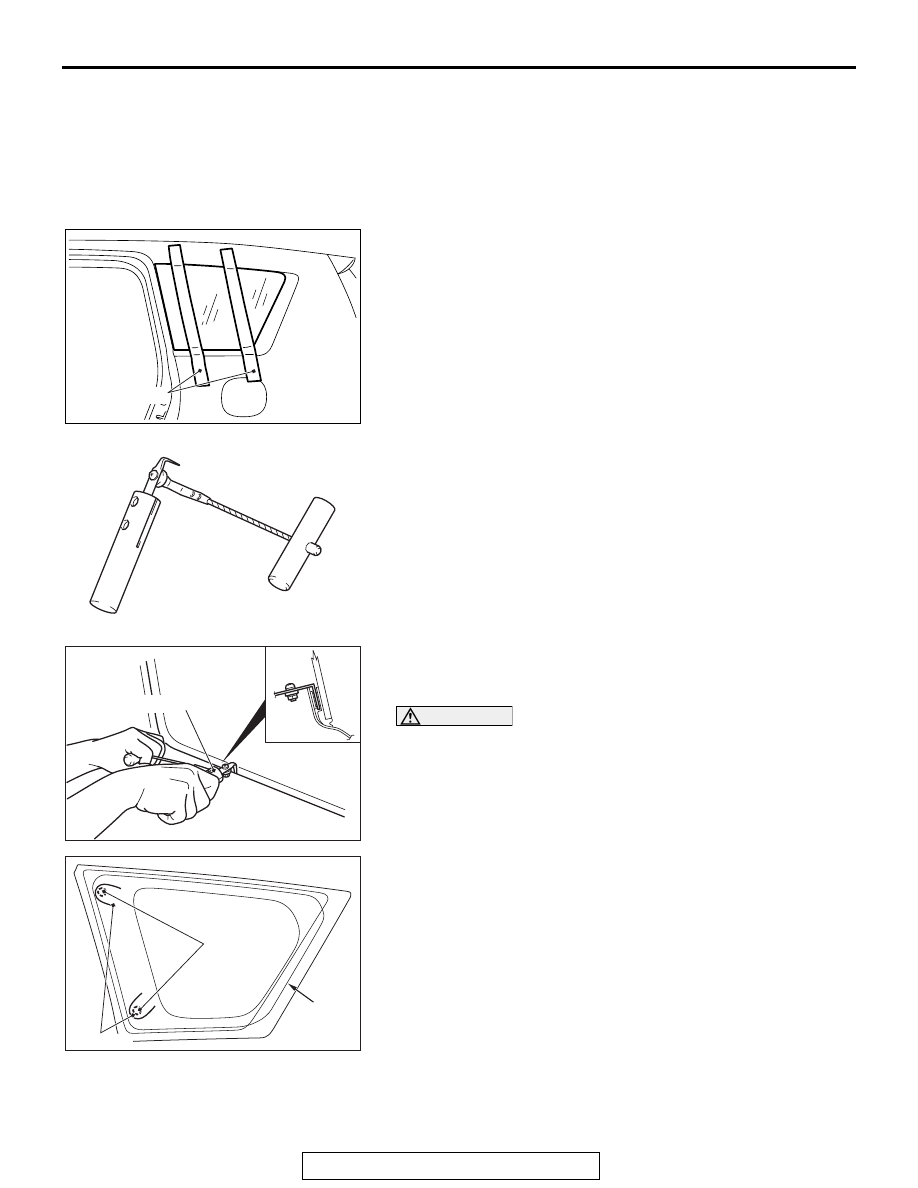

REMOVAL SERVICE POINT

.

<<A>> QUARTER WINDOW GLASS ASSEMBLY
REMOVAL

1. In order to protect the body (paint surface), apply the

protective tape to all body areas around the installed quarter
window glass assembly.

2. Stick the protective tape to avoid the quarter window glass

assembly from dropping.

3. Use glass adhesive knife to cut away adhesive.

4. Working inside the vehicle, insert the tip of a windshield

knife into the sealed part of the quarter window glass
assembly.

CAUTION

If you lever the windshield knife, the quarter window glass
assembly may be damaged.
5. Holding the tip of the windshield knife and the body flange at

right angles, align the blade of the windshield knife with the
body flange, and pull the blade parallel to the body flange to
separate the adhesive.

6. Use a piano wire to separate the clips.

AC702864

AB

Protective tape

AC702838AB

Glass adhesive knife

AC702865AB

Glass adhesive knife

AC702882AB

Clip

Seal line

Piano wire

WINDOW GLASS

TSB Revision

BODY

42A-25

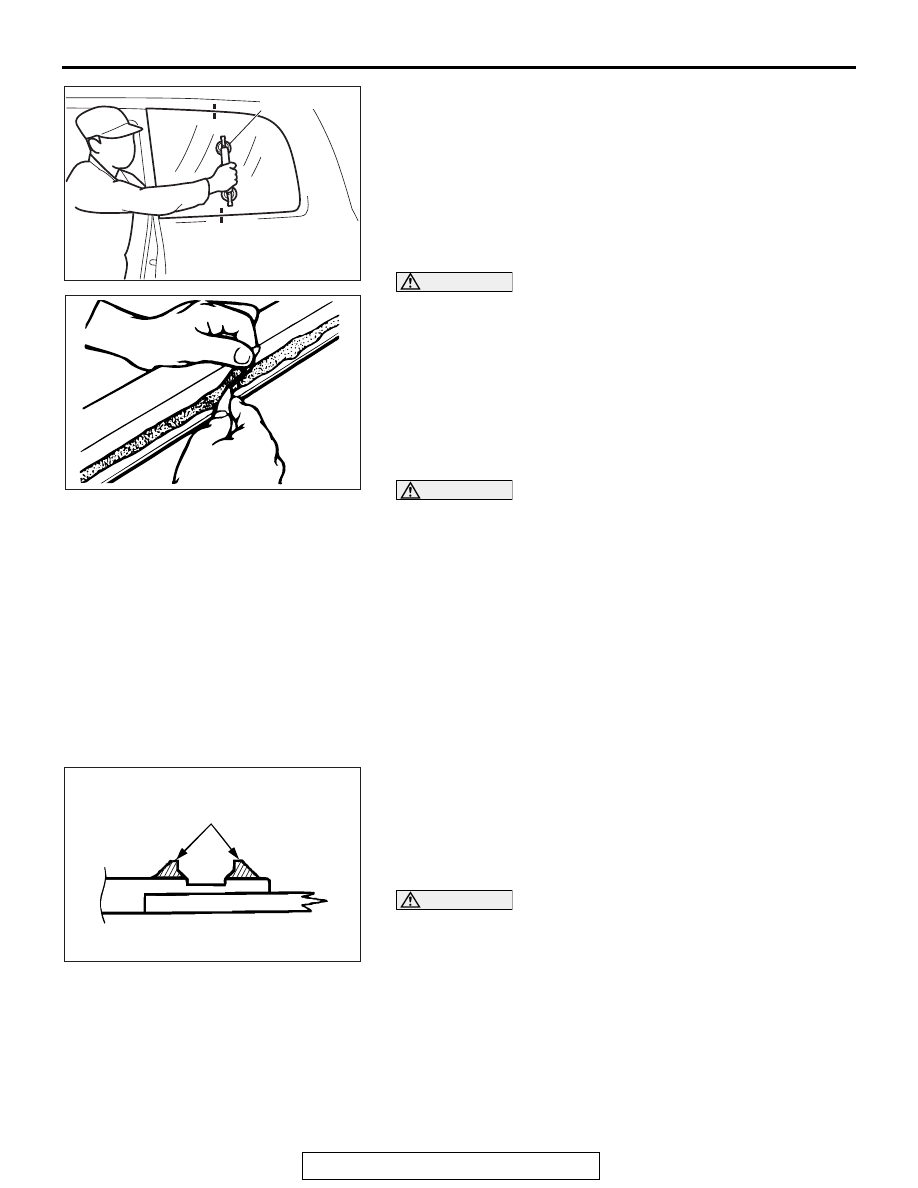

7. Make mating marks on the quarter window glass assembly

and body, and use the special tool MB990480 to remove the
quarter window glass assembly.

CAUTION

• Be careful not to remove more adhesive than is neces-

sary.

• Be careful also not to damage the paint on the body

surface with the knife. If the paint is damaged, repair
the damaged area with touch-up paint.

8. Use a knife to cut away the remaining adhesive so that the

thickness is within 2 mm (0.08 inch) around the entire
circumference of the body flange.

9. Finish the flange surfaces so that they are smooth.

CAUTION

Allow the cleaned area to dry for at least three minutes. Do
not touch any surface that has been cleaned.
10.When reusing the quarter window glass, remove the

adhesive still adhering to the quarter window glass, and
clean with 3M

™ AAD Part number 8906 or equivalent.

11.Clean the body side in the same way.

INSTALLATION SERVICE POINTS

.

>>A<< FASTENER/CLIP INSTALLATION

1. If the quarter window glass assembly is reused, follow the

procedure below:

(1) Engage the clip with the body.
(2) Separate the convex portion of the quarter window glass

assembly clip installation position.
NOTE: If the quarter window glass assembly is installed
without separating the convex portion of the quarter win-
dow glass assembly clip installation position, improper
installation may result.

CAUTION

Before the next operation, leave the decreased parts for 3
minutes or more to dry. Do not touch the degreased parts.
2. Use 3M

™AAD Part number 8906 or equivalent to degrease

the inside circumference of the quarter window glass
assembly and the body flanges.

AC103605 AC

MB990480

ACX00476 AB

AC103606 AD

Cut off these convex parts

WINDOW GLASS

TSB Revision

BODY

42A-26

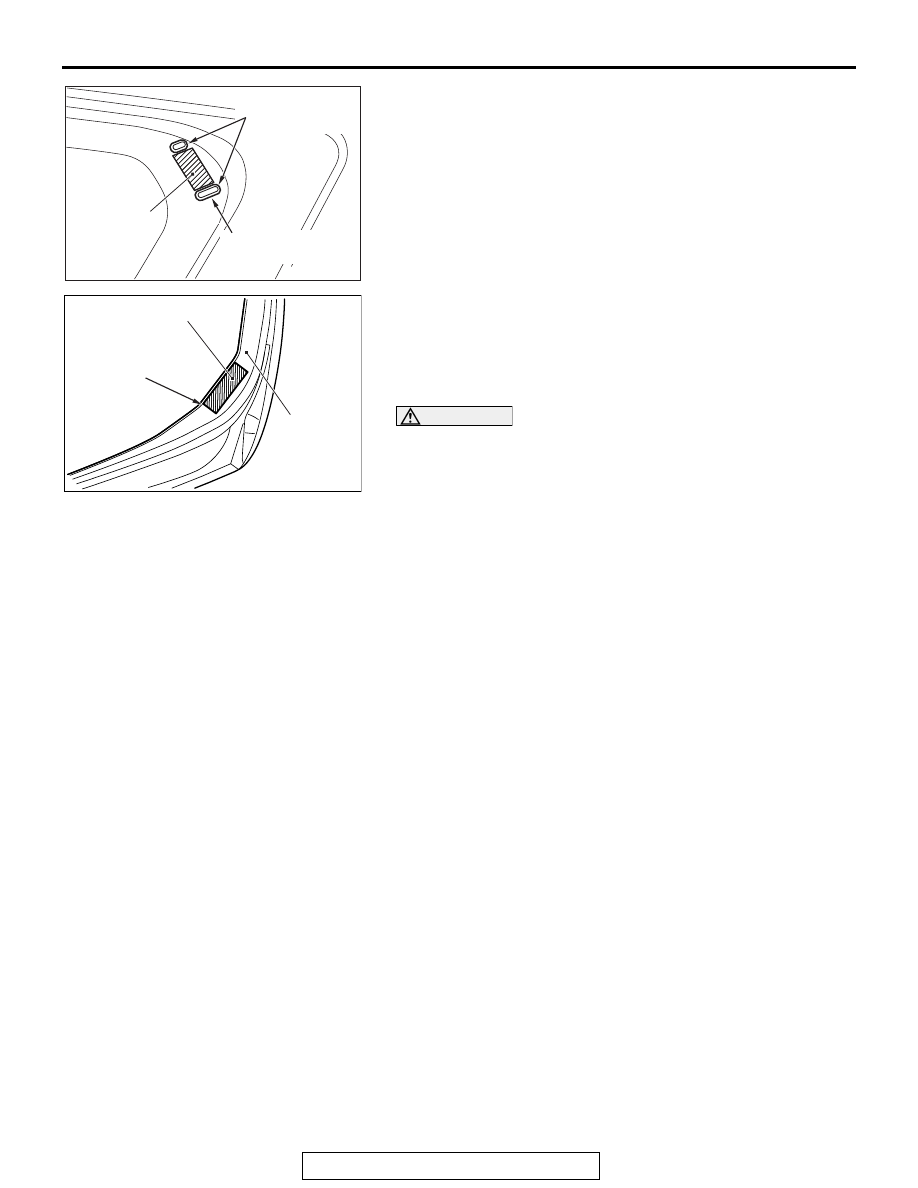

3. Install the fasteners to the specified positions on the body

flange.

4. Install the fasteners to the quarter window glass assembly at

the positions which correspond to the fasteners on the body
flange.

5. Apply the double-sided tape to the specified position on the

body flange.

.

>>B<< QUARTER WINDOW GLASS ASSEMBLY
INSTALLATION

CAUTION

Leave the degreased parts for 3 or more minutes to dry
well, before starting on the next step. Do not touch the
degreased parts.
1. Use 3M

™ AAD Part number 8906 or equivalent to degrease

the inside and outside of the quarter window glass and the
body flanges.

2. Install the quarter window glass using the same procedures

as for the windshield glass (Refer to

P.42A-17

).

AC702883AB

Fastener

Convex on the
body flange

Attach the fastener
in line with the
convexes

AC702884

Body flange

AC

Double-sided tape

Corner end
