Mitsubishi Outlander GS45X. Manual - part 84





RADIO AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-333

CHECK OF FREEZE FRAME DATA

The freeze frame data can be checked by using scan
tool.

.

When detecting fault and storing the diagnostic trou-
ble code, the ECU connected to CAN bus line
obtains the data before the determination of the diag-
nostic trouble code and the data when the diagnostic
trouble code is determined, and then stores the ECU
status of that time. By analyzing each data from scan
tool, the troubleshooting can be performed more effi-
ciently. The displayed items are as the table below.

Display item list

DIAGNOSTIC TROUBLE CODE CHART

M1544012900564

CAUTION

On troubleshooting, if the ignition switch is
turned ON while disconnecting connector(s),
diagnostic trouble code(s) associated with other
system may be set. On completion, confirm all
systems for diagnostic trouble code(s). If diag-
nostic trouble code(s) are set, erase them all.

Item No.

Item name

Content

Unit

1

Odometer

Total driving distance after the diagnostic trouble
code is generated

mile

2

Ignition cycle

Number of times the ignition switch is turned "ON" or
"LOCK (OFF)" after the past failure transition

Number of
counts is
displayed.

4

Accumulated minute Cumulative time for current malfunction of

diagnostic trouble code

min

DTC No.

Description

Reference page

U0019

Bus off (CAN-B)

P.54A-334

U0141

ETACS CAN timeout

P.54A-335

U0151

SRS-ABG CAN timeout

P.54A-337

U0154

OCM (occupant classification-ECU) CAN timeout

P.54A-339

U0155

Meter CAN timeout

P.54A-341

U0164

A/C CAN timeout

P.54A-343

U0168

WCM/KOS CAN timeout

P.54A-345

U0195

Satellite radio CAN timeout

P.54A-347

U1415

Coding not completed/Data fail

P.54A-349

B2420

Power integrated circuit

P.54A-351

B2421

Radio tuner

P.54A-352

B2423

6 CD player error

P.54A-353

B2424

CD player error

P.54A-355

B2450

Switch panel communication

P.54A-357

B2451

Audio panel type error

P.54A-362

RADIO AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-334

DIAGNOSTIC TROUBLE CODE PROCEDURES

DTC U0019: Bus off (CAN-B)

CAUTION

If there is any problem in the CAN bus lines, an
incorrect diagnostic trouble code may be set.
Prior to this diagnosis, always diagnose the CAN
bus lines.

CAUTION

Before replacing the radio and CD player, be sure
to check that the power supply circuit, ground
circuit, and communication circuit are normal.

.

TROUBLE JUDGMENT

When the radio and CD player is returned from the
bus off state, or when the bus error is indicated to the
radio and CD player state, the DTC U0019 (CAN-B)
is set.

.

COMMENTS ON TROUBLE SYMPTOM

The radio and CD player, power supply for the radio
and CD player, ground circuit, or CAN bus line may
have a problem.

.

PROBABLE CAUSES

• Malfunctions of radio and CD player

• Malfunction of CAN bus line wiring harness and

connector

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A

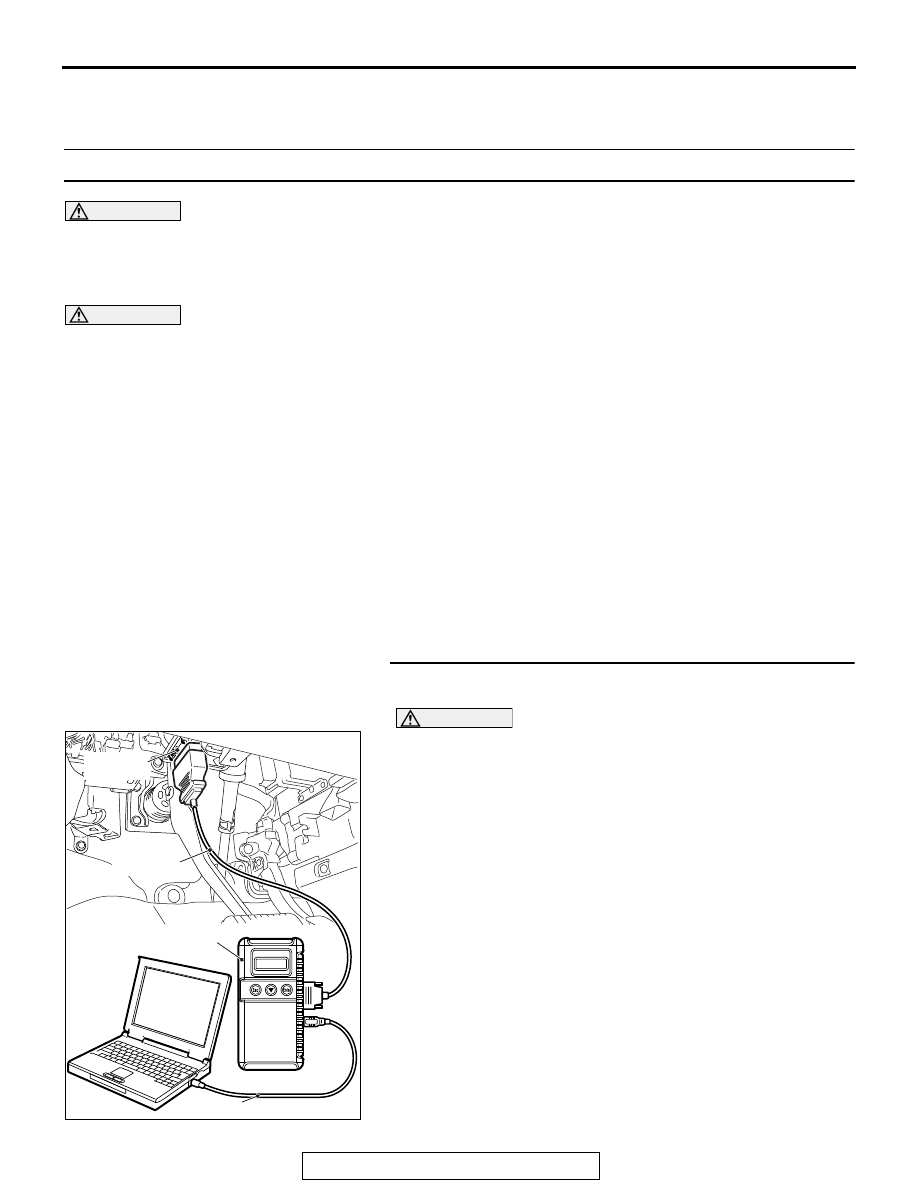

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958. Refer to "How to connect the

Scan Tool (M.U.T.-III)

P.54A-331

."

(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.
NO :  Repair the CAN bus line (Refer to GROUP 54C,

Diagnosis

P.54C-17

).

ZC501967

AC404789

AC702802

MB991824

MB991827

MB991910

Data link

connector

AB

RADIO AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-335

STEP 2. Check whether the scan tool MB991958 can
communicate with the radio and CD player.
Q: Is the check result normal?

YES : Erase the diagnostic trouble code. This diagnosis is

complete.

NO :  Check the power supply circuit of the radio and CD

player, and repair if necessary.

DTC U0141: ETACS CAN timeout

CAUTION

If DTC U0141 is set, be sure to diagnose the CAN
bus line.

CAUTION

When replacing the radio and CD player, always
check that the communication circuit is normal.

.

DIAGNOSTIC FUNCTION

If the signal from ETACS-ECU cannot be received,
the radio and CD player sets the DTC U0141.

.

JUDGMENT CRITERIA

With the ignition switch in the ON position, system
voltage between 10

− 16 volts (data from

ETACS-ECU), power supply fuse(IOD fuse) is OK, or
odometer value is 80.5 km (50 miles) or more, and
the communication with ETACS-ECU cannot be
established for 2,500 ms or more, the radio and CD
player determines that a problem has occurred.

.

TROUBLESHOOTING HINTS

• The CAN bus line may be defective

• The radio and CD player may be defective

• The ETACS-ECU may be defective

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicles Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

RADIO AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-336

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958. Refer to "How to connect the

Scan Tool (M.U.T.-III)

P.54A-331

."

(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.
NO :  Repair the CAN bus line (Refer to GROUP 54C,

Diagnosis

P.54C-17

).

STEP 2. Using scan tool MB991958, read the ETACS
diagnostic trouble code.
Check if DTC is set to the ETACS-ECU.
Q: Is the DTC set?

YES : Diagnose the ETACS-ECU (Refer to

P.54A-732

).

NO :  Go to Step 3.

STEP 3. Using scan tool MB991958, read the A/C
diagnostic trouble code.
Check if DTC U0141 is set to the A/C-ECU.
Q: Is the DTC set?

YES : Go to Step 4.
NO :  Go to Step 5.

AC608435

Data link connector

MB991827

MB991824

MB991910

AB
