Mitsubishi Outlander GS45X. Manual - part 83





RADIO AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-329

ERROR HOT Protection against high

temperature

If the internal temperature is extremely high, this error code will
be shown. Turn off the radio and CD player and wait until they
cool down. Wait for a while, and then turn on the unit again.
Check that the same error does not appear.

ERROR DC

Detection abnormal output
to the speaker

This error code will be shown if the radio and CD player or the
audio amplifier has an internal error or is contaminated with the
foreign material, and there is a problem with output to the
speaker. If it is contaminated with the foreign material, turn OFF
the power. Dry the foreign material if it is liquid, and remove it if
it is solid. Then, check if the error code is displayed. If the error
code is displayed, replace the radio and CD player or the audio
amplifier.

i NO SONG

No playable music file is
found.

No playable music file is stored in the iPod. Store music files to
the iPod.

i VER
ERROR

iPod cannot be recognized iPod itself or software is not supported. Use the supported iPod.

i CONNECT



i RETRY

iPod cannot be
authenticated.

iPod is not authenticated. Reconnect. If the error code is not
erased after that, the USB box communication may have a
problem. Carry out the troubleshooting of "The USB adapter
data cannot be replayed". (Refer to

P.54A-640

.)

U NO SONG No playable music file is

found.

No playable music file is stored in the USB memory. Store
music files to the USB memory.

U FILE
ERROR

Playback of unplayable file
(copyright protected file,
etc.) is attempted.

Displayed when the playback of unplayable file such as a
copyright protected file is attempted. The error code is
displayed approximately for 3 seconds, and then a next
playable file is played automatically.

UNSUPPOR
TED DEVICE

Unsupported device

The USB memory is not supported by the USB box. Use the
supported USB memory.

UNSUPPOR
TED
FORMAT

Unsupported format

USB BUS
PWR

Overcurrent abnormality

There is a communication error with the USB box. Carry out the
troubleshooting of "The USB adapter data cannot be replayed".
(Refer to

P.54A-640

.)

U CONNECT



U RETRY

USB memory cannot be
authenticated.

The USB memory is not authenticated. Reconnect. If the error
code is not erased after that, the USB box communication may
have a problem. Carry out the troubleshooting of "The USB
adapter data cannot be replayed". (Refer to

P.54A-640

.)

U LSI
ERROR

USB box internal error

This error code will be shown when there is a problem in the
USB box. Replace the USB box.

Error code

Cause

Cause of trouble and its solution

RADIO AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-330

SATELLITE RADIO ERROR CODES <Vehicles with satellite radio tuner>

The display displays the error codes below if an
abnormality related to the satellite radio is detected.

Error code

Cause

Cause of trouble and its solution

ANTENNA ERROR

Antenna error

This code is displayed when there is a failure,
improper connection, or open circuit in the satellite
antenna base and the satellite radio tuner cannot
receive normal voltage value or current value. Check
the satellite radio tuner, the satellite antenna base and
the antenna feeder cable, and replace if necessary.

ACQUIRING
SIGNAL

Cannot pick up signal

This code is displayed when the signal is too weak and
it cannot be received. Move to a place where the
signal can be received easily, or check if there is
foreign material that interferes with signal reception on
the satellite antenna base, and remove if necessary.

CALL
888-539-SIRIUS

Unauthorized channel

This code is displayed when the channel to be
received is not included in the contract with SIRIUS

™

satellite radio. Contact SIRIUS

™ satellite radio and

make a contract for the channel.

 NO CHANNEL

There is no selectable
channel

There is no channel that can be selected. Cancel the
SKIP settings so that the channels can be selected.

INVALID CHANNEL

Channel is invalid

No program is broadcast on this channel now, or this
channel cannot be received. Ask SIRIUS

™ satellite

radio.

SAT ERROR

Mechanical fault or bad
connection

This code is displayed when the satellite radio tuner
has a mechanical problem or when an error occurs in
the communication with radio and CD player. Check
the radio and CD player, the satellite radio tuner, and
each harness and connector, and replace if necessary.
(Refer to

P.54A-675

.)

OFF AIR

OFF AIR

This code is displayed when this channel is not
broadcast at this moment, or broadcast of the satellite
radio is interrupted. Check the airtime and the
broadcast conditions of SIRIUS

™ satellite radio.

NOT ACTIVATED

ID not registered

This code is displayed when the SIRIUS ID is not
written to the satellite radio tuner. Replace the satellite
radio tuner.

READING

Data reading in progress This code is displayed when the data received is being

read. Wait until reading of the data received is
completed.

UPDATING

Channel data updating
in progress

This code is displayed when SIRIUS

™ satellite radio is

updating the channel data. Wait until update is
completed.

SUB UPDATING
PRESS ANY KEY

Contract status updating
complete

This code is displayed when the contract status is
updated. This code disappears when any of the audio
switch is pressed.

RADIO AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-331

STANDARD FLOW OF DIAGNOSTIC TROUBLESHOOTING

M1544004800636

Refer to GROUP 00

− Troubleshooting contents

P.00-7

.

DIAGNOSIS FUNCTION

M1544013200320

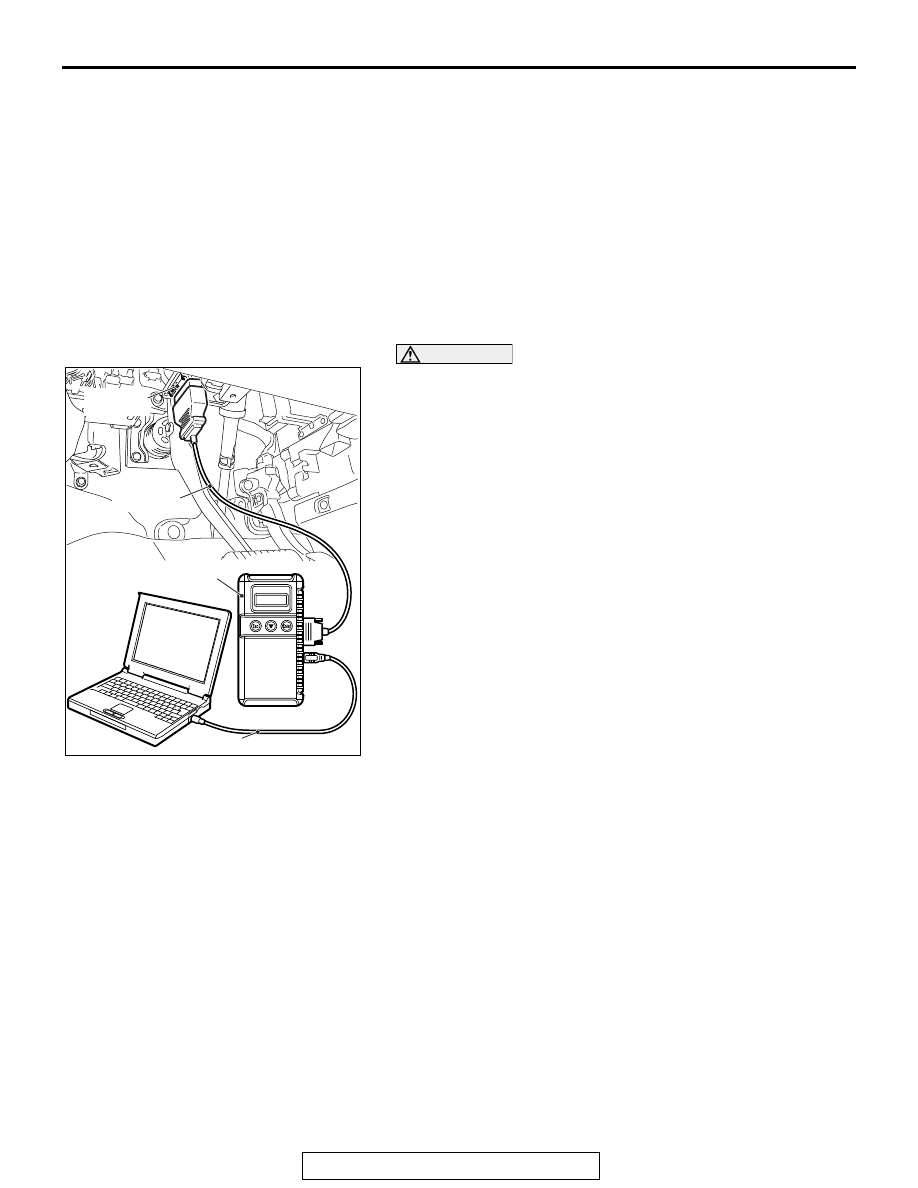

HOW TO CONNECT THE SCAN TOOL (M.U.T.-III)

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicles Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
1. Ensure that the ignition switch is at the "LOCK" (OFF)

position.

2. Start up the personal computer.
3. Connect special tool MB991827 to special tool MB991824

and the personal computer.

4. Connect special tool MB991910 to special tool MB991824.
5. Connect special tool MB991910 to the data link connector.
6. Turn the power switch of special tool MB991824 to the "ON"

position.
NOTE: When special tool MB991824 is energized, special
tool MB991824 indicator light will be illuminated in a green
color.

7. Start the M.U.T.-III system on the personal computer.
NOTE: Disconnecting scan tool MB991958 is the reverse of the
connecting sequence, making sure that the ignition switch is at
the "LOCK" (OFF) position.

HOW TO READ AND ERASE DIAGNOSTIC
TROUBLE CODES

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicles Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

NOTE: If the battery voltage is low, diagnostic trouble codes will
not be set. Check the battery if scan tool MB991958 does not
display.
1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Select "System select" from the start-up screen.
4. Select "From 2006 MY" of "Model Year." When the "Vehicle

Information" is displayed, check the contents.

ZC501967

AC404789

AC702802

MB991824

MB991827

MB991910

Data link

connector

AB

RADIO AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-332

5. Select "Meter" from "System List," and press the "OK"

button.
NOTE: When the "Loading Option Setup" list is displayed,
check the applicable item.

6. Select "Diagnostic Trouble Code." to read the DTC.
7. If a DTC is set, it is shown.
8. Choose "Erase DTCs" to erase the DTC.

HOW TO DIAGNOSE THE CAN BUS LINES

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicles Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Select "CAN bus diagnosis" from the start-up screen.
4. When the vehicle information is displayed, confirm that it

matches the vehicle being diagnosed.

• If they match, go to Step 8.

• If not, go to Step 5.

5. Select the "view vehicle information" button.
6. Enter the vehicle information and select the "OK" button.
7. When the vehicle information is displayed, confirm again

that it matches the vehicle being diagnosed.

• If they match, go to Step 8.

• If not, go to Step 5.

8. Select the "OK" button.
9. When the optional equipment screen is displayed, choose

the one which the vehicle is fitted with, and then select the
"OK" button.
