TROUBLESHOOTING

CONTROLLER AREA NETWORK (CAN)

54C-36

terminal Nos.3 and 4

OK: 1 k

Ω or more

CAUTION

Strictly observe the specified wiring harness
repair procedure. For details refer to

P.54C-5

.

Q: Is the check result normal?

YES :

<1 k

Ω or more> Repair the wiring harness

between joint connector (CAN1) and the
EPS-ECU connector.

NO :

<Less than 1 k

Ω> Check the EPS-ECU

connector, and repair if necessary. If the
EPS-ECU connector is in good condition,
replace the EPS-ECU.

STEP 10. Resistance measurement at joint
connector (CAN1).

CAUTION

A digital multimeter should be used. For details
refer to

P.54C-5

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54C-5

.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Turn the ignition switch to the LOCK (OFF)

position.

CAUTION

When measuring the resistance, disconnect the
negative battery terminal. For details refer to

P.54C-5

.

(3) Ensure that the negative battery terminal is

disconnected.

(4) Resistance between joint connector (CAN1)

terminal Nos.9 and 20

OK: 1 k

Ω or more

CAUTION

Strictly observe the specified wiring harness
repair procedure. For details refer to

P.54C-5

.

Q: Is the check result normal?

YES :

<1 k

Ω or more> Repair the wiring harness

between joint connector (CAN1) and C-126
intermediate connector.

NO :

<Less than 1 k

Ω> Go to Step 11.

STEP 11. Resistance measurement at ABS-ECU
<vehicles without ASC> or ASC-ECU <vehicles
with ASC> connector.

CAUTION

A digital multimeter should be used. For details
refer to

P.54C-5

.

(1) Remove the ABS-ECU <vehicles without ASC>

or ASC-ECU <vehicles with ASC>, and measure
at the equipment side.

(2) Resistance between ABS-ECU <vehicles without

ASC> or ASC-ECU <vehicles with ASC>
connector terminal Nos.10 and 11

OK: 1 k

Ω or more

CAUTION

Strictly observe the specified wiring harness
repair procedure. For details refer to

P.54C-5

.

Q: Is the check result normal?

YES :

<1 k

Ω or more> Repair the wiring harness

between joint connector (CAN1) and the
ABS-ECU <vehicles without ASC> or
ASC-ECU <vehicles with ASC> connector.

NO :

<Less than 1 k

Ω> Check the ABS-ECU

<vehicles without ASC> or ASC-ECU
<vehicles with ASC> connector, and repair if
necessary. If the ABS-ECU <vehicles
without ASC> or ASC-ECU <vehicles with
ASC> connector is in good condition,
replace the ABS-ECU <vehicles without
ASC> or ASC-ECU <vehicles with ASC>.

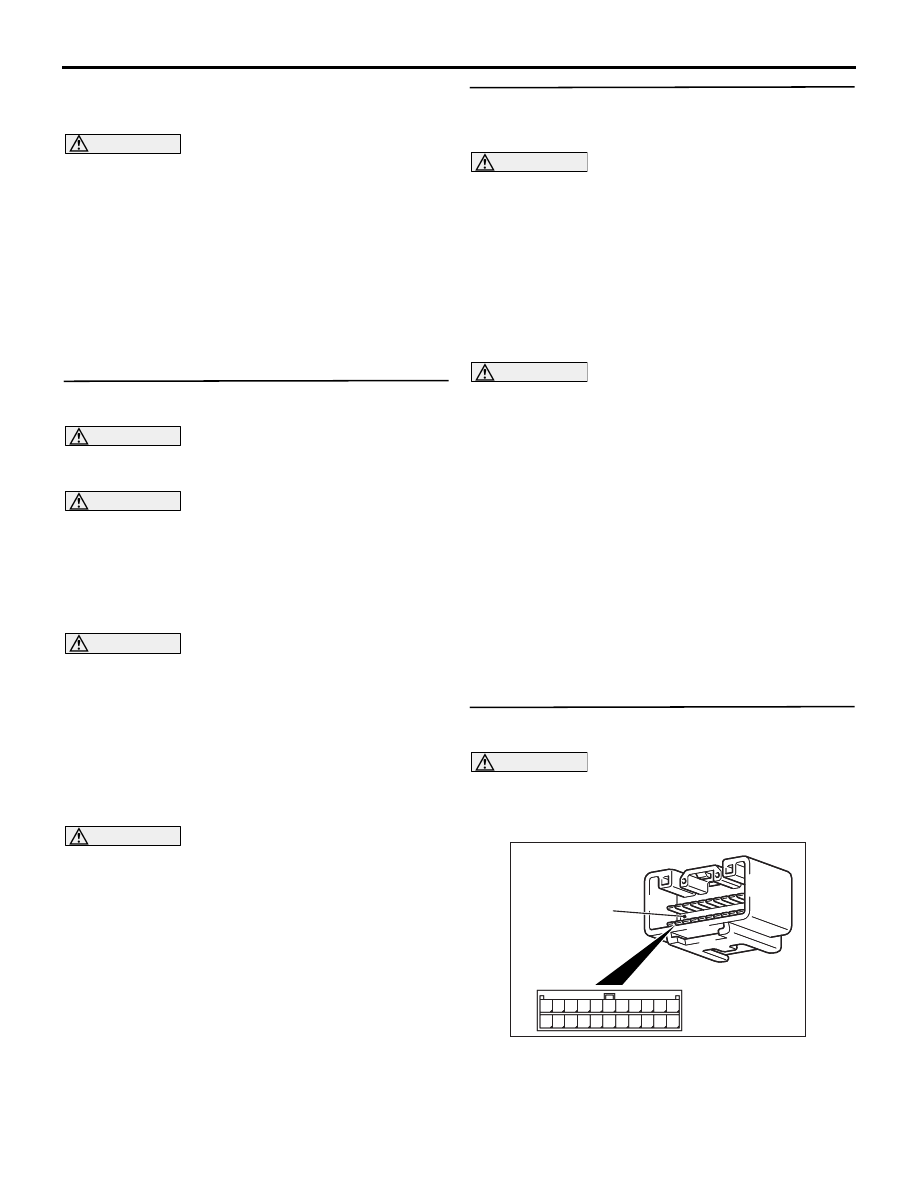

STEP 12. Connector check: joint connector
(CAN-HI)

CAUTION

The strand end of the twist wire should be within
10 cm from the connector. For details refer to

P.54C-5

.

AC209350

1

12

2

13

3

14

4

15

5

16

6

17

7

18

8

19

9

20

10

21

11

22

AC209350

1

12

2

13

3

14

4

15

5

16

6

17

7

18

8

19

9

20

10

21

11

22

AC

Short pin

When checking the joint connector, ensure that its
wiring harness side and its short pins are not dam-
aged.

Q: Is the check result normal?

TROUBLESHOOTING

CONTROLLER AREA NETWORK (CAN)

54C-37

YES :

Go to Step 13.

NO :

Repair a defective connector or replace the
joint connector.

STEP 13. Resistance measurement at joint
connector (CAN-HI).

CAUTION

A digital multimeter should be used. For details
refer to

P.54C-5

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54C-5

.

(1) Disconnect joint connector (CAN-HI), and

measure at the wiring harness side.

(2) Turn the ignition switch to the LOCK (OFF)

position.

CAUTION

When measuring the resistance, disconnect the
negative battery terminal. For details refer to

P.54C-5

.

(3) Ensure that the negative battery terminal is

disconnected.

(4) Resistance between joint connector (CAN-HI)

terminal Nos.11 and 22

OK: 120

± 20 Ω

CAUTION

Strictly observe the specified wiring harness
repair procedure. For details refer to

P.54C-5

.

Q: Is the check result normal?

YES <2WD> :

<Within 120

± 20 Ω> Go to Step 17.

YES <4WD> :

<Within 120

± 20 Ω> Go to Step 15.

NO  :

<Not within 120

± 20 Ω> Go to Step 14.

STEP 14. Resistance measurement at
ETACS-ECU connector.

CAUTION

A digital multimeter should be used. For details
refer to

P.54C-5

.

(1) Remove the ETACS-ECU, and measure at the

equipment side.

(2) Resistance at ETACS-ECU connector terminal

Nos.18 and 19

OK: 120

± 20 Ω

Q: Is the check result normal?

YES :

<Within 120

± 20 Ω> Repair the wiring

harness between joint connector (CAN-HI)
and the ETACS-ECU connector.

NO :

<Not within 120

± 20 Ω> Check the

ETACS-ECU connector, and repair if
necessary. If the ETACS-ECU connector is
in good condition, replace the ETACS-ECU.

STEP 15. Resistance measurement at joint
connector (CAN1).

CAUTION

A digital multimeter should be used. For details
refer to

P.54C-5

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54C-5

.

(1) Disconnect joint connector (CAN-HI), and

measure at the wiring harness side.

(2) Turn the ignition switch to the LOCK (OFF)

position.

CAUTION

When measuring the resistance, disconnect the
negative battery terminal. For details refer to

P.54C-5

.

(3) Ensure that the negative battery terminal is

disconnected.

(4) Resistance between joint connector (CAN-HI)

terminal Nos.5 and 16

OK: 1 k

Ω or more

CAUTION

Strictly observe the specified wiring harness
repair procedure. For details refer to

P.54C-5

.

Q: Is the check result normal?

YES :

<1 k

Ω or more> Go to Step 17.

NO :

<Less than 1 k

Ω> Go to Step 16.

STEP 16. Resistance measurement at 4WD-ECU
connector.

CAUTION

A digital multimeter should be used. For details
refer to

P.54C-5

.

(1) Remove the 4WD-ECU, and measure at the

equipment side.

(2) Resistance at 4WD-ECU connector terminal

Nos.5 and 13

OK: 1 k

Ω or more

Q: Is the check result normal?

YES :

<1 k

Ω or more> Check intermediate

connector, and repair if necessary. If the
intermediate connector is in good condition,
repair the wiring harness between joint
connector (CAN-HI) and the 4WD-ECU
connector.

NO :

<Less than 1 k

Ω> Check the 4WD-ECU

connector, and repair if necessary. If the
4WD-ECU connector is in good condition,
replace the 4WD-ECU.

TROUBLESHOOTING

CONTROLLER AREA NETWORK (CAN)

54C-38

STEP 17. Resistance measurement at joint
connector (CAN-HI).

CAUTION

A digital multimeter should be used. For details
refer to

P.54C-5

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54C-5

.

(1) Disconnect joint connector (CAN-HI), and

measure at the wiring harness side.

(2) Turn the ignition switch to the LOCK (OFF)

position.

CAUTION

When measuring the resistance, disconnect the
negative battery terminal. For details refer to

P.54C-5

.

(3) Ensure that the negative battery terminal is

disconnected.

(4) Resistance between joint connector (CAN-HI)

terminal Nos.6 and 17

OK: 1 k

Ω or more

CAUTION

Strictly observe the specified wiring harness
repair procedure. For details refer to

P.54C-5

.

Q: Is the check result normal?

YES :

<1 k

Ω or more> Go to Step 19.

NO :

<Less than 1 k

Ω> Go to Step 18.

STEP 18. Resistance measurement at steering
wheel sensor connector.

CAUTION

A digital multimeter should be used. For details
refer to

P.54C-5

.

(1) Remove the steering wheel sensor, and measure

at the equipment side.

(2) Resistance at steering wheel sensor connector

terminal Nos.3 and 4

OK: 1 k

Ω or more

Q: Is the check result normal?

YES :

<1 k

Ω or more> Repair the wiring harness

between joint connector (CAN-HI) and the
steering wheel sensor connector.

NO :

<Less than 1 k

Ω> Check the steering wheel

sensor connector, and repair if necessary. If
the steering wheel sensor connector is in
good condition, replace the steering wheel
sensor.

STEP 19. Resistance measurement at joint
connector (CAN-HI).

CAUTION

A digital multimeter should be used. For details
refer to

P.54C-5

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54C-5

.

(1) Disconnect joint connector (CAN-HI), and

measure at the wiring harness side.

(2) Turn the ignition switch to the LOCK (OFF)

position.

CAUTION

When measuring the resistance, disconnect the
negative battery terminal. For details refer to

P.54C-5

.

(3) Ensure that the negative battery terminal is

disconnected.

(4) Resistance between joint connector (CAN-HI)

terminal Nos.8 and 19

OK: 1 k

Ω or more

CAUTION

Strictly observe the specified wiring harness
repair procedure. For details refer to

P.54C-5

.

Q: Is the check result normal?

YES :

<1 k

Ω or more> Go to Step 21.

NO :

<Less than 1 k

Ω> Go to Step 20.

STEP 20. Resistance measurement at SRS-ECU
connector.

CAUTION

A digital multimeter should be used. For details
refer to

P.54C-5

.

(1) Remove the SRS-ECU, and measure at the

equipment side.

(2) Resistance at SRS-ECU connector terminal

Nos.29 and 30

OK: 1 k

Ω or more

Q: Is the check result normal?

YES :

<1 k

Ω or more> Repair the wiring harness

between joint connector (CAN-HI) and the
SRS-ECU connector.

NO :

<Less than 1 k

Ω> Check the SRS-ECU

connector, and repair if necessary. If the
SRS-ECU connector is in good condition,
replace the SRS-ECU.

TROUBLESHOOTING

CONTROLLER AREA NETWORK (CAN)

54C-39

STEP 21. Resistance measurement at joint
connector (CAN-HI).

CAUTION

A digital multimeter should be used. For details
refer to

P.54C-5

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54C-5

.

(1) Disconnect the joint connector (CAN-HI), and

measure at the wiring harness side.

(2) Turn the ignition switch to the LOCK (OFF)

position.

CAUTION

When measuring the resistance, disconnect the
negative battery terminal. For details refer to

P.54C-5

.

(3) Ensure that the negative battery terminal is

disconnected.

(4) Resistance between joint connector (CAN-HI)

terminal Nos.9 and 20

OK: 1 k

Ω or more

CAUTION

Strictly observe the specified wiring harness
repair procedure. For details refer to

P.54C-5

.

Q: Is the check result normal?

YES :

<1 k

Ω or more> Repair the wiring harness

between joint connector (CAN-HI) and the
C-126 intermediate connector.

NO :

<Less than 1 k

Ω> Check the diagnosis

connector, and repair if necessary. If the
diagnosis connector is in good condition,
repair the wiring harness between joint
connector (CAN-HI) and the diagnosis
connector.

Diagnosis Item 5: Communication with no ECUs is possible (CAN-C-Mid).

CAUTION

When servicing a CAN bus line, earth yourself by
touching a metal object such as an unpainted
water pipe. If you fail to do, a component con-
nected to the CAN bus line may be broken.

TROUBLESHOOTING HINTS

• Malfunction in CAN-C-Mid (short to earth or

power supply, wire short to one another)

• Malfunction in the ECUs which are intercon-

nected via CAN-C-Mid (internal error)

• Malfunction (open circuit) of wiring harness, con-

nector (s) between the ETACS-ECU and joint
connector(s)

DIAGNOSIS PROCEDURE

STEP 1. Check the CAN-C-Mid for short to power
supply. Voltage measurement at ETACS-ECU
connector by backprobing.

CAUTION

A digital multimeter should be used. For details
refer to

P.54C-5

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54C-5

.

(1) Connect the negative battery terminal, and turn

the ignition switch to the ON position.

(2) Voltage between ETACS-ECU connector terminal

No.17 (CAN_H) and body earth by backprobing

OK: Less than 4.0 V

(3) Voltage between ETACS-ECU connector terminal

No.16 (CAN_L) and body earth by backprobing

OK: Less than 4.0 V

Q: Is the check result normal?

YES <Voltage is less than 4.0 V in both CAN_H and
CAN_L> :

Go to Step 2.

NO <Voltage is 4.0 V or more in either CAN_H or
CAN_L> :

Perform diagnosis item 6 "Diagnose

shorts in the power supply to CAN-C-Mid".
Refer to

P.54C-40

.

STEP 2. Check the CAN-C-Mid for short to earth.
Resistance measurement at ETACS-ECU
connector by backprobing.

CAUTION

A digital multimeter should be used. For details
refer to

P.54C-5

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54C-5

.

(1) Turn the ignition switch to the LOCK (OFF)

position.

CAUTION

When measuring the resistance, disconnect the
negative battery terminal. For details refer to

P.54C-5

.

(2) Ensure that the negative battery terminal is
