DEFOGGER

CHASSIS ELECTRICAL

54A-277

(2) Measure the resistance between the rear window

defogger connector (earth terminal) and body
earth.

OK: Continuity exists (2

Ω or less)

Q: Is the check result normal?

YES :

Go to Step 11

NO :

Go to Step 7

STEP 7. Check of open circuit in earth line
between rear window defogger connector and
body earth.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/Inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Repair the connector(s) or wiring harness.

STEP 8. Voltage measurement at ETACS-ECU
connector (+B2 terminal).
(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Check the voltage between the ETACS-ECU

connector (+B2 terminal) and body earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 10

NO :

Go to Step 9

STEP 9. Check of short to power supply, short to
earth, and open circuit in +B2 line between
fusible link and ETACS-ECU connector.

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use

Troubleshooting/Inspection Service Points -
How to Cope with Intermittent Malfunction ).

NO :

Repair the connector(s) or wiring harness.

STEP 10. Check of short to power supply, short
to earth, and open circuit in DEFL line between
ETACS-ECU connector and rear window
defogger connector.

Q: Is the check result normal?

YES :

Go to Step 11

NO :

Repair the connector(s) or wiring harness.

STEP 11. Check the rear window defogger.
Check the rear window defogger (Refer to

P.54A-277

).

Q: Is the check result normal?

YES :

Go to Step 12

NO :

Replace the rear window glass, and then go
to Step 12.

STEP 12. Check the rear window defogger.
Check the rear window defogger (Refer to

P.54A-277

).

Q: Is the check result normal?

YES :

Return to Step 1.

NO :

Replace the ETACS-ECU.

ON-VEHICLE SERVICE

PRINTED HEATER CHECK

M1540500500283

AC407247

Voltage (V)

Normal characteristics of print heater

Abnormal characteristics of print heater

Voltage (V)

AD

12

6

0

12

6

0

(+) terminal

(-) terminal

(+) terminal

(-) terminal

Length of print heater

Length of print heater

A (middle point)

Approximately 6 V

Disconnection
location

1. Let the engine run (2,000 r/min), and check the

printed heater with the battery fully charged.

2. With the rear window defogger switch "ON," use

the circuit tester to measure the voltage of each
printed heater at the rear window glass centre A
point. If approximately 6 V is indicated, it is judged
good.

3. If the voltage of 12 V is indicated at the A point,

there is an open circuit between the A point and
negative terminal. Therefore, by moving the test

bar slowly to the negative side, search and
determine the location where the voltage changes
suddenly (0 V). The location of voltage change
indicates the open circuit position.

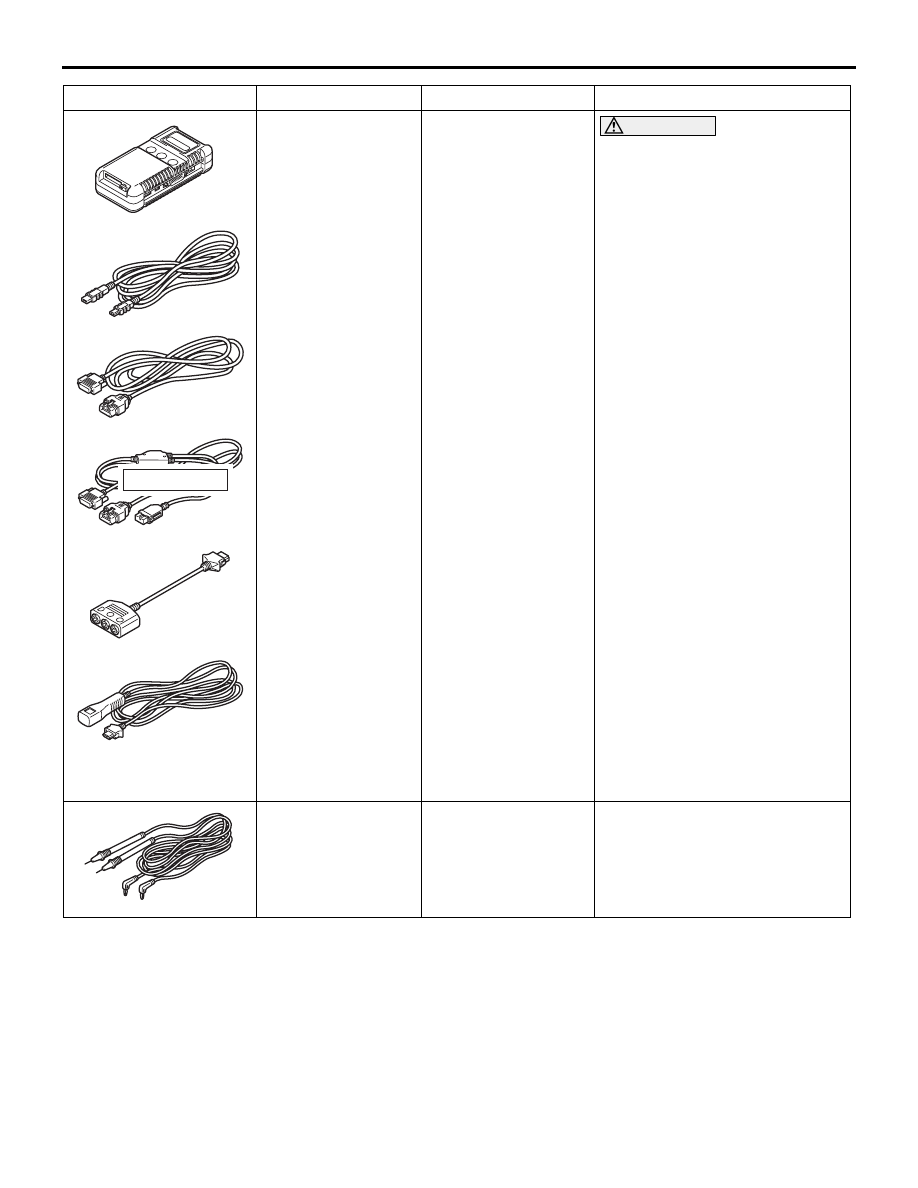

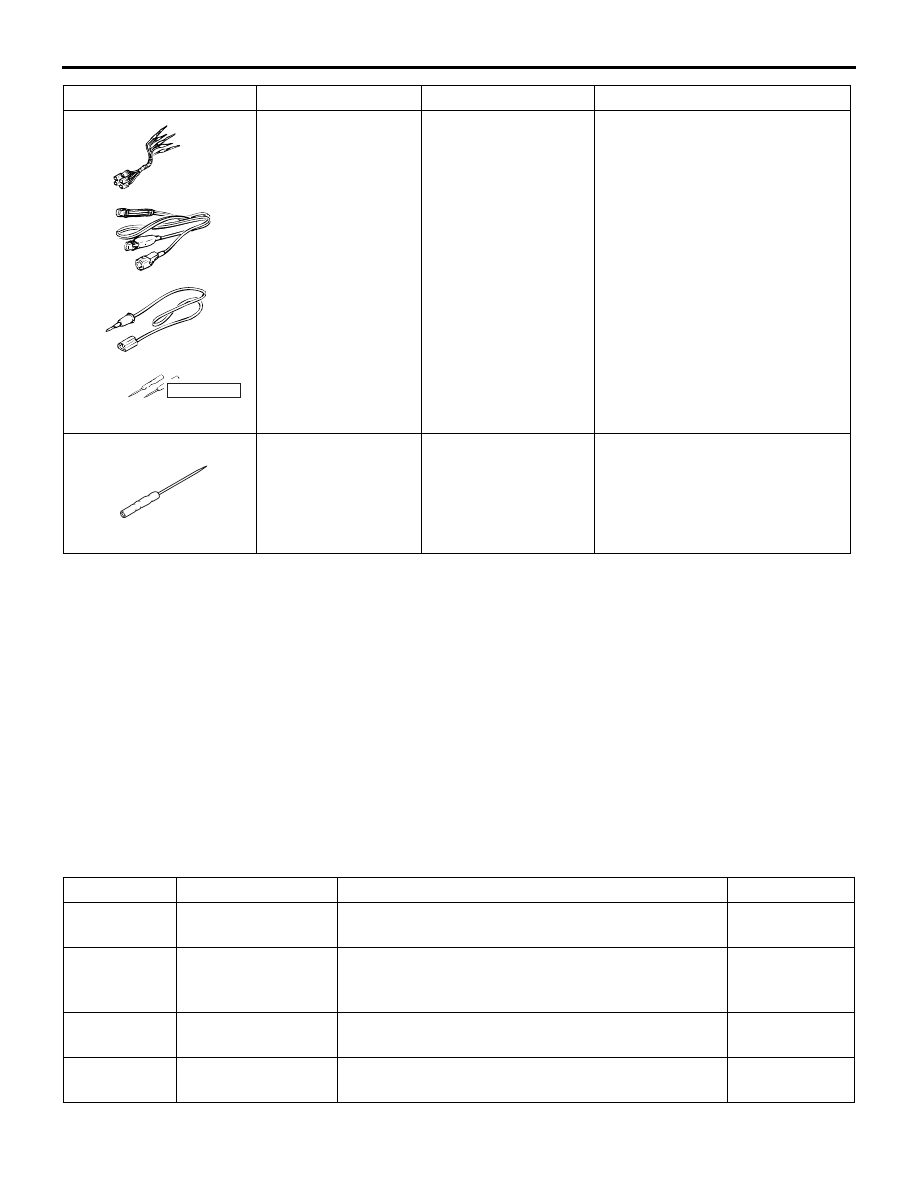

ETACS

CHASSIS ELECTRICAL

54A-278

4. Also, if the voltage indicates 0 V at the A point,

there is an open circuit between the A point and
positive terminal. Therefore, search and
determine the location of voltage change (12 V)
using the above mentioned method.

5. If a malfunction such as open circuit occurs,

replace the tailgate window glass (Refer to
GROUP 42A

− Tailgate Window Glass ).

DEFOGGER SWITCH

REMOVAL AND INSTALLATION

M1540600200386

For the defogger switch removal and installation pro-
cedures, refer to 55

− Heater Control Unit .

ETACS

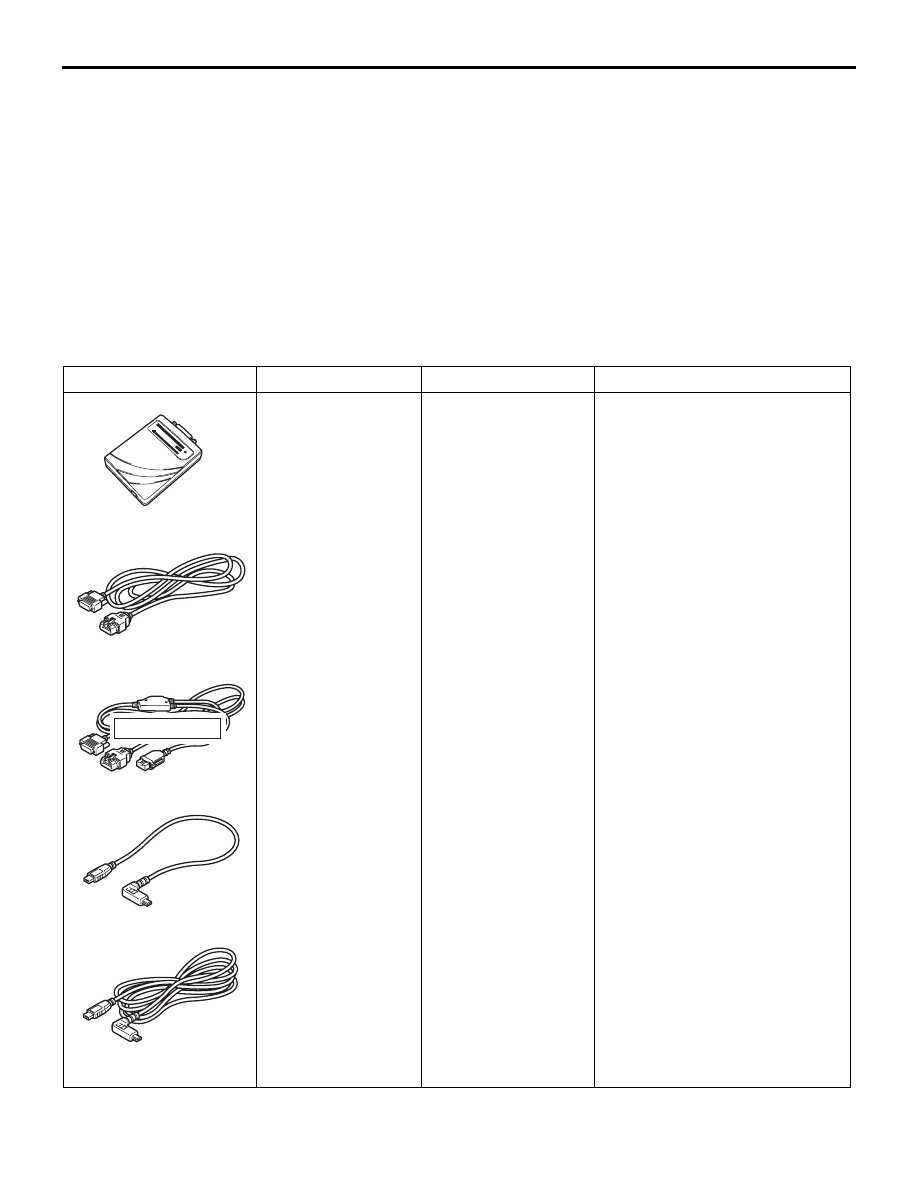

SPECIAL TOOLS

M1545000600257

Tool

Number

Name

Use

ACB05421

MB992745

MB992746

MB992744

MB992747

MB992748

a

b

c

d

e

DO NOT USE

AB

a. MB992744
b. MB992745
c. MB992746
d. MB992747
e. MB992748

a. Vehicle

communication
interface-Lite
(V.C.I.-Lite)

b. V.C.I.-Lite main

harness A (for
vehicles with CAN
communication)

c. V.C.I.-Lite main

harness B (for
vehicles without
CAN
communication)

d. V.C.I.-Lite USB

cable short

e. V.C.I.-Lite USB

cable long

ETACS-ECU check (Diagnosis
code, service data)

MB991910

MB991826

MB991955

MB991911

MB991824

MB991827

MB991825

a

b

c

d

e

f

DO NOT USE

ETACS

CHASSIS ELECTRICAL

54A-279

MB991955

a. MB991824
b. MB991827
c. MB991910
d. MB991911
e. MB991825
f. MB991826

M.U.T.-III
sub-assembly

a. Vehicle

Communication
Interface (V.C.I.)

b. M.U.T.-III USB

cable

c. M.U.T.-III main

harness A
(Vehicles with CAN
communication
system)

d. M.U.T.-III main

harness B
(Vehicles without
CAN
communication
system)

e. M.U.T.-III measure

adapter

f. M.U.T.-III trigger

harness

CAUTION

For vehicles with CAN
communication, use M.U.T.-III
main harness A to send
simulated vehicle speed. If you
connect M.U.T.-III main harness
B instead, the CAN
communication does not
function correctly.
ETACS-ECU check (Diagnosis
code, service data)

MB991499

MB991499

Measurement probe

Measurements of voltage and
resistance value

NOTE: M.U.T.-II attached probe
(Commercial probes can also be
used.)

Tool

Number

Name

Use

MB991223

a

d

c

b

DO NOT USE

BA

ETACS

CHASSIS ELECTRICAL

54A-280

TROUBLESHOOTING

STANDARD FLOW OF DIAGNOSTIC
TROUBLESHOOTING

M1545000900076

Refer to GROUP 00

− Contents of troubleshooting .

DIAGNOSIS FUNCTION

M1545001000203

HOW TO READ DIAGNOSIS CODE

Refer to GROUP 00

− Diagnosis function .

HOW TO ERASE DIAGNOSIS CODE

Refer to GROUP 00

− Diagnosis function .

CHECK OF FREEZE FRAME DATA

The freeze frame data can be checked by using the
M.U.T.-III.
When detecting fault and storing the diagnosis code,
the ECU connected to CAN bus line obtains the data
before the determination of the diagnosis code and
the data when the diagnosis code is determined, and
then stores the ECU status of that time. By analysing
each data from M.U.T.-III, the troubleshooting can be
performed more efficiently. The displayed items are
as the table below.

Display item list

Item No.

Item name

Data item

Unit

1

Odometer

Total driving distance after the diagnosis code is
generated

km

2

Ignition cycle

Number of times the ignition switch is turned "ON" or
"LOCK (OFF)" after the past failure transition

Number of
counts is
displayed.

3

Elapsed time after
failure

Total elapsed time after a diagnosis code is
generated

min

*

4

Current trouble
accumulative time

Cumulative time for current malfunction of diagnosis
code

min

MB991223

a. MB991219
b. MB991220
c. MB991221
d. MB991222

Harness set

a. Check harness
b. LED harness
c. LED harness

adapter

d. Probe

Continuity check and voltage
measurement at harness wire or
connector

a. For checking connector pin

contact pressure

b. For checking power supply

circuit

c. For checking power supply

circuit

d. For connecting a locally

sourced tester

MB992006

MB992006

Extra fine probe

Continuity check and voltage
measurement at harness wire or
connector

Tool

Number

Name

Use
