SPEAKER

CHASSIS ELECTRICAL

54A-269

SPEAKER

ON-VEHICLE SERVICE

SPEAKER TEST <VHICLES WITH RADIO
AND CD PLAYER>

M1544100500641

<Vehicles with 1CD audio>

HOW TO START SPEAKER CONNECTION
CHECK MODE

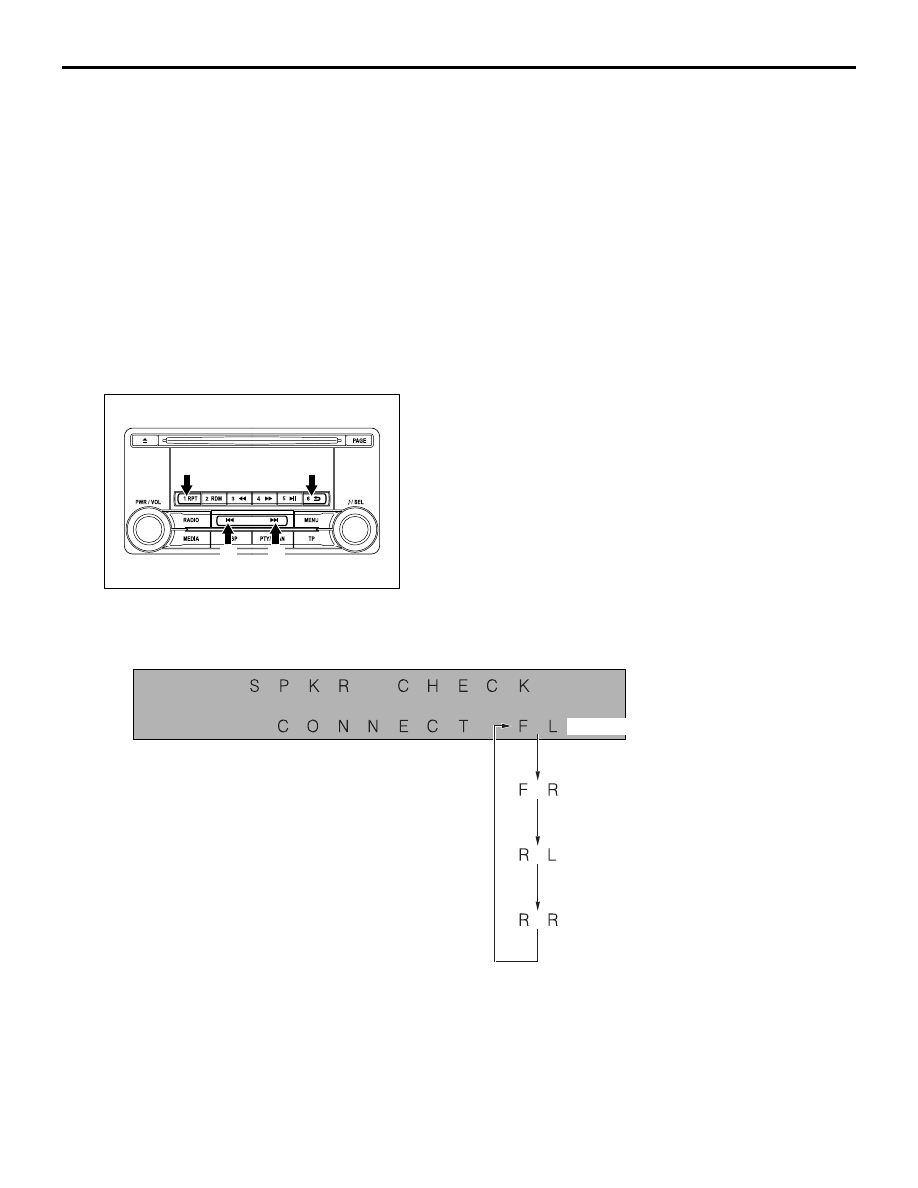

Enter the speaker connection check mode according
to the following steps:
1. Turn the Ignition switch to the "ACC" or "ON"

position and switch off the radio and CD player.

ACB05598

A

D

AB

B

C

2. Press the following buttons in that order within

sixty seconds from step 1.
(1) Button A
(2) Button B
(3) Button C
(4) Button D

SPEAKER CONNECTION CHECK MODE

With the speaker connection check mode, the con-
nection status of each speaker can be checked
based on the sound output from each speaker. The
procedure is as follows.

NOTE: If a button other than the button D is pressed,
or the ignition switch is turned to "LOCK" (OFF) posi-
tion, you will exit from the speaker connection check
mode.

Press the button D.

Press the button D.

Press the button D.

Display

Front door speaker and tweeter (RH)

Rear door speaker (LH)

Rear door speaker (RH)

ACC00003

Press the button D.

Front door speaker and tweeter (LH)

1. At the same time with the start of speaker check

mode, the sound for speaker connection check is
output from the front door speaker (LH) and
tweeter (LH).

2. Press the button D to switch the sound output for

speaker connection check from the front door
speaker (RH) and tweeter (RH).

3. Press the button D to switch the sound output for

speaker connection check from the rear door
speaker (LH).

SPEAKER

CHASSIS ELECTRICAL

54A-270

4. Press the button D to switch the sound output for

speaker connection check from the rear door
speaker (RH).

<Vehicles with display audio>

Refer to service mode

P.54A-211

.

SPEAKER

REMOVAL AND INSTALLATION

M1544100300487

FRONT DOOR SPEAKER, REAR DOOR SPEAKER

Post-installation Operation
• Learning of the Power Window Fully Closed Position

(Refer to GROUP 42A

− Door, On-vehicle Service, Learn-

ing Procedures of Power Window Fully Closed Position ).

ACB05393AB

1

Front door speaker removal
step

•

Front door trim (Refer to GROUP
52A

− Door Trim ).



<<

A

>>

1.

Front door speaker

Rear door speaker removal
step

•

Rear door trim (Refer to GROUP
52A

− Door Trim ).



<<

A

>>

1.

Rear door speaker

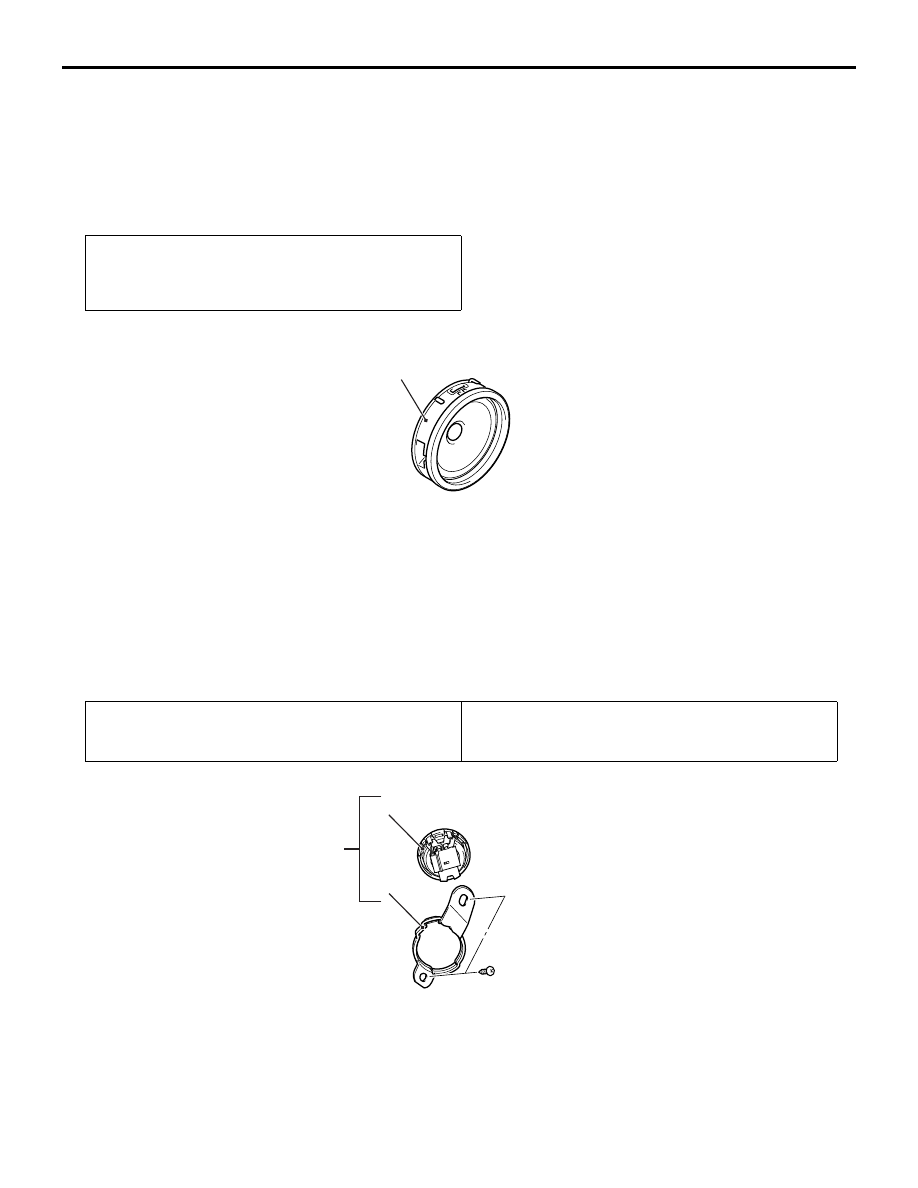

TWEETER

Pre-removal Operation
• Front Door Sash Trim Removal (Refer to GROUP 52A −

Door Trim ).

Post-installation Operation
• Front Door Sash Trim Installation (Refer to GROUP 52A −

Door Trim ).

ACB05394AB

1

3

2

Removal steps

1.

Tweeter assembly

2.

Tweeter

3.

Bracket

SPEAKER

CHASSIS ELECTRICAL

54A-271

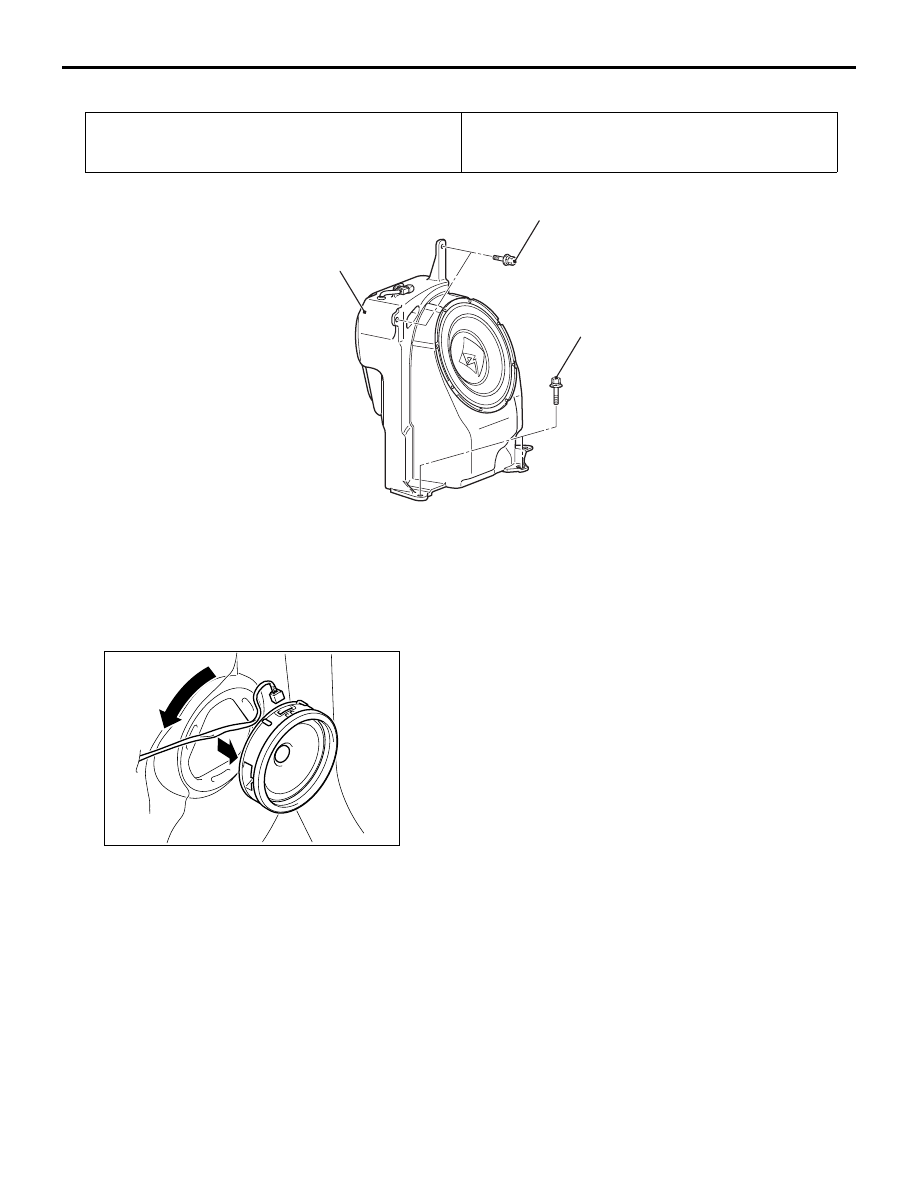

SUBWOOFER

Pre-removal Operation
• Quarter Trim Lower Removal (Refer to GROUP 52A −

Trim ).

Post-installation Operation
• Quarter Trim Lower Installation (Refer to GROUP 52A −

Trim ).

ACB05395

4.0 ± 2.0 N·m

Rear speaker box

AB

4.0 ± 2.0 N·m

REMOVAL SERVICE POINT

 <<A>> DOOR SPEAKER REMOVAL

AC507244

Disconnect the connector, and remove by twisting as
shown in the figure.

ANTENNA

CHASSIS ELECTRICAL

54A-272

ANTENNA

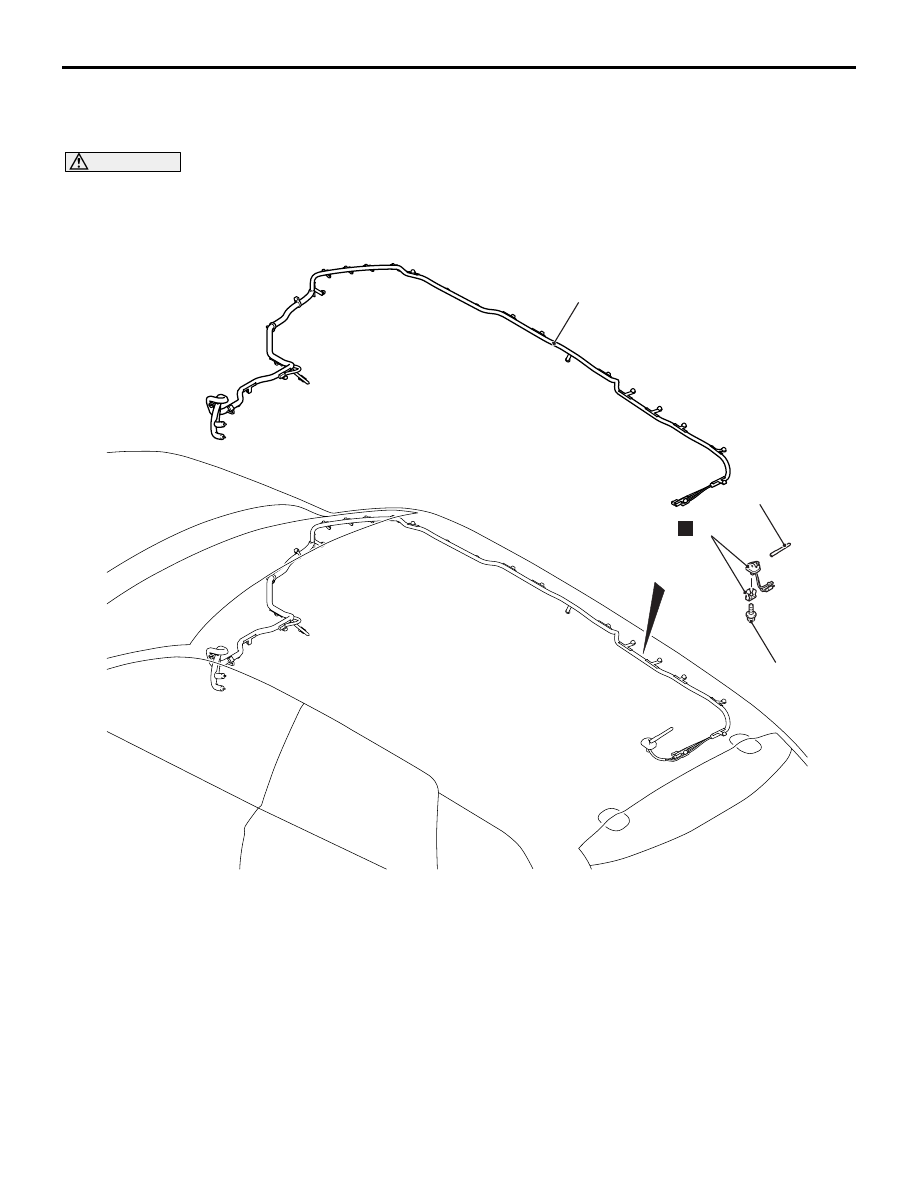

REMOVAL AND INSTALLATION

M1544200201134

CAUTION

To remove the curtain air bag module of vehicle with Curtain air bag, refer to GROUP 52B

− Service

Precautions  and Curtain Air Bag Module(s) .

ACB05396

1

3

2

N

AB

5.0 ± 1.0 N·m

Removal steps

1.

Antenna rod

•

Headlining (Refer to GROUP 52A
− Headlining ).

2.

Antenna base

•

Curtain air bag module [Refer to
GROUP 52B

− Curtain Air Bag

Module(s) ].

3.

Antenna feeder

Removal steps (Continued)
