DEFOGGER

CHASSIS ELECTRICAL

54A-273

DEFOGGER

SPECIAL TOOLS

M1545000600268

Tool

Number

Name

Use

ACB05421

MB992745

MB992746

MB992744

MB992747

MB992748

a

b

c

d

e

DO NOT USE

AB

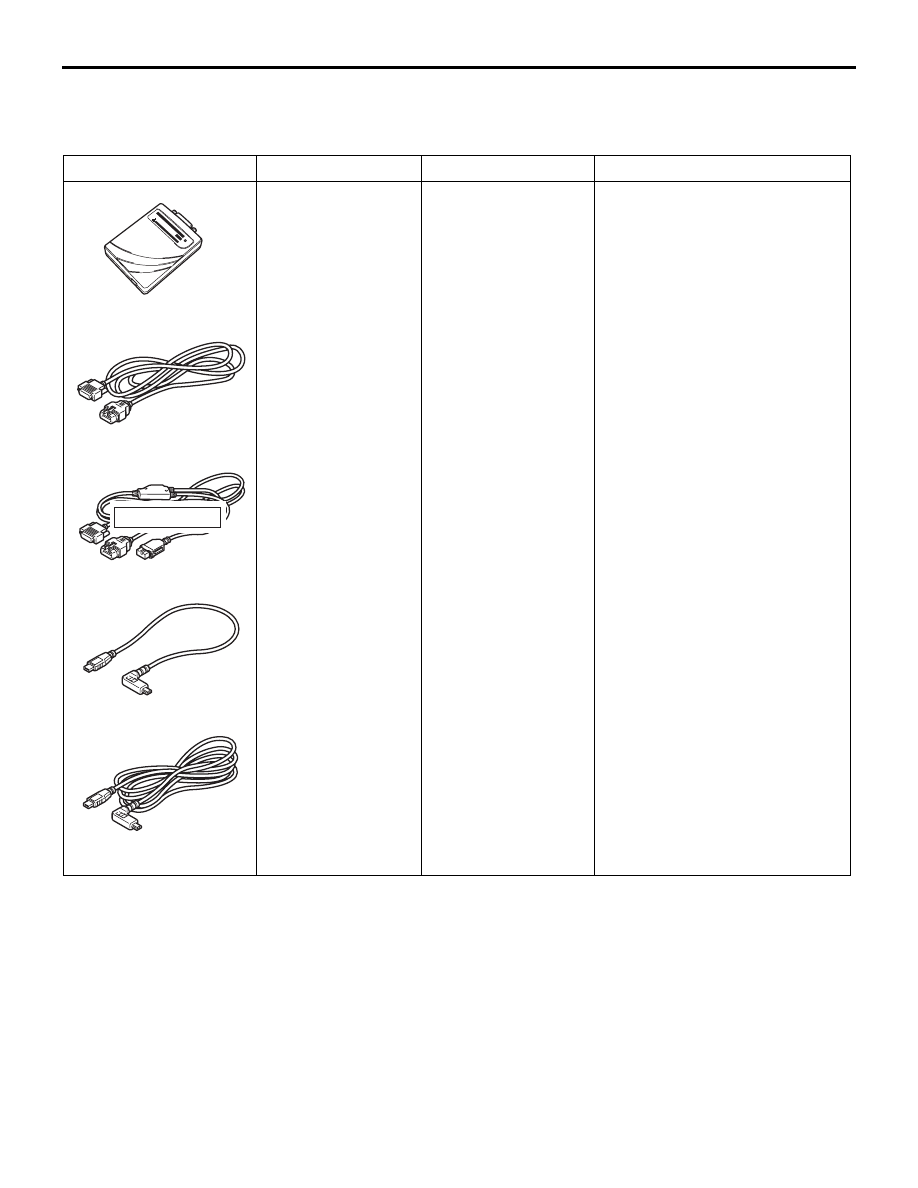

a. MB992744
b. MB992745
c. MB992746
d. MB992747
e. MB992748

a. Vehicle

communication
interface-Lite
(V.C.I.-Lite)

b. V.C.I.-Lite main

harness A (for
vehicles with CAN
communication)

c. V.C.I.-Lite main

harness B (for
vehicles without
CAN
communication)

d. V.C.I.-Lite USB

cable short

e. V.C.I.-Lite USB

cable long

ETACS-ECU check (Diagnosis
code, service data)

MB991910

MB991826

MB991955

MB991911

MB991824

MB991827

MB991825

a

b

c

d

e

f

DO NOT USE

DEFOGGER

CHASSIS ELECTRICAL

54A-274

MB991955

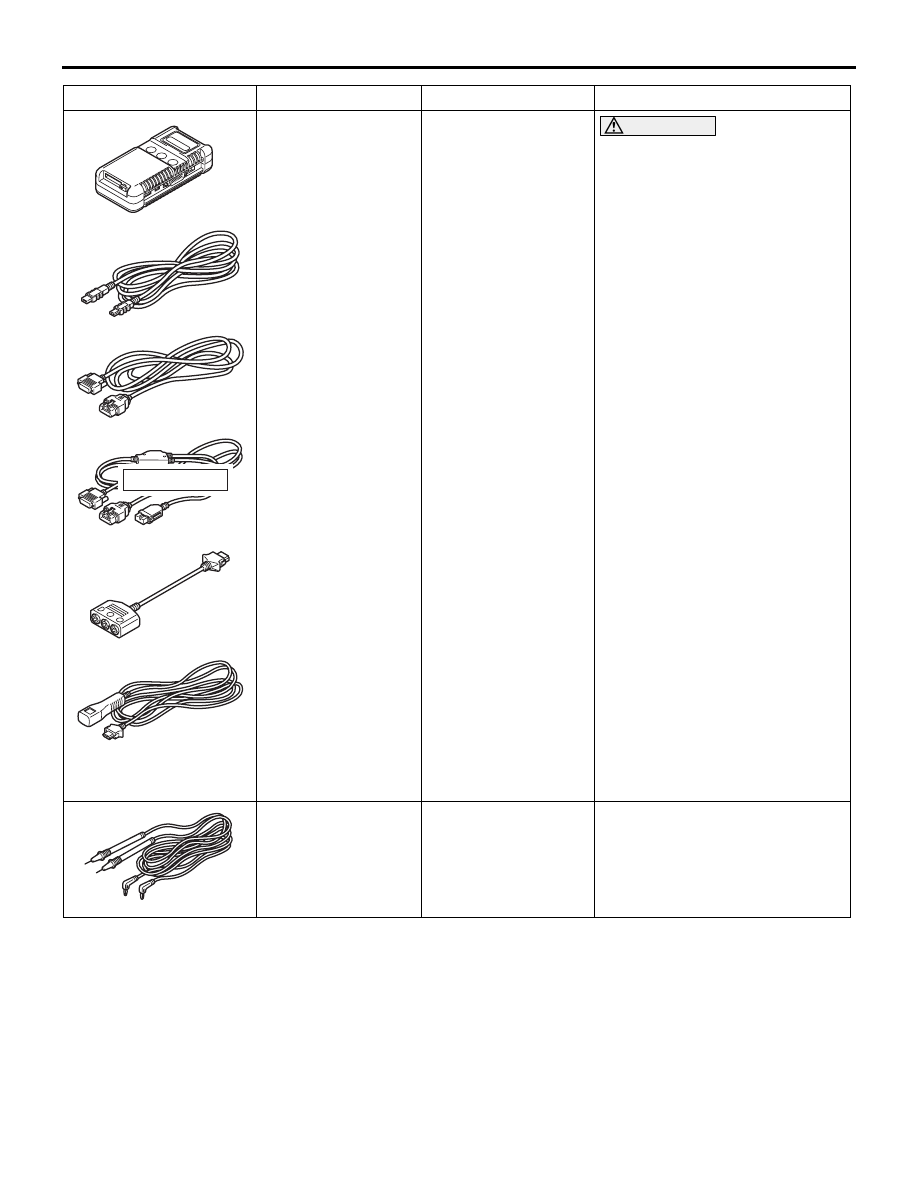

a. MB991824
b. MB991827
c. MB991910
d. MB991911
e. MB991825
f. MB991826

M.U.T.-III
sub-assembly

a. Vehicle

Communication
Interface (V.C.I.)

b. M.U.T.-III USB

cable

c. M.U.T.-III main

harness A
(Vehicles with CAN
communication
system)

d. M.U.T.-III main

harness B
(Vehicles without
CAN
communication
system)

e. M.U.T.-III measure

adapter

f. M.U.T.-III trigger

harness

CAUTION

For vehicles with CAN
communication, use M.U.T.-III
main harness A to send
simulated vehicle speed. If you
connect M.U.T.-III main harness
B instead, the CAN
communication does not
function correctly.
ETACS-ECU check (Diagnosis
code, service data)

MB991499

MB991499

Measurement probe

Measurements of voltage and
resistance value

NOTE: M.U.T.-II attached probe
(Commercial probes can also be
used.)

Tool

Number

Name

Use

MB991223

a

d

c

b

DO NOT USE

BA

DEFOGGER

CHASSIS ELECTRICAL

54A-275

TROUBLESHOOTING

STANDARD FLOW OF DIAGNOSTIC
TROUBLESHOOTING

M1540500700038

Refer to GROUP 00

− Contents of Troubleshooting .

TROUBLE SYMPTOM CHART

M1540500800035

Trouble symptom

Reference page

The rear window defogger does not work.

P.54A-276

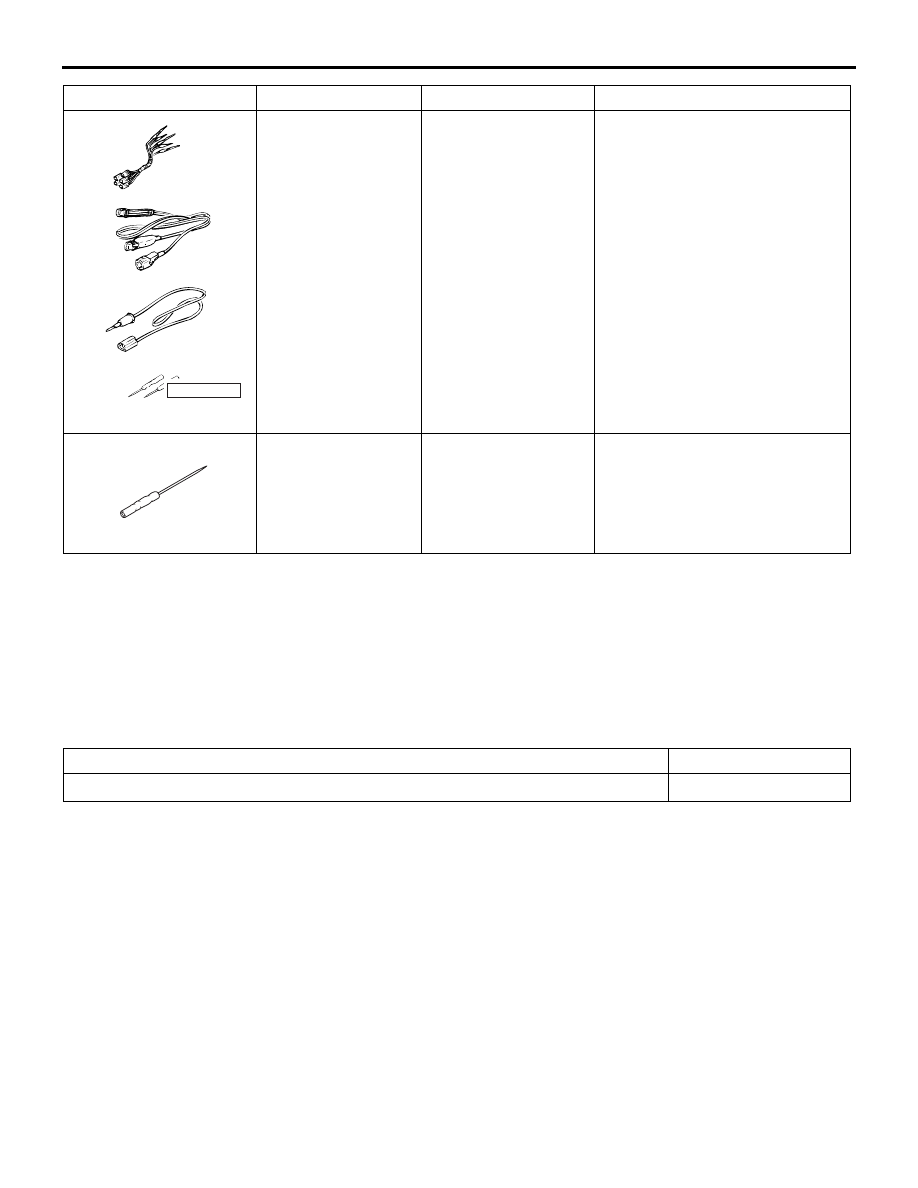

MB991223

a. MB991219
b. MB991220
c. MB991221
d. MB991222

Harness set

a. Check harness
b. LED harness
c. LED harness

adapter

d. Probe

Continuity check and voltage
measurement at harness wire or
connector

a. For checking connector pin

contact pressure

b. For checking power supply

circuit

c. For checking power supply

circuit

d. For connecting a locally

sourced tester

MB992006

MB992006

Extra fine probe

Continuity check and voltage
measurement at harness wire or
connector

Tool

Number

Name

Use

DEFOGGER

CHASSIS ELECTRICAL

54A-276

SYMPTOM PROCEDURES

The rear window defogger does not work.

CAUTION

• Before replacing the ECU, ensure that the

power supply circuit, the earth circuit and the
communication circuit are normal.

• When the ETACS-ECU of vehicles without

KOS is replaced, the encrypted code of the
ignition key needs to be registered to the
ETACS-ECU. (If the encrypted code is not reg-
istered, the engine cannot be started. Regis-
ter the encrypted code as described in
Immobilizer System

 How to Register Key ID

P.54A-33

.)

COMMENTS ON TROUBLE SYMPTOM

The rear window defogger relay may be defective
when the rear window defogger cannot be activated
although the rear window defogger switch is turned
on (the 20-minute timer initiates) or the ambient tem-
perature is 3

°C or less (the rear window defogger

has never been activated since the ignition switch is
turned ON) with "Auto Rear Defogger (Engine Start)"
enabled by using the customisation function of the
ETACS-ECU.

NOTE: When the engine is not running, the rear win-
dow defogger does not work.

PROBABLE CAUSES

• Wiring harness or connector failure

• Malfunction of A/C-ECU

• Malfunction of ETACS-ECU

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III CAN bus diagnostics
Use M.U.T.-III to diagnose the CAN bus lines.

Q: Is the check result normal?

YES :

Go to Step 2

NO :

Repair the CAN bus line (Refer to GROUP
54C

− Troubleshooting ).

STEP 2. M.U.T.-III diagnosis code
Check that the air conditioner has not set a diagnosis
code.

Q: Is the diagnosis code set?

YES :

Carry out the diagnosis code procedures.

(Refer to GROUP 55-trouble shooting .)

NO :

Go to Step 3

STEP 3. M.U.T.-III other system's diagnosis code
Check that the ETACS-ECU has not set a diagnosis
code.

Q: Is the diagnosis code set?

YES :

Carry out the diagnosis code procedures.

Refer to

P.54A-281

.

NO :

Go to Step 4

STEP 4. M.U.T.-III data list
Check the rear window defogger switch signal by the
data list of the A/C-ECU.

• Start the engine.

Item No.

Item name

Normal
condition

Item 60

Rear defogger
switch

OFF

→ ON

Turn the rear window defogger switch from off to
on.

Q: Is the check result normal?

YES :

Go to Step 5

NO :

Refer to GROUP 55

− Inspection Procedure

13 "A/C-ECU power supply system"

STEP 5. Voltage measurement at rear window
defogger connector (power supply terminal).
(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Ignition switch: ON
(3) Rear window defogger switch must be turned on,

or the operational conditions for the
customisation function "Auto Rear Defogger
(Engine Start)" must be satisfied (measure within
20 minutes after the switch is turned on).

(4) Check the voltage between the rear window

defogger connector (power supply terminal) and
body earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 6

NO :

Go to Step 8

STEP 6. Resistance measurement at rear window
defogger connector (earth terminal).
(1) Disconnect the connector, and measure at the

wiring harness side.
