RADIO AND CD PLAYER

CHASSIS ELECTRICAL

54A-229

SYMPTOM PROCEDURES

Inspection Procedure 1: Power of the radio and tape player does not turn ON when the ignition switch
is in the "ACC" position or "ON" position.

CAUTION

Before replacing the radio and CD player, ensure
that the power supply circuit, the earth circuit
and the communication circuit are normal.

OPERATION

When the ignition switch is in the ON or ACC posi-
tion, the radio and CD player power can be turned
ON. With the radio and CD player power ON, when
the ignition switch is turned to the OFF position, the
power for radio and CD player is also turned OFF.

COMMENTS ON TROUBLE SYMPTOM

Provided that the audio diagnosis code is not set, if
the power for radio and CD player cannot be turned
ON, the radio and CD player, or power supply circuit
for radio and CD player may have a problem, or the
option coding information may be inconsistent.

PROBABLE CAUSES

• Malfunction of radio and CD player

• Malfunction of the ETACS-ECU

• Option coding information inconsistency

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

STEP 1. ETACS-ECU coding data check
(1) Operate the M.U.T.-III to read the ETACS-ECU

option coding information (Refer to GROUP 00

−

Coding Table ).

(2) Check that the "AUDIO" is set to "Present."

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Operate the M.U.T.-III to set the option
coding "AUDIO" to "Present," and check the
trouble symptom.

STEP 2. M.U.T.-III CAN bus diagnostics
Use the M.U.T.-III to diagnose the CAN bus lines.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the CAN bus line.

STEP 3. M.U.T.-III other system diagnosis code
Check if the diagnosis code is set to the
ETACS-ECU.

Q: Is the check result normal?

YES :

Troubleshoot the ETACS-ECU. Refer to

ETACS-ECU

− Troubleshooting

P.54A-281

.

NO :

Go to Step 4.

STEP 4. M.U.T.-III other system data list
Check the input signal of ACC relay.

Item No.

Item name

Normal
condition

Item 288

ACC switch

ON

Turn the ignition switch to the ACC position.

OK: Normal condition is displayed.

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Refer to ETACS

− Inspection Procedure 1

"The ignition switch (ACC) signal is not
received"

P.54A-312

.

STEP 5. Check of short to power supply, short to
earth, and open circuit in ACC line between radio
and CD player connector and ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the connector(s) or wiring harness.

STEP 6. Voltage measurement at radio and CD
player connector (+B2 terminal).
(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Check the voltage between the radio and CD

player connector (+B2 terminal) and body earth.

OK: System voltage

Q: Is the check result normal?

YES <Vehicles without display audio> :

Go to Step

8.

YES <Vehicles with display audio> :

Go to Step 9.

NO  :

Go to Step 7.

RADIO AND CD PLAYER

CHASSIS ELECTRICAL

54A-230

STEP 7. Check of short to power supply, short to
earth, and open circuit in +B2 line between
fusible link and radio and CD player connector

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Repair the connector(s) or wiring harness.

STEP 8. Check of open circuit in GND2 line
between radio and CD player connector and
body earth

Q: Is the check result normal?

YES :

Go to Step 9.

NO :

Repair the connector(s) or wiring harness.

STEP 9. Check that the radio and CD player is
correctly earthed
The radio and CD player should be connected to the
earth with an assembling screw.

Q: Is the radio and CD player correctly earthed?

YES :

Go to Step 10.

NO :

Securely install and earth the radio and CD
player.

STEP 10. Retest the system
Check if the radio and CD player power is turned ON.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Replace the radio and CD player.

Inspection Procedure 2: No sound is heard.

CAUTION

Before replacing the radio and CD player, ensure
that the power supply circuit, the earth circuit
and the communication circuit are normal.

COMMENTS ON TROUBLE SYMPTOM

If the audio sound is not output, the radio and CD
player may have a problem. In addition, if any of the
speakers or tweeters is short-circuited, the protection
circuit inside the radio and CD player disables all the
speakers or tweeters to sound. Therefore, if all the
speakers do not output sound, the speaker or
tweeter circuit may be shorted or the speaker or
tweeter may be defective.

PROBABLE CAUSES

• Malfunction of radio and CD player

• Malfunctions of speaker or tweeter

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

STEP 1. Checking with audio speaker test
Perform the audio speaker test, and check which
speaker or tweeter does not output the sound. Refer
to

P.54A-269

.

Q: Is the check result normal?

YES  :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Use Troubleshooting/Inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO (No speakers or tweeters sound.) :

Go to Step

2

NO (No sound is heard from one of the speakers or
tweeters.) :

Go to Step 4

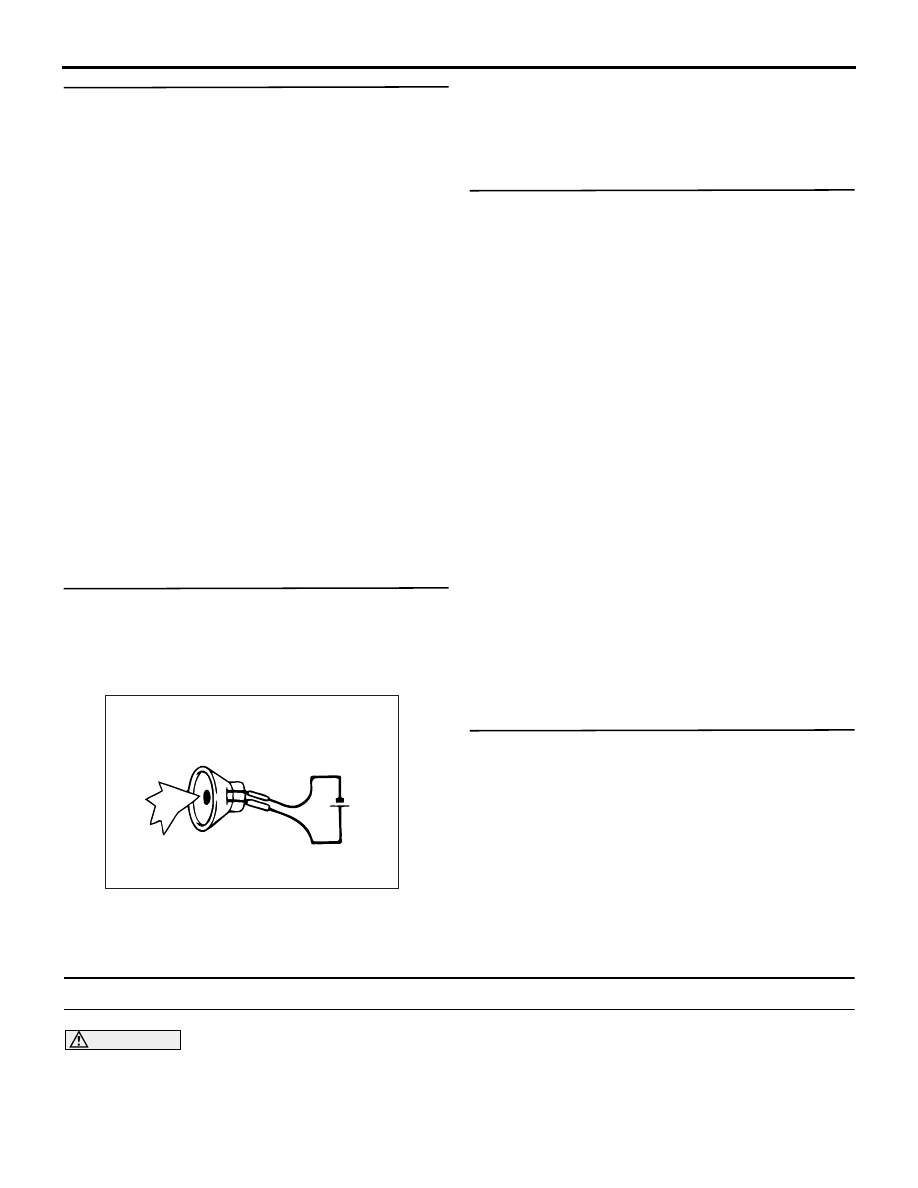

STEP 2. Check the speaker or tweeter.
(1) Remove the speaker or tweeter. Refer to

P.54A-270

.

AC707572 AB

5 V

(2) Check that the speaker or tweeter outputs the

noise when the voltage of 5 V is applied to the
speaker or tweeter connector terminal.

Q: Do the speaker output the noise?

YES :

Go to Step 3

NO :

Replace the speaker or tweeter.

RADIO AND CD PLAYER

CHASSIS ELECTRICAL

54A-231

STEP 3. Check the wiring harness between the
speaker or tweeter connector terminal and the
radio and CD player connector terminal.

• Check of short circuit in FR+, FR- line front door

speaker (RH) connector and radio and CD player
connector. <Front door speaker (RH)>

• Check of short circuit in FL+, FL- line front door

speaker (LH) connector and radio and CD player
connector. <Front door speaker (LH)>

• Check of short circuit in FR+, FR- line tweeter

(RH) connector and radio and CD player connec-
tor. <Tweeter (RH)>

• Check of short circuit in FL+, FL- line tweeter

(LH) connector and radio and CD player connec-
tor. <Tweeter (LH)>

• Check of short circuit in RR+, RR- line rear door

speaker (RH) connector and radio and CD player
connector. <Rear door speaker (RH)>

• Check of short circuit in RL+, RL- line rear door

speaker (LH) connector and radio and CD player
connector. <Rear door speaker (LH)>

Q: Is the check result normal?

YES :

Go to Step 6

NO :

Repair the connector(s) or wiring harness.

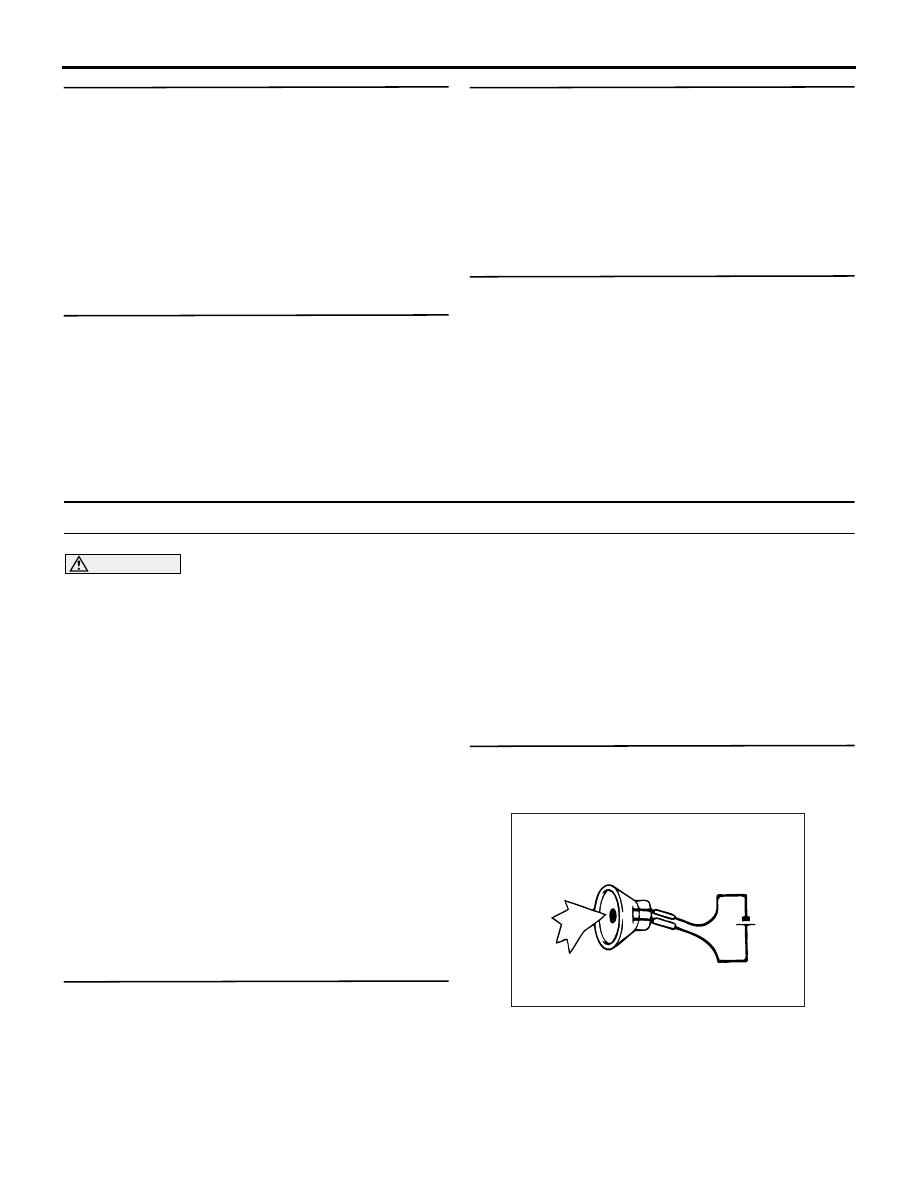

STEP 4. Check the speaker or tweeter.
Follow the speaker test to check which speaker or
tweeter does not sound.
(1) Remove the speaker or tweeter. Refer to

P.54A-270

.

AC707572 AB

5 V

(2) Check that the speaker or tweeter outputs the

noise when the voltage of 5 V is applied to the

speaker connector terminal.

Q: Do the speaker output the noise?

YES :

Go to Step 5

NO :

Replace the speaker or tweeter.

STEP 5. Check the wiring harness between the
speaker or tweeter connector terminal and the
radio and CD player connector terminal.
Follow the speaker test to check which speaker or
tweeter circuit is defective.

• Check of open circuit in FR+, FR- line front door

speaker (RH) connector and radio and CD player
connector. <Front door speaker (RH)>

• Check of open circuit in FL+, FL- line front door

speaker (LH) connector and radio and CD player
connector. <Front door speaker (LH)>

• Check of open circuit in FR+, FR- line tweeter

(RH) connector and radio and CD player connec-
tor. <Tweeter (RH)>

• Check of open circuit in FL+, FL- line tweeter

(LH) connector and radio and CD player connec-
tor. <Tweeter (LH)>

• Check of open circuit in RR+, RR- line rear door

speaker (RH) connector and radio and CD player
connector. <Rear door speaker (RH)>

• Check of open circuit in RL+, RL- line rear door

speaker (LH) connector and radio and CD player
connector. <Rear door speaker (LH)>

Q: Is the check result normal?

YES :

Go to Step 6

NO :

Repair the connector(s) or wiring harness.

STEP 6. Retest the system
 Check if the sound is output from all the speakers or
tweeters.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Replace the radio and CD player.

Inspection Procedure 3: The radio broadcasting can not be received.

CAUTION

Before replacing the radio and CD player, ensure
that the power supply circuit, the earth circuit
and the communication circuit are normal.

COMMENTS ON TROUBLE SYMPTOM

In case of FM/AM radio broadcasting cannot be
received., antenna rod, antenna base, antenna
feeder or radio and CD player may have a problem.

RADIO AND CD PLAYER

CHASSIS ELECTRICAL

54A-232

NOTE: The radio wave may not be received if the
vehicle is placed in the area which is exposed to a
special electric field. Thus, check that the radio
broadcasting can be received using the radio of
another vehicle before carrying out diagnosis.

PROBABLE CAUSES

• Malfunction of antenna rod

• Malfunction of antenna base

• Malfunction of antenna feeder

• Malfunction of radio and CD player

DIAGNOSIS PROCEDURE

STEP 1. Check the state of the antenna rod and
antenna base.

Q: Is the antenna assembled?

YES :

Go to Step 2.

NO :

Assemble antenna rod and antenna base.

STEP 2. Check to see if inspections are taking
place is an area exposed to special electric
fields.

Q: Is the reception area exposed to special electric

fields?
YES :

Go to Step 3.

NO :

Go to Step 4.

STEP 3. Move the vehicle and check the radio.
Move the vehicle to a good reception area that is not
exposed to special electric fields.

Q: Is the check result normal?

YES :

Diagnosis complete.

NO :

Go to Step 4.

STEP 4. Check if there is any damage to the
antenna rod, antenna base and antenna feeder.

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Replace the antenna rod, antenna base and
antenna feeder.

STEP 5. Check the connection of the antenna
feeder’s plug and radio and CD player.

Q: Is the antenna feeder’s plug thoroughly connected

to the radio and CD player?
YES :

Go to Step 6.

NO :

Thoroughly connect the antenna feeder’s
plug and the radio and CD player.

STEP 6. Check of short or open circuit in ANT+
line between radio and CD player connector and
antenna amplifier connector

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the connector(s) or wiring harness.

STEP 7. Substitute a known good radio and CD
player, and check the trouble symptom.

Q: Is the check result normal?

YES :

Replace the radio and CD player.

NO :

Either repair or replace the antenna rod and
antenna base.

Inspection Procedure 4: Audio illumination does not work normally.

CAUTION

Before replacing the radio and CD player, ensure
that the power supply circuit, the earth circuit
and the communication circuit are normal.

COMMENTS ON TROUBLE SYMPTOM

If the tail lamps illuminate, illumination signal is sent
from the heater controller assembly (A/C-ECU) to the
radio and CD player. This switches the illumination of
the radio and CD player from day mode to night
mode. If the mode is switched, the illumination signal
line, the heater controller assembly (A/C-ECU) or the
radio and CD player may be defective.

PROBABLE CAUSES

• Malfunction of combination meter

• Malfunction of heater controller assembly

(A/C-ECU)

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

STEP 1. Check that the tail lamps illuminate.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Diagnose the tail lamps. (Refer to

P.54A-140

.)















Content   ..  684  685  686  687   ..
