Mitsubishi Outlander (2013+). Manual - part 672





MB992006

HAZARD WARNING LAMP SWITCH

CHASSIS ELECTRICAL

54A-173

TROUBLESHOOTING

STANDARD FLOW OF DIAGNOSTIC
TROUBLESHOOTING

M1541501400141

Refer to GROUP 00

− Contents of troubleshooting .

TROUBLE SYMPTOM CHART

M1541500700332

Trouble symptom

Reference page

The hazard warning lamps do not illuminate.

P.54A-173

SYMPTOM PROCEDURES

The hazard warning lamps do not illuminate.

CAUTION

• Before replacing the ECU, ensure that the

power supply circuit, the earth circuit and the
communication circuit are normal.

• When the ETACS-ECU of vehicles without

KOS is replaced, the encrypted code of the
ignition key needs to be registered to the
ETACS-ECU. (If the encrypted code is not reg-
istered, the engine cannot be started. Regis-
ter the encrypted code as described in
Immobilizer System

 How to Register Key ID

P.54A-33

.)

COMMENTS ON TROUBLE SYMPTOM

If the hazard warning lamps do not illuminate, the
hazard warning lamp switch input circuit in centre
panel unit or the ETACS-ECU may have a problem.

PROBABLE CAUSES

• Malfunction of centre panel unit

• Malfunction of the ETACS-ECU

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

STEP 1. Check that the turn-signal lamps
operate.
Check that the turn-signal lamps illuminate normally.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Diagnose the headlamps. Refer to
Inspection Procedure 10 "The turn-signal
lamps do not illuminate"

P.54A-105

.

STEP 2. M.U.T.-III data list
Using the ETACS-ECU service data, check the haz-
ard warning lamp signal.

Item No.

Item name

Normal
condition

Item 265

Hazard switch

ON

Turn ON the hazard lamp switch.

OK: Normal condition is displayed.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Troubleshoot the ETACS-ECU. Refer to
Inspection Procedure 10 "The hazard
warning lamp switch signal is not received"

P.54A-320

.

STEP 3. Retest the system
Check that the hazard warning lamps illuminate nor-
mally.

Q: Is the check result normal?

MB992006

Extra fine probe

Continuity check and voltage
measurement at harness wire or
connector

Tool

Number

Name

Use

HAZARD WARNING LAMP SWITCH

CHASSIS ELECTRICAL

54A-174

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Replace the ETACS-ECU.

ON-VEHICLE SERVICE

HAZARD WARNING LAMP SWITCH
CHECK

M1541501100311

Using the M.U.T.-III, check the data list of ETACS. It
is judged normal if the display turns ON when the
hazard warning lamp switch is pressed, or OFF when
not pressed for the item No. 265: Hazard switch.

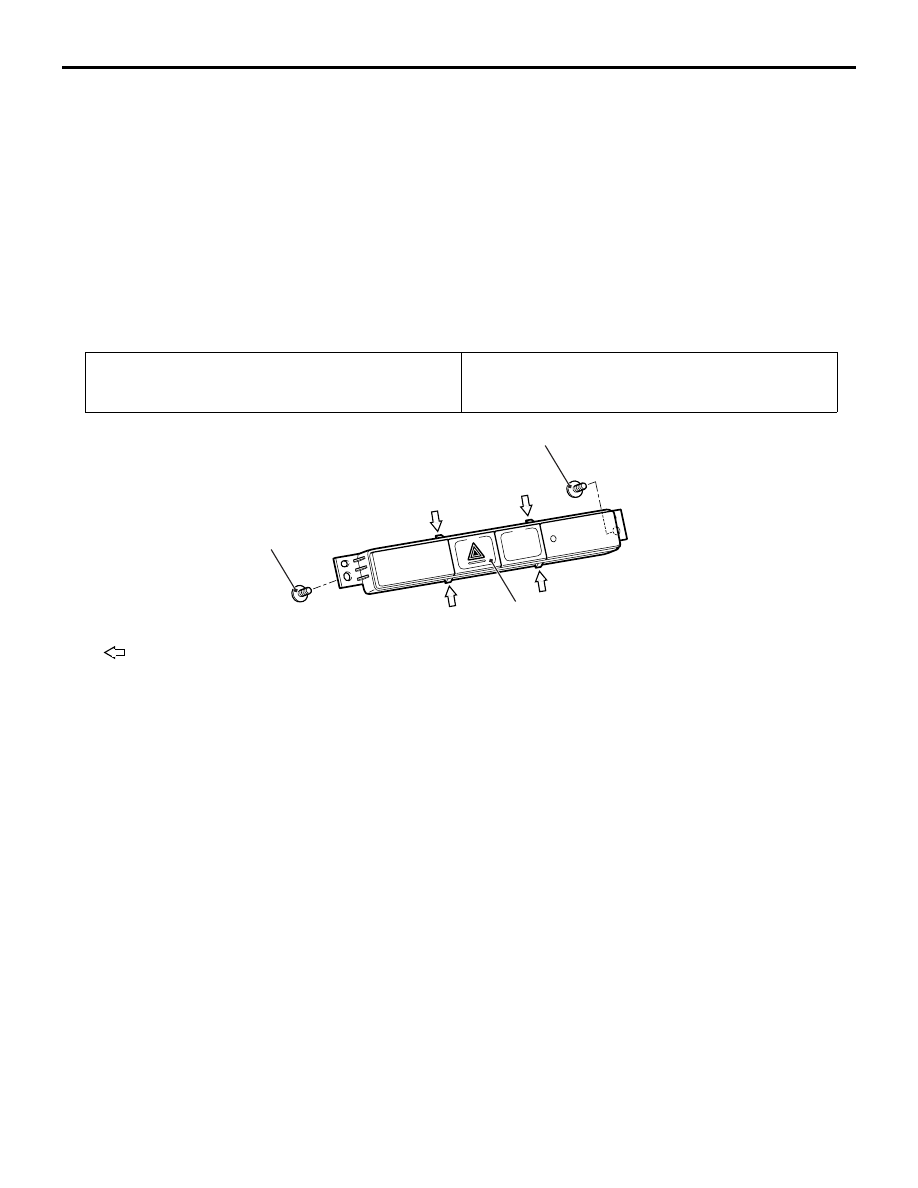

HAZARD WARNING LAMP SWITCH

REMOVAL AND INSTALLATION

M1541501000358

Pre-removal Operation
• Centre Panel Assembly Removal (Refer to GROUP 52A −

Instrument Panel Assembly ).

Post-installation Operation
• Centre Panel Assembly Installation (Refer to GROUP 52A

− Instrument Panel Assembly ).

ACB05534

Hazard warning switch

2.5 ± 0.5 N·m

AB

2.5 ± 0.5 N·m

NOTE
       : Claw positions

HORN

CHASSIS ELECTRICAL

54A-175

HORN

ON-VEHICLE SERVICE

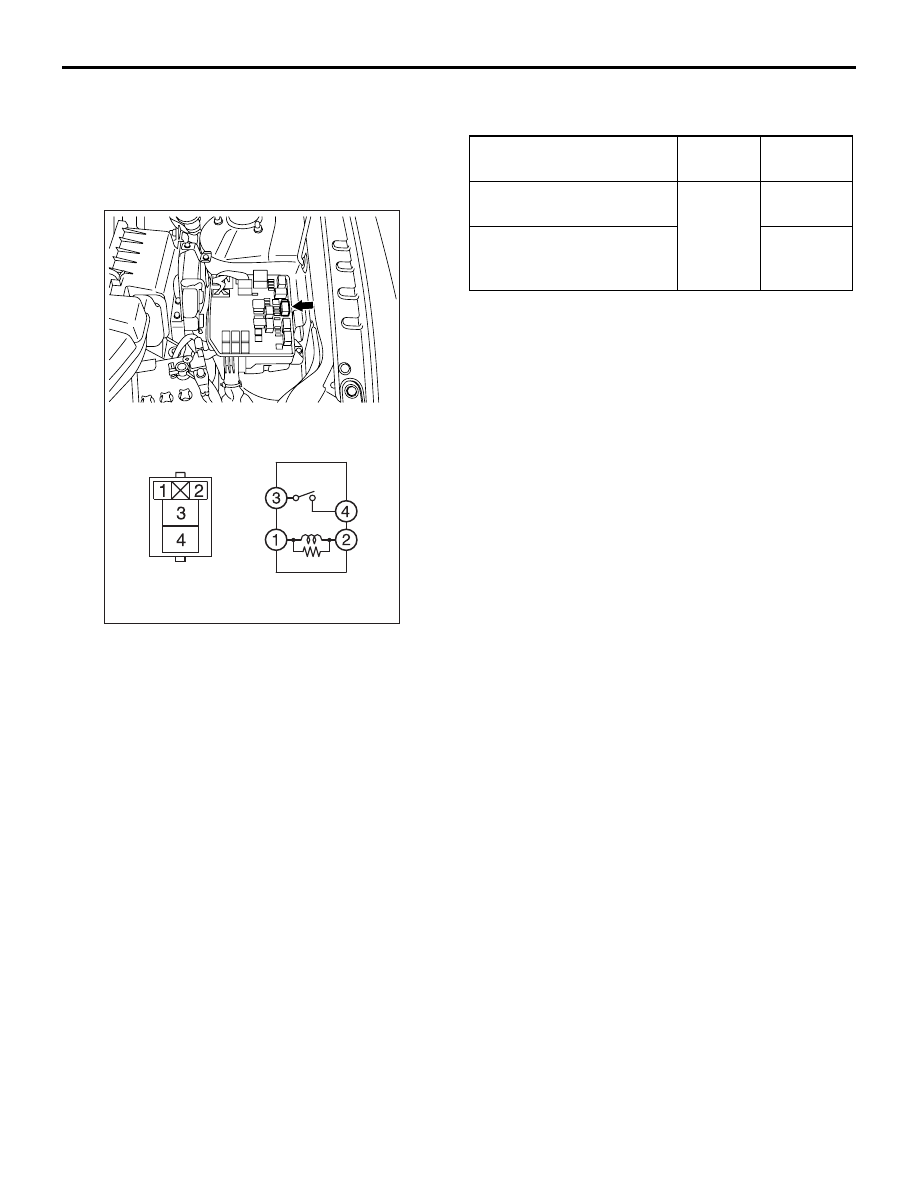

HORN RELAY CHECK

M1542100400712

ACB05796

ACB04408

AB

Battery voltage

Terminal
number

Normal
condition

At no energisation

− 4

No
continuity

With current supply
[terminal 1 (+), terminal 2
(

−)]

Continuity
exists (2

Ω

or less)

HORN

CHASSIS ELECTRICAL

54A-176

HORN

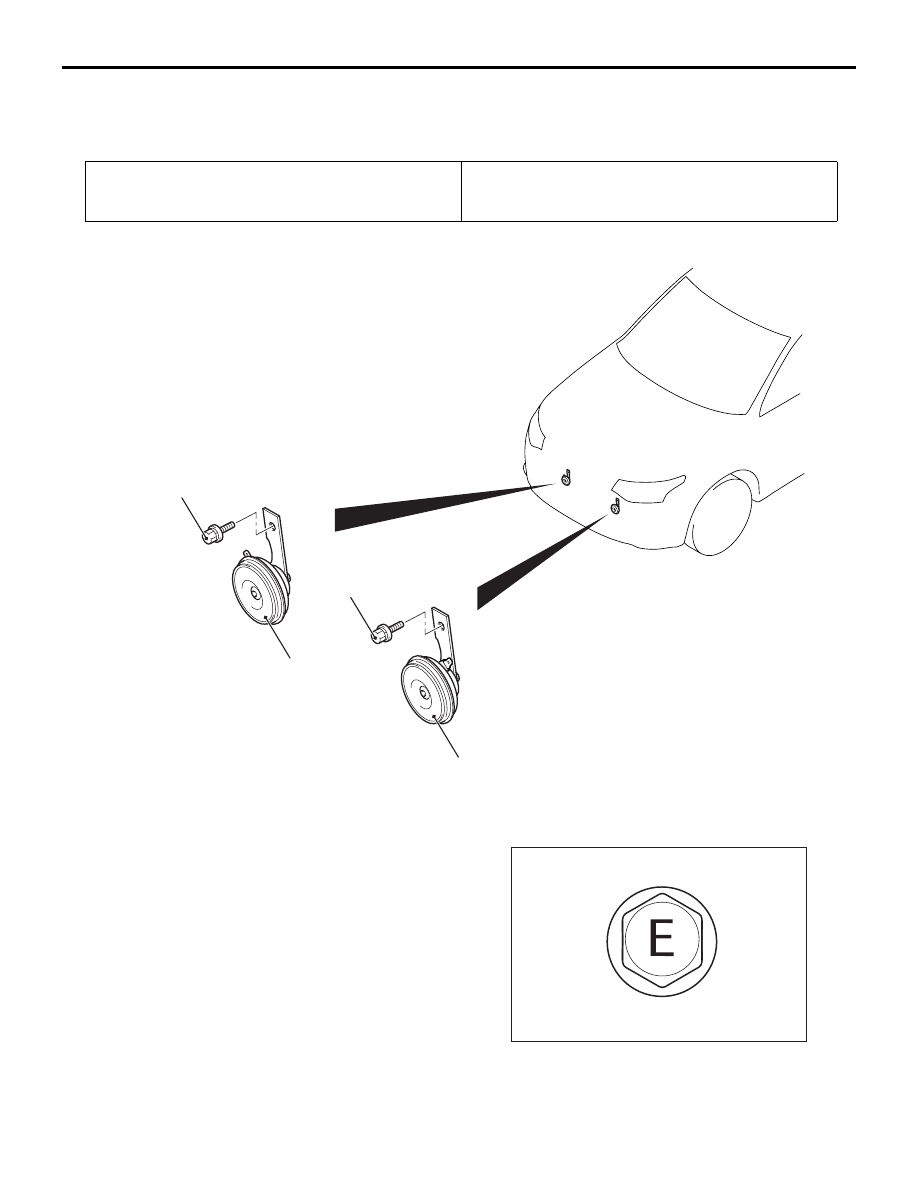

REMOVAL AND INSTALLATION

M1542100201142

Pre-removal Operation
• Front Bumper Assembly Removal (Refer to GROUP 51 −

Front Bumper Assembly ).

Post-installation Operation
• Front Bumper Assembly Installation (Refer to GROUP 51

− Front Bumper Assembly ).

ACB05663AB

23 ± 9 N·m

1

2

23 ± 9 N·m

Removal steps

>>

A

<<

1.

Horn (HI)

>>

A

<<

2.

Horn (LO)

INSTALLATION SERVICE POINT

>>A<< HORN INSTALLATION

AC805322

Use the earth bolt as the mounting bolt for horn. The
earth bolt has "E" mark on the bolt head.
