INTERIOR LAMP

CHASSIS ELECTRICAL

54A-165

STEP 5. Check of open circuit in GLP- line
between the luggage compartment lamp
connector and ETACS-ECU connector.

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the connector(s) or wiring harness.

STEP 6. Check of open circuit in earth line
between the luggage compartment lamp
connector and body earth.

Q: Is the check result normal?

YES :

Replace the luggage compartment lamp,

and then go to Step 7.

NO :

Repair the connector(s) or wiring harness.

STEP 7. Retest the system
Check that the luggage compartment lamp illumi-
nates and extinguishes normally.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Replace the ETACS-ECU.

Inspection Procedure 4: The interior lamp automatic shutoff function does not work normally.

CAUTION

• Before replacing the ECU, ensure that the

power supply circuit, the earth circuit and the
communication circuit are normal.

• When the ETACS-ECU of vehicles without

KOS is replaced, the encrypted code of the
ignition key needs to be registered to the
ETACS-ECU. (If the encrypted code is not reg-
istered, the engine cannot be started. Regis-
ter the encrypted code as described in
Immobilizer System

 How to Register Key ID

P.54A-33

.)

COMMENTS ON TROUBLE SYMPTOM

The ETACS-ECU operates the interior lamp auto-
matic shutoff function in accordance with the input
signals below.

• Ignition switch (ACC)

• Ignition switch (IG1)

• Door switches

If this function does not work normally, these input
signal circuit(s) or the ETACS-ECU may have a prob-
lem. Also, "Interior lamp auto cut timer" may be set to
"Disable" through customisation.

PROBABLE CAUSES

• Malfunction of door switch

• Malfunction of the room lamp

• Malfunction of the ETACS-ECU

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

STEP 1. Customise function check
Use the ETACS-ECU customise function to check to
see which of the followings other than "Disable" the
"Interior lamp auto cut timer" is set.

• 3 minutes

• 30 minutes

• 60 minutes

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Use the ETACS-ECU customise function to
set the "Interior lamp auto cut timer" to other
than "Disable" (Refer to

P.54A-166

).

STEP 2. M.U.T.-III diagnosis code
Check if diagnosis code is set to the ETACS-ECU.

Q: Is the diagnosis code set?

YES :

Troubleshoot the ETACS-ECU. Refer to

P.54A-281

.

NO :

Go to Step 3.

INTERIOR LAMP

CHASSIS ELECTRICAL

54A-166

STEP 3. M.U.T.-III data list
Use the ETACS-ECU service data to check the sig-
nals related to the interior lamp automatic shutoff
function.

• Turn the ignition switch to the LOCK (OFF) posi-

tion.

Item No.

Item name

Normal
condition

Item 254

IG voltage

1 V or less

Item 288

ACC switch

OFF

Item 256

Dr door ajar switch

Open

Item 257

As door ajar switch

Open

Item 258

RR door ajar switch

Open

Item 259

RL door ajar switch

Open

Open each door.

OK: Normal conditions are displayed for all
the items.

Q: Is the check result normal?

Normal conditions are displayed for all the items. :

Go to Step 4.

Normal condition is not displayed for item No. 254.

Troubleshoot the ETACS-ECU. Refer to
Inspection Procedure 2 "The ignition switch
(IG1) signal is not received"

P.54A-313

.

Normal condition is not displayed for item No. 288.

Troubleshoot the ETACS-ECU. Refer to
Inspection Procedure 1 "The ignition switch
(ACC) signal is not received"

P.54A-312

.

Normal condition is not displayed for item No. 256.

Troubleshoot the ETACS-ECU. Refer to
Inspection Procedure 5 "The front door
switch (driver’s side) signal is not received"

P.54A-316

.

Normal condition is not displayed for item No. 257.

Troubleshoot the ETACS-ECU. Refer to
Inspection Procedure 6 "The front door
switch (passenger’s side) signal is not
received"

P.54A-317

.

Normal condition is not displayed for item No. 258.

Troubleshoot the ETACS-ECU. Refer to
Inspection Procedure 7 "The rear door
switch (RH) signal is not received"

P.54A-318

.

Normal condition is not displayed for item No. 259.

Troubleshoot the ETACS-ECU. Refer to
Inspection Procedure 8 "The rear door
switch (LH) signal is not received"

P.54A-318

.

STEP 4. Retest the system
Check that the interior lamp automatic shutoff func-
tion works normally.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Replace the ETACS-ECU.

ON-VEHICLE SERVICE

CUSTOMISE FUNCTION

M1541301200585

By operating the M.U.T.-III ETACS system, the fol-
lowing functions can be customised. The pro-
grammed information is held even when the battery
is disconnected.

Adjustment
item (M.U.T.-III
display)

Adjustment item

Adjusting content
(M.U.T.-III display)

Adjusting content

Room lamp
delay timer with
door

Adjustment of
interior lamp delay
shutdown time

0 sec

0 second (no delay shutdown time)

7.5 sec

7.5 seconds

15 sec

15 seconds (initial condition)

30 sec

30 seconds

60 sec

60 seconds

120 sec

120 seconds

180 sec

180 seconds

Interior lamp
auto cut timer

Adjustment of
interior lamp
automatic shutdown
function operation
time

Disable

No function

3 min

3 minutes

30 min

30 minutes (initial condition)

60 min

60 minutes

INTERIOR LAMP

CHASSIS ELECTRICAL

54A-167

INTERIOR LAMP

REMOVAL AND INSTALLATION

M1541301000332

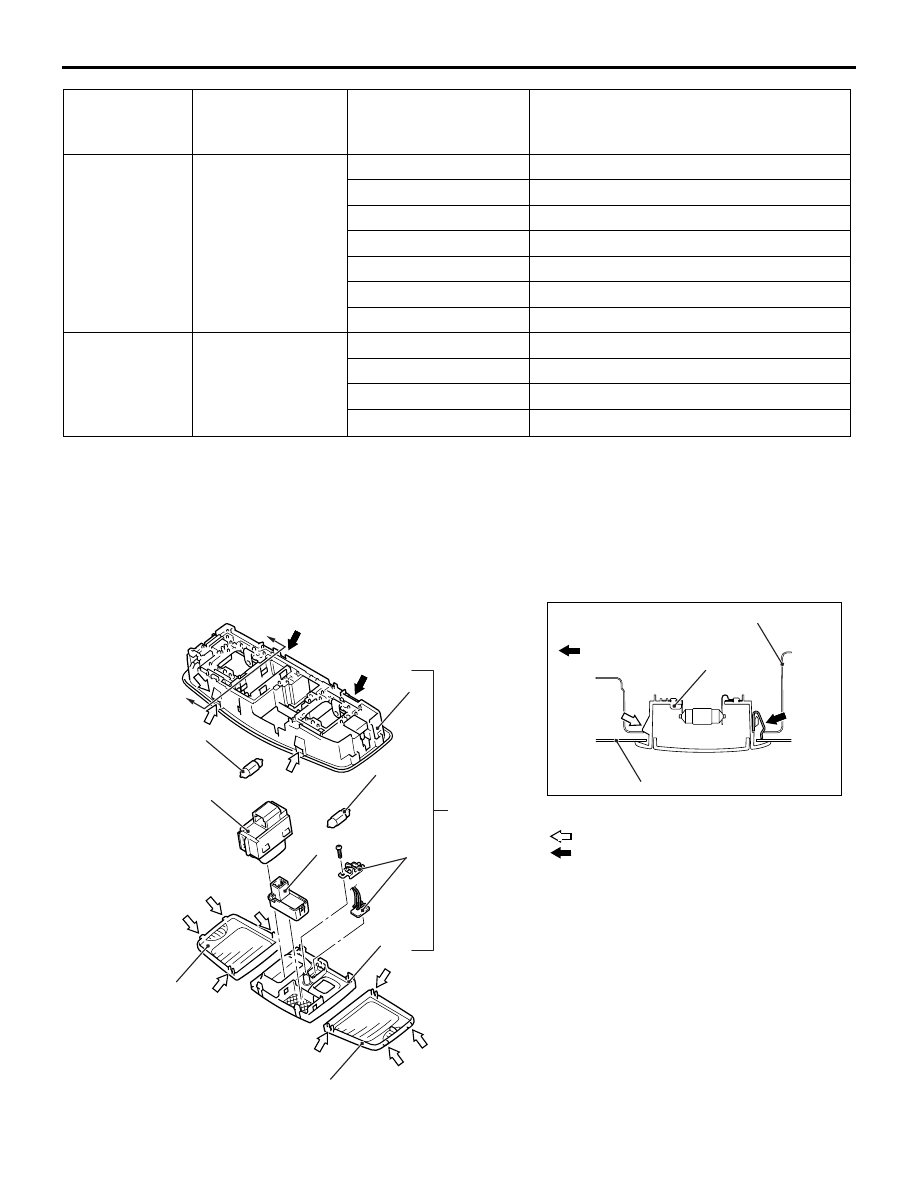

FRONT ROOM LAMP

ACB05447

AC705372

1

9

8

7

5

4

3

2

 Section A – A

3

4

Bracket

Headlining

Section A – A

Front of vehicle

NOTE
       : Claw positions
       : Hook positions

AB

A

A

6

Removal steps

1.

Front room lamp lens LH

2.

Front room lamp lens RH

3.

Front room lamp bulb

<<

A

>>

4.

Front room lamp

5.

Front room lamp cover

6.

Downlight unit

>>A<<

7.

Microphone unit

8.

Sunroof switch

9.

Front room lamp body

INTERIOR LAMP

CHASSIS ELECTRICAL

54A-168

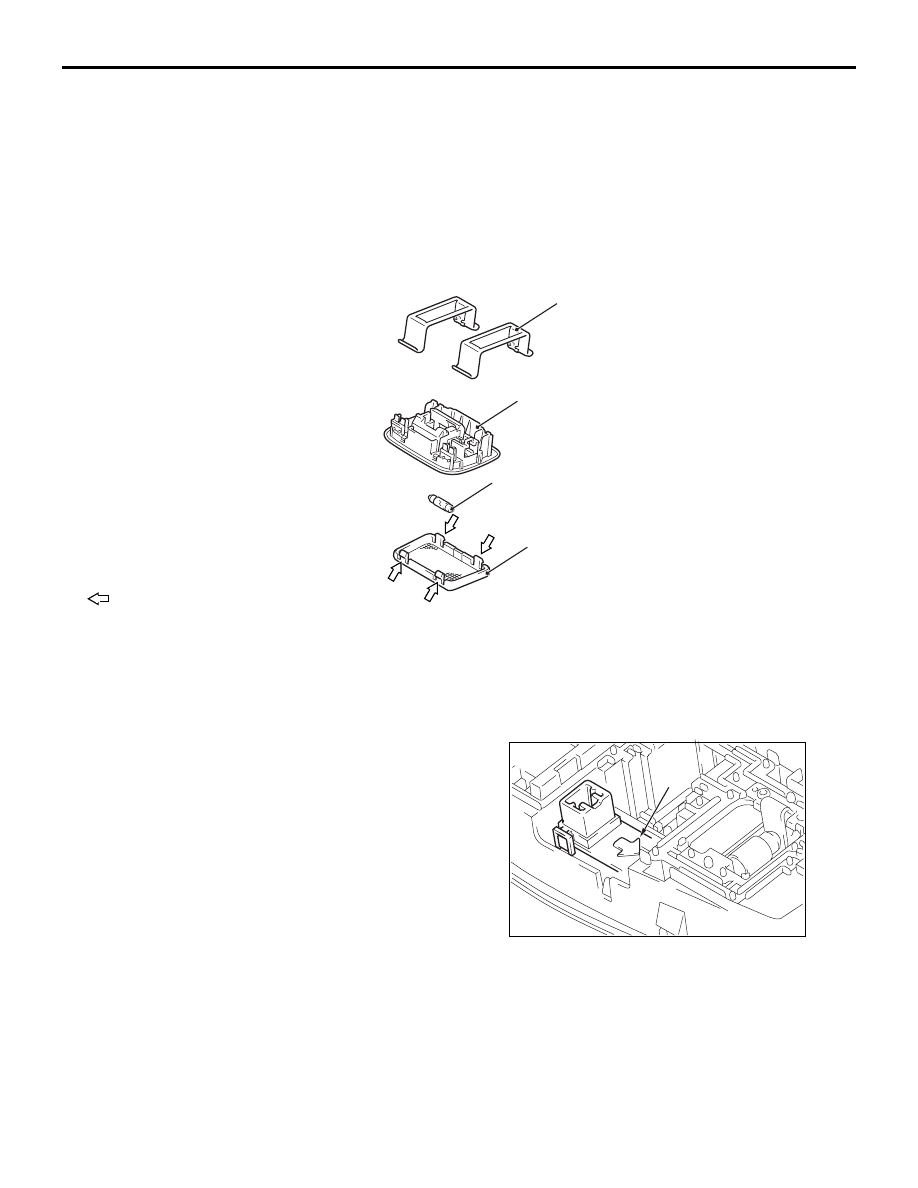

 REAR ROOM LAMP, LUGGAGE COM-
PARTMENT LAMP

ACB05448

1

3

4

2

AB

NOTE
       : Claw positions

Rear room lamp removal steps

1.

Rear room lamp lens

2.

Rear room lamp bulb

Headlining (Refer to GROUP 52A

−

Headlining ).

3.

Room lamp clip

4.

Rear room lamp body
Luggage compartment lamp
removal steps

1.

Luggage compartment lamp lens

2.

Luggage compartment lamp bulb

Headlining (Refer to GROUP 52A

−

Headlining ).

3.

Room lamp clip

4.

Luggage compartment lamp body

REMOVAL SERVICE POINT

<<A>> FRONT ROOM LAMP REMOVAL

Push the front room lamp toward the vehicle rear to
bend the hook, and then remove by disengaging the
claw from the headlining.

INSTALLATION SERVICE POINT

>>A<< MICROPHONE UNIT INSTALLA-
TION

AC904158 AB

Arrow

Install the microphone unit so that the arrow face
toward the driver's seat.
