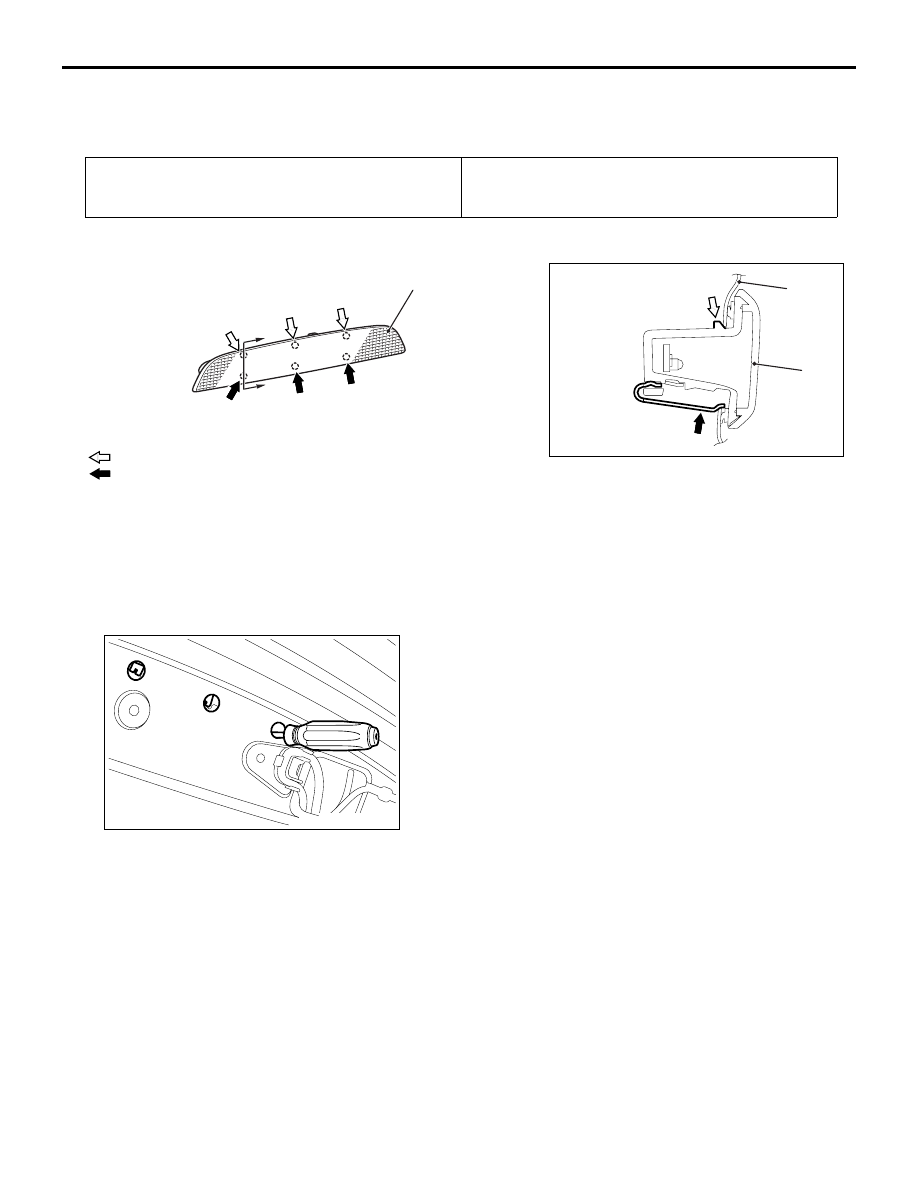

HIGH-MOUNTED STOP LAMP

CHASSIS ELECTRICAL

54A-169

HIGH-MOUNTED STOP LAMP

REMOVAL AND INSTALLATION

M1541700200568

Pre-removal Operation
• Tailgate Upper Trim Removal (Refer to GROUP 52A −

Tailgate Trim ).

Post-installation Operation
• Tailgate Upper Trim Installation (Refer to GROUP 52A −

Tailgate Trim ).

ACB05603

ACB05849

AB

1

Section A – A

Tailgate

1

A

A

NOTE
       : Claw positions
       : Hook positions

Removal

<<

A

>>

1.

High-mounted stop lamp assembly

REMOVAL SERVICE POINT

 <<A>> HIGH-MOUNTED STOP LAMP
ASSEMBLY REMOVAL

ACB05850

1. Insert a flat-tipped screwdriver into the service

hole on the tailgate, and then push up the hook.

2. Push the high-mounted stop lamp assembly down

to release the hook, and then remove by
disengaging the claw from the tailgate.

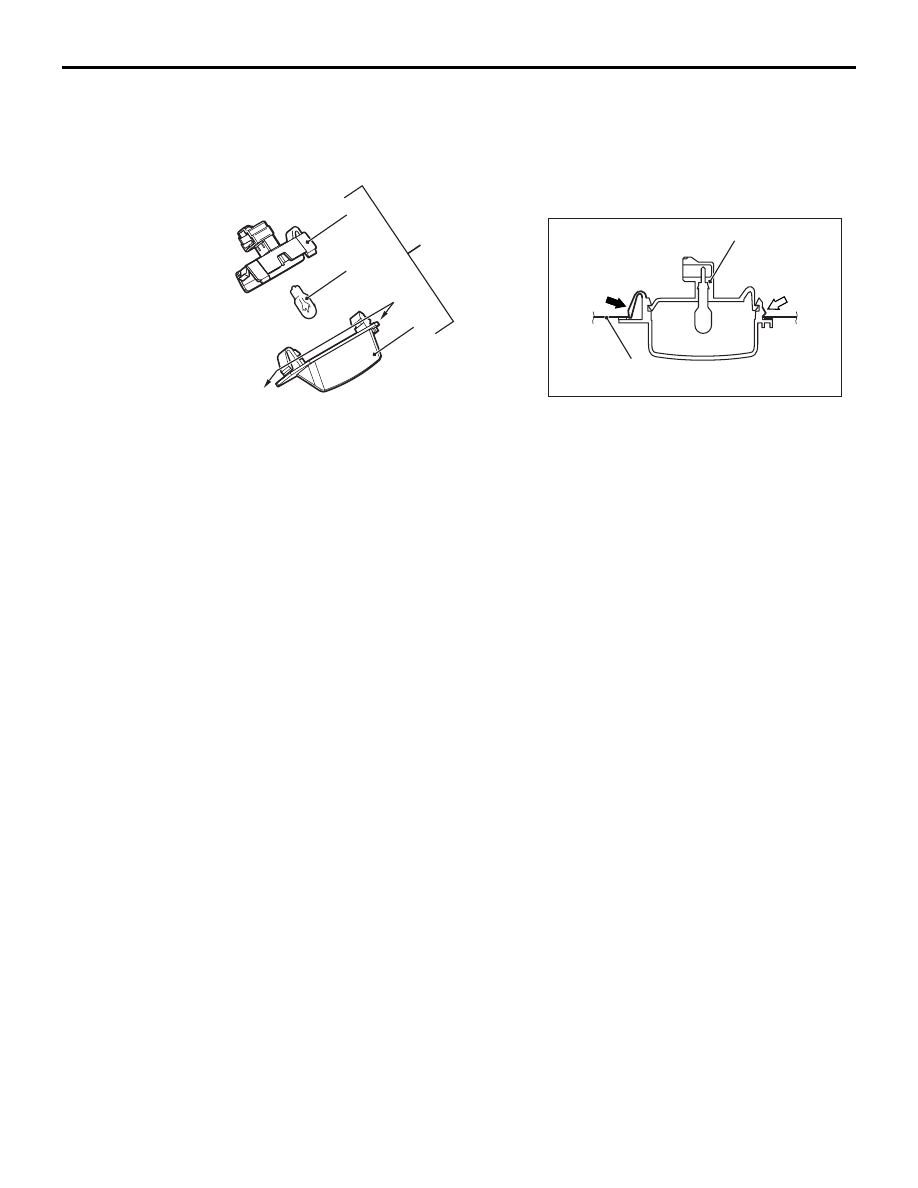

LICENCE PLATE LAMP

CHASSIS ELECTRICAL

54A-170

LICENCE PLATE LAMP

REMOVAL AND INSTALLATION

M1541900200506

ACB05604

AC507181

A

A

4

3

2

1

Section A – A

Claw

Tailgate

Hook

1

AB

Removal steps

<<

A

>>

1.

Licence plate lamp assembly

2.

Licence plate lamp lens

3.

Licence plate lamp bulb

4.

Licence plate lamp socket

REMOVAL SERVICE POINT

<<A>> LICENCE PLATE LAMP ASSEM-
BLY REMOVAL

Push the licence plate lamp assembly to the left to
bend the hook, and then remove by disengaging the
claw from the tailgate.

HAZARD WARNING LAMP SWITCH

CHASSIS ELECTRICAL

54A-171

HAZARD WARNING LAMP SWITCH

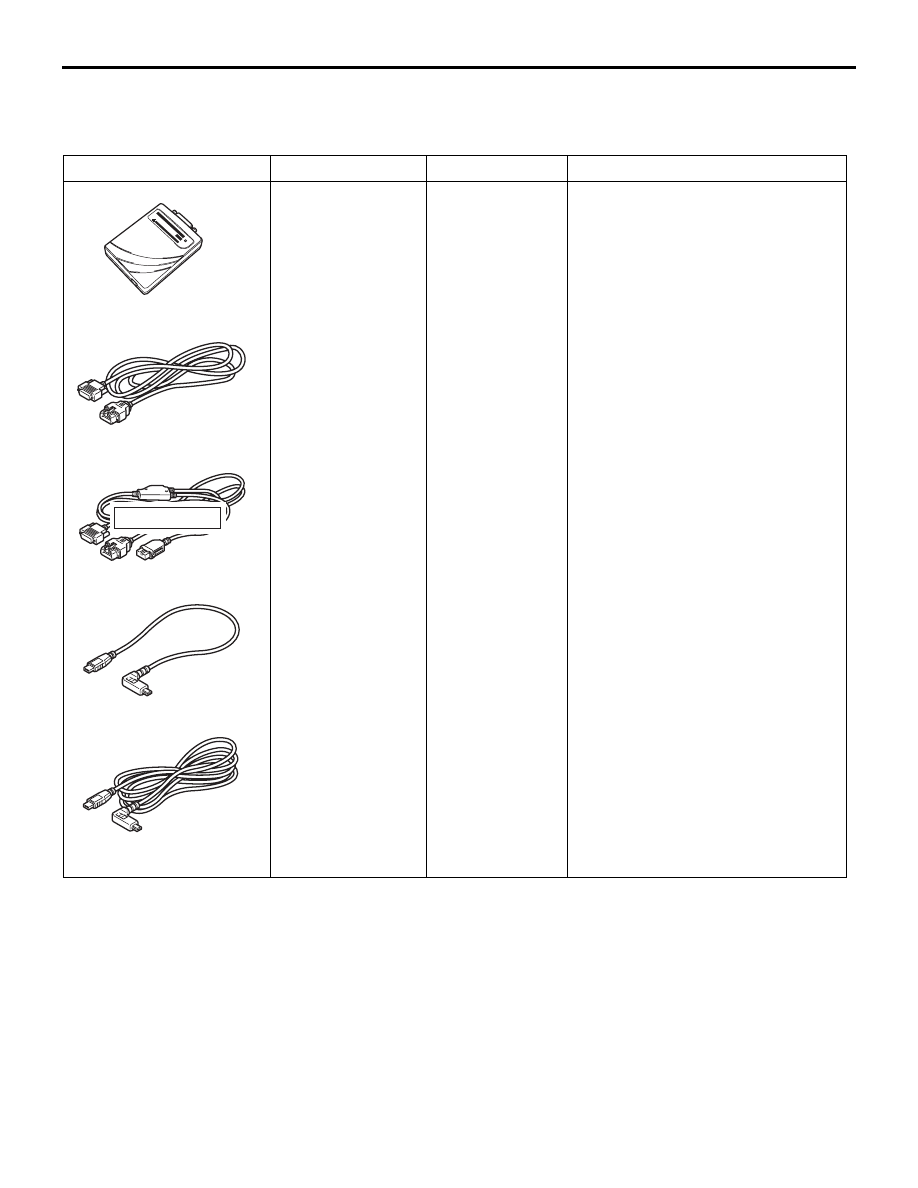

SPECIAL TOOLS

M1541500100330

Tool

Number

Name

Use

ACB05421

MB992745

MB992746

MB992744

MB992747

MB992748

a

b

c

d

e

DO NOT USE

AB

a. MB992744
b. MB992745
c. MB992746
d. MB992747
e. MB992748

a. Vehicle

communication
interface-Lite
(V.C.I.-Lite)

b. V.C.I.-Lite

main harness
A (for vehicles
with CAN
communication
)

c. V.C.I.-Lite

main harness
B (for vehicles
without CAN
communication
)

d. V.C.I.-Lite USB

cable short

e. V.C.I.-Lite USB

cable long

Service data test check.

MB991910

MB991826

MB991955

MB991911

MB991824

MB991827

MB991825

a

b

c

d

e

f

DO NOT USE

HAZARD WARNING LAMP SWITCH

CHASSIS ELECTRICAL

54A-172

MB991955

a. MB991824
b. MB991827
c. MB991910
d. MB991911
e. MB991825
f. MB991826

M.U.T.-III
sub-assembly

a. Vehicle

Communicatio
n Interface
(V.C.I.)

b. M.U.T.-III USB

cable

c. M.U.T.-III main

harness A
(Vehicles with
CAN
communication
system)

d. M.U.T.-III main

harness B
(Vehicles
without CAN
communication
system)

e. M.U.T.-III

measure
adapter

f. M.U.T.-III

trigger harness

CAUTION

For vehicles with CAN
communication, use M.U.T.-III
main harness A to send simulated
vehicle speed. If you connect
M.U.T.-III main harness B instead,
the CAN communication does not
function correctly.
Service data test check.

MB991223

a

d

c

b

DO NOT USE

BA

MB991223

a. MB991219
b. MB991220
c. MB991221
d. MB991222

Harness set

a. Check harness
b. LED harness
c. LED harness

adapter

d. Probe

Continuity check and voltage
measurement at harness wire or
connector

a. For checking connector pin

contact pressure

b. For checking power supply circuit
c. For checking power supply circuit
d. For connecting a locally sourced

tester

Tool

Number

Name

Use
