WARNING/CAUTION LABELS

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-123

WARNING/CAUTION LABELS

M1524003002192

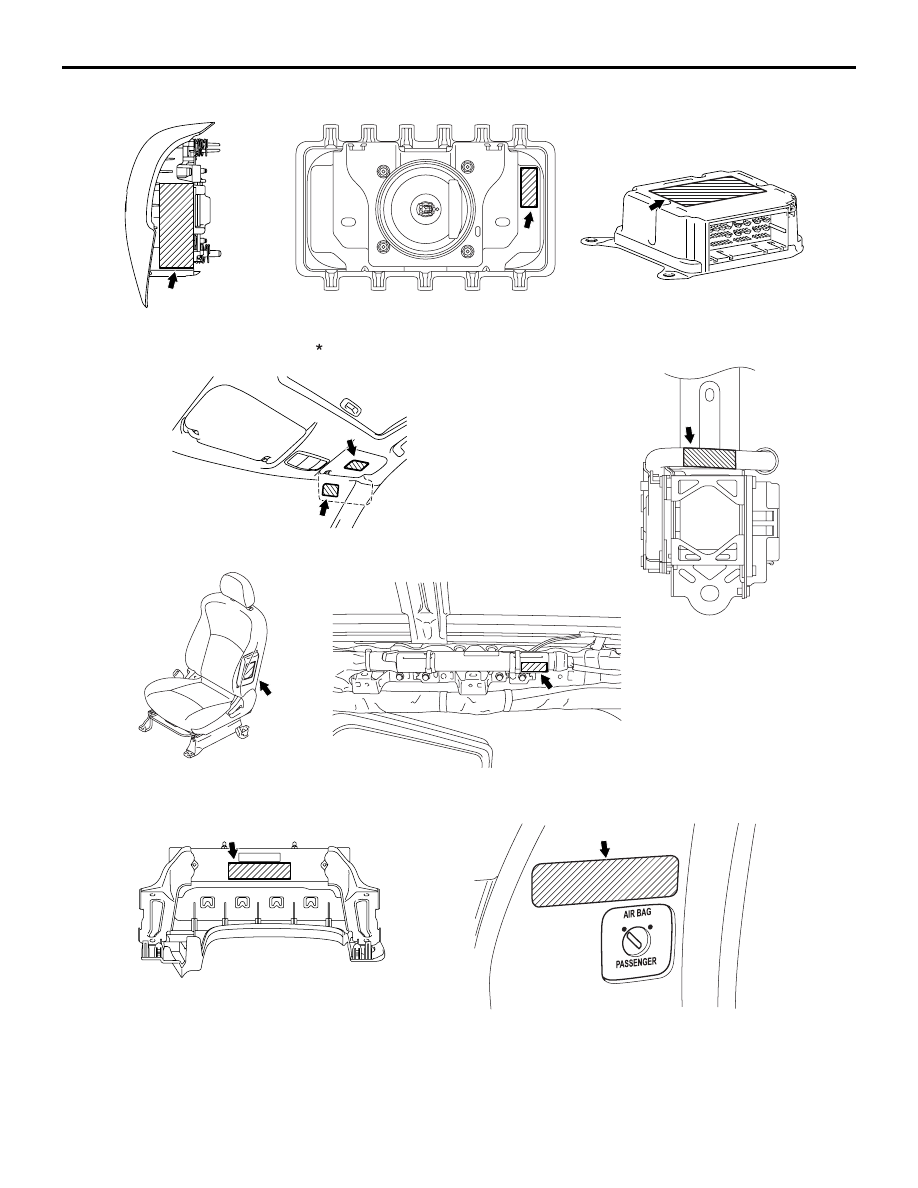

The labels indicating the precautions for handling
and maintenance of SRS air bags and seat belt with
pre-tensioner are attached to the locations shown in
the figure. If the label is damaged or is dirty, replace
with the new label.

ACC00073

AC506241

ACB03681

ACB05525

ACC00035

ACB05526

ACB05536

ACB05535

ACB05614

Driver's air bag module

Sunvisor

Seat belt pre-tensioner (right and left)

SRS-ECU

Passenger's (front) air bag module

Side-airbag module (right and left)

Curtain air bag module (right and left)

Knee air bag module

Passenger's air bag cut off switch

AB

WARNING/CAUTION LABELS

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-124

FRONT IMPACT SENSORS

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-125

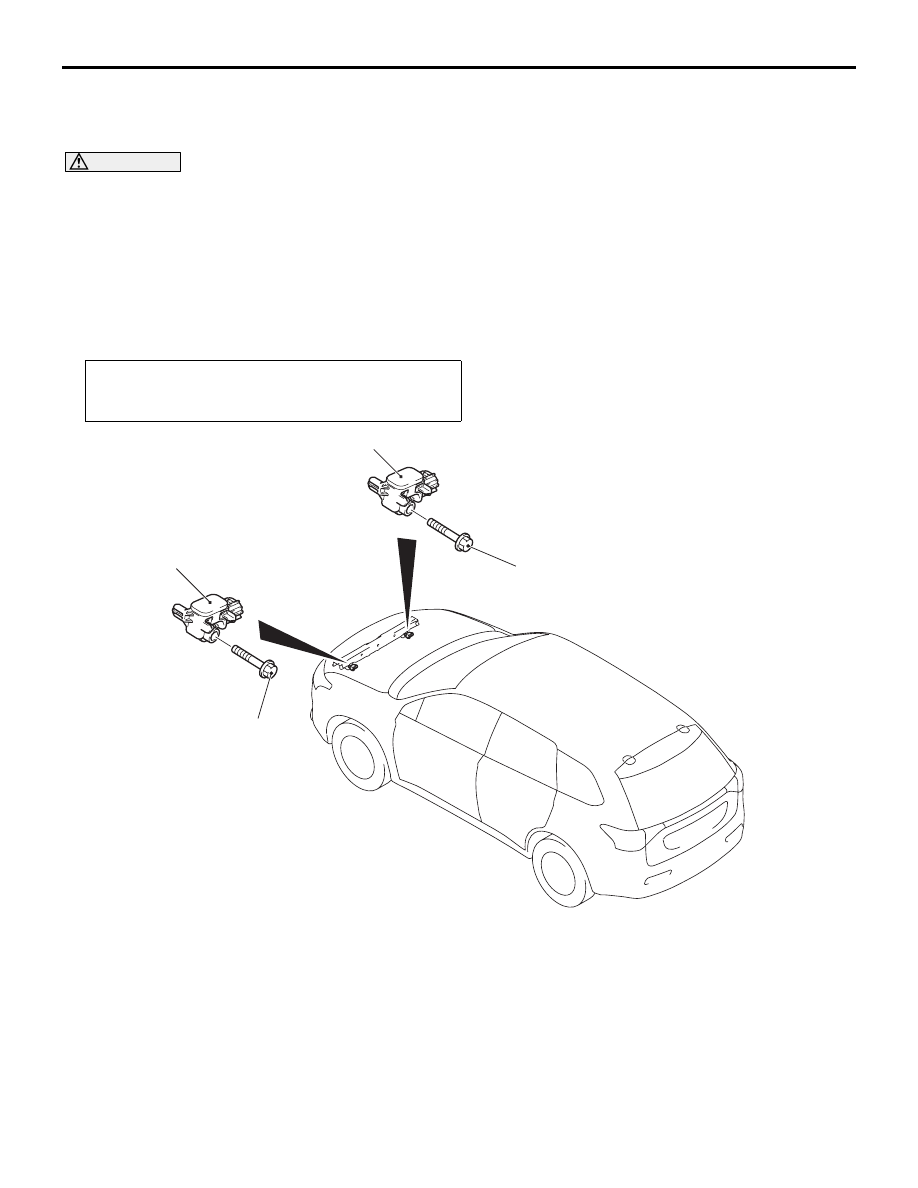

FRONT IMPACT SENSORS

REMOVAL AND INSTALLATION

M1524001501938

CAUTION

• Disconnect the negative (−) battery terminal and wait for 60 seconds or more before starting work.

Insulate the disconnected (

−) terminal by wrapping the tape (Refer to the item 5 of Service Precau-

tions

P.52B-7

).

• Never attempt to disassemble or repair the front impact sensor. If faulty, replace it with new one(s).
• Handle the front impact sensor with sufficient caution, and do not drop the sensor or allow con-

tact with water, oil, or others. If denting, cracking, or deformation is discovered, replace it with
new one(s).

•

Pre-removal operation
• Turn the ignition switch to the LOCK (OFF) position.

• Disconnect the negative (−) battery terminal.

ACB05457AB

10 ± 2 N·m

10 ± 2 N·m

1

1

Removal steps

<<A>>

1.

Front impact sensor

Installation steps

>>

A

<<

•

Pre-installation inspection

>>

B

<<

1.

Front impact sensor

>>

C

<<

•

Post-installation inspection

After deployment of an air bag, replace the front impact sensor with a new one.

FRONT IMPACT SENSORS

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-126

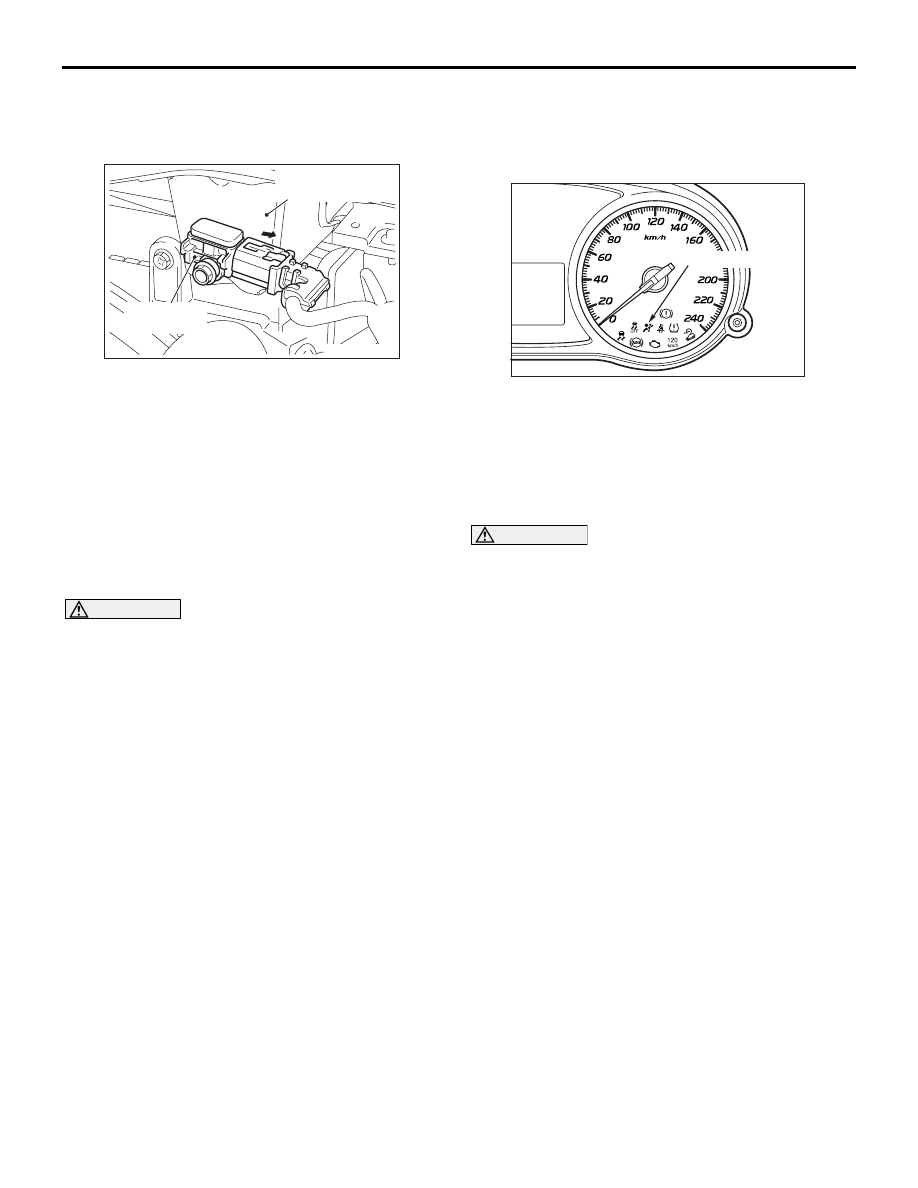

REMOVAL SERVICE POINT

<<A>> FRONT IMPACT SENSOR CON-
NECTOR REMOVAL

ACB05523AC

Front impact
sensor

Headlamp support
panel upper

Slide the outer housing of the front impact sensor
connector in the arrow direction shown, and discon-
nect the connector.

INSTALLATION SERVICE POINTS

>>A<< PRE-INSTALLATION INSPECTION

Check the front impact sensor before installation
(Refer to

P.52B-126

).

>>B<< FRONT IMPACT SENSOR
INSTALLATION

CAUTION

If the front impact sensor is not securely and cor-
rectly installed, the correct operation of air bag
and pre-tensioner is prevented.

>>C<< POST-INSTALLATION
INSPECTION

1. Connect the negative (

−) battery cable.

2. Turn the ignition switch to the "ON" position.

ACC00038AB

SRS warning lamp

3. Check that the SRS warning lamp is illuminated

for 6 to 8 seconds, and extinguished afterward.

4. If the lamp does not extinguish, perform the

troubleshooting (Refer to

P.52B-13

).

INSPECTION

M1524001600608

CAUTION

If a dent, crack, deformation or rust is found,
replace the sensor with a new front impact sen-
sor.
1. Check the front impact sensor for dents, cracks,

deformation or rust.

2. Binding of wiring harness, damaged connector,

and deformation of terminal

3. Deformation and rust of headlamp support panel
