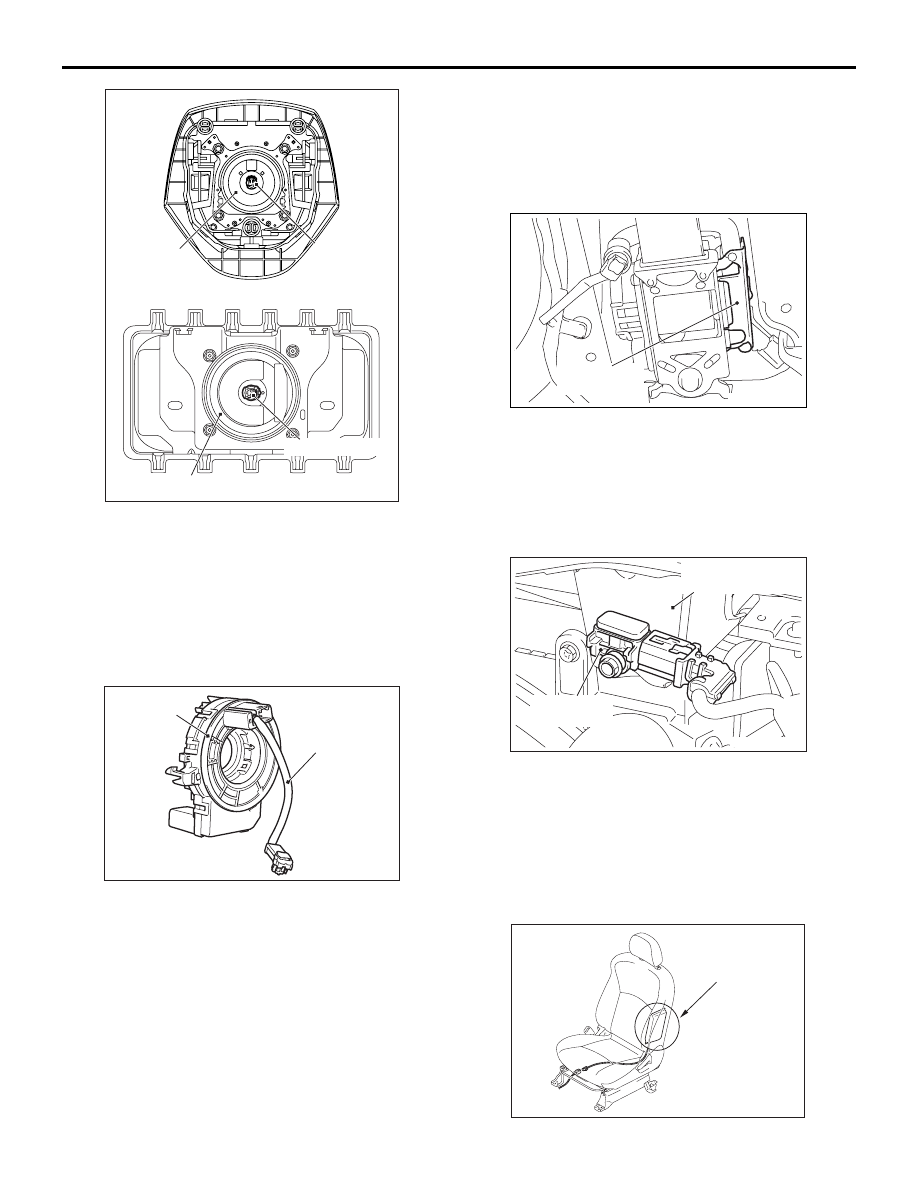

POST-COLLISION DIAGNOSIS

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-119

(2) Ignition switch: ON

Q: Does the SRS warning light illuminate for

approximately 6 to 8 seconds and then go out after
the ignition switch is turned to the "ON" position?
YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use

Troubleshooting/Inspection Service Points

−

How to Cope with Intermittent Malfunction ).

NO :

Go to Step 3

STEP 3. M.U.T.-III actuator test
Use M.U.T.-III to perform the combination meter
actuator tests.
Item No. 07: Indicator1

Q: Does the SRS warning lamp turn on and off

normally?
YES :

Go to Step 4

NO :

Replace the combination meter (Refer to
GROUP 54A

− combination meter ).

STEP 4. Check the diagnosis code.
After erasing the diagnosis code memory, check the
diagnosis code.

Q: Is the diagnosis code set?

YES :

Troubleshoot for the relevant diagnosis

code. (Refer to

P.52B-13

.)

NO :

Go to Step 5.

STEP 5. Recheck of the SRS warning lamp

Q: Does the lamp stay ON?

YES :

Replace the SRS-ECU (Refer to

P.52B-129

).

NO :

This diagnosis is complete.

DATA LIST REFERENCE TABLE

M1524003500588

The following items of the ECU input data can be read using M.U.T.-III.

Item No.

Date list item

Check conditions Normal conditions

01

Failure continuation time 1 (continue
time since the occurrence of trouble until
the first judging a collision)

Always

Maximum time to be stored:
9,999 minutes
(approximately seven days)

02

Failure continuation time 2 (continue
time since the second judging a collision
until the present)

Always

ACTUATOR TEST REFERENCE TABLE

M1524003600381

The following actuators can be forcibly operated using M.U.T-III.

Item No.

Item name

Test item

Driven
component

01

SRS warning lamp

SRS warning lamp illumination

ON

02

Passenger's SRS OFF lamp

Passenger's SRS OFF lamp illumination ON

Passenger's SRS OFF lamp illumination OFF

03

Passenger's SRS ON lamp

Passenger's SRS ON lamp illumination

ON

Passenger's SRS ON lamp illumination

OFF

POST-COLLISION DIAGNOSIS

M1524001102416

Perform the inspection and service on post-collision
vehicles according to the procedures below regard-
less of the deployment or activation statuses of air
bags, lap pre-tensioner and seat belt pre-tensioner.

SRS-ECU MEMORY CHECK

1. Connect M.U.T.-III to the diagnosis connector

(Refer to GROUP 00

− How to Use

Troubleshooting/Inspection Service Points ).

2. Use M.U.T.-III to read all the diagnosis codes.

POST-COLLISION DIAGNOSIS

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-120

NOTE: If the battery power is not supplied
because of the collision impact, M.U.T.-III and
SRS-ECU cannot communicate with each other.
When this occurs, check or repair the instrument
panel harness.

3. Erase the stored memory of diagnosis code, and

then wait for 45 seconds or more to read the
diagnosis code again. However, when the air bag
has been deployed or if SRS-ECU is judged to be
failure, do not erase the stored memory of
diagnosis code.

REPAIR PROCEDURE

<DRIVER'S AND FRONT PASSENGER'S
AIR BAGS ARE DEPLOYED>

1. Replace the following parts with new ones.

• SRS-ECU (Refer to

P.52B-129

).

• Driver's air bag module (Refer to

P.52B-131

).

• Passenger's (front) air bag module (Refer to

P.52B-136

).

• Seat belt with pre-tensioner (Refer to

P.52B-147

).

• Front impact sensor (Refer to

P.52B-125

).

• Passenger's (front) air bag lid assembly (Refer to

GROUP 52A

− Instrument Panel Assembly ).

2. Check the following parts. If there is an

abnormality, replace with new parts.

• Clock spring (Refer to

P.52B-131

).

• Steering wheel, steering column assembly

(1) Check that the driver's air bag module is

installed to the steering wheel correctly.

(2) Check the steering wheel for noise, binding,

operational failure, and play.

(3) Check the shock absorbing mechanism of

steering column shaft assembly (Refer to
GROUP 37

− On-vehicle Service ).

3. Instrument panel assembly (Refer to GROUP 52A

− Instrument Panel Assembly ).

4. Check the wiring harness for binding, the

connector for damage, and the terminal for
deformation (Refer to

P.52B-7

).

<SIDE AND CURTAIN AIR BAGS ARE
DEPLOYED>

1. Replace the following parts with new ones.

• SRS-ECU (Refer to

P.52B-129

).

• Front seatback assembly (Refer to

P.52B-142

).

• Curtain air bag module (Refer to

P.52B-144

).

• Side impact sensor (Refer to

P.52B-127

).

• Headlining (Refer to GROUP 52A, Headlining ).

• Front pillar trim, centre pillar trim upper, quarter

trim upper (Refer to GROUP 52A

− Interior Trim ).

• Seat belt with pre-tensioner (Refer to

P.52B-147

).

2. Check the wiring harness for binding, the

connector for damage, and the terminal for
deformation (Refer to

P.52B-7

).

<AIR BAG NOT DEPLOYED BECAUSE OF
LOW-SPEED COLLISION>

1. Check the SRS air bag components and seat belt

assembly according to the following procedures.

2. Check the operation of seat belt. If the seat belt

cannot be drawn out, replace the seat belt with a
new one.

3. Visually check the seat belt components (such as

pre-tensioner, retractor and buckle) for a dent,
breaks, deformation, fraying. If found, replace
them with new one.

4. For removal and installation of parts, refer to

"Servicing the SRS air bag/seat belt with
pre-tensioner"

P.52B-122

.

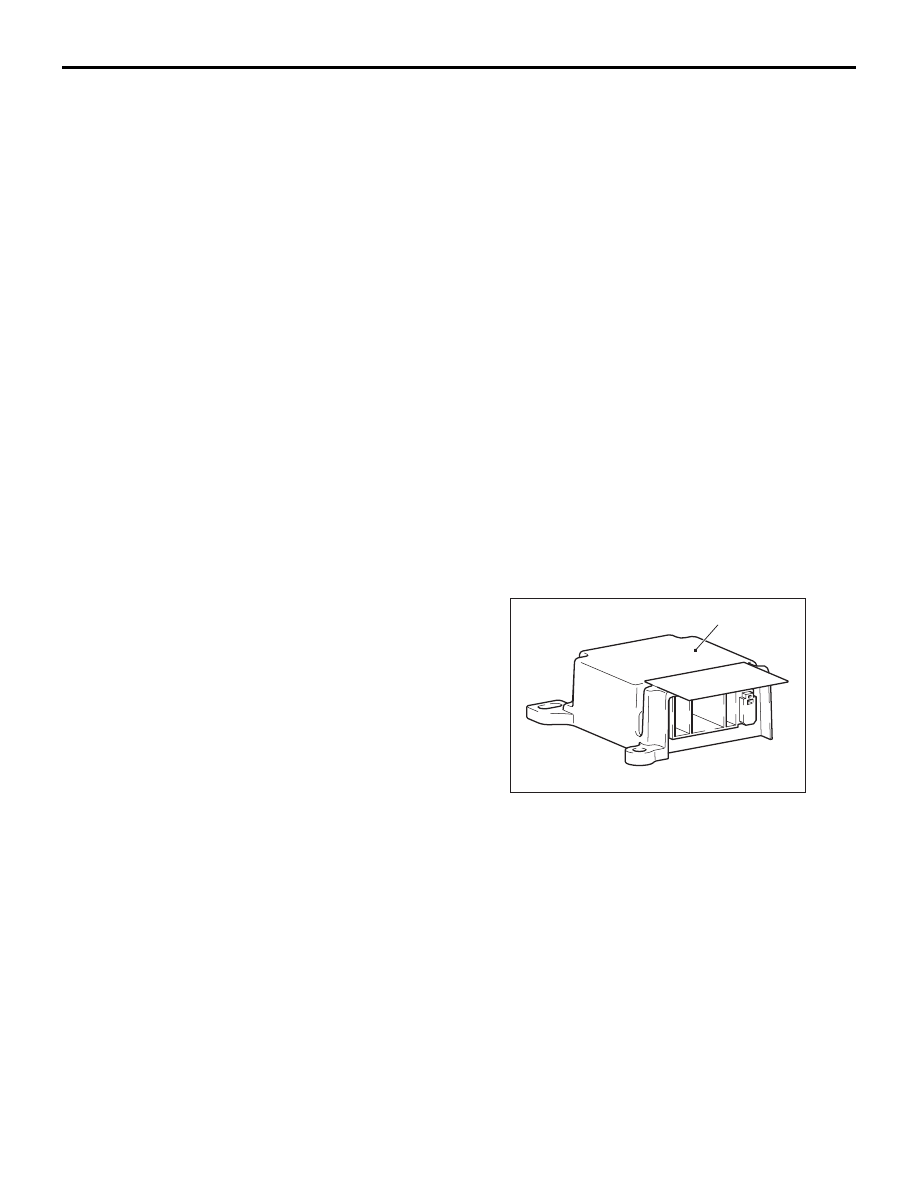

SRS-ECU

ACB04891

ACB03611

AB

SRS-ECU

1. Check the SRS-ECU case and bracket for dent,

crack, or deformation.

2. Check the connector and wiring harness for

damage, and the terminal for deformation.

3. Check that SRS-ECU is installed correctly.

DRIVER'S AND PASSENGER'S (FRONT)
AIR BAG MODULE

1. Check the pad cover for dent, crack, or

deformation.

ACC00049

ACB03701

ACB03702

ACB05537

AB

Inflator

<Driver's side>

<Passenger's (front) side>

Squib
connector

Squib connector

Inflator

POST-COLLISION DIAGNOSIS

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-121

2. Check the connector for damage, the terminal for

deformation, and the harness for binding.

3. Check the inflator case for dent, crack, or

deformation.

4. Check that the air bag module is installed

correctly.

CLOCK SPRING

AC904942 AC

Protective tubes

Case

1. Check the connector and protector tube for

damage, and the terminal for deformation.

2. Check the case for damage.

STEERING WHEEL, STEERING COLUMN
ASSEMBLY

1. Check that the driver's air bag module is installed

to the steering wheel correctly.

2. Check the steering wheel for noise, binding,

operational failure, and play.

3. Check the shock absorbing mechanism of

steering column shaft assembly (Refer to GROUP
37

− On-vehicle Service ).

SEAT BELT PRE-TENSIONER <Driver’s
side>

ACC00081

ACC00046

AB

Seat belt
pre-tensioner

1. Check the seat belt pre-tensioner crack or

deformation.

2. Check the connector for damage and the terminal

for deformation.

FRONT IMPACT SENSOR

ACB05523AB

Front impact
sensor

Headlamp support
panel upper

1. Check the front impact sensor for dent, crack or

deformation.

2. Check the connector for damage, the terminal for

deformation, and the harness for binding.

FRONT SEAT ASSEMBLY (WITH BUILT-IN
SIDE AIR BAG MODULE)

AC507151AB

Side-airbag module
deployment section

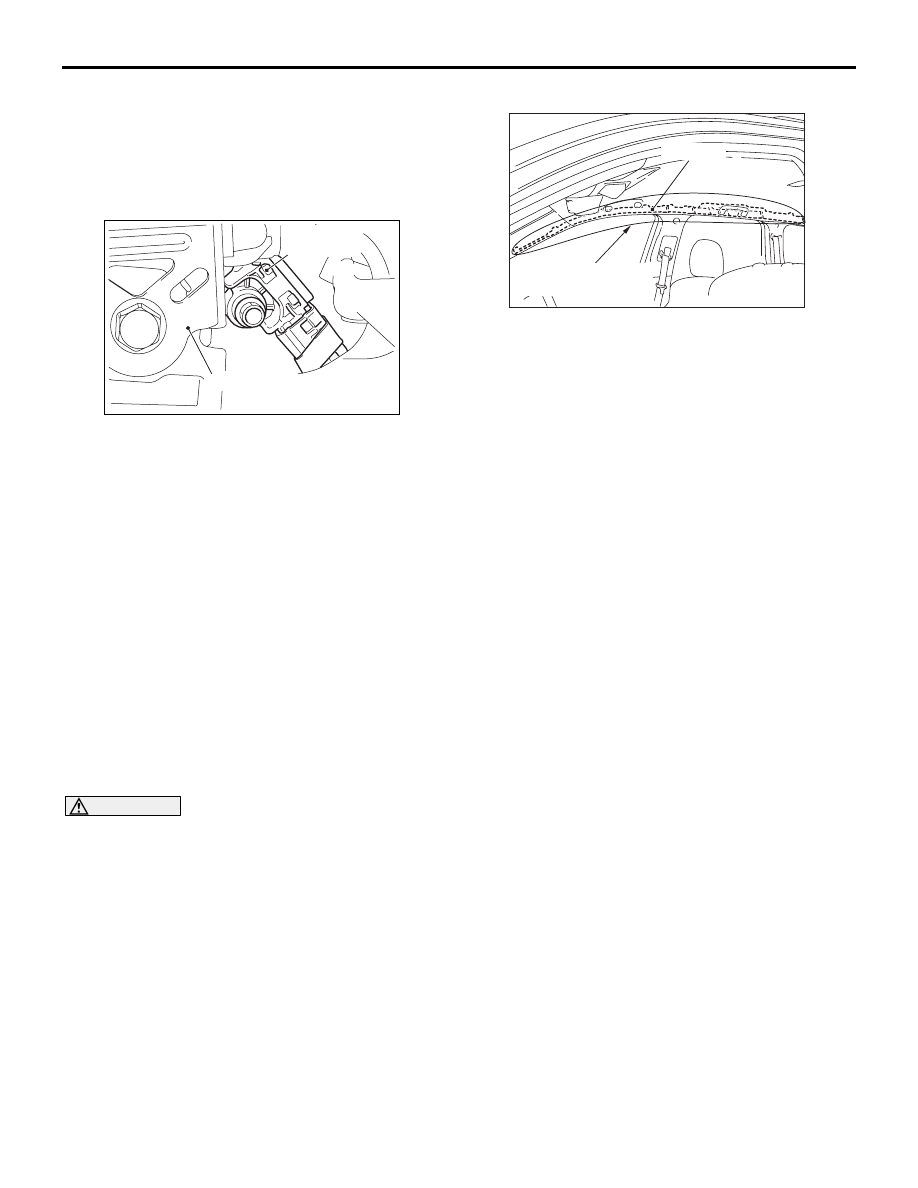

INDIVIDUAL COMPONENT SERVICE

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-122

1. Check that the side-airbag module deployment

part of the seat is normal.

2. Check the connector for damage, the terminal for

deformation, and the harness for binding.

SIDE IMPACT SENSOR

ACB05524AB

Side impact
sensor

Front seat belt

1. Check the centre pillar and quarter trim lower for

deformation.

2. Check the side impact sensor for dent, crack,

deformation, or rust.

3. Check the connector for damage, the terminal for

deformation, and the harness for binding.

CURTAIN AIR BAG MODULE

AC506894AB

Curtain air bag module
deployment section

Inflator

1. Check that the curtain air bag deployment part of

the headlining is normal.

2. Check the inflator surface for cracks, dents or

deformations.

3. Check the connector for damage, the terminal for

deformation, and the harness for binding.

PASSENGER’S AIR BAG CUT OFF
SWITCH

1. Check the passenger’s air bag cut off switch for

dents or deformation.

2. Check the installation of the passenger’s air bag

cut off switch.

HARNESS CONNECTOR

Check the wiring harness for binding, the connector
for damage, and the terminal for deformation (Refer
to

P.52B-7

).

INDIVIDUAL COMPONENT SERVICE

M1524002901014

CAUTION

1. If the influence of heat is suspected during

painting work, remove the following parts.

• 93°C or more: SRS-ECU, air bag module,

clock spring, front impact sensor, side
impact sensor

• 90°C or more: Seat belt with pre-tensioner

2. Store the removed SRS air bag and compo-

nents of seat belt with pre-tensioner in a
clean, dry place.

Remove or install the SRS air bag and seat belt with
pre-tensioner according to the procedures indicated
in the removal and installation of each part.
