Mitsubishi Outlander (2013+). Manual - part 590





MB991885

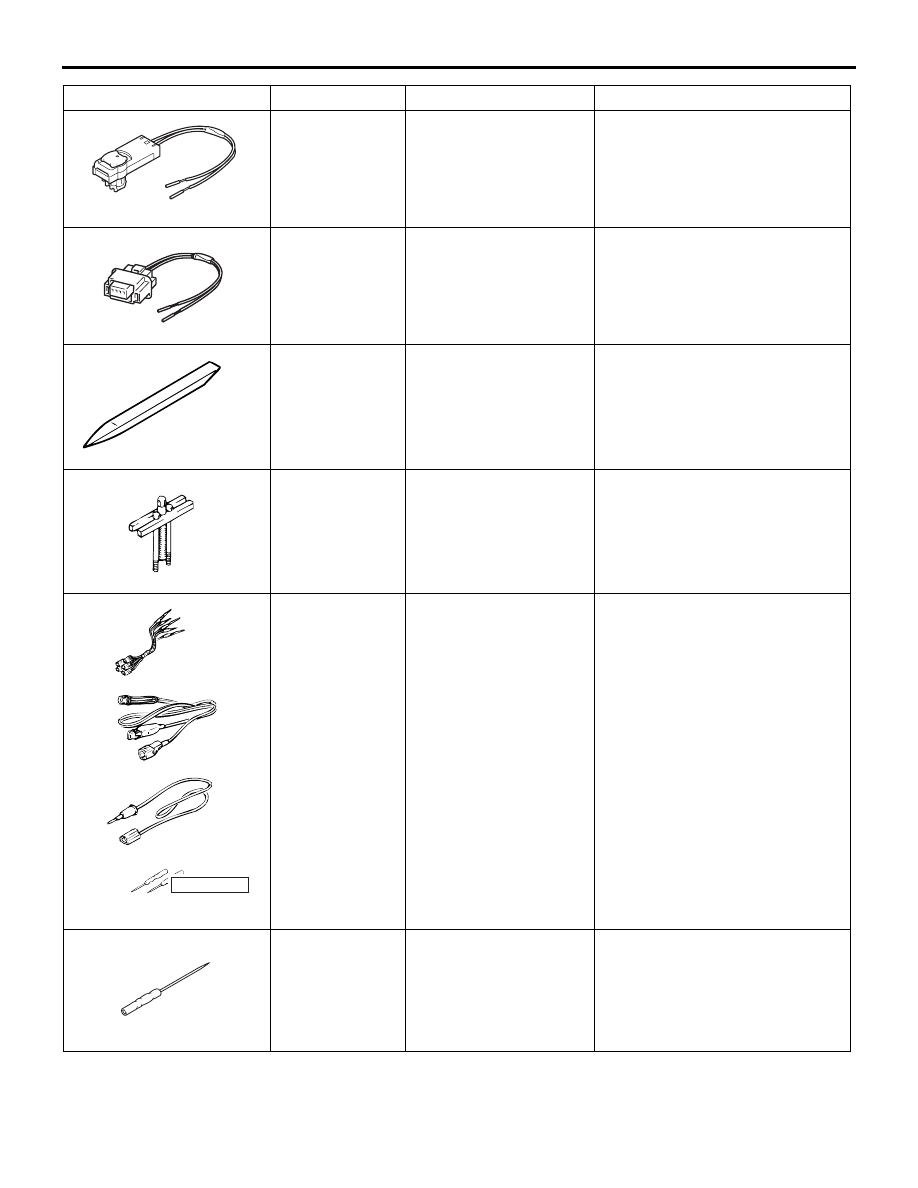

SPECIAL TOOLS

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-11

MB991885

Adapter harness

Deployment of seat belt
pre-tensioner, lap pre-tensioner
and curtain air bag inside or
outside the vehicle

MB992102

MB992102

Adapter harness

Deployment of driver's and
passenger's (front) air bag inside
or outside the vehicle

MB990784

MB990784

Ornament remover

Removal of cover.

MB990803

MB990803

Steering wheel puller

Steering wheel disconnection

MB991223

a

d

c

b

DO NOT USE

BA

MB991223

a: MB991219
b: MB991220
c: MB991221
d: MB991222

Harness set

a: Check harness
b: LED harness
c: LED harness adapter
d: Probe

Checking the continuity and
measuring the voltage at the
SRS-ECU harness connector

MB992006

MB992006

Extra fine probe

Continuity check and voltage
measurement at harness wire or
connector

Tool

No.

Name

Use

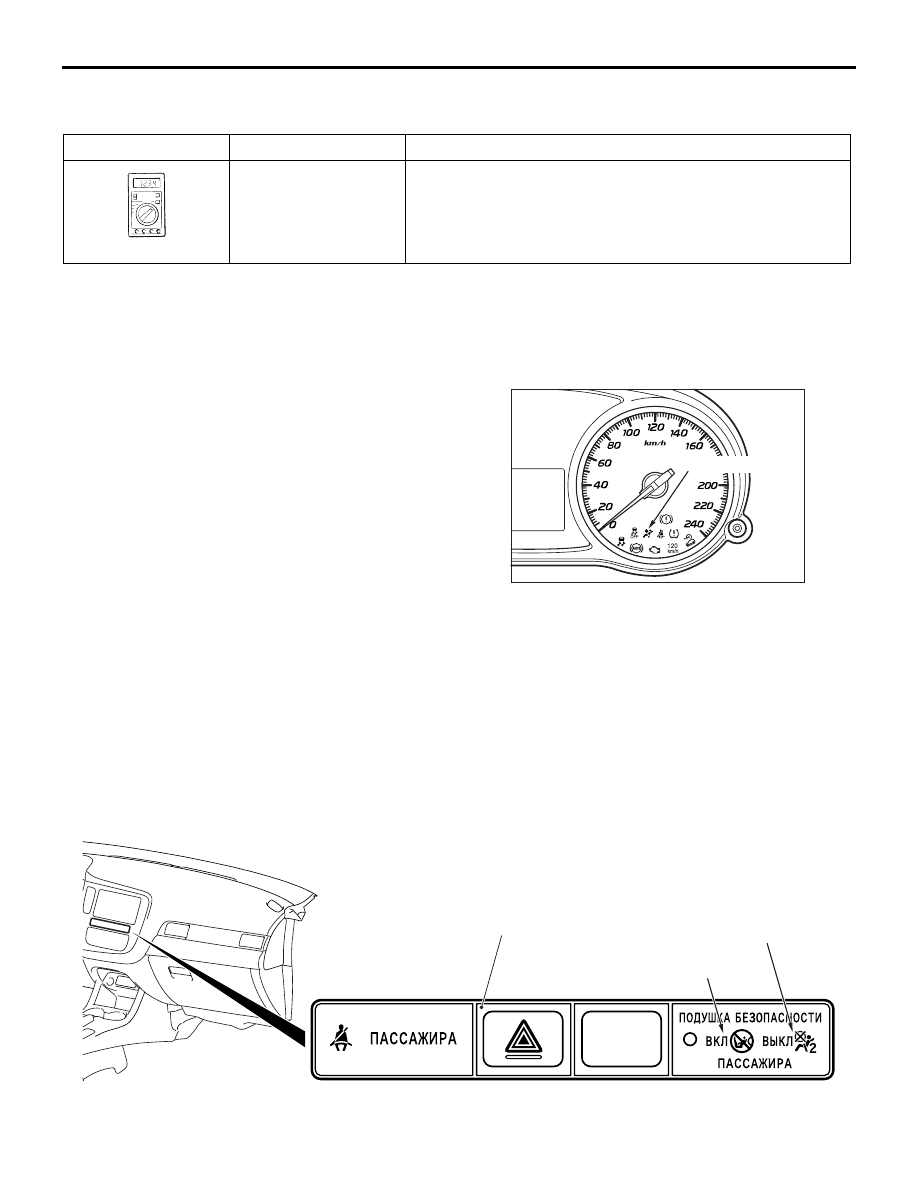

TEST EQUIPMENTS

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-12

TEST EQUIPMENTS

M1524000800591

Tool

Name

Use

AC000019

Digital multi-meter

Checking SRS electrical circuitry (Use multi-meter for which
the maximum test current is 2 mA or less at minimum range
of resistance measurement)

TROUBLESHOOTING

DIAGNOSIS TROUBLESHOOTING FLOW

M1524003100881

Refer to GROUP 00

− How to Use Troubleshoot-

ing/Inspection Service Points .

DIAGNOSIS FUNCTION

M1524003200781

HOW TO READ DIAGNOSIS CODE

Connect M.U.T.-III to the 16-pin diagnosis connector
to read the diagnosis code (Refer to GROUP 00

−

How to Use Troubleshooting/Inspection Service
Points ).

HOW TO ERASE DIAGNOSIS CODE

Connect M.U.T.-III to the 16-pin diagnosis connector
to erase the diagnosis code (Refer to GROUP 00

−

How to Use Troubleshooting/Inspection Service
Points ).

SRS WARNING LAMP CHECK

M1524004301397

ACC00038AB

SRS warning lamp

1. Check that the SRS warning lamp is illuminated

when the ignition switch is turned ON.

2. Check that the lamp is extinguished after the

approximately 6 to 8 seconds illumination. Check
that the warning lamp is extinguished afterward.

3. Except the above, the SRS system is abnormal.

Thus, check the diagnosis code (Refer to

P.52B-13

).

PASSENGER'S AIR BAG ON/OFF INDICATOR LAMP CHECK

M1524026300273

ACB05561

ACC00116

ACB05034

Passenger's air bag
ON indicator lamp

Passenger's air bag
OFF indicator lamp

Hazard indicator assembly

AB

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-13

1. Check that the "PASSENGER AIR BAG OFF"

indicator lamp illuminates when the ignition switch
is turned ON.

2. Check that the lamp is extinguished after the

approximately 6 to 8 seconds illumination. Check
that the warning lamp is extinguished afterward.

3. Except the above, the SRS system is abnormal.

Thus, check the diagnosis code (Refer to

P.52B-13

).

CHECK CHART FOR DIAGNOSIS CODES

M1524003302513

CAUTION

During diagnosis, a diagnosis code associated with other system may be set when the ignition switch
is turned on with connector(s) disconnected. On completion, confirm all systems for diagnosis
code(s). If diagnosis code(s) are set, erase them all.

Code No.

Diagnostic item

Reference page

B1400

*2

Driver's air bag module (squib) system (short circuit between squib
circuit terminals)

P.52B-17

B1401

*2

Driver's air bag module (squib) system (open circuit of squib circuit)

P.52B-19

B1402

*2

Driver's air bag module (squib) system (shorted to squib circuit
earth)

P.52B-21

B1403

*2

Driver's air bag module (squib) system (shorted to squib circuit
power supply)

P.52B-23

B1404

*4

Driver's air bag module (squib) activating circuit short-circuited

P.52B-26

B1405

*4

Driver's air bag module (squib) activating circuit open-circuited

P.52B-26

B1406

*4

Malfunction of G-sensor inside right front impact sensor

P.52B-28

B1407

*2

Front impact sensor (RH) voltage error

P.52B-28

B1408

*2

Front impact sensor (RH) communication error

P.52B-29

B1409

*2

Front impact sensor (RH) communication impossible

P.52B-29

B1410

*2

Passenger's (front) air bag module (squib) system (short circuit
between squib circuit terminals)

P.52B-30

B1411

*2

Passenger's (front) air bag module (squib) system (open circuit of
squib circuit)

P.52B-33

B1412

*2

Passenger's (front) air bag module (squib) system (shorted to squib
circuit earth)

P.52B-35

B1413

*2

Passenger's (front) air bag module (squib) system (shorted to squib
circuit power supply)

P.52B-36

B1414

*4

Passenger's (front) air bag module (squib) activating circuit
short-circuited

P.52B-26

B1415

*4

Passenger's (front) air bag module (squib) activating circuit
open-circuited

P.52B-26

B1416

*4

Malfunction of G-sensor inside left front impact sensor

P.52B-28

B1417

*2

Front impact sensor (LH) voltage error

P.52B-38

B1418

*2

Front impact sensor (LH) communication error

P.52B-39

B1419

*2

Front impact sensor (LH) communication impossible

P.52B-39

B1420

*2

Right side-airbag module (squib) system (short circuit between
squib terminals)

P.52B-40

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-14

B1421

*2

Right side-airbag module (squib) system (open circuit of squib
circuit)

P.52B-43

B1422

*2

Right side-airbag module (squib) system (shorted to squib circuit
earth)

P.52B-45

B1423

*2

Right side-airbag module (squib) system (shorted to squib circuit
power supply)

P.52B-46

B1424

*4

Right side-airbag module (squib) activating circuit short-circuited

P.52B-26

B1425

*4

Right side-airbag module (squib) activating circuit open-circuited

P.52B-26

B1426

*4

Malfunction of G-sensor inside right side impact sensor

P.52B-48

B1427

*2

Side impact sensor (RH) voltage error

P.52B-49

B1428

*2

Side impact sensor (RH) communication error

P.52B-50

B1429

*2

Side impact sensor (RH) communication impossible

P.52B-50

B1430

*2

Left side-airbag module (squib) system (short circuit between squib
terminals)

P.52B-51

B1431

*2

Left side-airbag module (squib) system (open circuit of squib circuit)

P.52B-53

B1432

*2

Left side-airbag module (squib) system (shorted to squib circuit
earth)

P.52B-55

B1433

*2

Left side-airbag module (squib) system (shorted to squib circuit
power supply)

P.52B-57

B1434

*4

Left side-airbag module (squib) activating circuit short-circuited

P.52B-26

B1435

*4

Left side-airbag module (squib) activating circuit open-circuited

P.52B-26

B1436

*4

Malfunction of G-sensor inside left side impact sensor

P.52B-48

B1437

*2

Side impact sensor (LH) voltage error

P.52B-59

B1438

*2

Side impact sensor (LH) communication error

P.52B-60

B1439

*2

Side impact sensor (LH) communication impossible

P.52B-60

B1440

*2

Right curtain air bag module (squib) system (short circuit between
squib terminals)

P.52B-61

B1441

*2

Right curtain air bag module (squib) system (open circuit of squib
circuit)

P.52B-63

B1442

*2

Right curtain air bag module (squib) system (shorted to squib circuit
earth)

P.52B-66

B1443

*2

Right curtain air bag module (squib) system (shorted to squib circuit
power supply)

P.52B-67

B1444

*4

Right curtain air bag module (squib) activating circuit short-circuited

P.52B-26

B1445

*4

Right curtain air bag module (squib) activating circuit open-circuited

P.52B-26

B1450

*2

Left curtain air bag module (squib) system (short circuit between
squib terminals)

P.52B-69

B1451

*2

Left curtain air bag module (squib) system (open circuit of squib
circuit)

P.52B-72

B1452

*2

Left curtain air bag module (squib) system (shorted to squib circuit
earth)

P.52B-74

Code No.

Diagnostic item

Reference page
