WINDSHIELD WIPER AND WASHER

EXTERIOR

51-39

WINDSHIELD WIPER

REMOVAL AND INSTALLATION

M1511007901525

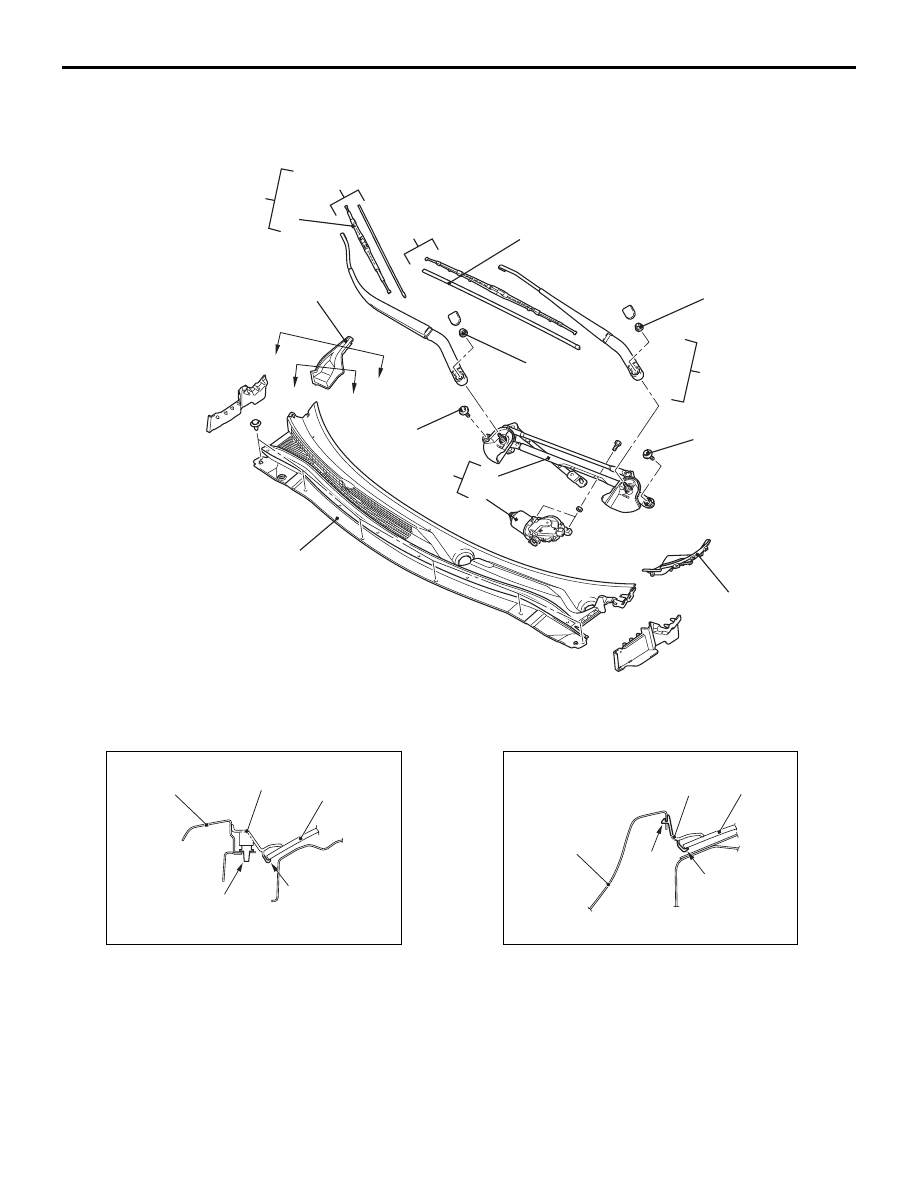

ACB05595AB

2

8

27 ± 3 N·m

1

3

2

7

27 ± 3 N·m

1

3

8.0 ± 2.0 N·m

8.0 ± 2.0 N·m

5

4

4

B

B

A

A

6

ACC00219AB

Section B – B

4

Section A – A

Clip

Claw

Windshield

Front fender

Claw

4

Windshield

Claw

Front fender

Wiper blade removal steps

1.

Wiper blade assembly

>>

C

<<

2.

Wiper blade
Windshield wiper motor removal
steps

>>

B

<<

3.

Wiper arm and blade assembly

4.

Front deck garnish cover

5.

Front deck garnish

<<

A

>>

>>

A

<<

6.

Windshield wiper link assembly

7.

Windshield wiper link

8.

Windshield wiper motor

NOTE: For removal and installation of the wiper and
washer switch, refer to GROUP 54A, Column Switch
.

Windshield wiper motor removal
steps (Continued)

WINDSHIELD WIPER AND WASHER

EXTERIOR

51-40

REMOVAL SERVICE POINT

<<A>> WINDSHIELD WIPER LINK
ASSEMBLY REMOVAL

CAUTION

When pulling out the link assembly forward, be
careful not to make a contact with the windshield
glass.

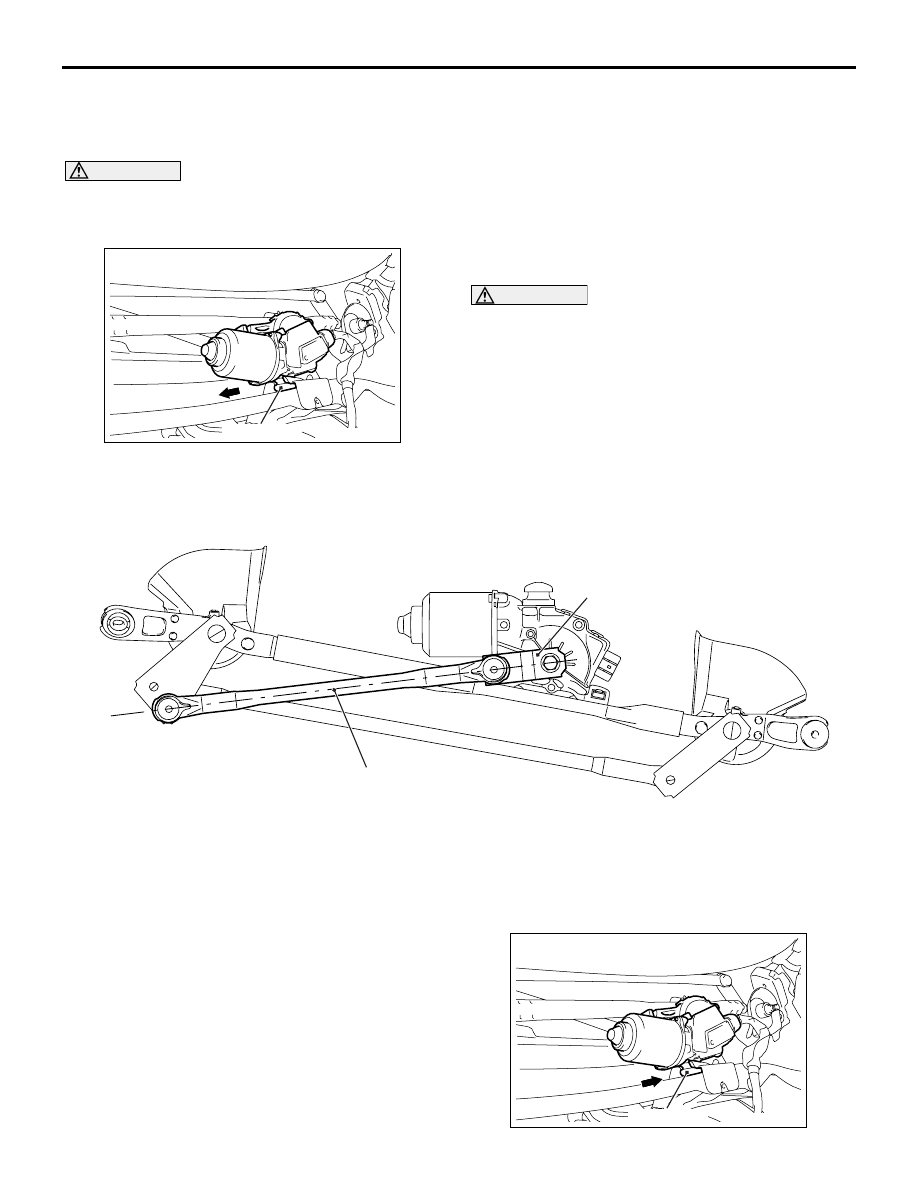

ACB05637

Rubber bush

AB

1. Remove the rubber bushing of the windshield

wiper link assembly in the direction of the arrow
from the windshield wiper bracket.

INSTALLATION SERVICE POINTS

>>A<< WINDSHIELD WIPER LINK
ASSEMBLY INSTALLATION

1. Confirm that the wiper motor has set to automatic

stop position (Refer to

P.51-42

).

CAUTION

Always replace the wiper motor link plate with
new one.

ACC00454AB

Wiper motor
link plate

Link rod

2. Set the wiper motor link plate onto the wiper motor

shaft. When doing this, the wiper motor link plate
and the wiper link rod should be in line as shown.

NOTE: When the wiper motor link plate has
slipped by even only one tooth on the wiper motor
assembly, they cannot be in line.

3. Tighten the attaching nut of wiper motor link plate

and wiper motor shaft. Use an appropriate tool to
counter-hold the plate to prevent it from turning.

4. Apply grease to the inside of link rod joint (as

required) and connect the link rod to wiper motor
link plate.

Specified grease: Multipurpose grease SAE
J310, NLGI No.2 or equivalent

ACB05637

Rubber bush

AC

WINDSHIELD WIPER AND WASHER

EXTERIOR

51-41

5. Make sure that the rubber bushing of the

windshield wiper linkage assembly is secured in
the windshield wiper bracket.

>>B<< WIPER ARM AND BLADE
ASSEMBLY INSTALLATION

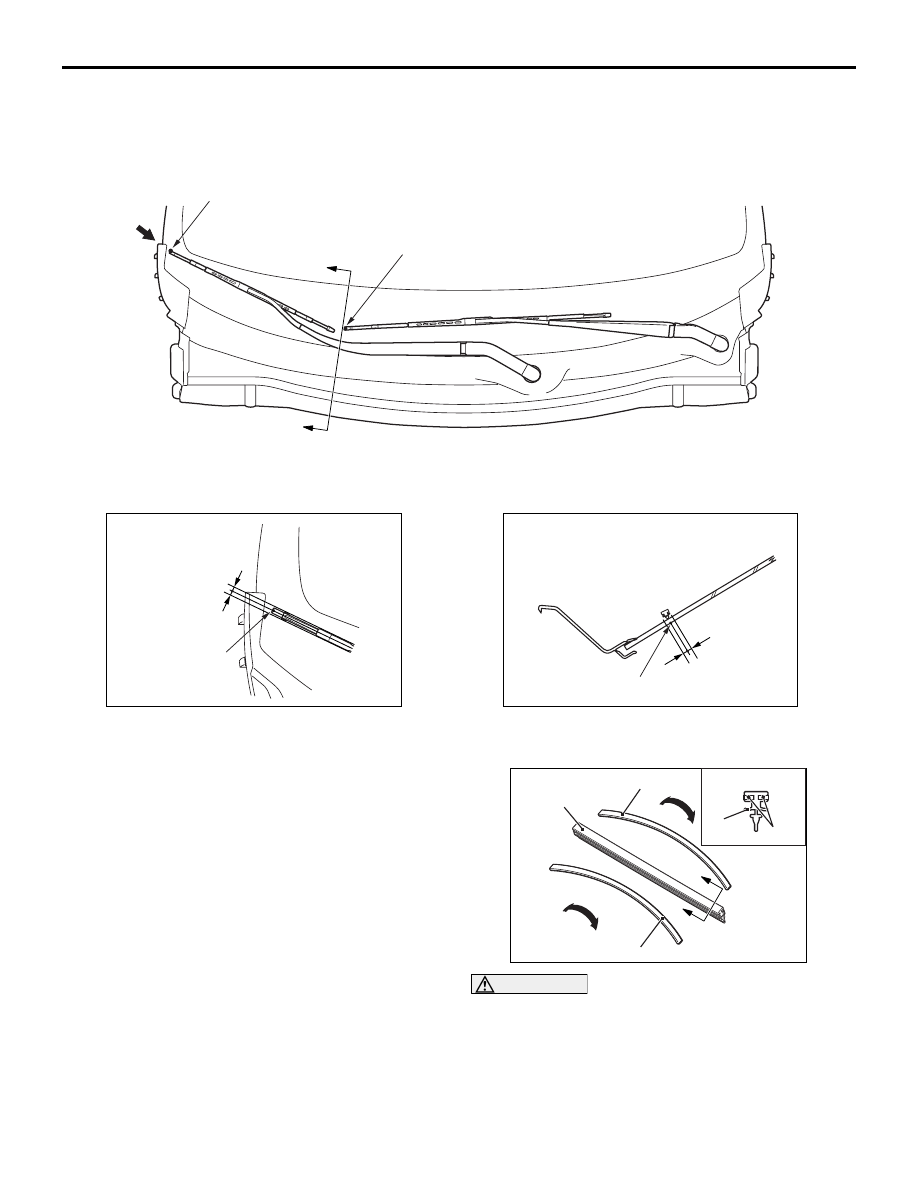

ACB05628AB

Ø2 marking

B

B

Ø2 marking

A

ACB05630

ACB05629

ACC00474AB

Ø2 marking

5

Section B – B

Unit: mm

5

View A

Ø2 marking

5

5

Unit: mm

Install the wiper arm and blade assembly at the
specified positions.

Standard value
(A):

φ 2 marking ± 5 mm

>>C<< WIPER BLADE INSTALLATION

AC101090

AE

A

A

Wiper blade

Backing

Backing

Section A – A

Wiper
blade

Backing

CAUTION

Use a curved backing like that shown for the
backing of a wiper blade to ensure sustained
wiper wiping performance.

WINDSHIELD WIPER AND WASHER

EXTERIOR

51-42

INSPECTION

M1511019103674

 WINDSHIELD WIPER MOTOR CHECK

4

5

3

1 2

4

5

3

1 2

ACC00156

4

5

3

1 2

AB

Operation check

Low speed

High speed

Remove the windshield wiper motor and inspect it at
the harness connector.

WINDSHIELD WIPER MOTOR AT LOW OR
HIGH SPEED OPERATION

Connect the battery to the windshield wiper motor to
inspect the operation of motor rotation at low or high
speed.

4

5

3

1 2

4

5

3

1 2

ACC00156

4

5

3

1 2

AC

(B) Automatic stop

(A) Low speed

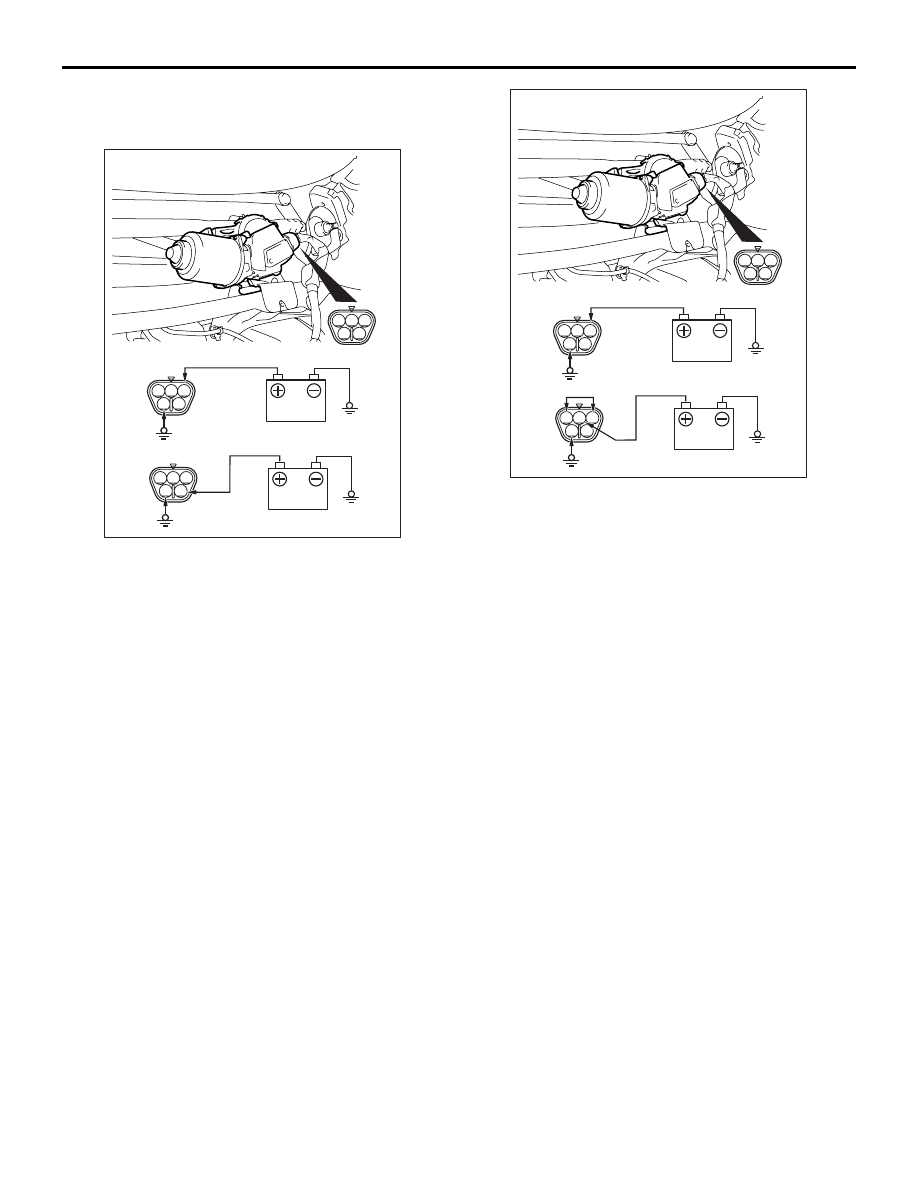

Stop position check

WINDSHIELD WIPER MOTOR AT STOP
POSITION OPERATION

1. Connect the battery to the windshield wiper motor

as shown in the illustration (A).

2. Run the windshield wiper motor at low speed,

then disconnect the battery in the middle of the
motor rotation and check to see that the motor
stops.

3. Connect the battery to the windshield wiper motor

as shown in the illustration (B).

4. Connect the terminals of the windshield wiper

motor connector as shown in the illustration (B).

5. Check to see that the windshield wiper motor runs

at low speed and then stops at the automatic stop
position.

WINDSHIELD WIPER SWITCH CHECK

Check the windshield wiper switch (mist, intermittent,
low speed and high speed) from the ETACS diagno-
sis codes for proper operations(Refer to GROUP
54A, ETACS ).
