36-1

GROUP 36

PARKING BRAKES

CONTENTS

SERVICE SPECIFICATIONS. . . . . . .

36-2

ON-VEHICLE SERVICE. . . . . . . . . . .

36-2

PARKING BRAKE LEVER STROKE CHECK AND
ADJUSTMENT  . . . . . . . . . . . . . . . . . . . . . .

36-2

PARKING BRAKE SWITCH CHECK  . . . . .

36-2

PARKING BRAKE LINING SEATING PROCEDURE



. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

36-3

PARKING BRAKE LEVER . . . . . . . . .

36-4

REMOVAL AND INSTALLATION  . . . . . . . .

36-4

PARKING BRAKE CABLE. . . . . . . . .

36-5

REMOVAL AND INSTALLATION  . . . . . . . .

36-5

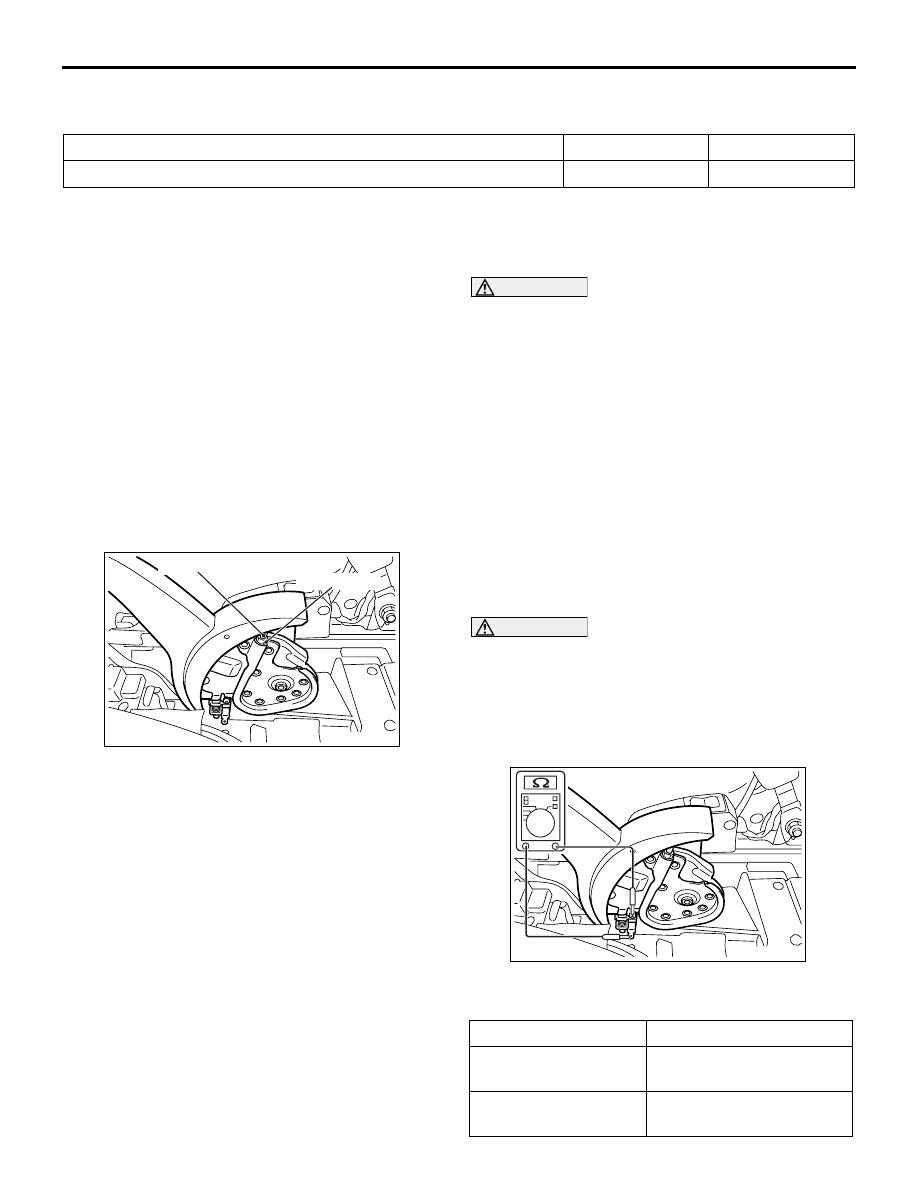

SERVICE SPECIFICATIONS

PARKING BRAKES

36-2

SERVICE SPECIFICATIONS

M1361000301385

Item

Standard value

Limit

Parking brake lever stroke (Control force approximately 200 N)

6

− 7 notches

−

ON-VEHICLE SERVICE

PARKING BRAKE LEVER STROKE
CHECK AND ADJUSTMENT

M1361000901224

STROKE CHECK (CONTROL FORCE
APPROXIMATELY 200 N)

Standard value: 6

− 7 notches

STROKE ADJUSTMENT

If the parking brake lever stroke is out of the standard
range, adjust as described below:
1. Remove the rear floor console front panel

assembly (Refer to GROUP 52A

− Rear Floor

Console Assembly ).

AC505182

AB

Adjusting nut

Cable rod

2. Loosen the adjusting nut to the end of the cable

rod in order to allow slack in the cables.

3. Check that the parking brake lever on the caliper

side is touching the parking brake lever bracket.

NOTE: If the parking brake lever is not touching
the parking brake lever bracket, the parking brake
cable might be stuck or routed incorrectly, or there
might be a problem with the automatic adjustment
mechanism inside the rear brake calipers. There-
fore, it is necessary to check the parking brake
cable and to disassemble and inspect the rear
brake calipers.

4. Depress the brake pedal repeatedly until the

brake pedal has no change in its stroke.

NOTE: Depressing the brake pedal repeatedly
adjusts pad clearance correctly.

CAUTION

Be careful that the parking brake lever notch
number should be within the standard range. If
the notch number is too low, rear brake dragging
can be caused.

5. Adjust the parking brake lever stroke to the

standard value by turning the adjusting nut. After
adjustment, check that there is no free play
between the adjusting nut and the parking brake
lever.

6. After the parking brake lever stroke is adjusted,

raise the rear of the vehicle. Release the parking
brake, and turn the rear wheels to confirm that the
rear brakes are not dragging.

PARKING BRAKE SWITCH CHECK

M1361003301209

CAUTION

Do not apply grease or lubricant to the switch
and the switch installation section to avoid mal-
function of the switch. In addition, do not use
gloves which have grease on them.
1. Remove the rear floor console assembly (Refer to

GROUP 52A

− Rear Floor Console ).

AC505182

AC

2. Check the continuity between the parking brake

switch terminal and the switch mounting bolt.

Check condition

Normal condition

When parking brake
lever is pulled.

Continuity exists



(2

Ω or less)

When parking brake
lever is released.

No continuity

ON-VEHICLE SERVICE

PARKING BRAKES

36-3

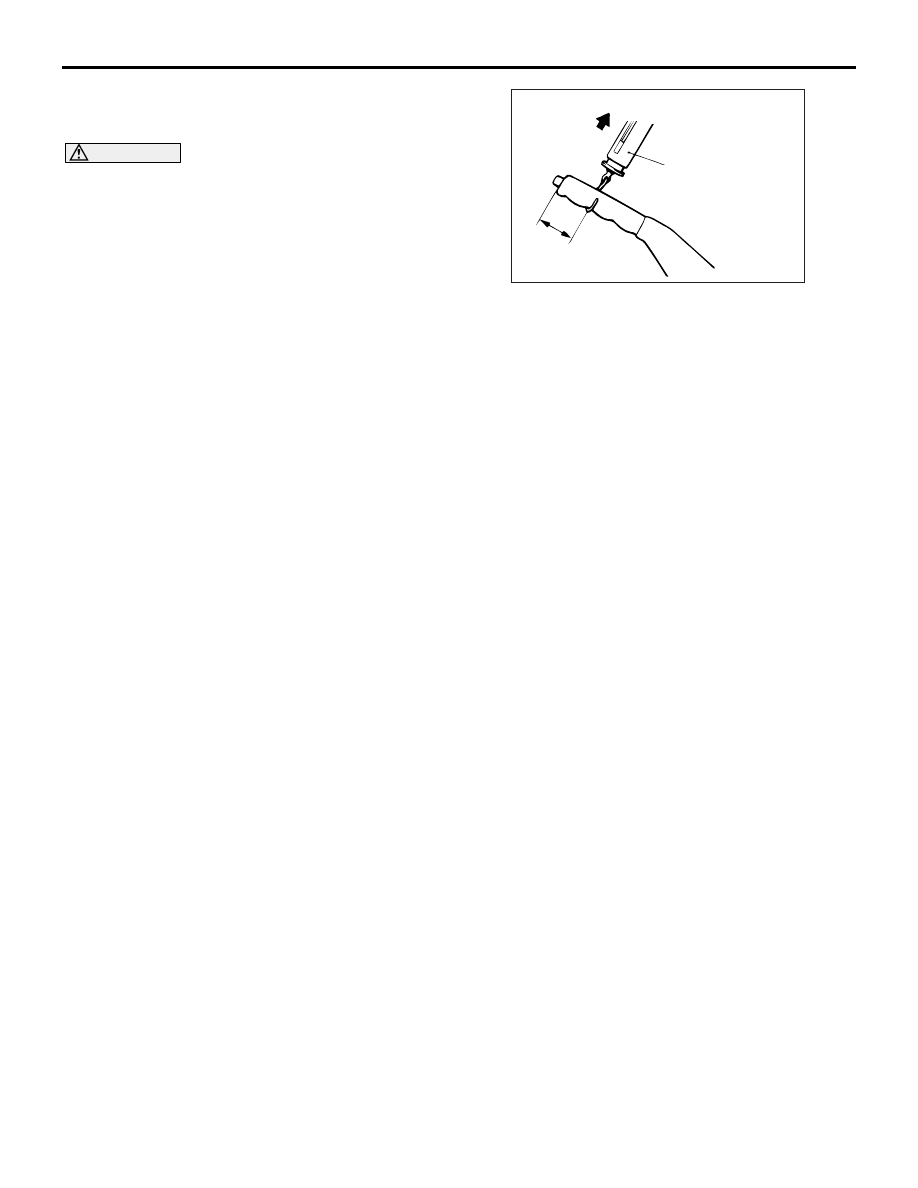

PARKING BRAKE LINING SEATING
PROCEDURE

M1361005100059

CAUTION

Perform lining seating in a place with good visi-
bility, and pay special attention to safety.
Perform lining seating by the following procedure
when replacing the parking brake shoe assemblies
or the rear brake discs, or when brake performance
is insufficient.
1. Adjust the parking brake lever stroke to the

standard value (Refer to

P.36-2

).

ACX00701AF

Approximately
40 mm

Spring balance

Pull

2. Hook a spring balance onto the centre of the

parking brake lever grip and pull it with a force of
98

− 147 N in a direction perpendicular to the

handle.

3. Drive the vehicle at a constant speed of 35

− 50

km/h for 100 meters.

4. Release the parking brake and let the brakes cool

for five to ten minutes.

5. Repeat the procedure in steps 2. to 4. four to five

times.

PARKING BRAKE LEVER

PARKING BRAKES

36-4

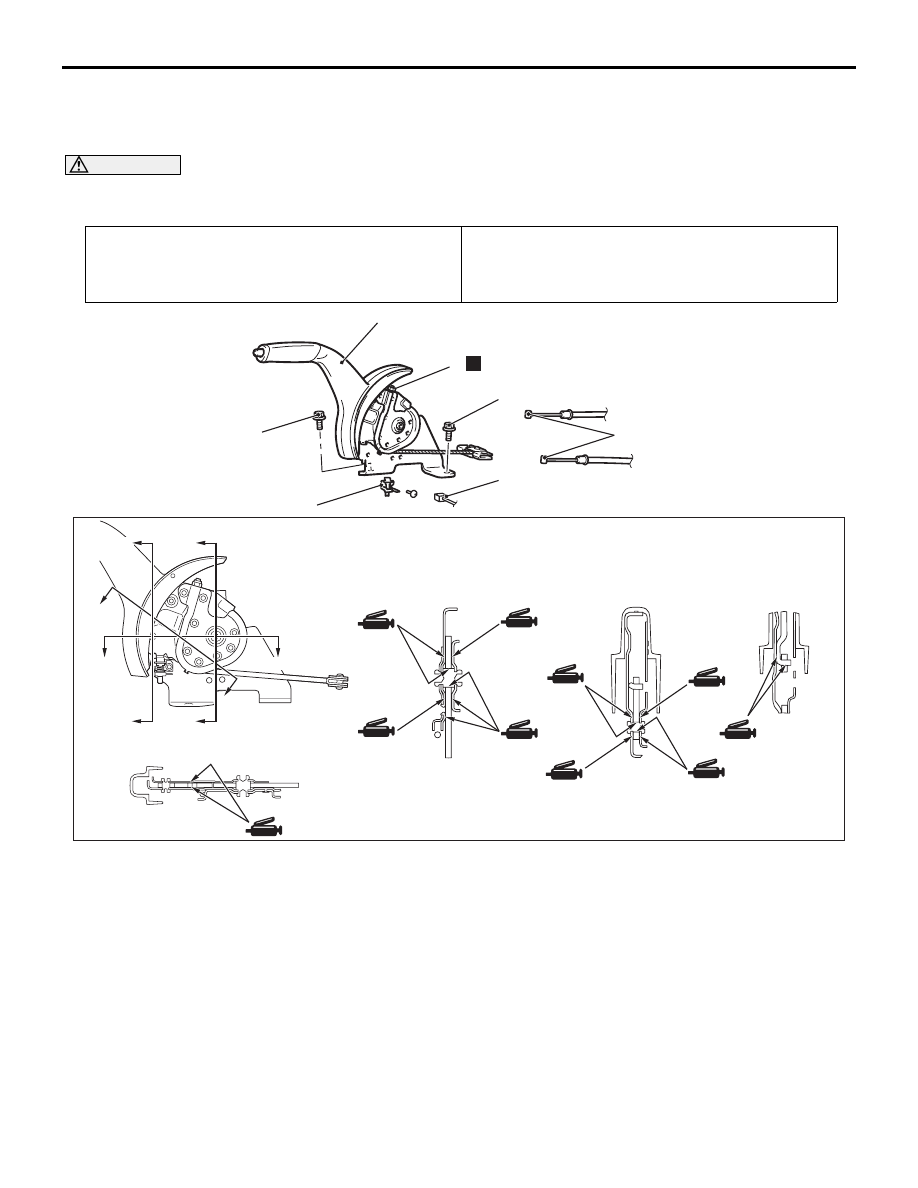

PARKING BRAKE LEVER

REMOVAL AND INSTALLATION

M1361001300921

CAUTION

Do not apply grease or lubricant to the switch and the switch installation section to avoid malfunction
of the switch. In addition, do not use gloves which have grease on them.

Pre-removal operation
Rear Floor Console Assembly Removal (Refer to GROUP
52A

− Rear Floor Console ).

Post-installation operation
• Parking Brake Lever Stroke Check (Refer to

P.36-2

).

• Rear Floor Console Assembly Installation (Refer to

GROUP 52A

− Rear Floor Console ).

AC506641

AC704918AC

Section  A – A

Section  B – B

Section  C – C

Section  D – D

A

A

B

B

C

C

D

D

1

2

3

4

20 ± 5 N·m

20 ± 5 N·m

5

N

Removal steps

•

Release the parking brake lever.

•

Loosen the adjusting nut.

1.

Parking brake switch connector
connection

2.

Parking brake rear cable assembly
connection

3.

Parking brake lever assembly

4.

Parking brake switch

5.

Adjusting nut

Removal steps (Continued)
