ASC OFF SWITCH

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-95

ASC OFF SWITCH

REMOVAL AND INSTALLATION

M1355020100314

ACB05025AB

2

1

NOTE:
          :Clip positions

Removal steps

1.

Side air outlet

•

ASC OFF switch connector
connection

5.

ASC OFF switch

INSPECTION

M1355020200270

ASC OFF SWITCH CONTINUITY CHECK

ACB05911

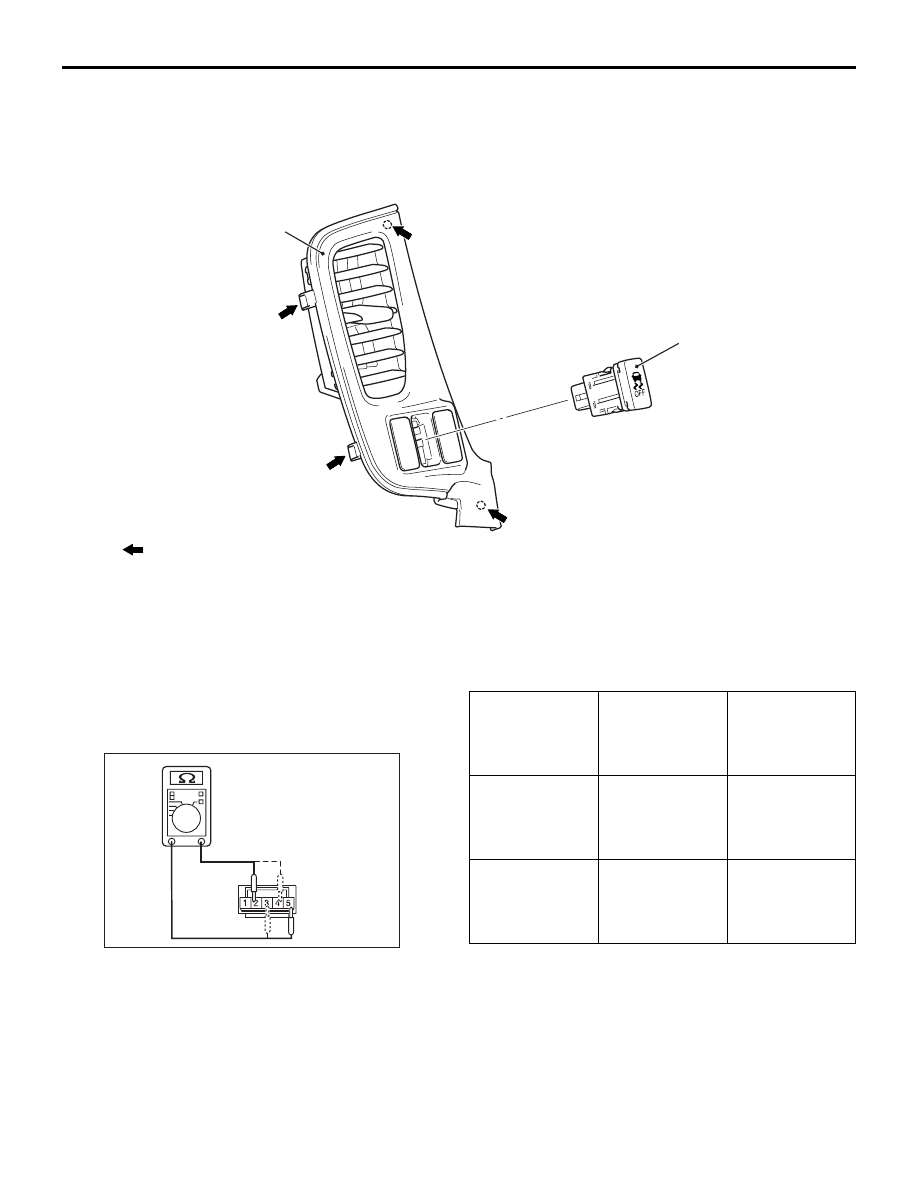

1. As shown in the figure, connect the circuit tester

to the ASC OFF switch as a single unit.

2. Check the continuity status when the ASC OFF

switch is pressed and when the switch is
released.

Item

When the ASC
OFF switch is
released (Not
being operated)

When the ASC
OFF switch is
pressed

Continuity
between
terminal No. 2
and No. 5

No continuity

Continuity exists
(2

Ω or less)

Continuity
between
terminal No. 3
and No. 4

Continuity exists Continuity exists

HYDRAULIC UNIT

REMOVAL AND INSTALLATION

M1355005600903

NOTE: ASC-ECU is located in the hydraulic unit.

HYDRAULIC UNIT

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-96

CAUTION

When the hydraulic unit (integrated with ASC-ECU) is replaced, after turning the ignition switch ON or
OFF (vehicle information from ETACS-ECU is registered), always carry out the calibration of all sen-
sors (steering wheel sensor, G and yaw rate sensor, and brake fluid pressure sensor) at one time.(
Refer to

P.35C-93

.)

Pre-removal operation
• Brake fluid draining.

Post-installation operation
• Brake fluid refilling and air bleeding (Refer to GROUP 35A

− On-vehicle Service, Bleeding ).

• Hydraulic unit check (Refer to

P.35C-90

).

ACB06014 AB

16 ± 3 N·m

5

5

5

5

2

6

1

24 ± 4 N·m

13 ± 2 N·m

3

4

5

7

11

10 ± 2 N·m

9

10

8

Removal steps

1.

ASC-ECU harness connector

2.

Suction pipe installation bolt

3.

Wheel speed sensor harness
connector connection

4.

Wheel speed sensor harness clip
connection

>>

A

<<

5.

Brake tube connection

6.

Brake tube and clip connection

7.

Suction pipe, liquid pipe and clip
connection

8.

Hydraulic unit (ASC-ECU) and
hydraulic unit bracket

<<

B

>>

9.

Hydraulic unit (ASC-ECU)

10. Hydraulic unit bracket insulator
11. Hydraulic unit bracket B

REMOVAL SERVICE POINTS

<<A>> ASC-ECU HARNESS CONNECTOR
DISCONNECTION

ACB04918

AB

Lock lever

Operate the lock lever to disconnect the ASC-ECU
harness connector as shown in the figure.

WHEEL SPEED SENSOR

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-97

<<B>> HYDRAULIC UNIT (ASC-ECU)
REMOVAL

CAUTION

• Be careful when removing the hydraulic unit

because it is heavy.

• Never loosen the nuts and the bolts because

the hydraulic unit cannot be disassembled.

• Do not drop or shock the hydraulic unit.
• Do not turn the hydraulic unit upside down or

lay down the unit because the inner air
becomes difficult to be bled.

INSTALLATION SERVICE POINT

>>A<< BRAKE TUBE CONNECTION

ACB05953

AB

2

1

4

5

6

3

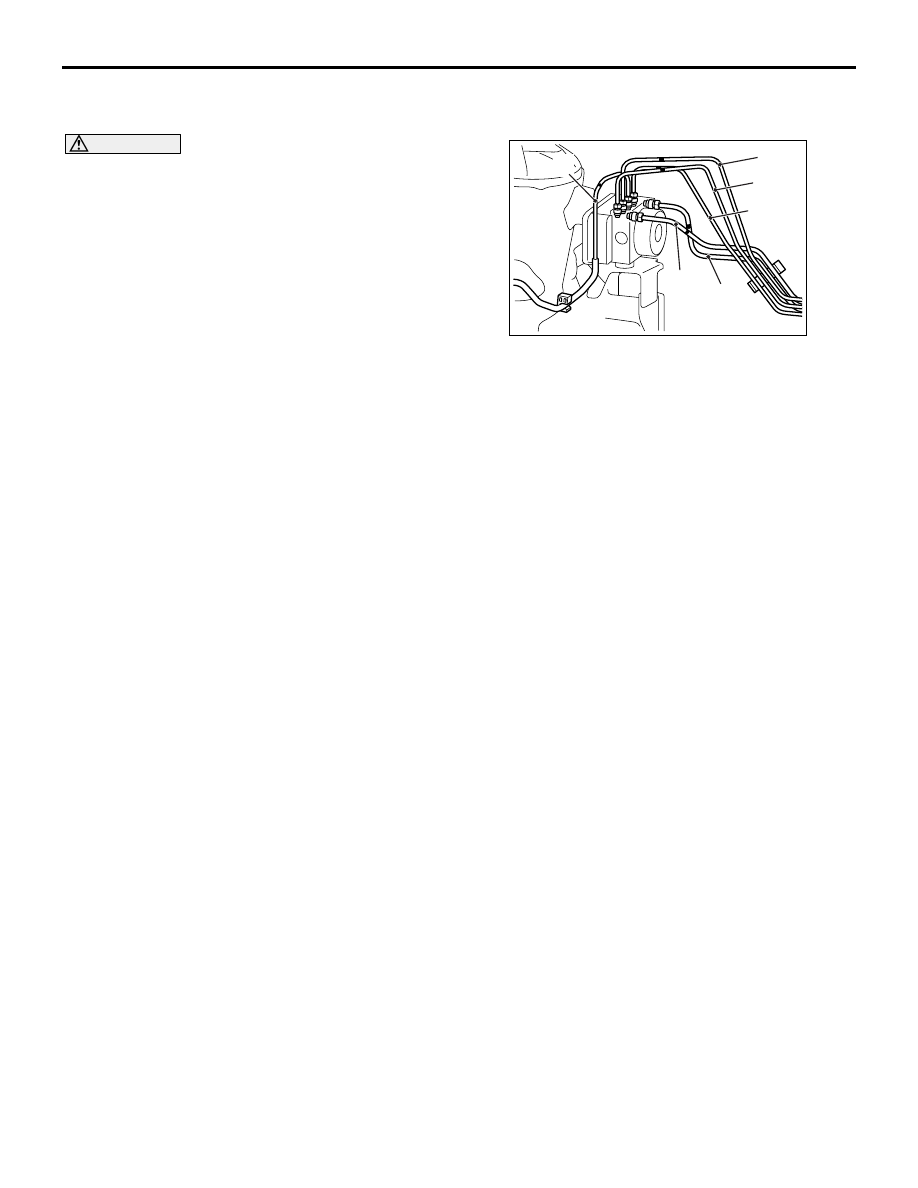

Install the brake pipe to the hydraulic unit as shown
in the figure.

1. From master cylinder (primary) <Marking colour:

Blue>

2. From master cylinder (secondary) <Marking col-

our: Yellow>

3. To front brake (RH)

<Marking colour: Orange>

4. To front brake (LH)

<Marking colour: Red>

5. To rear brake (LH) <Marking colour: Pink>
6. To rear brake (RH) <Marking colour: White>

WHEEL SPEED SENSOR

REMOVAL AND INSTALLATION <FRONT>

M1355005300593

Refer to GROUP 35B, Wheel speed sensor removal
and installation <FRONT> .

REMOVAL AND INSTALLATION <REAR>

M1355005300601

Refer to GROUP 35B, Wheel speed sensor removal
and installation <REAR> .

INSPECTION

M1352008400761

Refer to GROUP 35B, Wheel speed sensor inspec-
tion .

STEERING WHEEL SENSOR

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-98

STEERING WHEEL SENSOR

REMOVAL AND INSTALLATION

M1355005100726

CAUTION

• Be sure to remove the clock spring from the column switch and centre the clock spring to prevent

the damage of steering wheel sensor.

• If the centre of the clock spring is not correctly aligned, the steering wheel may not be turned fully

or the cable inside the clock spring may be broken, causing the SRS air bag to be inoperative or
operated incorrectly.

• Before removing the steering wheel/air bag module assembly, refer to GROUP 52B − Service Pre-

cautions  and Air Bag Module Clock Spring .

• When the steering wheel sensor is replaced or installed, always carry out calibration to make

ASC-ECU learn the neutral point (Refer to

P.35C-94

).

• After adjusting the wheel alignment, always carry out calibration of the steering wheel sensor to

make ASC-ECU learn the neutral point. (Refer to

P.35C-94

.)

Pre-removal operation
• Position the front wheels in a straight ahead direction.

Post-installation operation
• Perform steering wheel sensor calibration (Refer to

P.35C-94

).

ACA00066

AB

2

1

NOTE
         : Claw positions

1

Removal steps

1. Clock spring (Refer to GROUP

52B

− Driver’s Air Bag Module

and Clock Spring ).

<<

A

>>

>>

A

<<

2. Steering wheel sensor

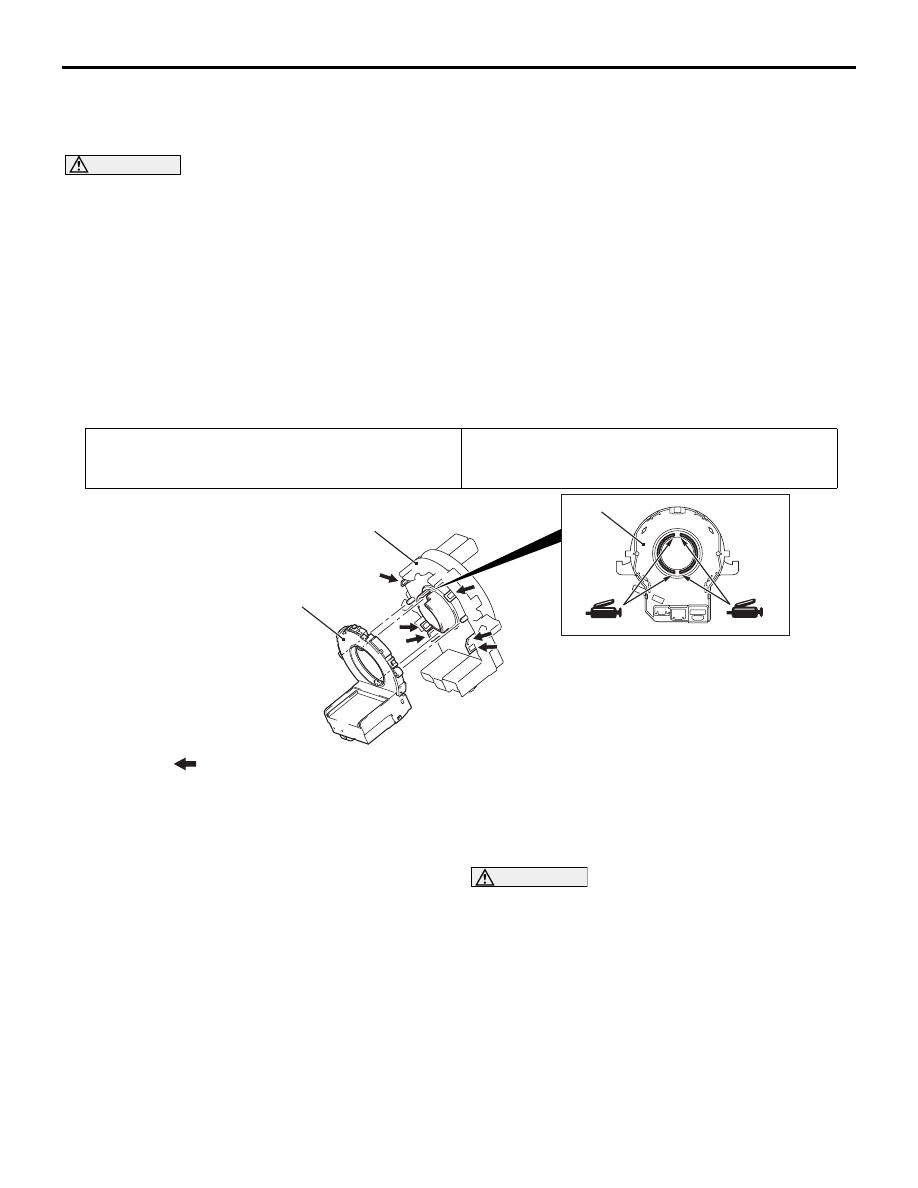

REMOVAL SERVICE POINT

<<A>> STEERING WHEEL SENSOR
REMOVAL

Disengage the claws of the clock spring one by one
in a clockwise or anti-clockwise direction. Remove
the steering wheel sensor from the clock spring.

INSTALLATION SERVICE POINT

>>A<< STEERING WHEEL SENSOR
INSTALLATION

CAUTION

Install the steering wheel sensor with its rotat-

ing part removed. If the rotating part is rotated
360

°, a failure occurs in calibration and ASC sys-

tem.
Insert the protrusion of the clock spring into the hole
of the steering wheel sensor. Securely fit the protru-
sion of the steering wheel sensor into the groove of
the clock spring to install the steering sensor.

NOTE: A new steering wheel sensor has a pin for
preventing the rotation of (fixing) the steering wheel
sensor. After installing the column switch assembly,
remove this pin.
