35C-3

STEERING WHEEL SENSOR . . . . . .

35C-98

REMOVAL AND INSTALLATION  . . . . . . . .

35C-98

SERVICE SPECIFICATIONS

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-4

SERVICE SPECIFICATIONS

M1355008200089

Item

Standard value

Wheel speed sensor current  mA

5.9

− 8.4 or 11.8 − 16.8

Wheel speed sensor insulation resistance  M

5 or more

SPECIAL TOOL

M1355005800372

Tool

Number

Name

Use

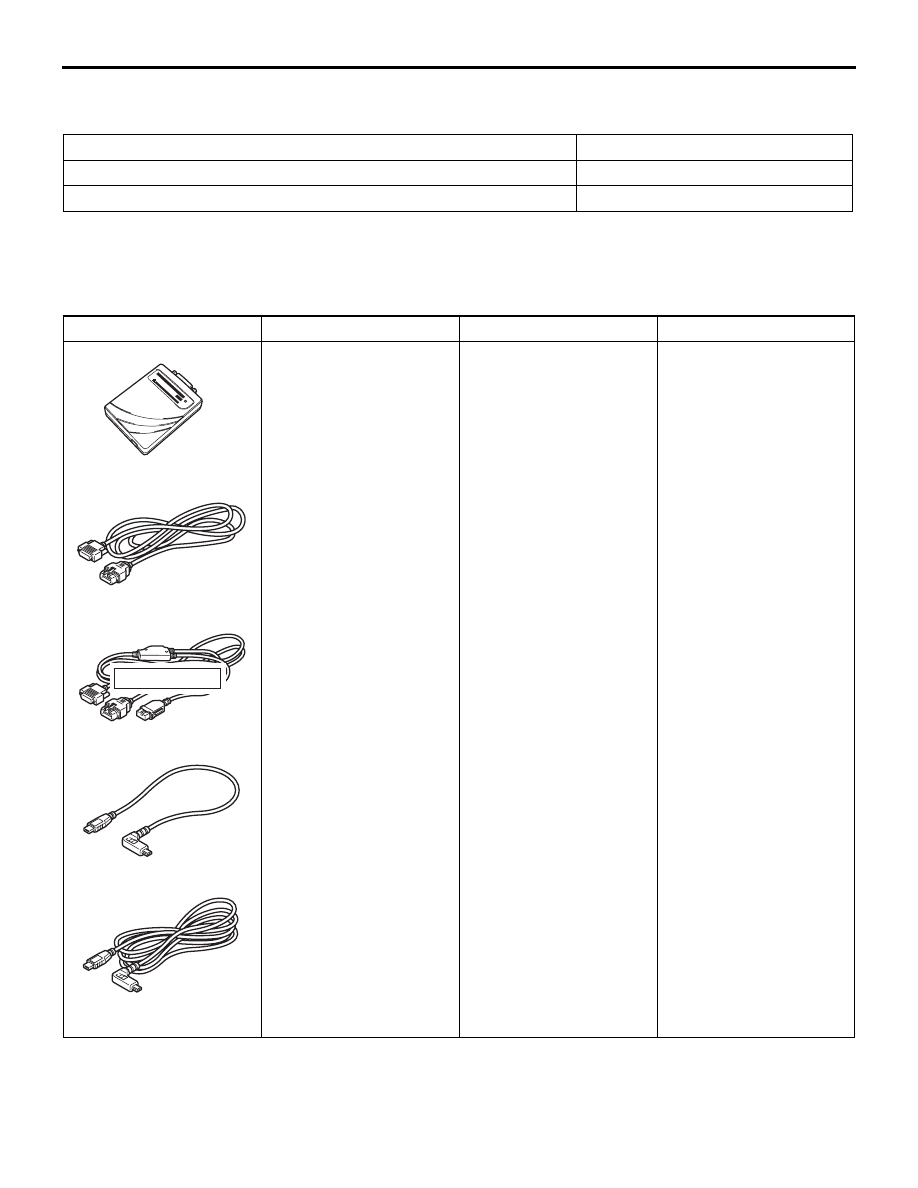

ACB05421

MB992745

MB992746

MB992744

MB992747

MB992748

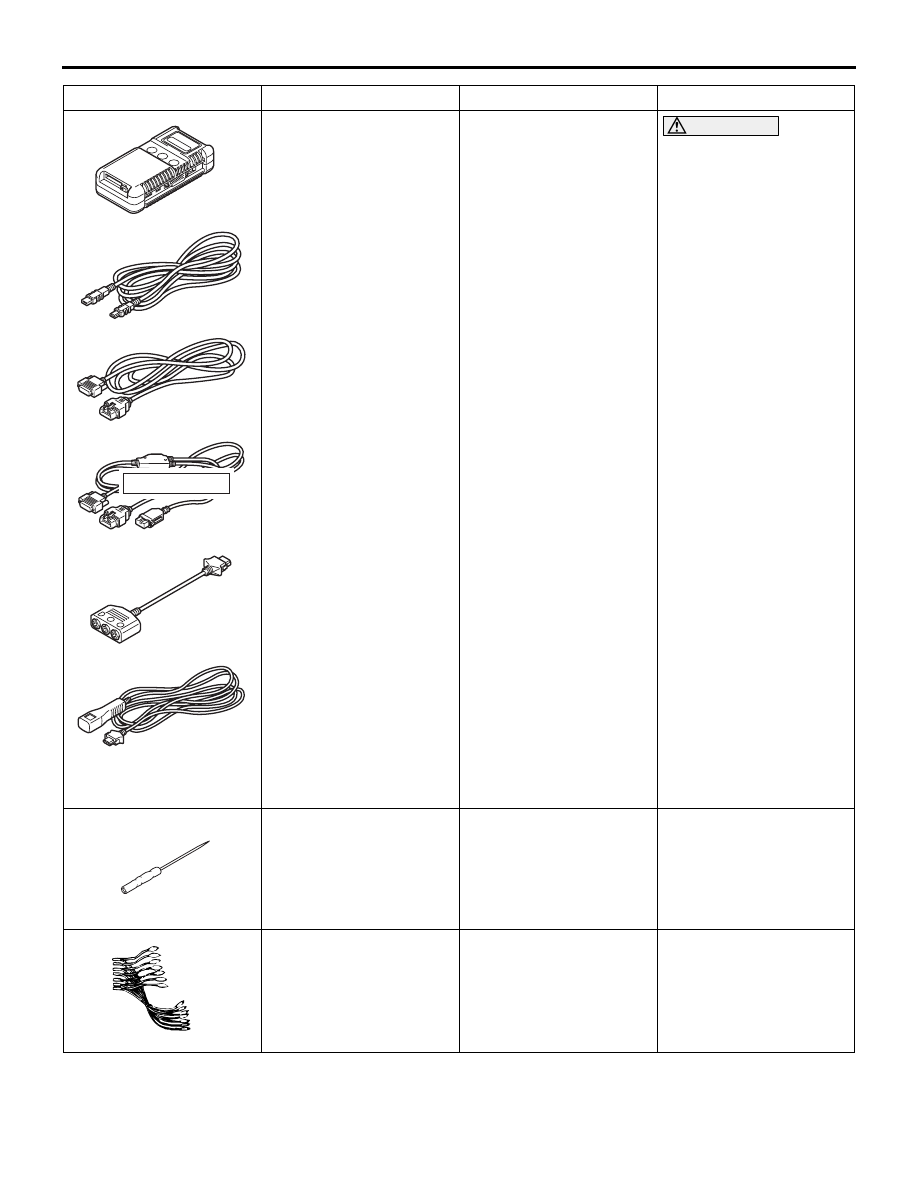

a

b

c

d

e

DO NOT USE

AB

a. MB992744
b. MB992745
c. MB992746
d. MB992747
e. MB992748

a. Vehicle

communication
interface-Lite
(V.C.I.-Lite)

b. V.C.I.-Lite main

harness A (for vehicles
with CAN
communication)

c. V.C.I.-Lite main

harness B (for vehicles
without CAN
communication)

d. V.C.I.-Lite USB cable

short

e. V.C.I.-Lite USB cable

long

ASC check (Diagnosis
code display, data list
display and calibration by
M.U.T.-III)

MB991910

MB991826

MB991955

MB991911

MB991824

MB991827

MB991825

a

b

c

d

e

f

DO NOT USE

SPECIAL TOOL

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-5

MB991955

a. MB991824
b. MB991827
c. MB991910
d. MB991911
e. MB991825
f. MB991826

M.U.T.-III sub-assembly

a. Vehicle

Communication
Interface (V.C.I.)

b. M.U.T.-III USB cable
c. M.U.T.-III main

harness A (Vehicles
with CAN
communication
system)

d. M.U.T.-III main

harness B (Vehicles
without CAN
communication
system)

e. M.U.T.-III

measurement adapter

f. M.U.T.-III trigger

harness

CAUTION

For vehicles with CAN
communication, use
M.U.T.-III main harness
A to send the simulated
vehicle speed. If you
connect M.U.T.-III main
harness B instead, CAN
communication does
not function correctly.
ASC check (Diagnosis
code display, data list
display and calibration by
M.U.T.-III)

MB992006

MB992006

Extra fine probe

Continuity check and
voltage measurement at
wiring harness or
connector

MB991709

Wiring harness set

Checking the ASC-ECU
and output current
measure at the wheel
speed sensor

Tool

Number

Name

Use

TROUBLESHOOTING

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-6

TROUBLESHOOTING

DIAGNOSIS TROUBLESHOOTING FLOW

M1355000900114

Refer to GROUP 00

− How to Use Troubleshoot-

ing/Inspection Service Points .

PRECAUTIONS FOR DIAGNOSIS

M1355009500102

1. ASC controls brake pressure by the assistance of

ECU. The symptoms described in the chart below
may occur during the normal ASC operation, and
they do not indicate any sign of malfunction.

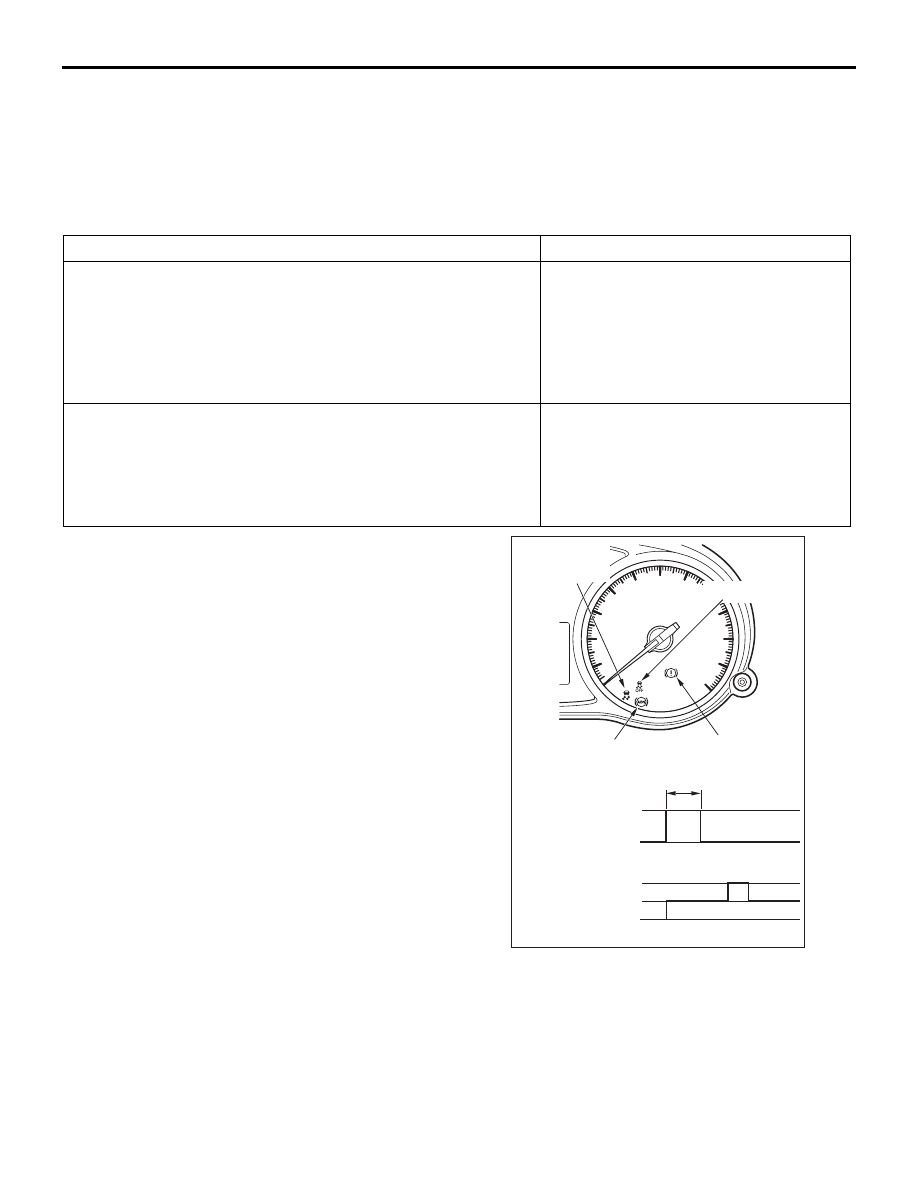

Symptoms

Description of symptoms

• When the ASC operates, the operating noise is generated

from the motor. (Squeak noise)

• Noise is generated from the brake pedal together with the

vibration. (Gride noise)

• When ABS operates, the system repeats the activation and

deactivation. At this time, the noise is generated from the
chassis components. (Clonk: Suspension, Squeaky: Tyres)

These noises are generated when the
system and brake pedal operate
normally, and they do not indicate any
sign of malfunction.

• A slight shock may be felt when depressing the brake pedal

lightly during the low speed driving.

• Small clicking noise may be heard from the engine

compartment.

This noise is generated when the system
operation check (startup check
performed at the vehicle speed which is a
few km/h higher than the predetermined
vehicle speed) is performed, and it does
not indicate malfunction.

2. On the snowy or gravelled roads, a vehicle with

ABS would have longer braking distance
compared to the one without ABS. Considering
this characteristics, advise the customer to drive
the vehicle safely at lower speed and not to put
too much confidence in the ABS system when
driving on the above-mentioned roads.

3. The diagnosis code detection condition depends

on each diagnosis code. When the trouble
symptoms are rechecked, conditions described in
the description for the diagnosis code procedures
should be met.

ABS WARNING LAMP, ASC
WARNING/OPERATION LAMP AND
BRAKE WARNING LAMP CHECK

M1352012001327

Check that ABS and brake warning lamps, ASC
warning/operation lamp illuminate as follows.

NOTE: The brake warning lamp is used as a warning
lamp for parking brake, brake fluid level, and EBD
control.

ACC00034AB

ABS warning lamp

ABS warning
lamp, Brake
warning lamp,
ASC warning/
operation lamp,
ASC OFF lamp

Ignition switch

Illuminated

Approximately 3s

ON

ACC,
LOCK

START

Brake warning lamp

Not
illuminated

ASC warning/
operation lamp

ASC OFF lamp

1. When the ignition switch is turned to the ON

position, ABS and brake warning lamps, ASC
warning/operation lamp, ASC OFF lamp
illuminate.

2. The ABS and brake warning lamps, ASC

warning/operation lamp, ASC OFF lamp

illuminate for three seconds

*1

 and then turn

OFF

*2

.
