WHEEL SPEED SENSOR

ANTI-SKID BRAKING SYSTEM (ABS)

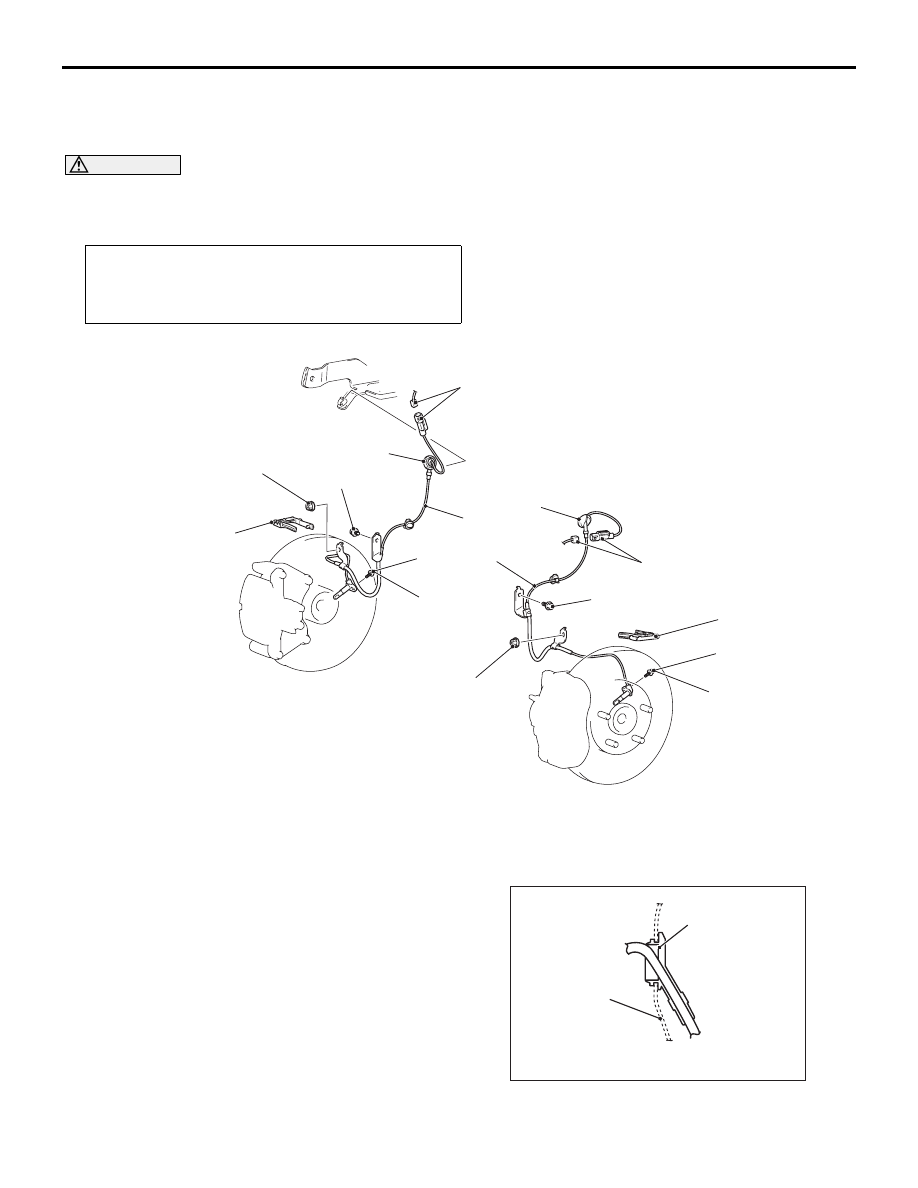

35B-63

WHEEL SPEED SENSOR

REMOVAL AND INSTALLATION <FRONT>

M1352008301659

CAUTION

The vehicle speed detection encoder collects any metallic particle easily, because it is magnetised.
Make sure that the encoder should not collect any metallic particle. Check that there is not any trou-
ble prior to reassembling it.

Pre-removal and post-installation operation
Air cleaner body assembly removal and installation <Refer to
GROUP 15

− Air Cleaner > <Front wheel speed sensor

(LH)>.

ACB05594

4

3

8.5 ± 1.5 N·m

11 ± 2 N·m

13 ± 2 N·m

11 ± 2 N·m

1

1

5

5

3

4

8.5 ± 1.5 N·m

2

13 ± 2 N·m

AB

2

Removal steps

1.

Bolt (front wheel speed sensor and
knuckle connection)

2.

Front wheel speed sensor
connector

>>

A

<<

3.

Front wheel speed sensor grommet

4.

Front wheel speed sensor

>>

B

<<

5.

Harness clip

NOTE: The vehicle speed detection encoder is inte-
grated with the front wheel bearing, which cannot be
disassembled.

INSTALLATION SERVICE POINTS

>>A<< FRONT WHEEL SPEED SENSOR
GROMMET INSTALLATION

AC900799

Front wheel speed
sensor grommet

Body panel

AB

Install the front wheel speed sensor grommet to the
body panel snugly as shown in the figure.

WHEEL SPEED SENSOR

ANTI-SKID BRAKING SYSTEM (ABS)

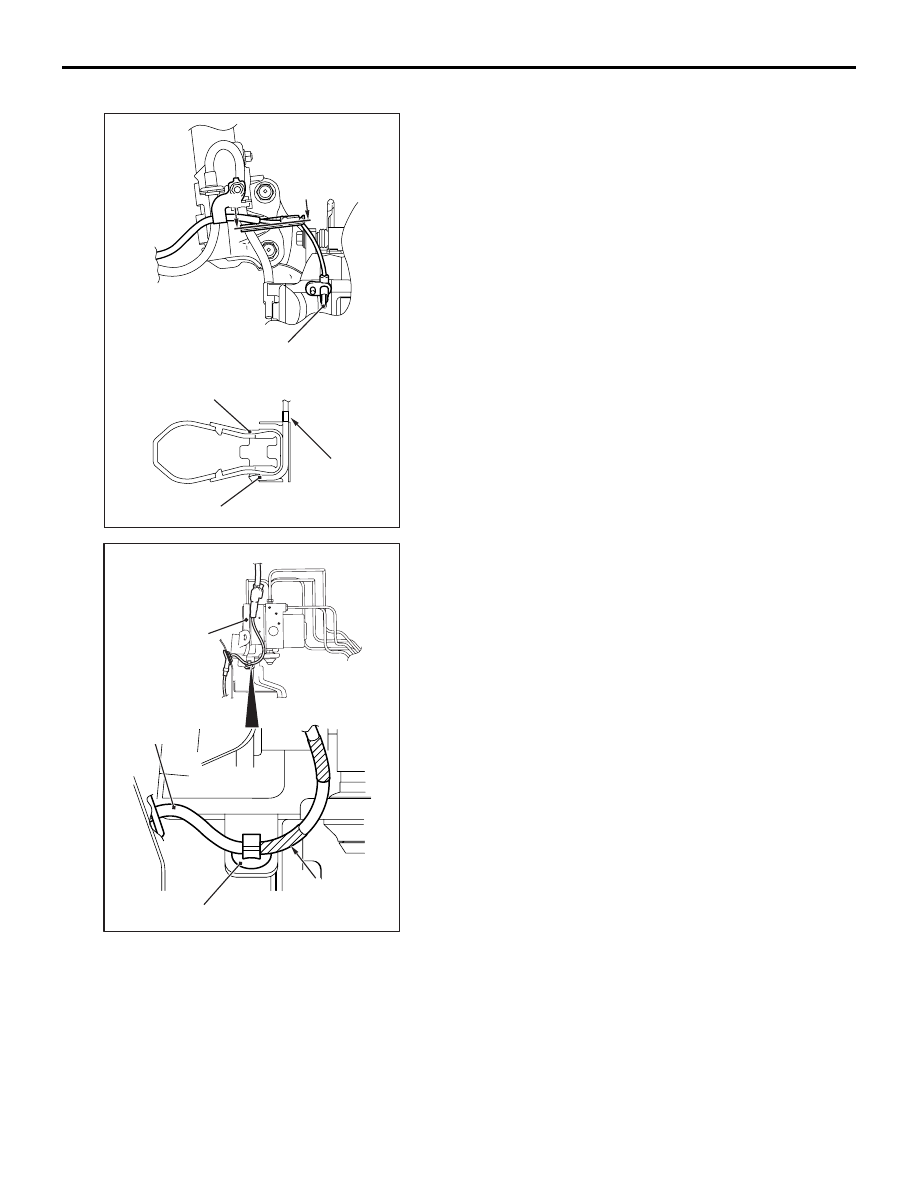

35B-64

>>B<< HARNESS CLIP INSTALLATION

AC608814AB

A

A

Wheel speed sensor

Marking

Harness clip

Wheel speed sensor harness

Section A - A

ACC00568 AB

Hydraulic unit
(integrated with
ABS-ECU)

Clip

Front wheel
speed sensor

Marking
(Color: White)

Install the front wheel speed sensor to the harness
clip as shown in the figure.

WHEEL SPEED SENSOR

ANTI-SKID BRAKING SYSTEM (ABS)

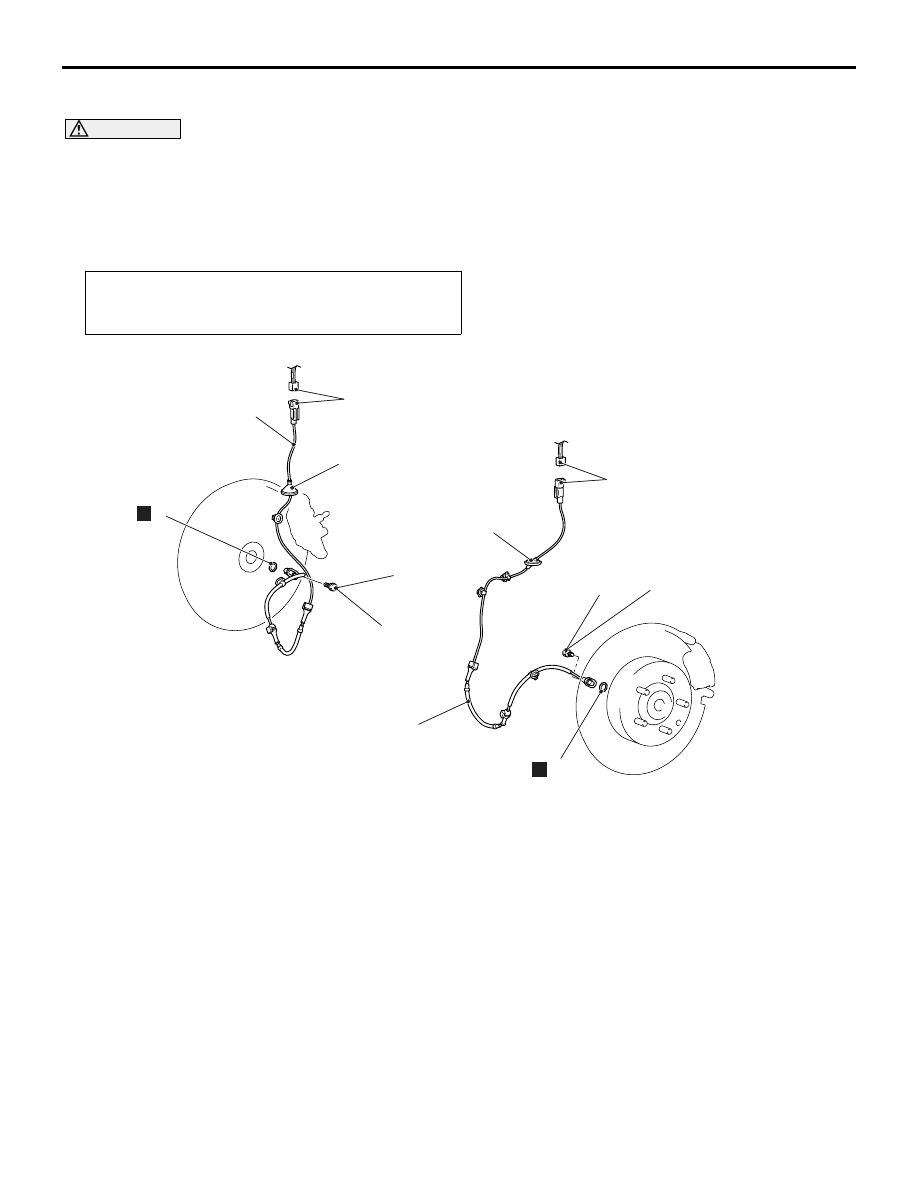

35B-65

REMOVAL AND INSTALLATION <REAR>

M1352008301660

CAUTION

The vehicle speed detection encoder collects any
metallic particle easily, because it is magnetized.
Make sure that the encoder should not collect
any metallic particle. Check that there is not any
trouble prior to reassembling it.

<2WD>

Pre-removal and post-installation operation
Quarter trim removal and installation (Refer to GROUP 52A
− Trim ).

ACB05519

3

4

5

1

2

N

8.5 ± 1.5 N·m

AB

1

3

4

5

2

N

8.5 ± 1.5 N·m

Removal steps

>>B<<

1.

Bolt (rear wheel speed sensor
and trailing arm assembly
connection)

>>B<<

2.

O ring

3.

Rear wheel speed sensor
connector

>>A<<

4.

Rear wheel speed sensor
grommet

>>B<<

5.

Rear wheel speed sensor

NOTE: The vehicle speed detection encoder is inte-
grated with the rear hub assembly, which cannot be
disassembled.

Removal steps (Continued)

WHEEL SPEED SENSOR

ANTI-SKID BRAKING SYSTEM (ABS)

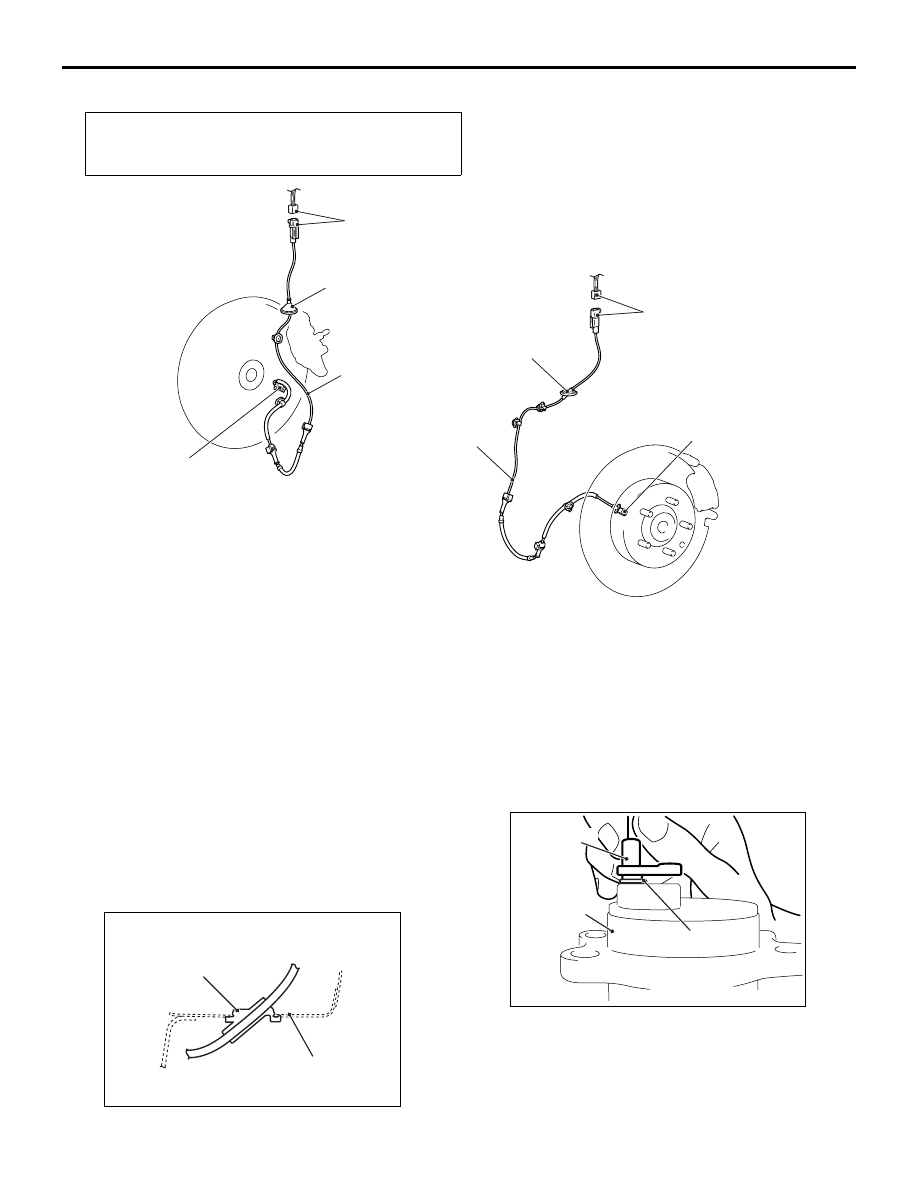

35B-66

<4WD>

Pre-removal and post-installation operation
Quarter trim removal and installation (Refer to GROUP 52A
− Trim ).

ACB05520

3

3

1

4

1

2

2

4

AB

Removal steps

>>C<<

1.

Rear wheel speed sensor and
trailing arm assembly connection

>>

A

<<

2.

Rear wheel speed sensor grommet

3.

Rear wheel speed sensor
connector

4.

Rear wheel speed sensor

NOTE: The vehicle speed detection encoder is inte-
grated with the rear hub assembly, which cannot be
disassembled.

INSTALLATION SERVICE POINTS

>>A<< REAR WHEEL SPEED SENSOR
GROMMET INSTALLATION

AC900807AB

Body panel

Rear wheel speed
sensor grommet

Install the rear wheel speed sensor grommet to the
body panel snugly as shown in the figure.

>>B<< REAR WHEEL SPEED SENSOR,
O-RING, AND BOLT (CONNECTION OF
REAR WHEEL SPEED SENSOR WITH
REAR WHEEL HUB ASSEMBLY)
INSTALLATION

AC807126 AE

O ring

Rear wheel
hub assembly

Rear wheel
speed sensor

1. Align the mounting bolt hole position of rear wheel

speed sensor with the mounting bolt hole position
of rear wheel hub assembly.
