Mitsubishi Outlander (2013+). Manual - part 453

Item No.

Check item

Check condition

Normal condition

01

FL wheel speed sensor

Perform a test run of the vehicle. The speedometer display and

the M.U.T.-III display almost
agree with each other. (During
stop: approximately 0.7km/h)

02

FR wheel speed sensor

03

RL wheel speed sensor

04

RR wheel speed sensor

05

Power supply voltage

System voltage (10 to 18 V
ABS operable range)

07

Brake switch (input)

The brake pedal is released.

OFF

The brake pedal is depressed.

ON

09

G sensor

Vehicle stopped (level)

-0.11 to 0.11 G

Running

-1 to 1 G

14

Brake switch

The brake pedal is depressed.

ON

The brake pedal is released.

OFF

15

Emission test mode

When the emission mode is not
executed

OFF

When the emission mode is
executed

ON

86

Ignition switch

When the ABS system is not
activated

OFF

When the ABS system is
activated

ON

87

Ignition switch (input)

Ignition switch is "ON" position

ON

88

Vehicle speed

Perform a test run of the vehicle. The speedometer display and

the M.U.T.-III display almost
agree with each other.

91

Brake pressure sensor

Not used.

96

G sensor offset

Difference between the positions
of the ABS-ECU when the
vehicle is stationary and while
the vehicle is being driven

-0.2 to 0.2 G

105

Power supply voltage (input)

System voltage (10 to 18 V
ABS operable range)

138

ESS request

Not used.

TROUBLESHOOTING

ANTI-SKID BRAKING SYSTEM (ABS)

35B-55

• System shutdown by ECU

While ABS-ECU is disabled by the diagnostic
function, the M.U.T.-III displayed data is different
from the actual measurement.

ACTUATOR TEST REFERENCE TABLE

M1352011601274

Using M.U.T.-III, the following actuators can be forci-
bly operated:

TROUBLESHOOTING

ANTI-SKID BRAKING SYSTEM (ABS)

35B-56

NOTE:

.

•

ABS is operated by ABS-ECU.

•

When ABS-ECU is disabled due to the fail-safe
function, the actuator test cannot be performed.

•

The actuator test can be performed only when
the vehicle is stationary.

•

While the actuator test is performed, the ABS
warning lamp flashes at a rate of 2 Hz.

•

After the actuator test has been performed, the
brake warning lamp and ABS warning lamp illu-
minate until the ignition switch is turned to ON
again or the communication between M.U.T.-III
and ABS-ECU is terminated.

Actuator test specifications

Item No.

Check item

Driven component

01

FL wheel ABS drive

Solenoid valve for the corresponding
wheel of the hydraulic unit and pump
motor (simplified inspection mode)

02

FR wheel ABS drive

03

RL wheel ABS drive

04

RR wheel ABS drive

10

ESS test mode

Not used.

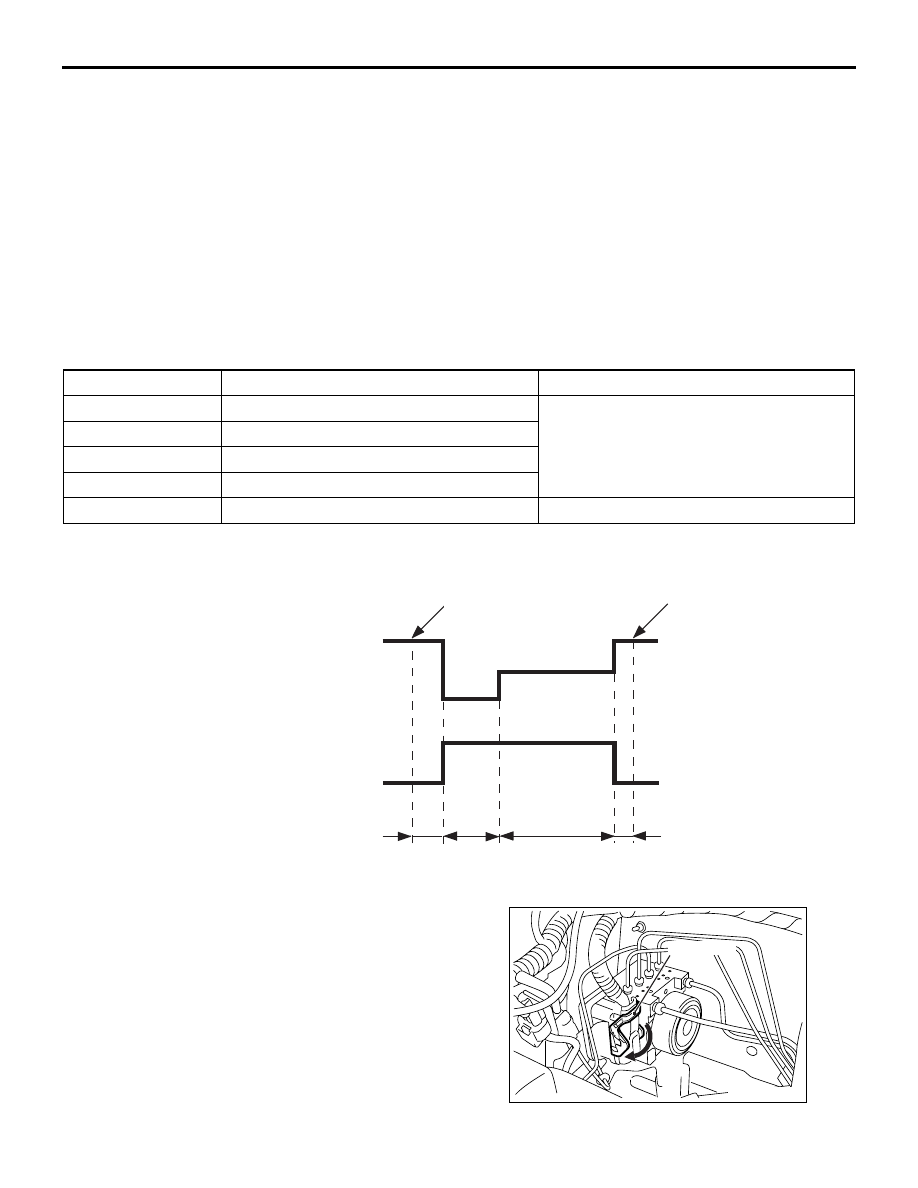

Operation pattern of items 01 to 04

1seconds

2 seconds

Approx. 0.05
seconds

Approx. 0.01
seconds

End

Increase in pressure

Steady pressure

Reduction in pressure

Drive

Stop

Solenoid valve

Pump motor

M.U.T.-III actuator test
(Item No.01, 02, 03, 04) start

AC606811

CHECK AT ECU TERMINALS

M1352011801494

TERMINAL VOLTAGE CHECK

ACB04918

AB

Lock lever

TROUBLESHOOTING

ANTI-SKID BRAKING SYSTEM (ABS)

35B-57

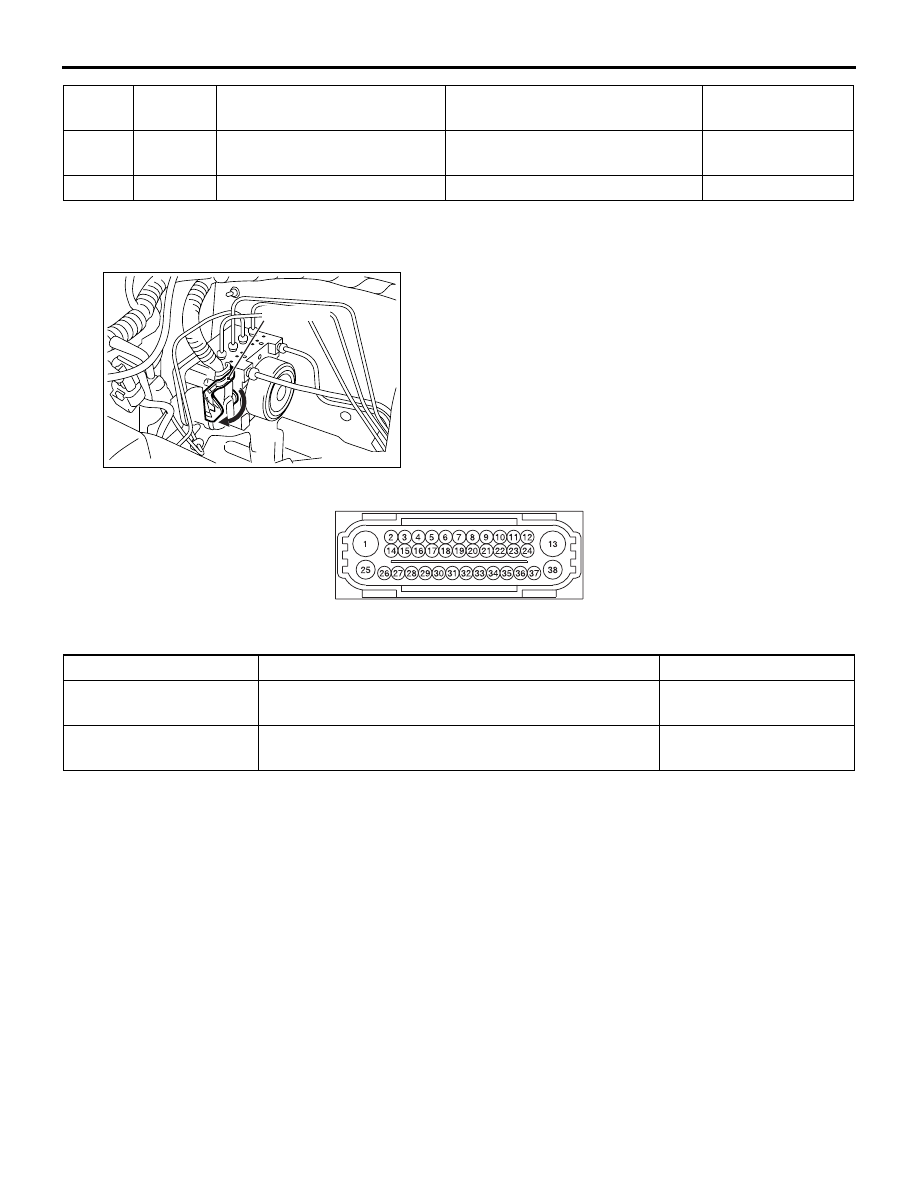

1. Operate the lock lever to disconnect the

ABS-ECU harness connector as shown in the
figure.

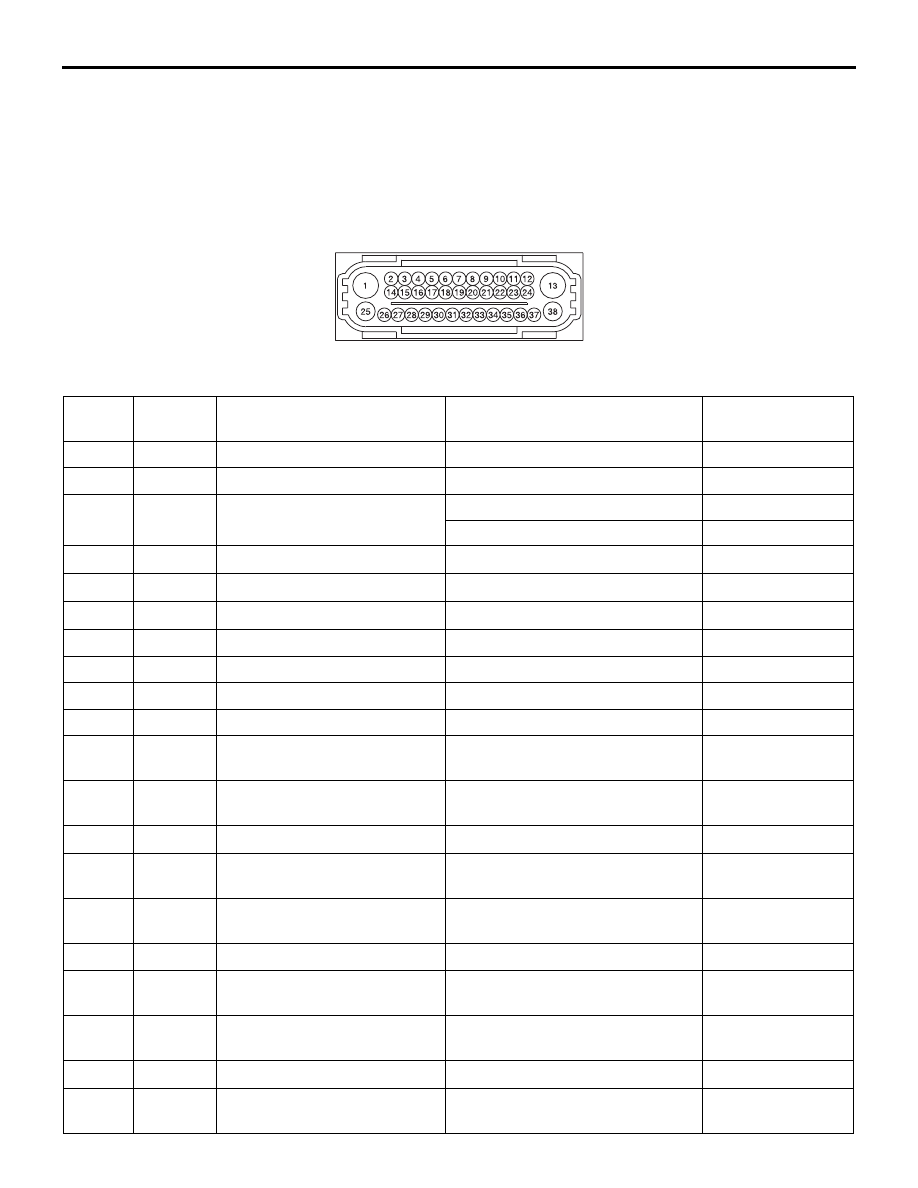

2. Disconnect the ABS-ECU connector, and

measure the voltages between earth terminal
No.13 or No.38 and each respective terminal.

3. The terminal layout is shown in the illustration.

NOTE: Do not measure terminal voltage for approxi-
mately three seconds after the ignition switch is
turned to the "ON" position. The ABS-ECU performs
the initial check during that period.

ACB05853

Termin
al No.

Terminal
code

Check item

Checking requirements

Normal condition

1

+BM

Motor power supply

Always

Battery voltage

2

−5

−

−

−

−

6

IG1

ABS-ECU power supply(IG1)

Ignition switch: "ON"

Battery voltage

Ignition switch: "OFF"

1 V or less

7

−9

−

−

−

−

10

CANL

CAN bus line

−

−

11

CANH

CAN bus line

−

−

12

−

−

−

−

13

GND1

Earth

Always

1 V or less

14

−24

−

−

−

−

25

+BV

Solenoid valve power supply

Always

Battery voltage

26

FR-

Wheel speed sensor (FR)
signal

Drive vehicle

Approximately
system voltage

27

FR+

Wheel speed sensor (FR)
power supply

Ignition switch: "ON"

Approximately
system voltage

28

−

−

−

−

29

RL+

Wheel speed sensor (RL)
power supply

Ignition switch: "ON"

Approximately
system voltage

30

RL-

Wheel speed sensor (RL)
signal

Drive vehicle

Approximately
system voltage

31, 32

−

−

−

−

33

RR-

Wheel speed sensor (RR)
signal

Drive vehicle

Approximately
system voltage

34

RR+

Wheel speed sensor (RR)
power supply

Ignition switch: "ON"

Approximately
system voltage

35

−

−

−

−

36

FL+

Wheel speed sensor (FL)
power supply

Ignition switch: "ON"

Approximately
system voltage

ON-VEHICLE SERVICE

ANTI-SKID BRAKING SYSTEM (ABS)

35B-58

CONTINUITY CHECK AT WIRING
HARNESS-SIDE CONNECTOR

ACB04918

AB

Lock lever

1. Operate the lock lever to disconnect the

ABS-ECU harness connector as shown in the
figure.

2. Check the resistance and continuity between the

terminals indicated in the table below.

3. The terminal layout is shown in the illustration.

ACB05853

Terminal No.

Signal

Normal condition

13

− body earth

Earth

Continuity exists (2

Ω or

less)

38

− body earth

Earth

Continuity exists (2

Ω or

less)

ON-VEHICLE SERVICE

WHEEL SPEED SENSOR OUTPUT
CURRENT MEASUREMENT

M1352032800043

The relevant wheel, on which the wheel speed sen-
sor is fitted, should be free to run.

1. Remove the wheel speed sensor connector to be

checked.

37

FL-

Wheel speed sensor (FL)
signal

Drive vehicle

Approximately
system voltage

38

GND2

Earth

Always

1 V or less

Termin
al No.

Terminal
code

Check item

Checking requirements

Normal condition
