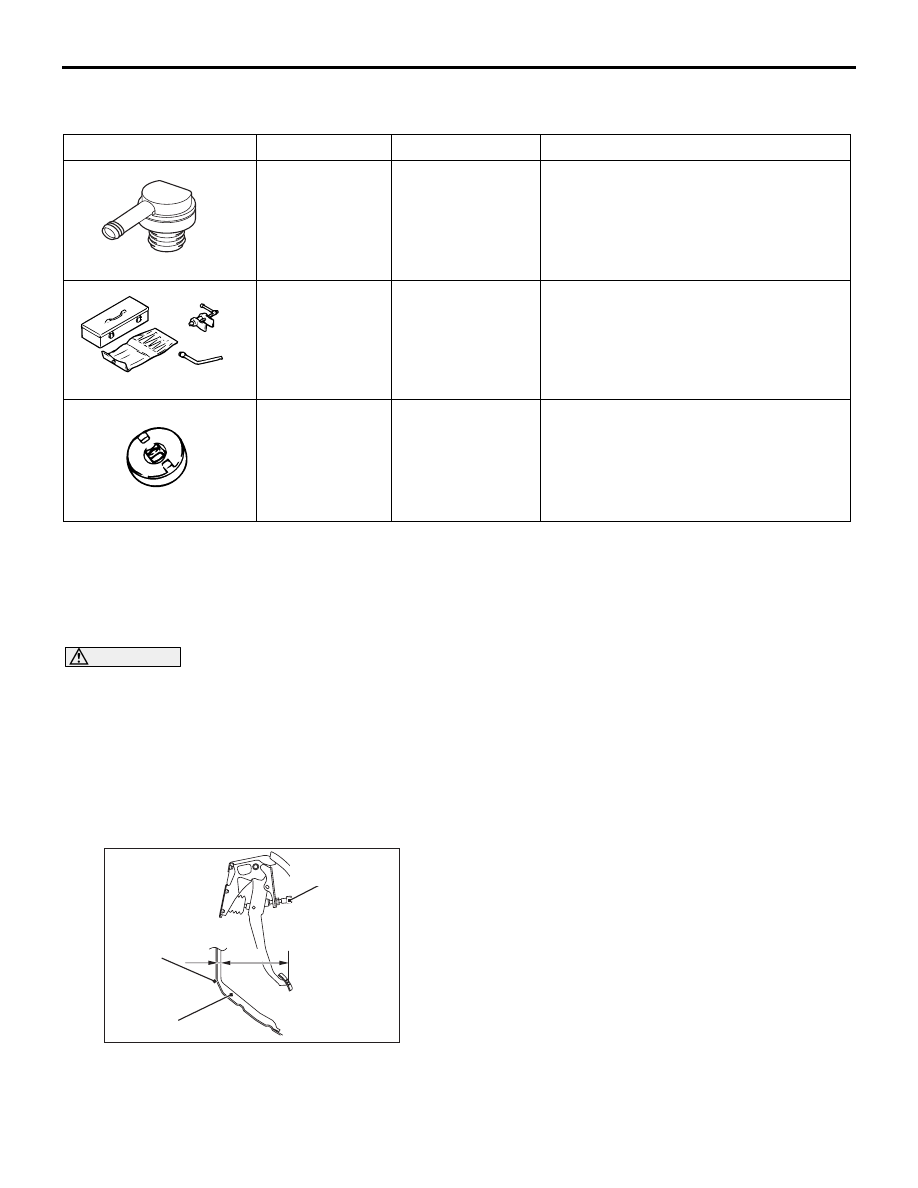

SPECIAL TOOLS

BASIC BRAKE

35A-3

SPECIAL TOOLS

M1352000601872

Tool

Number

Name

Use

MB992146

MB992146

Booster test
adapter

Inspection using a simplified tester

MB990964

A

B

a

MB990964
a: MB990520

Brake tool set
a: Piston expander

Disc brake piston pushing back <Front
disc brake>

MB991621

MB991621

Piston driver

Disc brake piston pushing back <Rear
disc brake>

ON-VEHICLE SERVICE

BRAKE PEDAL CHECK

M1351003501042

CAUTION

Do not apply grease or lubricant to the switch
and the switch installation section to avoid mal-
function of the switch. In addition, do not use
gloves which have grease on them.

BRAKE PEDAL HEIGHT CHECK

1. Turn up the floor carpet under the brake pedal.

2. Remove the stop lamp switch (Refer to

P.35A-13

).

AC505506AE

B

A

Dash panel

Dash panel pad

Stop lamp
switch

3. Use a needle or similar tool to measure the

dimension A in the figure (distance from the dash
panel pad surface to the dash panel).

4. Measure the dimension B in the figure (distance

from the pedal pad surface to the dash panel pad
surface).

5. Make sure that the total of the dimensions A and

B measured in Steps 3 and 4 (brake pedal height)
is within the standard value.

Standard value (A+B): 221.8

− 227.8 mm

6. When the brake pedal height is not within the

standard value, inspect the brake pedal in the
following procedure.
(1) Remove the brake pedal assembly (Refer to

P.35A-13

).

(2) Check the removed brake pedal assembly for

distortion, and replace it when deformed
(Refer to

P.35A-14

).

(3) Install the brake pedal assembly (Refer to

P.35A-13

).

NOTE: When installing, compress the dash
panel pad.

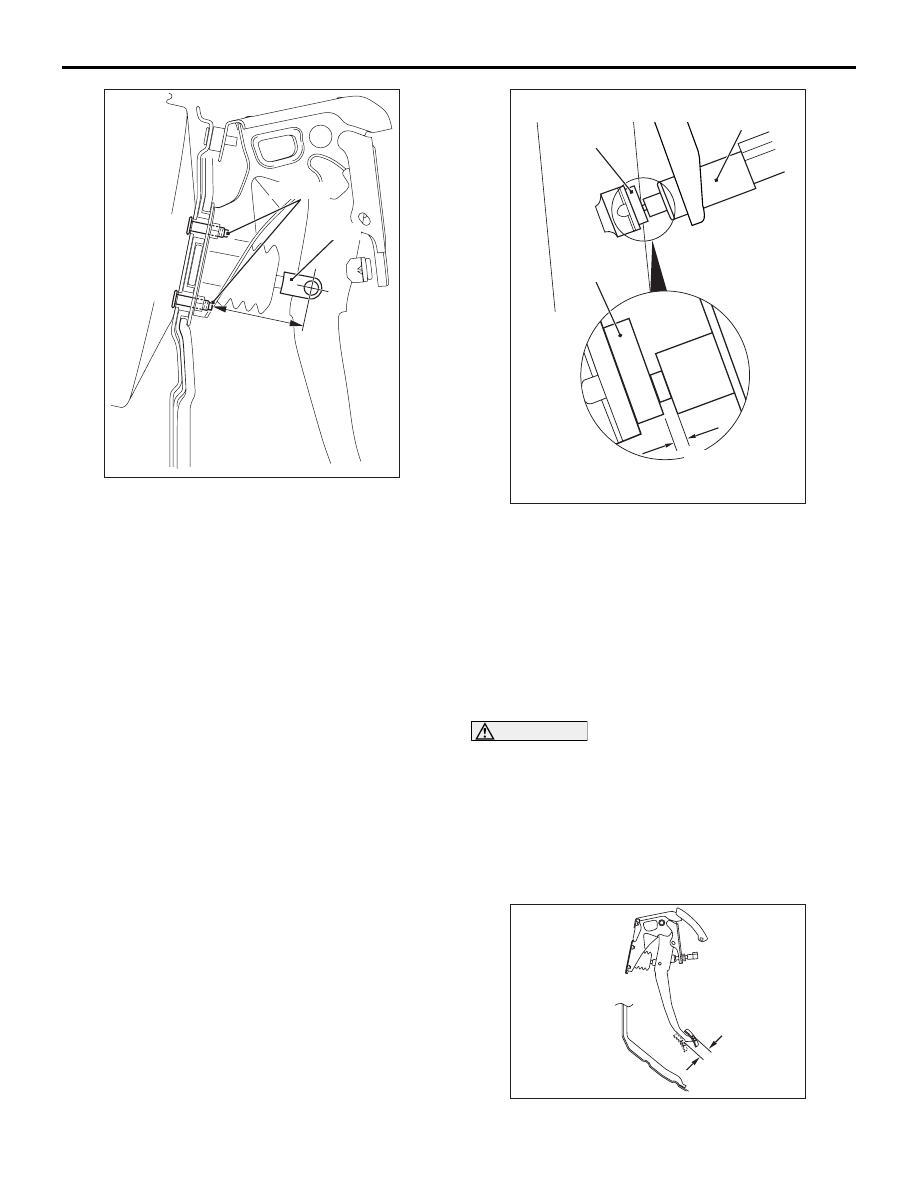

AC508163AB

C

Clevis

Stud bolt

ON-VEHICLE SERVICE

BASIC BRAKE

35A-4

(4) Measure the brake pedal height again, and

make sure that it is within the standard value
(A+B).



When the measured value is not within the
standard value, measure the dimension C in
the figure (distance from the stud bolt end to
the clevis hole centre), and make sure it is
within the standard value (C).

Standard value (C): 75.8

− 80.2 mm

(5) When the measured value is not within the

standard value (C), replace the brake booster
(Refer to

P.35A-15

).

AC309282 AF

0.5 to 1.5 mm

Stop lamp switch

Pedal stopper

Pedal stopper

7. After checking the brake pedal height, install the

stop lamp switch in the following procedure:
(1) Screw in the stop lamp switch until its thread

contacts the pedal stopper, then turn the
switch approximately one eighth of a
clockwise turn to fix it. While doing this, pull
and hold the brake pedal by hand.

(2) Check that the clearance between the stop

lamp switch and the pedal stopper is as shown
in the figure.

CAUTION

Make sure that the stop lamp is not illuminated
when the brake pedal is not depressed.

(3) Connect the stop lamp switch connector.

8. Recover the floor carpet under the brake pedal.

BRAKE PEDAL FREE PLAY CHECK AND
ADJUSTMENT

AC505506AH

D

ON-VEHICLE SERVICE

BASIC BRAKE

35A-5

1. With the engine stopped, depress the brake pedal

2 or 3 times to relief the vacuum in the brake
booster. Then, press the brake pedal with your
finger and check if the pedal stroke until the pedal
becomes heavy (play) is within the standard
value.

Standard value (D): 3

− 8 mm

2. When the brake pedal free play is not within the

standard value, check the brake pedal-to-clevis
pin looseness, clevis pin-to-booster operating rod
looseness, brake pedal height, and stop lamp
switch position, and adjust or replace as
necessary.

BRAKE PEDAL-TO-FLOOR PANEL
CLEARANCE CHECK AND ADJUSTMENT

1. Turn up the floor carpet under the brake pedal.

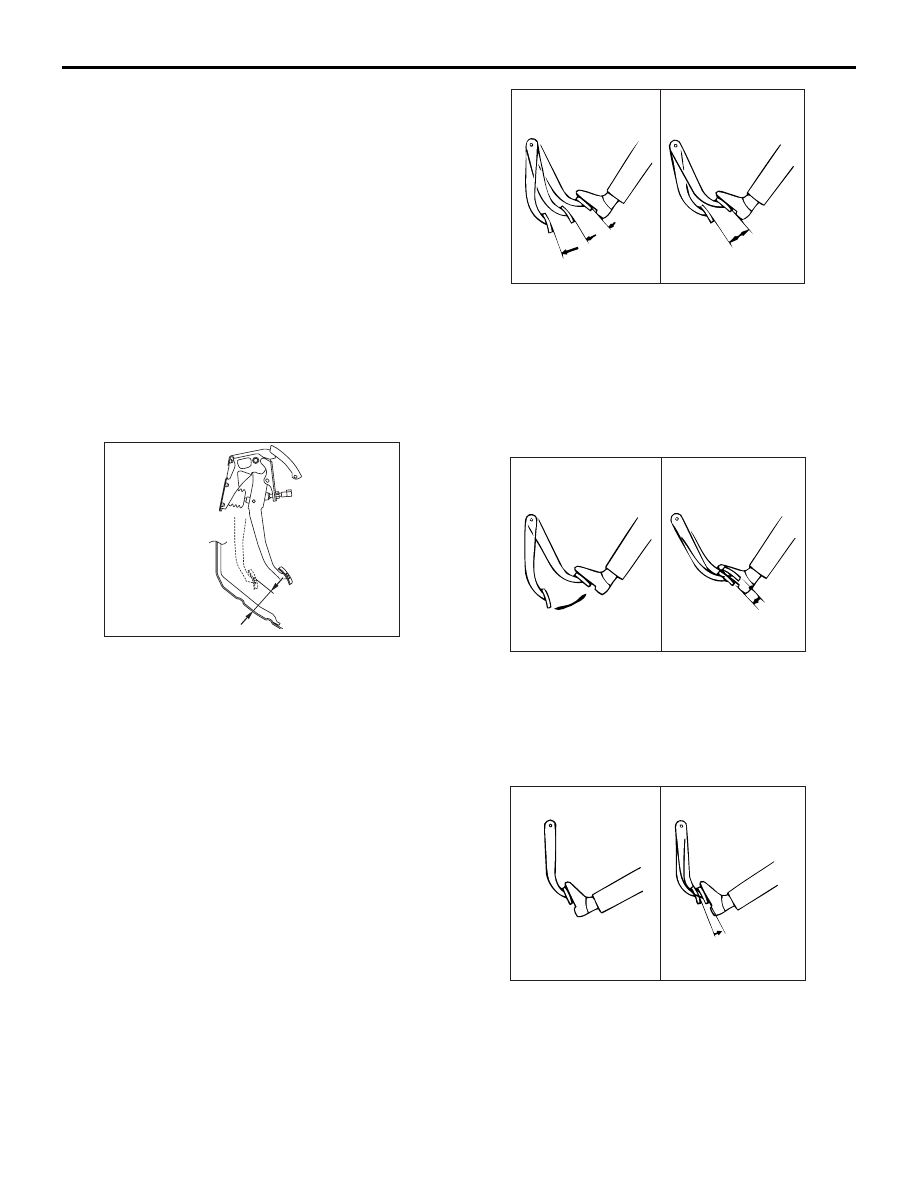

AC505506AL

E

2. Start the engine and depress the brake pedal with

approximately 500 N, and measure clearance
between the brake pedal and the floor panel.

Standard value (E): 80 mm or more

3. When the clearance is not within the standard

value, check for the air in the brake line and
thickness of the disc brake pad, and correct or
replace as necessary.

4. Recover the floor carpet under the brake pedal.

BRAKE BOOSTER OPERATION CHECK

M1351001001331

INSPECTION WITHOUT USING TESTER

1. Carry out the simplified brake booster operation

check in the following procedure:

AC000870AC

Good

No good

Once

Second

Third

(1) Run the engine for 1 to 2 minutes, and then

stop. Depress the brake pedal with normal
depression force. The result is judged as
"Good" when the pedal stroke is great at the
first depression, and becomes smaller as you
repeat depressing the pedal. If the pedal
stroke does not change, the result is judged as
"No Good."

AC000871AC

When engine
is stopped

When engine
is started

(2) With the engine stopped, depress the brake

pedal several times. Keep the brake pedal
depressed and start the engine. At this time,
when the pedal moves down slightly, the result
is judged as "Good." The result is judged as
"No Good" if the pedal does not moves down.

AC000872 AC

Good

No good

(3) With the engine running, depress the brake

pedal. Stop the engine in this condition. The
result is judged as "Good" when the pedal
height does not change for approximately 30
seconds. The result is judged as "No Good" if
the pedal moves up.

ON-VEHICLE SERVICE

BASIC BRAKE

35A-6

2. The brake booster is judged as normal when the

results of all the above checks are "Good."

When one or more of the above check results are
"No Good," then the check valve, vacuum hose,
or brake booster is suspected faulty.

INSPECTION USING SIMPLIFIED TESTER

1. Before starting this inspection, remove the brake

booster check valve from the vehicle and check its
operation (Refer to

P.35A-15

).

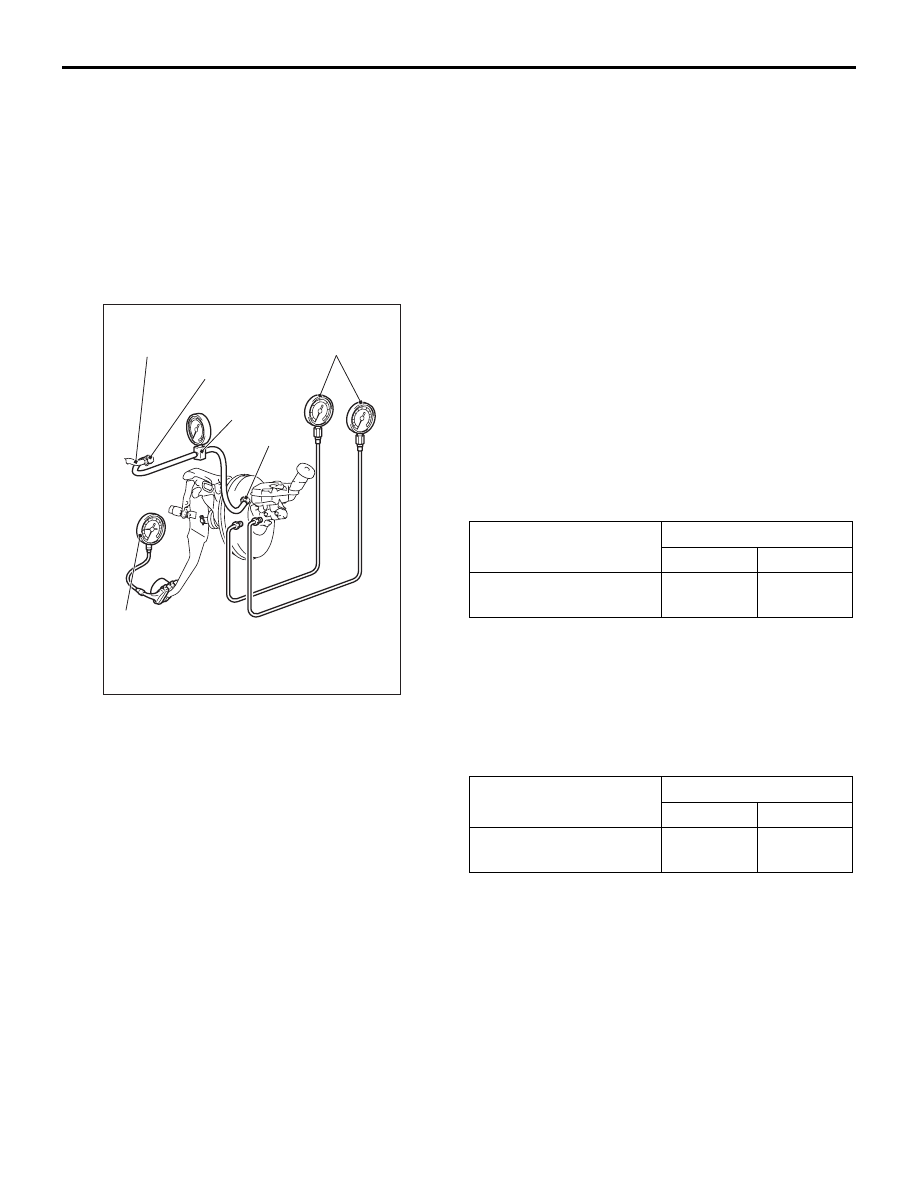

AC610136

Pressure gauge

Vacuum
gauge

Vacuum hose

Checkvalve

MB992146

Pedal depression
gauge

AB

2. After checking, install the check valve to the

vacuum hose and connect it to the vacuum
gauge. Install special tool booster test adapter
(MB992146) to the brake booster and connect it
to the vacuum gauge. Connect the pressure
gauge and pedal depression gauge as shown in
the figure. Bleed the pressure gauge and then
perform the following tests:
(1) Airtightness test with no load

Start the engine, and stop it when the vacuum
gauge indicator has reached approximately
−67 kPa. The result is judged as "Good" when
the drop of the vacuum approximately 15
seconds after the engine was stopped is within
−3.3 kPa.

(2) Airtightness test with load

Start the engine and depress the brake pedal
with 200 N. Stop the engine when the vacuum
gauge indicator reached approximately

−67

kPa. The result is judged as "Good" when the
drop of the vacuum approximately 15 seconds
after the engine was stopped is within

−3.3

kPa.
When one or more of the above check results
are judged as "No Good," the vacuum hose or
brake booster is suspected faulty.

(3) Brake booster characteristics test

Perform this test after the above (1) and (2)
were performed.
a. Non-servo effect test

With the engine stopped, make sure that
the vacuum gauge reading is 0 kPa.
Depress the brake pedal with 100 N and
300 N, and measure the fluid pressure
generated.

Standard value:

Item

Pedal depression force

100 N

300 N

Generated fluid pressure
kPa

0

− 600

1,030

−

2,220

b. Servo effect test

Start the engine. Depress the brake pedal
with 100 N and 300 N when the vacuum
gauge indicator reached approximately

−67

kPa, and measure the fluid pressure
generated.

Standard value:

Item

Pedal depression force

100 N

300 N

Generated fluid pressure
kPa

6,570

−

8,330

10,370

−

11,560

CHECK VALVE OPERATION CHECK

M1351009001197

1. Remove the check valve (Refer to

P.35A-15

).
