TRAILING ARM

REAR SUSPENSION

34-12

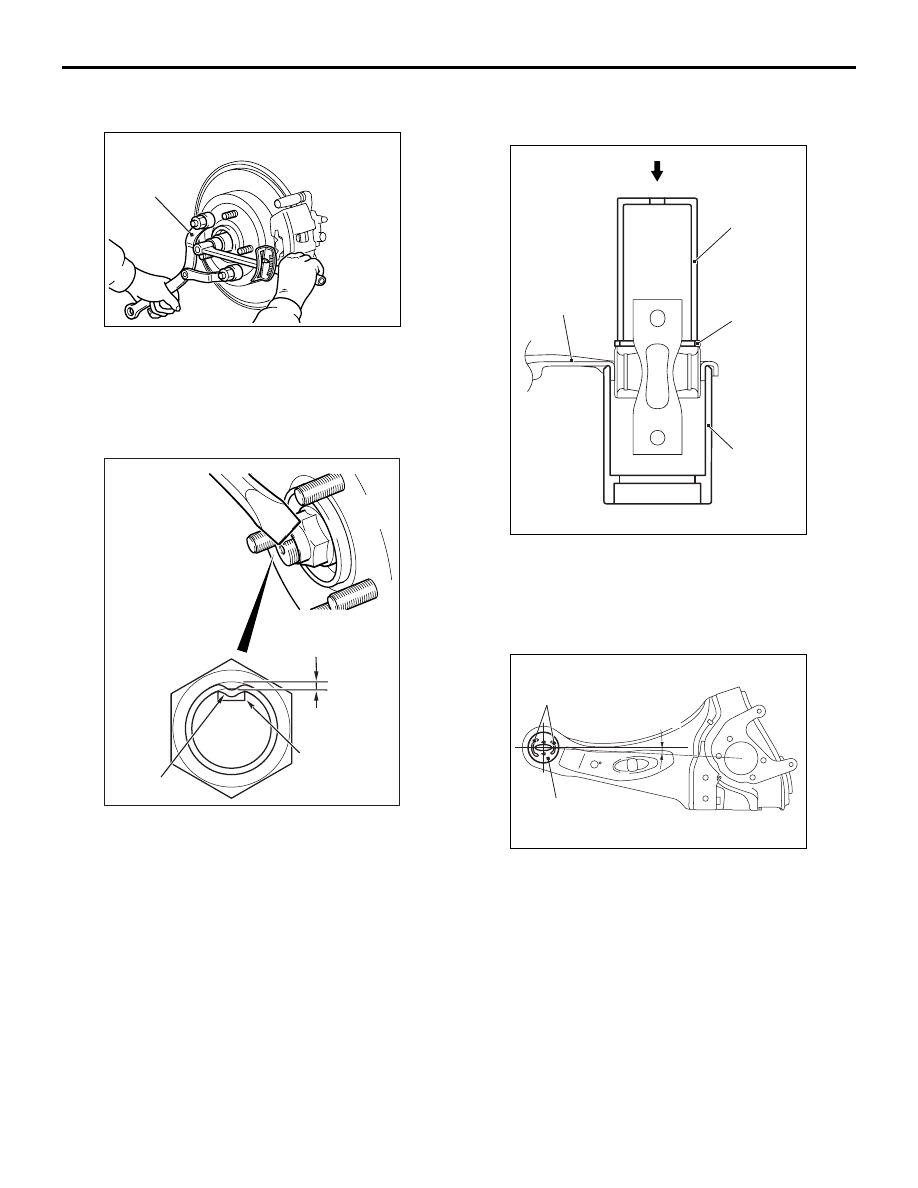

2. Check that the new driveshaft nut can be turned

smoothly by hand. Then tighten it until it is seated.

ACB05690

MB990767

AB

3. Using special tool front hub and flange yoke

holder (MB990767), tighten the driveshaft nut.

Tightening torque: 160

± 16 N⋅m

4. After tightening to the specified torque, check that

the nut is seated securely.

ACA01211

1.6 mm
or more

AC

Groove

Staked portion

5. Use the chisel and a hammer to stake the nut until

the centre in the staked portion reaches the
shown dimension.

6. Finally, check that the nut is not cracked at its

staked portion.

INSPECTION

M1341002300353

• Check the bushings for wear and deterioration.

• Check the trailing arm for bending or damage.

TRAILING ARM BUSHING
REPLACEMENT

M1341011300685

ACB05656

MB991523

MB992125

Trailing arm

Driving Out

MB992865

AB

1. Use the following special tools to remove the

trailing arm bushing:

• Arm bushing remover and installer (MB992123)

• Spacer base (MB992865)

•

ACB05702

Bushing to body
connecting part

Bushing
inner space

AB

3˚ ± 3˚

Arm bushing base (MB992125)

2. Determine the installation direction and the

installation position of the trailing arm bushing.
(1) Install so that the protruding side of the trailing

arm bushing inner pipe faces inside the body.

(2) Position horizontally the trailing arm bushing to

body connecting part, and locate bushing
inner space as shown in the figure.

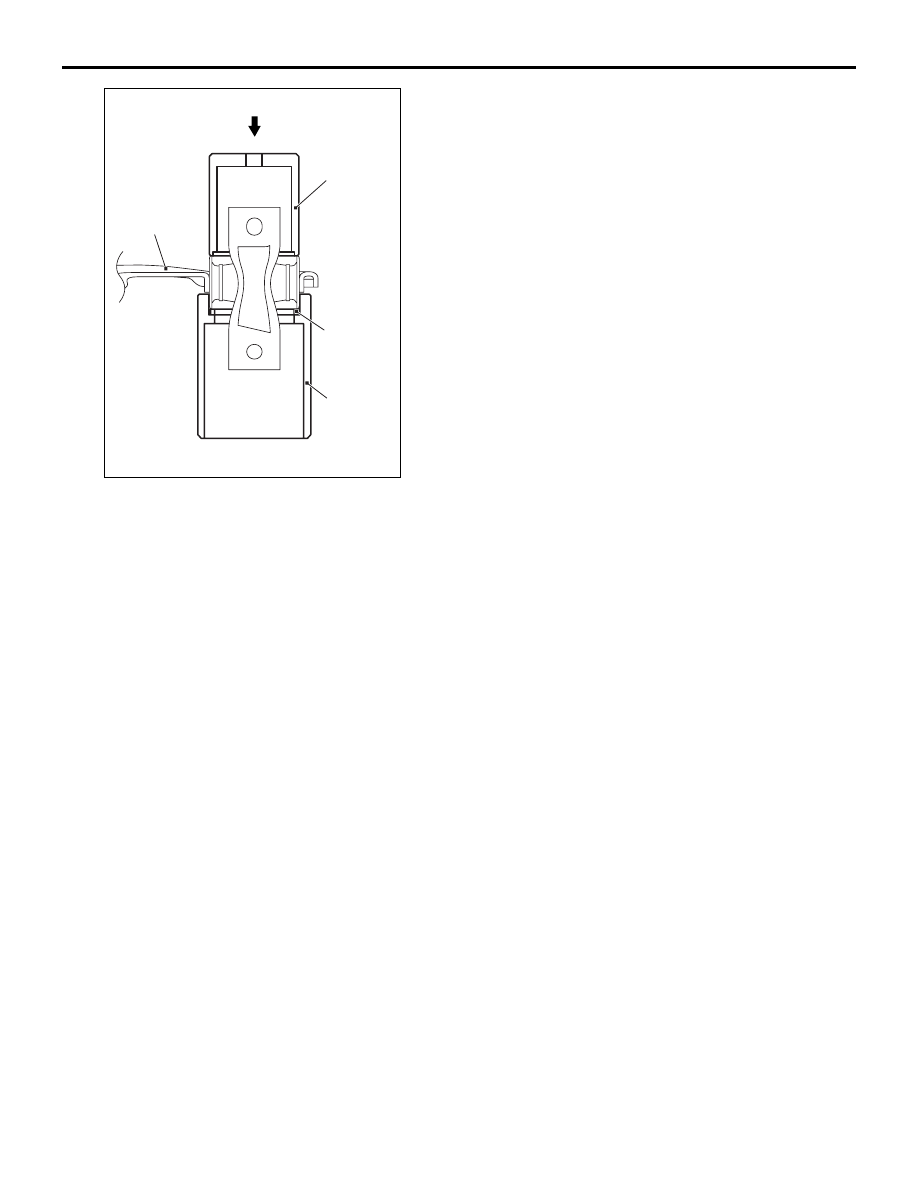

ACB05657

MB990890

MB992125

Trailing arm

Press-fitting

MB992865

AB

TRAILING ARM

REAR SUSPENSION

34-13

3. Use the following special tools to press-fit the

trailing arm bushing up to the position shown in
the figure:

• Arm bushing remover and installer (MB990890)

• Spacer base (MB992865)

• Arm bushing base (MB992125)

SHOCK ABSORBER ASSEMBLY

REAR SUSPENSION

34-14

SHOCK ABSORBER ASSEMBLY

REMOVAL AND INSTALLATION

M1341002500982

CAUTION

The parts indicated by

*

 are the bolts/nuts with friction coefficient stabilizer. In removal, ensure there

is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten them to the
specified torque.

Post-installation operation
• Check the dust cover for cracks or damage by pushing it

with your finger.

• Check the beam direction of the headlamp (Low beam)

(Refer to GROUP 54A

− Headlamp Aiming ).

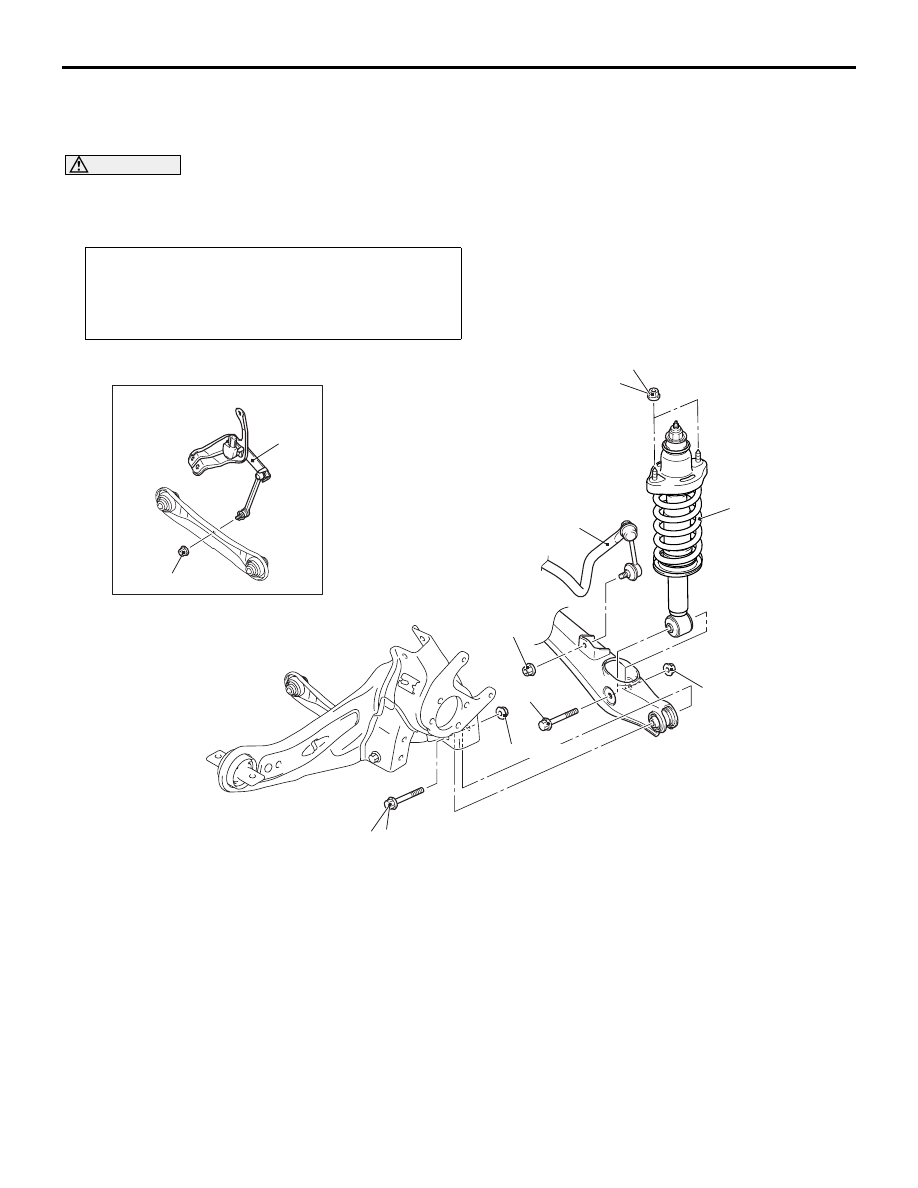

ACB05589AB

6

2

3

4

5

45 ± 7 N·m

39 ± 6 N·m

71 ± 10 N·m*

*

9.5 ± 2.5 N·m

1

71 ± 10 N·m*

<Right side>

Removal steps

1.

Rear height sensor to control link
connection <Vehicles with
discharge headlamp>

2.

Stabilizer link connection

<<

A

>>

3.

Lower arm and trailing arm
connection

<<

A

>>

4.

Shock absorber and lower arm
connection

<<

B

>>

5.

Shock absorber mounting nut

<<

C

>>

>>

A

<<

6.

Shock absorber assembly

Removal steps (Continued)

SHOCK ABSORBER ASSEMBLY

REAR SUSPENSION

34-15

REMOVAL SERVICE POINTS

<<A>> LOWER ARM AND TRAILING
ARM/SHOCK ABSORBER AND LOWER
ARM DISCONNECTION

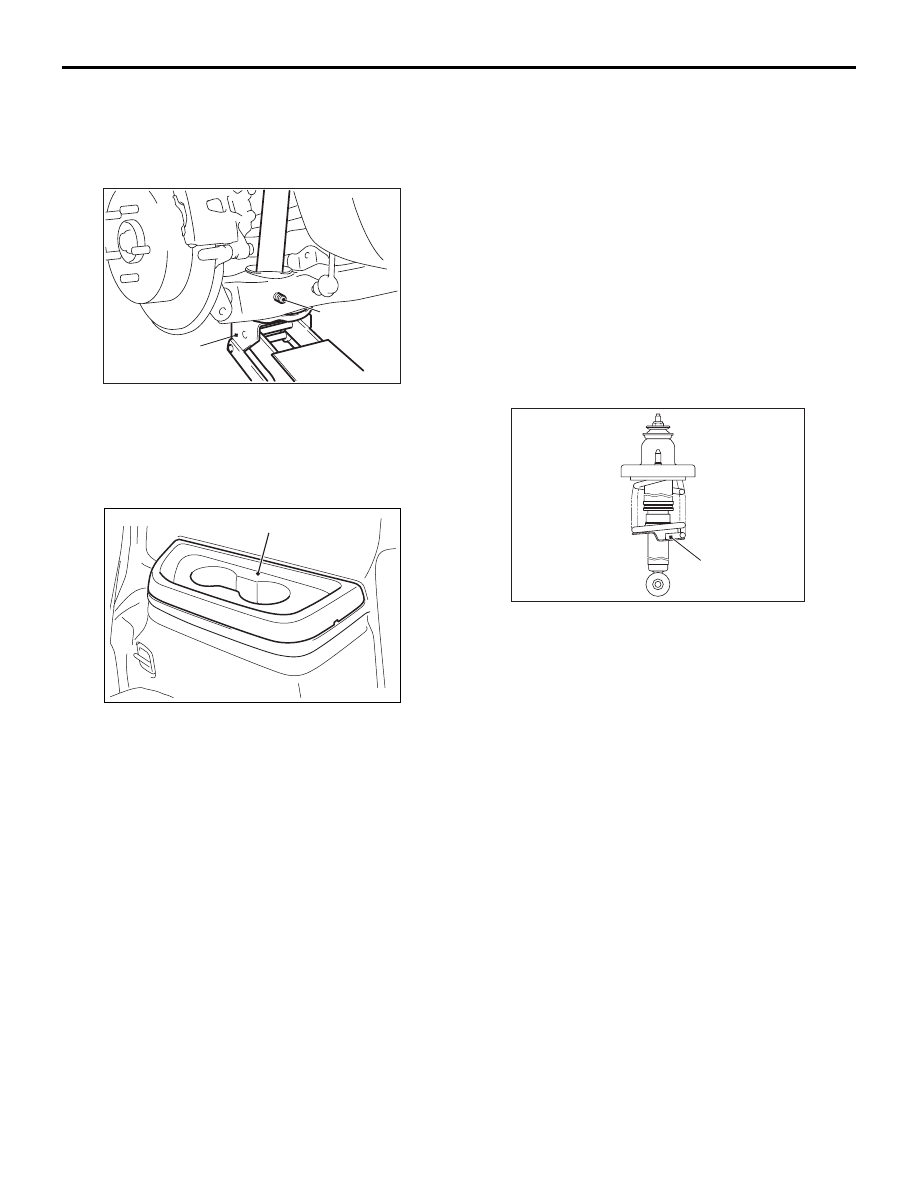

AC602688 AB

Mounting
bolt

Garage
jack

While jacking-up the lower arm with garage jack,
remove the mounting bolts.

<<B>> SHOCK ABSORBER MOUNTING
NUT REMOVAL

ACB05936

<Right side>

Quarter trim side tray

AB

Remove the appropriate quarter trim side tray to
remove the shock absorber mounting nut. <Right
side>
On the left side, remove the quarter trim (Refer to
GROUP 51A

− Interior Trim ). <Left side>

<<C>> SHOCK ABSORBER ASSEMBLY
REMOVAL

After having loosened the lower arm and rear sus-
pension crossmember connection, remove the shock
absorber assembly.

INSTALLATION SERVICE POINT

>>A<< SHOCK ABSORBER ASSEMBLY
INSTALLATION

AC508628 AB

Coil spring end

Install the shock absorber assembly so that the coil
spring end faces the rear of the vehicle.

INSPECTION

M1341002600246

• Check the rubber parts for cracks and wear.

• Check the shock absorber for malfunctions, oil

leakage, or abnormal noise.
