Mitsubishi Outlander (2013+). Manual - part 424





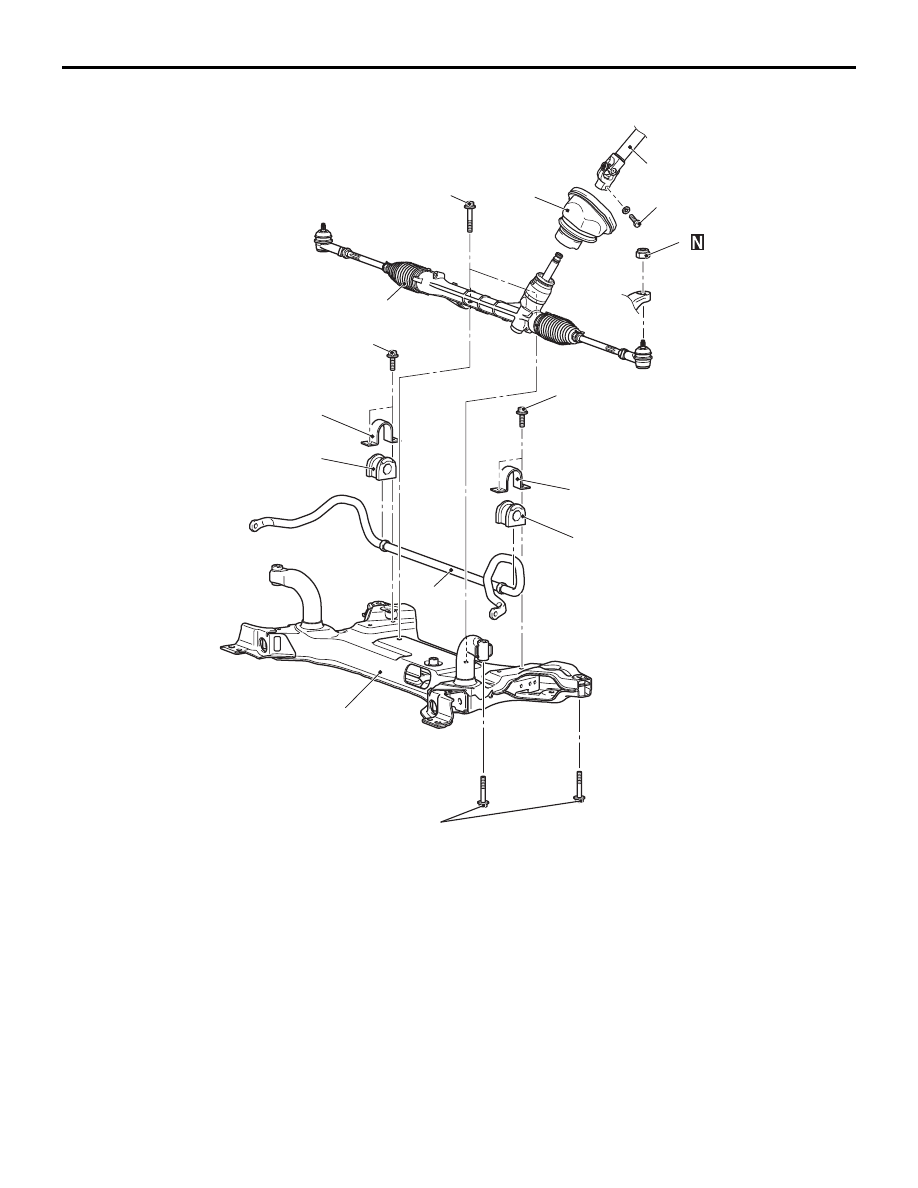

ACB05555 AB

31 ± 4 N·m

31 ± 4 N·m

*

110 ± 11 N·m

9

8

6

7

6

7

5

3

1

2

4

70 ± 10 N·m

Removal steps

1.

Steering column bolt

2.

Steering column shaft
assembly and steering gear
and linkage assembly
connection

<<

A

>>

3.

Self-locking nut (Tie-rod end
and knuckle connection)

Front floor backbone brace
and front end side panel
(Refer to GROUP 42A

−

Loose Panel )

<<

B

>>

Crossmember assembly

>>

C

<<

4.

Joint cover grommet

5.

Steering gear and linkage
assembly

6.

Stabilizer bar bracket

>>

B

<<

7.

Stabilizer bushing

>>

A

<<

8.

Stabilizer bar

9.

Front axle crossmember

CROSSMEMBER

POWER PLANT MOUNT

32-6

Removal steps (Continued)

CROSSMEMBER

POWER PLANT MOUNT

32-7

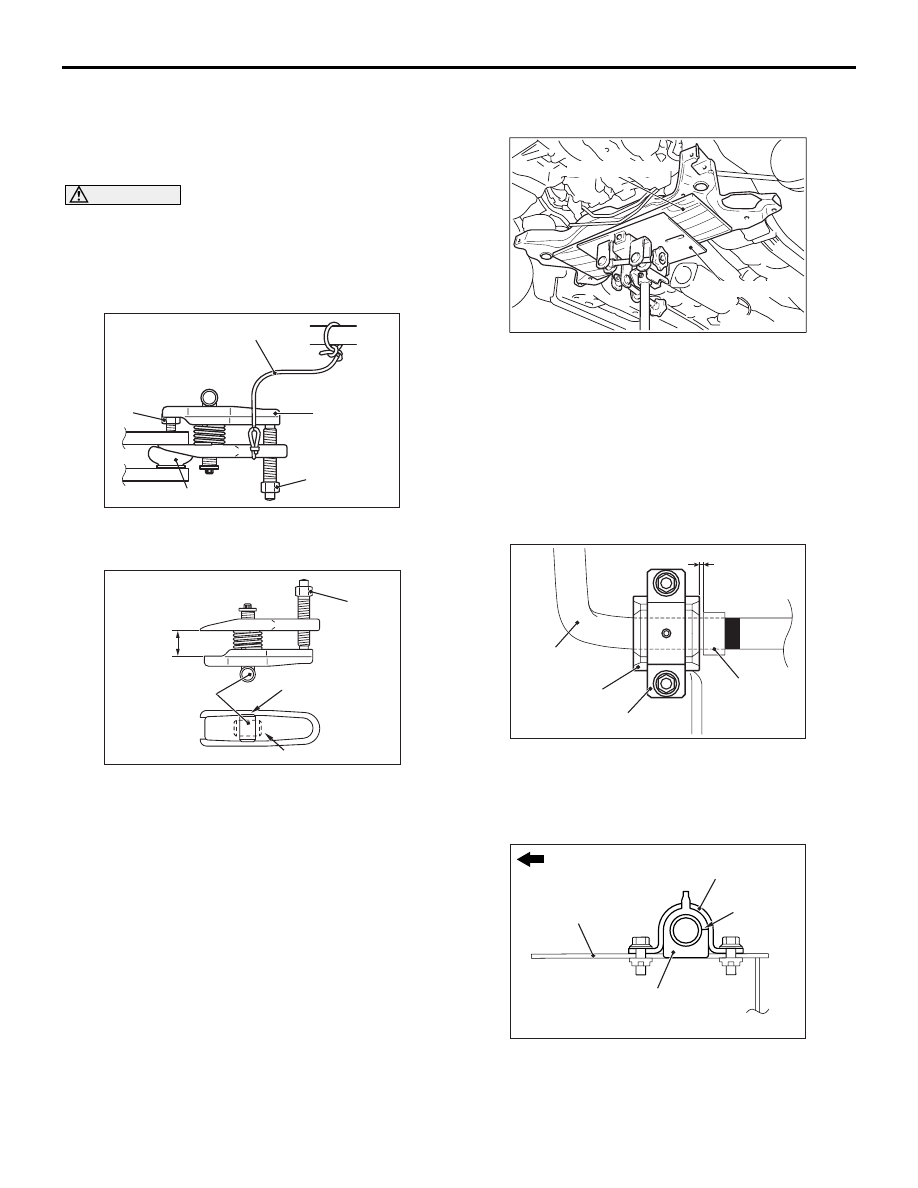

REMOVAL SERVICE POINTS

<<A>> SELF-LOCK NUT (TIE-ROD END
AND KNUCKLE CONNECTION)
REMOVAL

CAUTION

• Do not remove the self-lock nut from the ball

joint, but only loosen it, and use the special
tool.

AC208247AJ

Cord

Bolt

MB991897
or
MB992011

Nut

Ball joint

To prevent the special tool from dropping off,
suspend it with a cord.

1. Install the special tool ball joint remover

(MB991897or MB992011) as shown in the figure.

AC104739

Knob

Parallel

Bolt

Correct

Wrong

AE

2. Turn the bolt and knob to make the special tool

jaws parallel, then hand-tighten the bolt. After
tightening, check that the jaws are still parallel.

NOTE: To adjust the special tool jaws to be paral-
lel, set the knob as shown in the figure so that it
functions as a fulcrum of the jaws.

3. Turn the bolt and disconnect the tie-rod end from

the steering knuckle.

<<B>> CROSSMEMBER ASSEMBLY
REMOVAL

AC605350

Transmission jack

Piece of wood

AB

1. Jack up and support the crossmember, and

remove it.

2. Check the hoses and harnesses for roughness,

and then remove the crossmember assembly with
the rear roll stopper rod assembly and the
steering gear and linkage installed.

INSTALLATION SERVICE POINTS

>>A<< STABILIZER BAR INSTALLATION

AC611658 AC

2.5 mm

Stopper ring

Stabilizer bushing

Stabilizer bar bracket

Stabilizer bar

Install the stabilizer bar as shown in the figure.

>>B<< STABILIZER BUSHING
INSTALLATION

AC609899

AB

Stabilizer bushing

Front axle
crossmember

Stabilizer bar
bracket

Slit

Front

Install the stabilizer bushing as shown in the figure.

CROSSMEMBER

POWER PLANT MOUNT

32-8

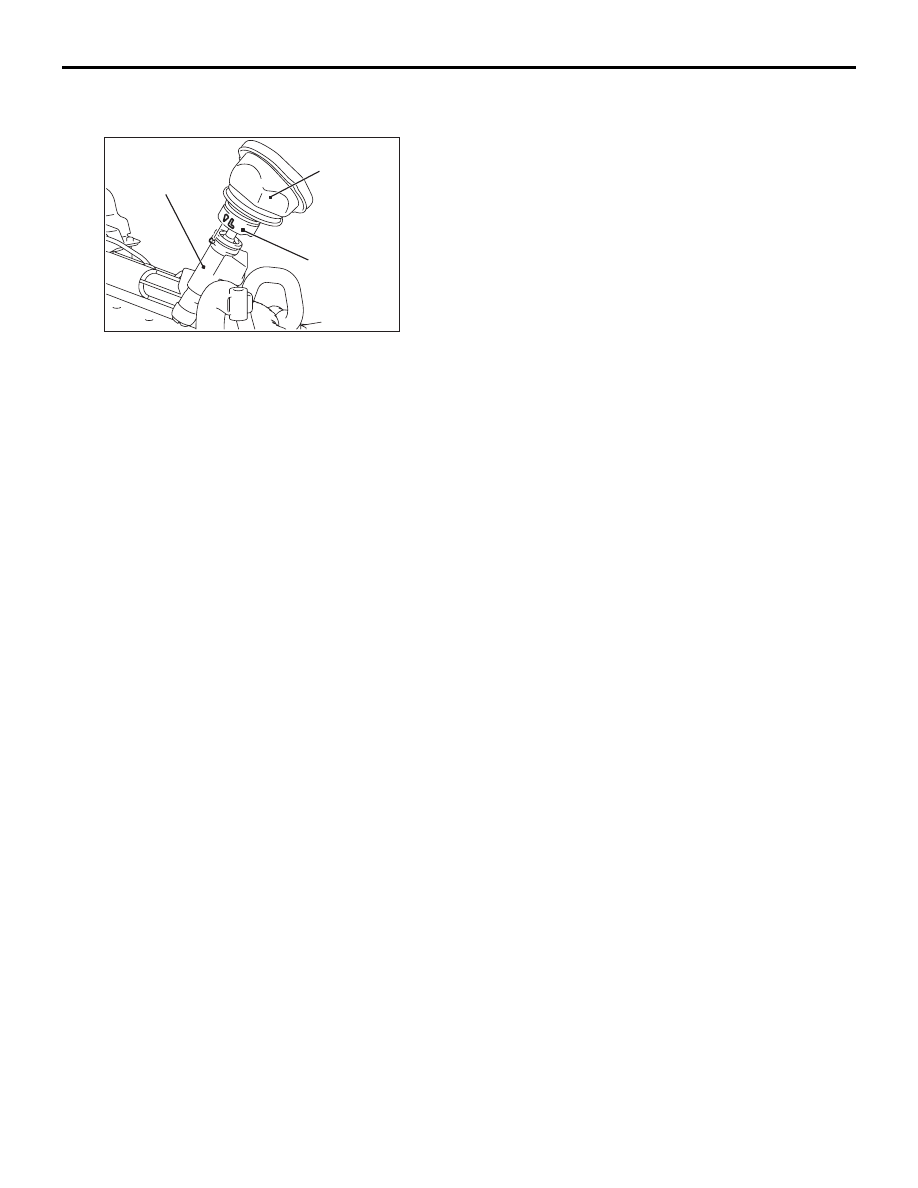

>>C<< JOINT COVER GROMMET
INSTALLATION

AC611661AB

Steering gear

Steering joint
cover assembly

Joint cover
grommet

<LH drive vehicles>

Install the joint cover grommet to the steering gear
and linkage by aligning the mating marks as shown
in the figure.
