Mitsubishi Outlander (2013+). Manual - part 423

SPECIAL TOOL

POWER PLANT MOUNT

32-2

SPECIAL TOOL

M1321000601304

Tool

Number

Name

Use

MB991897

MB991897 or
MB992011

Ball joint remover

Knuckle and tie rod end ball joint
disconnection

NOTE: Conventional steering linkage
puller, MB991406, MB990635 or
MB991113 can also be used

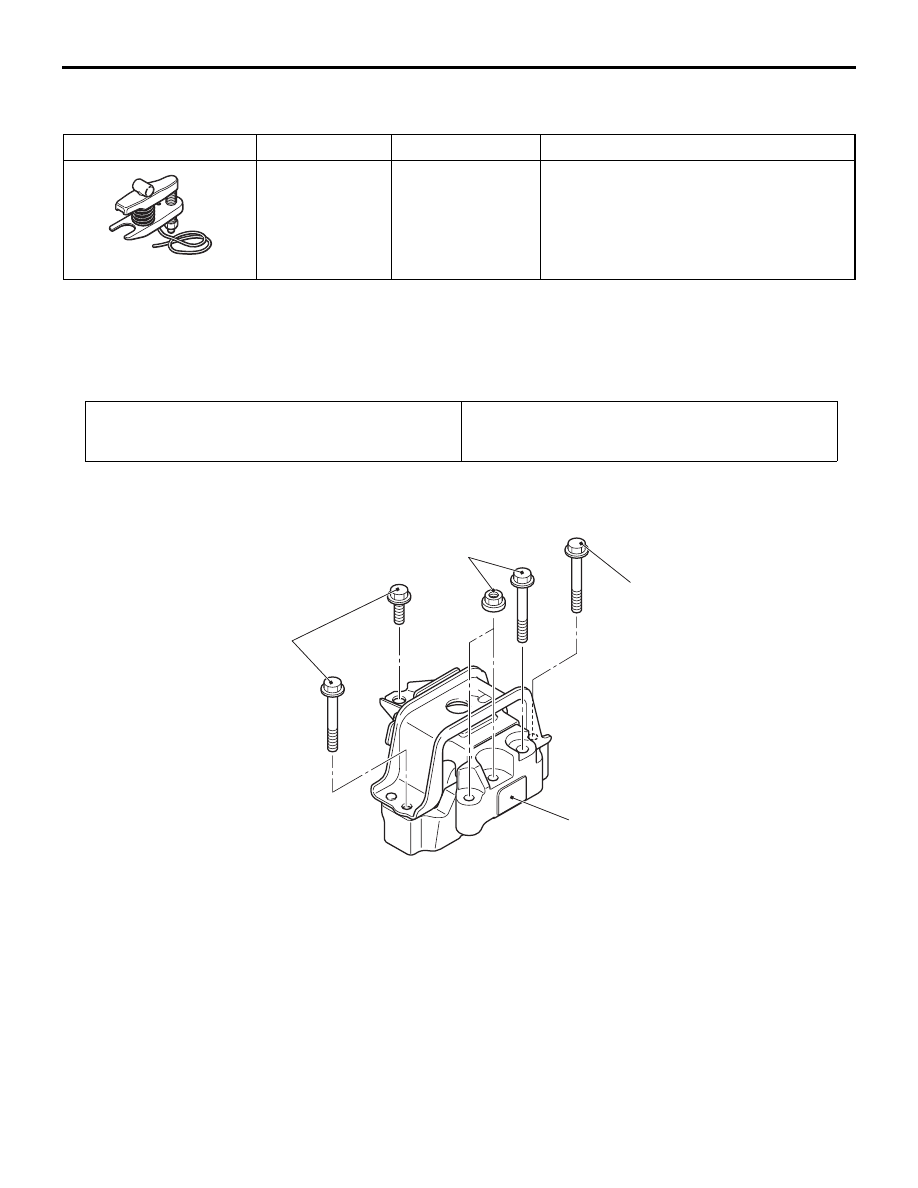

ENGINE MOUNTING

REMOVAL AND INSTALLATION

M1321001103427

Pre-removal Operation
• Engine Room Under Cover and Engine Room Side Cover

(RH) Removal (Refer to GROUP 51

− Under Cover ).

Post-installation Operation
• Engine Room Under Cover and Engine Room Side Cover

(RH) Installation (Refer to GROUP 51

− Under Cover ).

ACB05552 AB

1

66 ± 7 N·m

50 ± 5 N·m

50 ± 5 N·m

Removal steps

>>

A

<<

1.

Engine mounting bracket

TRANSMISSION MOUNTING

POWER PLANT MOUNT

32-3

INSTALLATION SERVICE POINTS

>>A<< ENGINE MOUNTING BRACKET
INSTALLATION

CAUTION

Do not remove small tapping screw.

ACC00489 AB

A

B

A

Tapping screw

Tighten the engine mounting bracket mounting
nuts by the following procedure.

Order

Mounting nuts

Tightening torque

1st

A

2.5

± 2.5 N⋅m

2nd

B

50

± 5 N⋅m

3rd

A

50

± 5 N⋅m

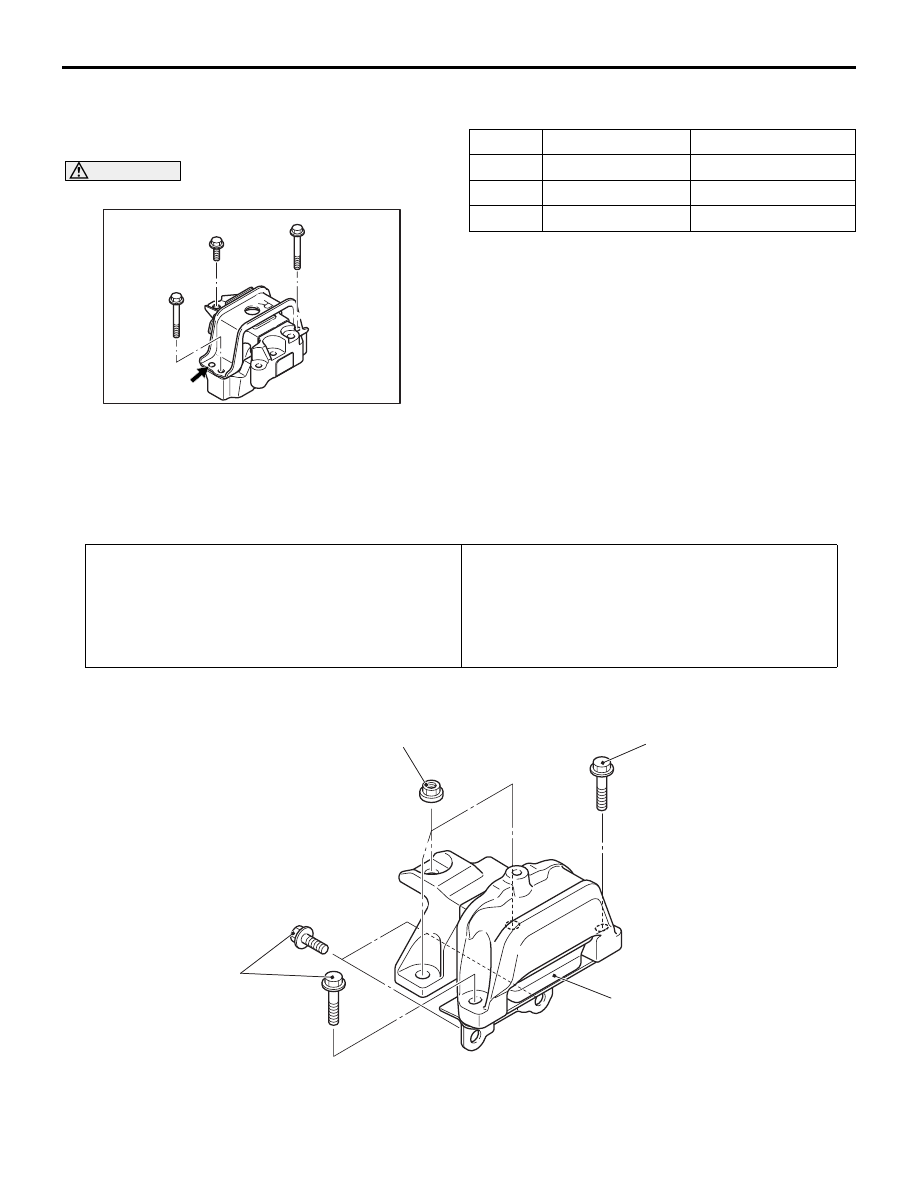

TRANSMISSION MOUNTING

REMOVAL AND INSTALLATION

M1321001402823

Pre-removal Operation
• Battery and Battery Tray Removal (Refer to GROUP 54A

− Battery ).

• Air Cleaner Assembly Removal (Refer to GROUP 15 − Air

Cleaner ).

• Engine-ECU Removal (Refer to GROUP 13A −

Engine-ECU ).

Post-installation Operation
• Engine-ECU Installation (Refer to GROUP 13A −

Engine-ECU ).

• Air Cleaner Assembly Installation (Refer to GROUP 15 −

Air Cleaner).

• Battery and Battery Tray Installation (Refer to GROUP

54A

− Battery ).

ACB05553 AB

1

82 ± 8 N·m

50 ± 5 N·m

50 ± 5 N·m

Removal steps

<<

A

>>

>>

A

<<

1.

Transmission mounting bracket

ENGINE ROLL STOPPER ROD

POWER PLANT MOUNT

32-4

REMOVAL SERVICE POINT

<<A>> TRANSMISSION MOUNTING
BRACKET REMOVAL

1. Place a garage jack against the transmission case

with a piece of wood in between to support the
engine and transmission assembly.

2. Operate a garage jack so that the transmission

weight is not applied to the transmission mounting
insulator, and remove the transmission mounting
bracket.

INSTALLATION SERVICE POINTS

>>A<< TRANSMISSION MOUNTING
BRACKET INSTALLATION

CAUTION

Do not remove small tapping screw on the back
side.

ACC00490 AB

A

B

B

Tighten the transmission mounting bracket
mounting nuts by the following procedure.

Order

Mounting nuts

Tightening torque

1st

A

2.5

± 2.5 N⋅m

2nd

B

50

± 5 N⋅m

3rd

A

50

± 5 N⋅m

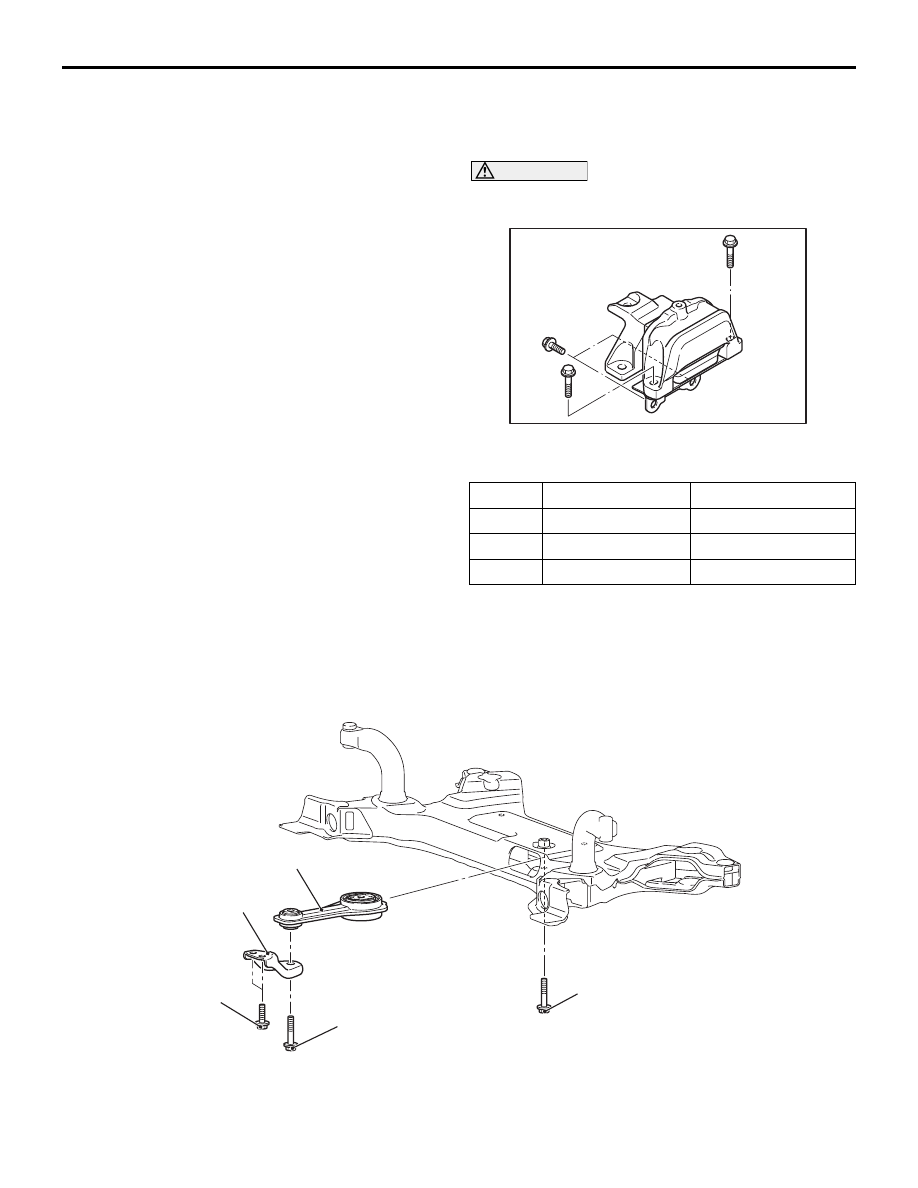

ENGINE ROLL STOPPER ROD

REMOVAL AND INSTALLATION

M1321004900229

ACB05554AB

123 ± 12 N·m

1

2

90 ± 10 N·m

123 ± 12 N·m

Removal steps

1.

Roll rod stay

2.

Engine roll stopper rod assembly

CROSSMEMBER

POWER PLANT MOUNT

32-5

CROSSMEMBER

REMOVAL AND INSTALLATION

M1321003202331

CAUTION

• Before removing the steering wheel assembly and driver's air bag module assembly, refer to

GROUP 52B

− Service Precautions  and Air Bag Module(s) and Clock Spring . Position the steering

wheel in the straight-ahead position, and remove the ignition key. If you fail to do this, clock
spring for SRS may get damage not to operate the SRS (air bag), and it may cause the serious
injury of the driver.

• The parts indicated by * are the bolts/nuts with friction coefficient stabilizer. In removal, ensure

there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten them
to the specified torque.

• After the installation, perform a calibration for the ASC-ECU to learn the steering wheel sensor

neutral point. (Refer to GROUP 35C

− On-vehicle Service, Steering Wheel Sensor Calibration ).

Pre-removal Operation
• Steering Wheel and Air Bag Module Assembly Removal

(Refer to GROUP 37B

− Steering Wheel ).

• Footrest Removal.

• Electric Power Steering-ECU Connector Removal (Refer

to GROUP 37B

− Electric Power Steering Control Unit ).

• Cowl Side Trim (LH, RH) Removal (Refer to GROUP 52A

− Interior Trim ).

• Steering Shaft Cover Removal (Refer to GROUP 37B −

Steering Shaft ).

• Engine Room Under Cover A, B and Engine Room Side

Cover Removal (Refer to GROUP 51

− Under Cover ).

• Lower Arm Assembly Removal (Refer to GROUP 33 −

Lower Arm ).

Post-installation Operation
• Using Your Fingers, Press The Tie-rod End Ball Joint Dust

Cover To Check for a Crack or Damage (Refer to GROUP
37B

− On-vehicle Service, Ball Joint Dust Cover Inspec-

tion ).

• Using Your Fingers, Press The Stabilizer Link Ball Joint

Dust Cover To Check for a Crack or Damage (Refer to
GROUP 33

− On-vehicle Service, Lower Arm Ball Joint

Dust Cover Inspection ).

• Lower Arm Assembly Installation (Refer to GROUP 33 −

Lower Arm ).

• Engine Room Under Cover and Engine Room Side Cover

A, B and Installation (Refer to GROUP 51

− Under Cover

).

• Electric Power Steering-ECU Connector Installation

(Refer to GROUP 37B

− Electric Power Steering Control

Unit ).

• Cowl Side Trim (LH, RH) Installation (Refer to GROUP

52A

− Interior Trim ).

• Steering Shaft Cover Installation (Refer to GROUP 37B −

Steering Shaft ).

• Footrest Installation.
• Clock Spring Centring (Refer to GROUP 52B − Driver's

Air Bag Module ).

• Steering Wheel and Air Bag Module Assembly Installation

(Refer to GROUP 37B

− Steering Wheel ).
